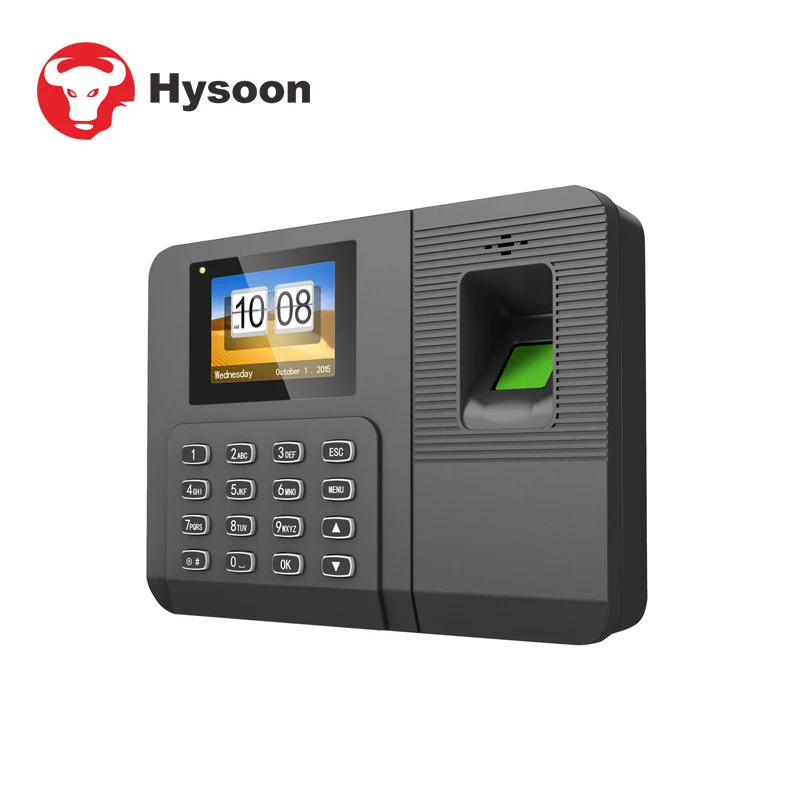

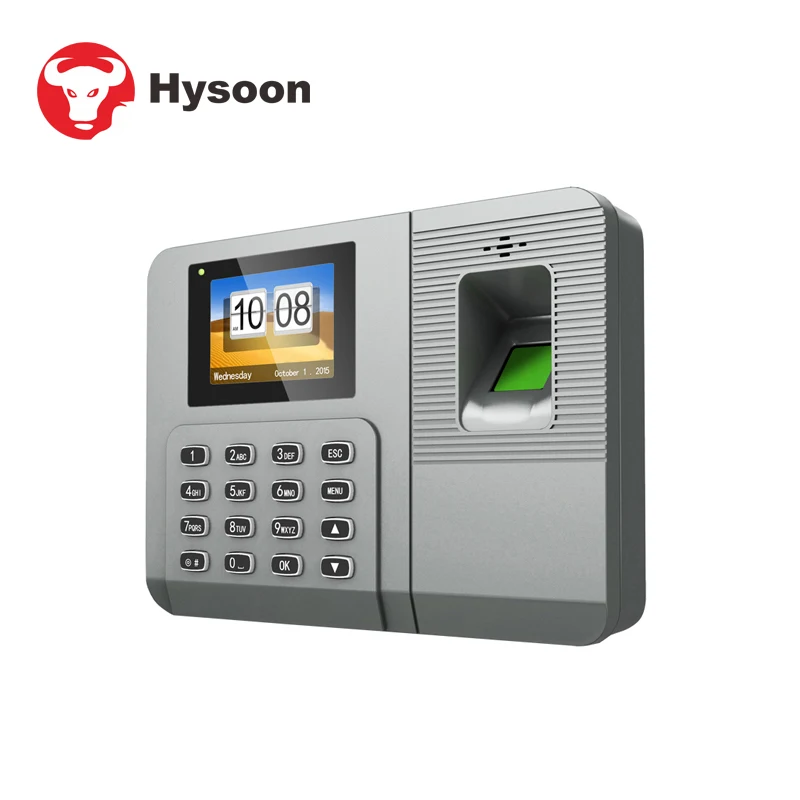

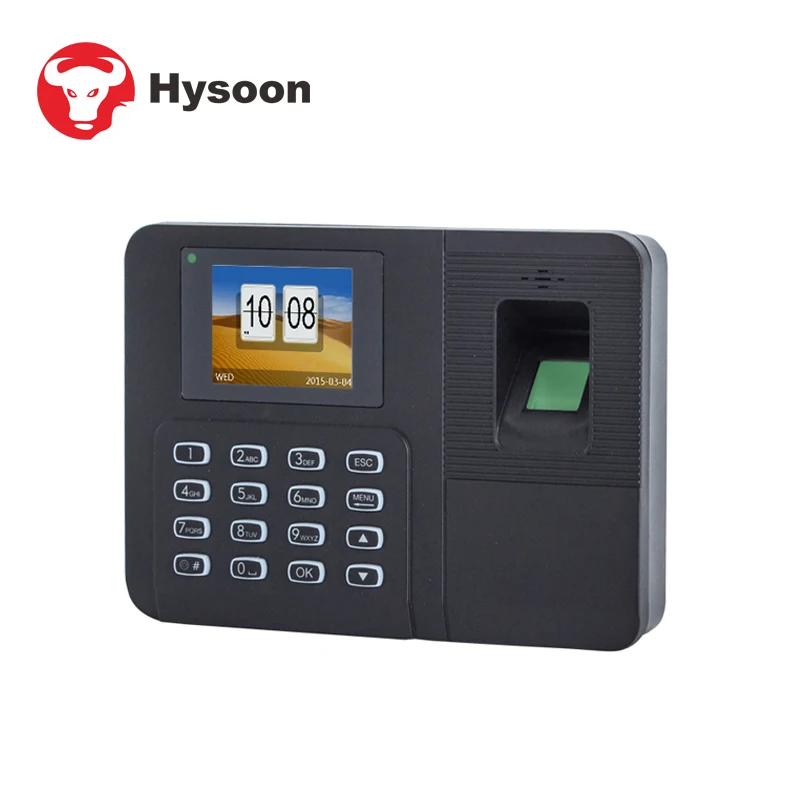

Отпечаток пальца, контроль времени и доступа с бесплатным SDK для офиса

Share on (60778959587):


Price:43,00 $ - 48,00 $

Quantity:


Product Overview

Description


Product Description

Features:

·World-class algorithm, high-speed and accurately identify fingerprint.
·Fingerprint/Pin/Card authentication.
·Suitable for the entrances and exits of office, factory, hotel, school, etc.
·2.4 inch TFT screen 320x240 pixel.
·TCP/IP + USB Flash Drive Download
·1 way relay output for control door lock.
·More helpful function like T9 input method, self-service inquiry, etc.

Specification:

\t
Model
\t
C31A
\t
C31B
\t
Max. user
\t
2,000
\t
5,000
\t
Log capacity
\t
160,000
\t
160,000
\t
RF card (optional)
\t
125kHz EM / 13.56MHz Mifare
\t
Access mode
\t
Fingerprint or Password or Card or Fingerprint+Password                            or Card+Password or Fingerprint+Card+Password
\t
Optional function
\t
TCP/IP(optional),2x relay(optional), Wiegand in & out (optional)
\t
Interface
\t
USB(host and slave)
\t
Other Features (Optional)
\t
Bell and Exit Button Supported
\t
LCD display
\t
2.4'' TFT color screen 320x240 pixel
\t
Voice instruction
\t
16-bit Hi-Fi voice & sound indication
\t
Language
\t
English, Korean, Japanese, Thai, Indonesian, etc.
\t
Verification time
\t
< 1 second [1:N]
\t
FRR (False Rejection Rate)
\t
< 1%
\t
FAR (False Acceptance Rate)
\t
< 0.0001%
\t
Power source
\t
5VDC/1A
\t
Internal backup battery
\t
Optional
\t
Operating temperature
\t
0℃-45℃
\t
Operating humidity
\t
<90%RH
\t

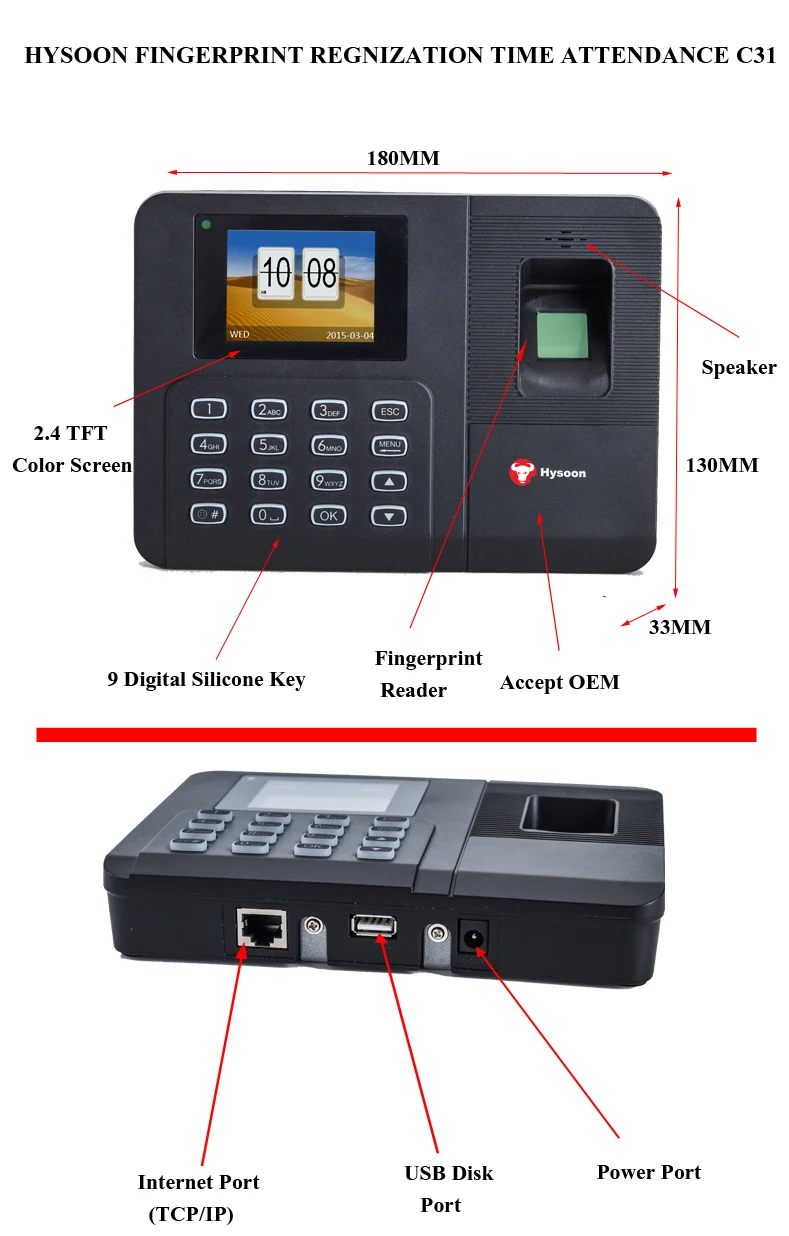

Dimensions (mm)
\t
180 x 130 x 33 mm
\t
Weight (kg)
\t
0.45
\t
Quantity/Carton
\t
20 units
\t
Gross weight/carton (kg)
\t
11.2
\t
Carton size
\t
390 x 280 x 420 mm
\t
Quantity / 20ft container
\t
11200 units

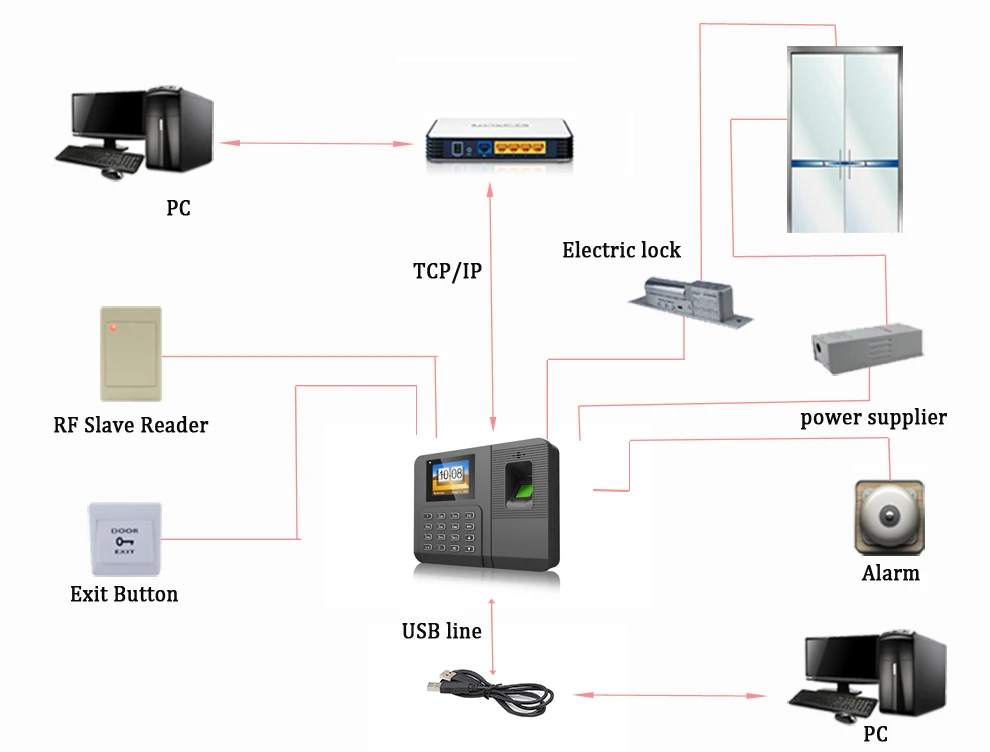

Connection Diagram

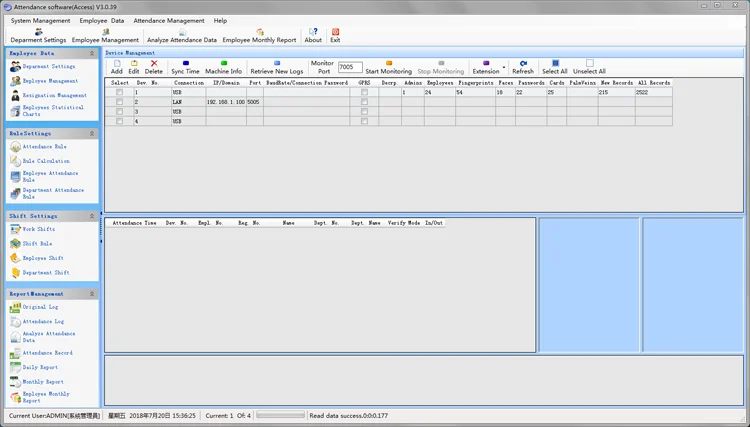

Software

We supply software( LAN network) for free. If you  have your own software, we could provide you API for developing your software.

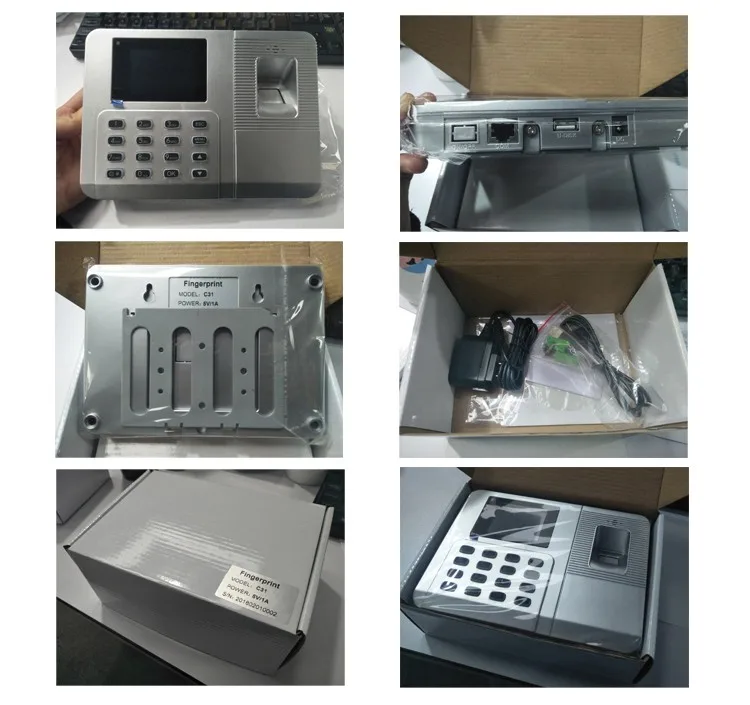

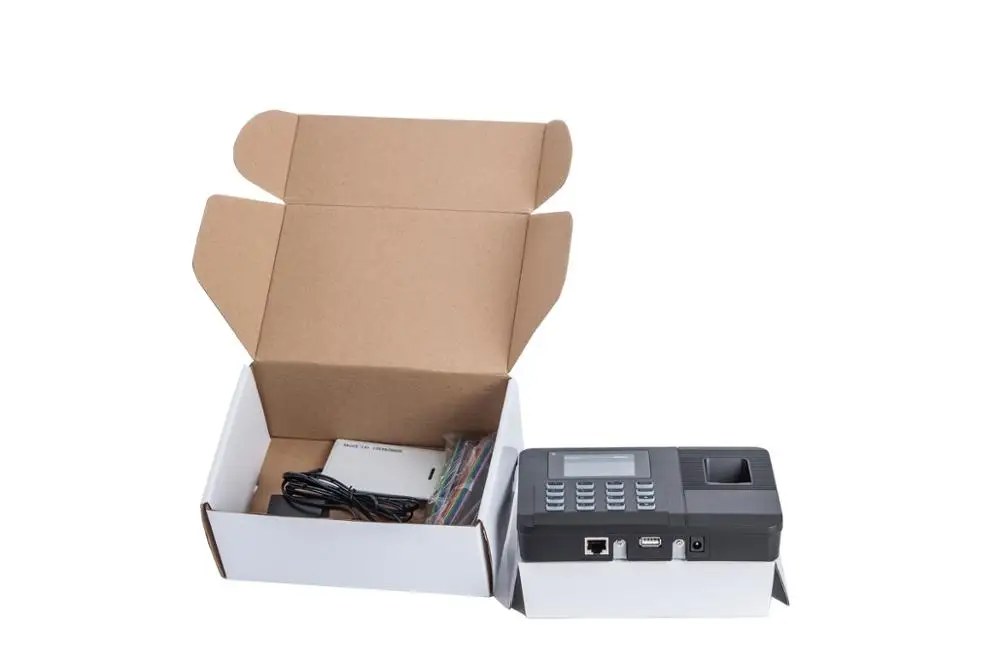

Packing & Delivery

Box conents:

1. C31

2. Power adapter (UK, EU, USA standard optional)

3. CD (burning with manual of soft and operation)

4. Installation accessories

Related Products
C128
Fingerprint Time Attendance
C29
Double Fingerprint Time Attendance


C430
Touch Screen Time Attendance Model
Our Company

      Hysoon was founded in 1995 as a motor manufacturer for home electronic products and in 2003 started to manufacture papaer shredder products under their own name and become a popular shredder brand in China.

      Hysoon expanded their product line into time recorder and bill counter in 2004, then biometric identification device in 2006, and in 2012 involved POS machine. Today, Hysoon has an ISO9001 certificated factory with 60,000 sq. ft. space, 46 brandes in China and over 2000 employees in total, as well as partners, distributors and dealers in over 100 countries. With our own manufacturing facilities, efficient quality management system and creative R&D department, we, Hysoon are dedicate to provide our customers over the world with good products and services.

     Hysoon has earned a reputation for technical innovations, high quality, reliability and speed-to-market. These are just a few reasons why OEM, ODM, deals and end users turn to Hysoon.

Exhibition we attended:

Certifications
FAQ

Q1: When can I get the price quotation?
A:We usually provide the quotation within 24 hours after we got your inquiry. If you wish to get it urgently, please give us a phone call or mention it in your email so that we will process your inquiry in first priority.

Q2:How can I get a sample to check your quality?
A:After price confirmation, you can require for samples to check our quality.
The sample is chargeable and for which the amount will be adjusted when you place an order. And also the freight cost will be bear by the consignee as well.

Q3: How long can I expect to get the sample?
A:After you pay the sample charge and send us confirmed files, the samples will be ready for delivery within 3-7 days. The samples will be sent to you via express and arrive within 3-5 business days. You can use your own express account or prepay us if you do not have one.

Q4:What about the lead time for mass production?
A:Honestly, it depends on the order quantity and the season you place the order. Generally speaking, production lead time is within 2~4 weeks.

Q5:What are your terms of delivery?
A:We accept EXW, FOB, CIF, DDU etc. You can choose one of them which is the most convenient or cost effective for you.

Q6: Terms of payment?
A:We accept payment as the following: 30% T/T deposit, 70% balance before delivery. Or L/C 100% TT in advance.
