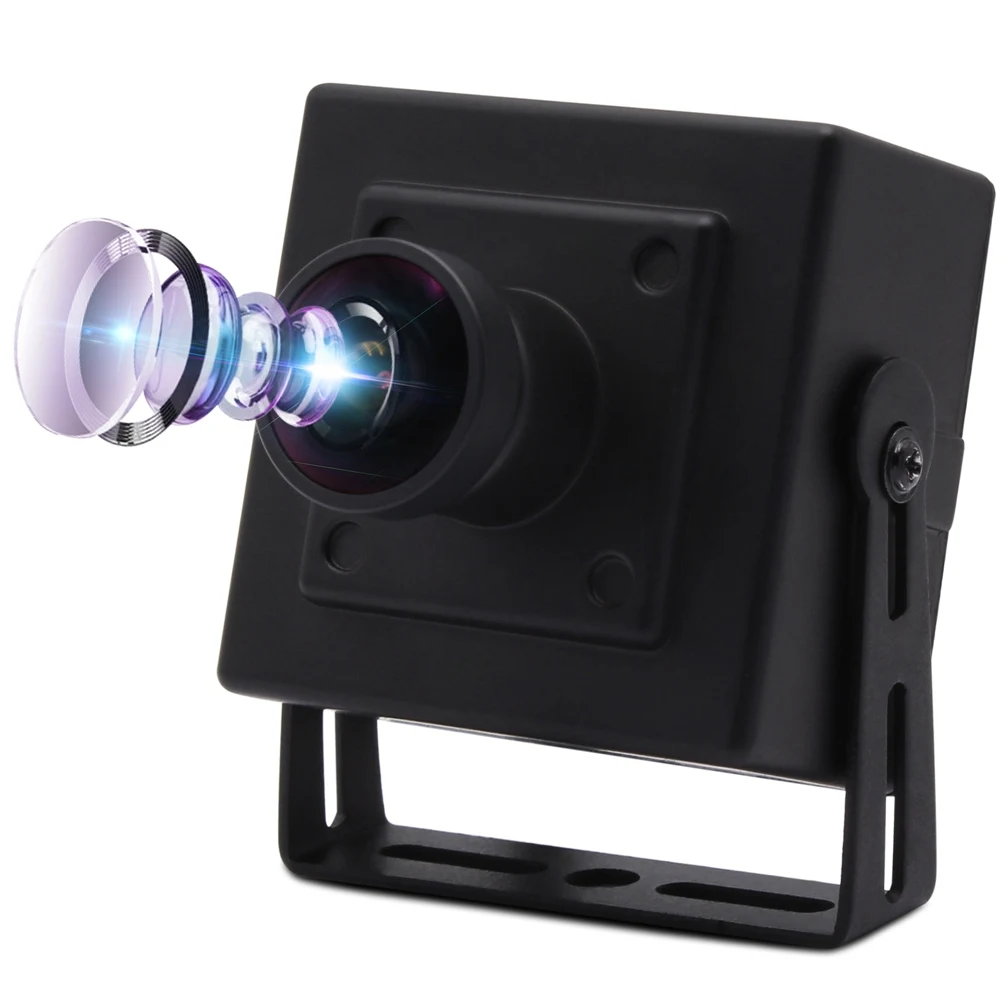

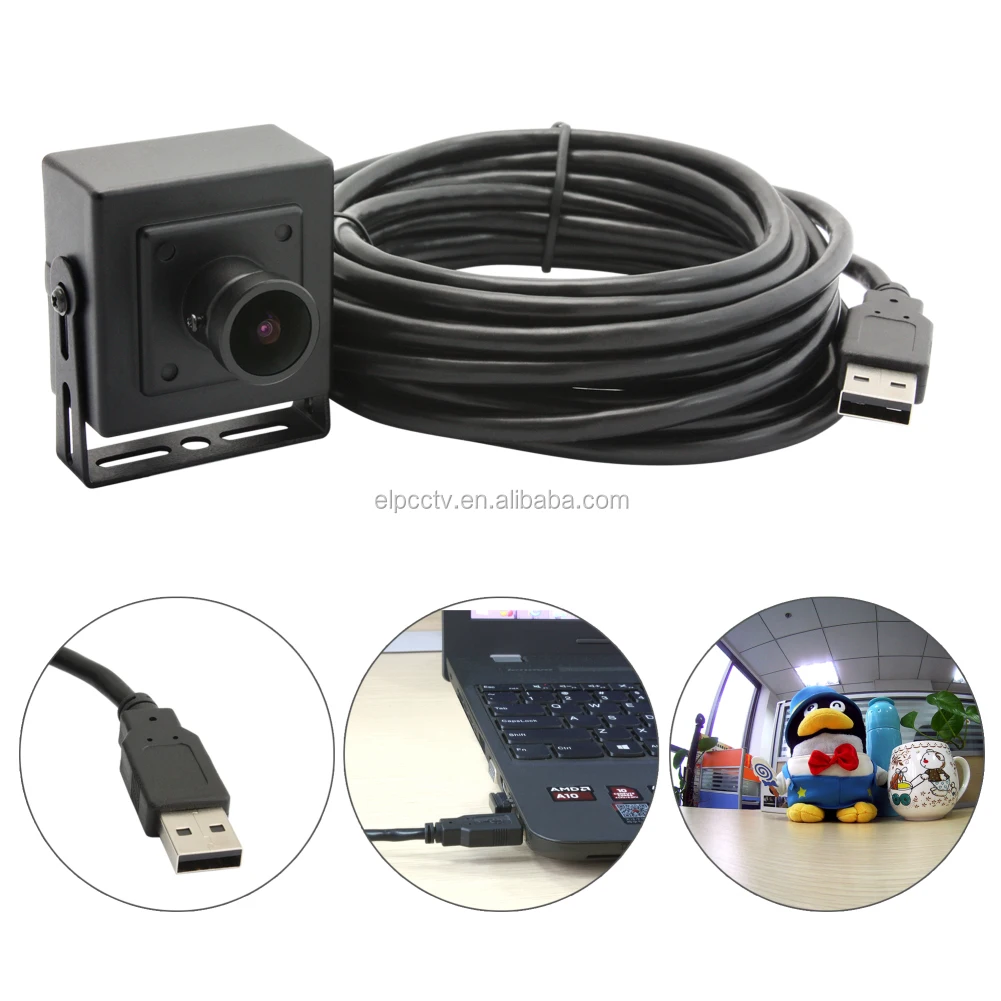

ELP 720P Wide angle USB Security camera 170 degree fisheye lens CMOS OV9712 UVC usb webcam for Mac Linux Android Windows
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60778976407):
Product Overview
Description
ELP 720P Wide angle USB Security camera 170 degree fisheye lens CMOS OV9712 UVC usb webcam for Mac Linux Android Windows
Model: ELP-USB100W03M-BL170
Fetures
*1/4" OV9712 sensor
*Frame rate–1280*720 at 30FPS
*With HD 3.6mm lens for sharp image
*Supports image sizes: 1280*720 / 960*720 / 800*600 / 640*480 / 352*288 / 320*240 /176*144 /160*120
*Suport YUY and MJPEG dual format output
*Small housing size 41*41mm - Super small outline and thin profile for embedded applications
*High sensitivity for low-light operation
*Ultra low power and low cost – ideal for portable equipment
*Automatic image control functions - automatic exposure control(AEC) & automatic white balance (AWB)

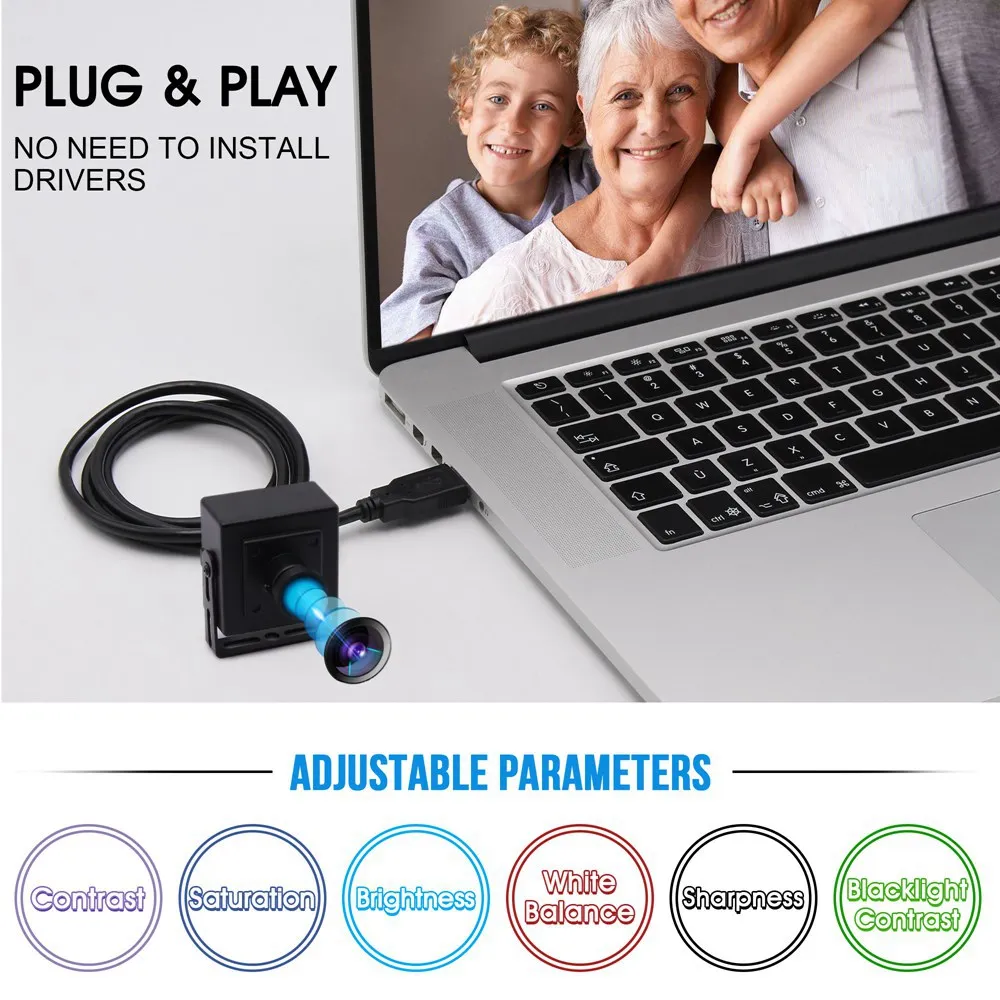

*Image quality controls - Brightness,Contrast,hue,satuaration,sharpness,gamma,white balance, Gain

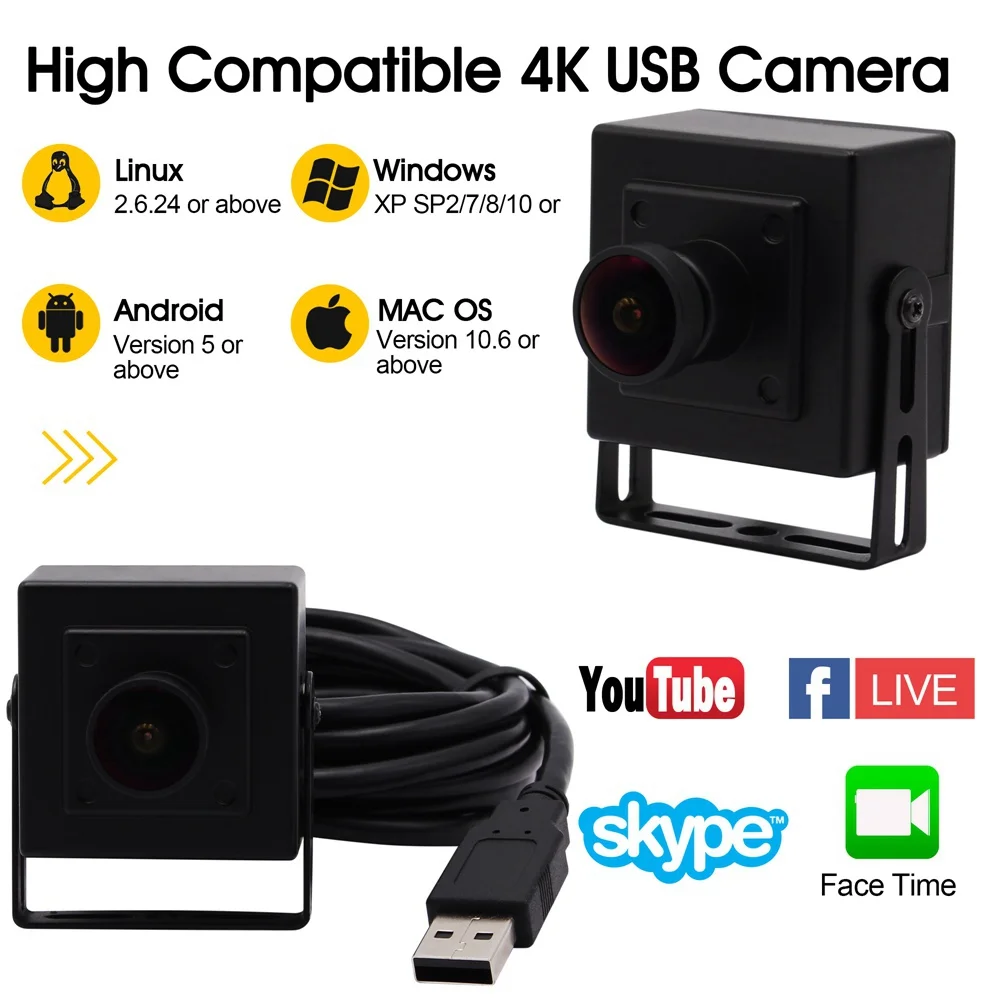

*Support UVC protocol,for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
Product Description

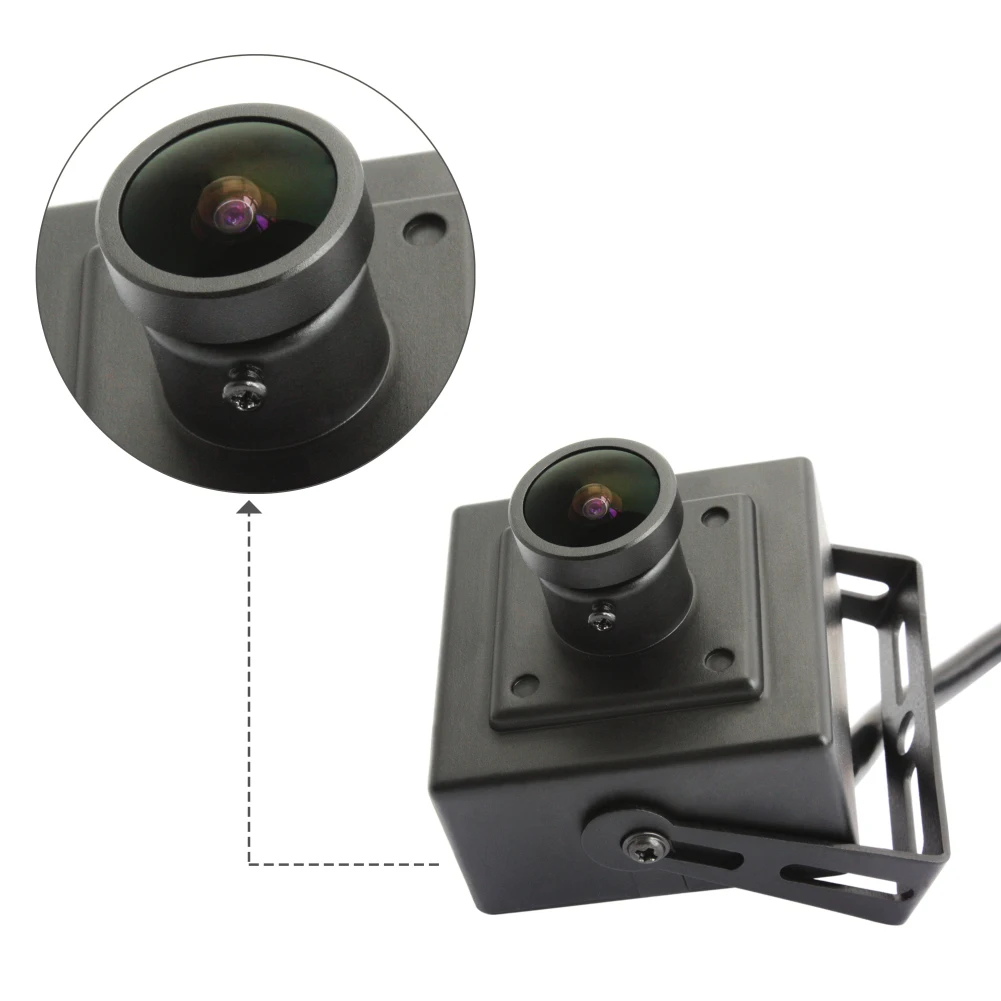

| Model | ELP-USB100W03M-BL170 (170 degree fisheye lens) |
| Sensor | OV9712 |
| Lens size | 1/4 inch |
| Max. Resolution | 1280X720 HD 720P |
| Picture format | YUY2 |
| MJPEG | |
| USB Protocal | USB2.0 HS/FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 1280(H) x720 (V) pixels MJPEG 30fps YUY2 10fps |
| 960(H) x 720 (V) pixels MJPEG 30fps YUY2 15fps | |
| 800(H) x 600 (V) pixels MJPEG 30fps YUY2 20fps | |
| 640(H) x 480 (V) pixels MJPEG 30fps YUY2 30fps | |
| Adjustable parameters | Brightness/Contrast/Color saturation/Definition |
| Gamma/WB | |
| USB Cable | Standard 3m (1m, 2m, 5m optional, also can customize the cable as requested) |
| Night vision | without night vision |
| Lens | 3.6mm (2.1mm, 2.8mm, 6mm, 8mm, 12mm, fisheye lens, 2.8-12mm ... optional) |
| voltage | DC 5V |
| current | 120mA |
| work temperature | DEGREES(-20~70) |

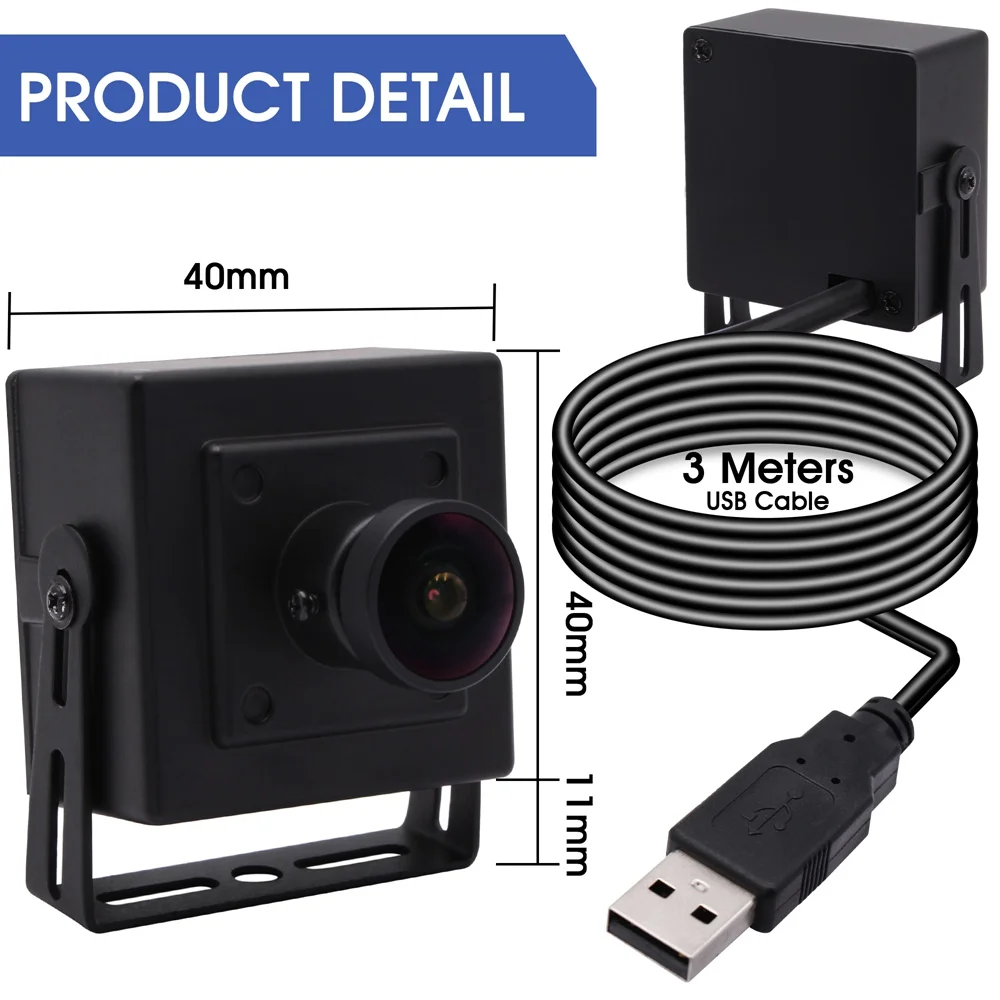

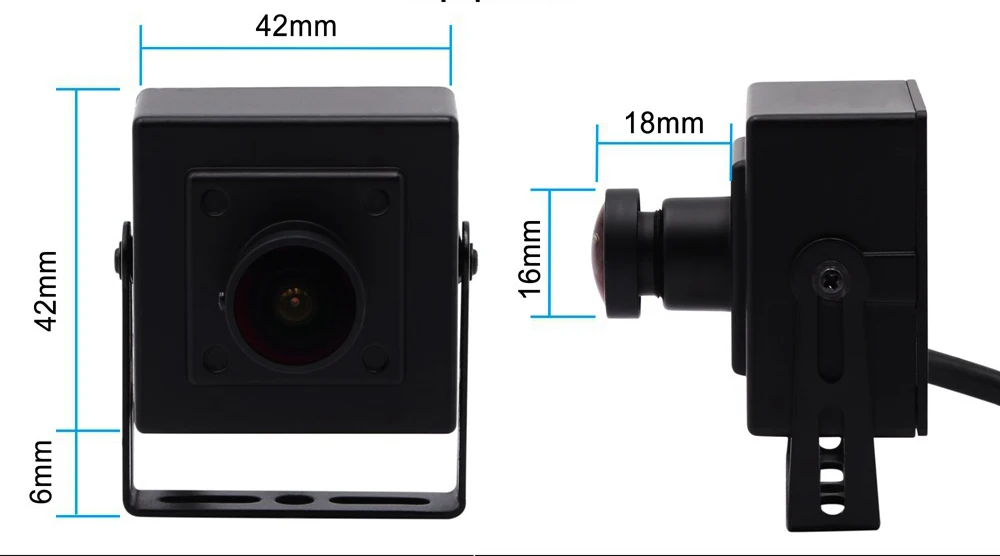

| Size | 44x41.5x52.5mm (See the dimension as below) |
| Support OS | WinXP/Vista/WIN7/WIN8 |
| Linux with UVC | |
| Mac-OS X 10.4.8 or later | |
| Wince with UVC | |
| Android 4.0 or above |
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
Used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, Smart box,TV box,
advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,endoscope, Medical auxiliary equipment, etc.

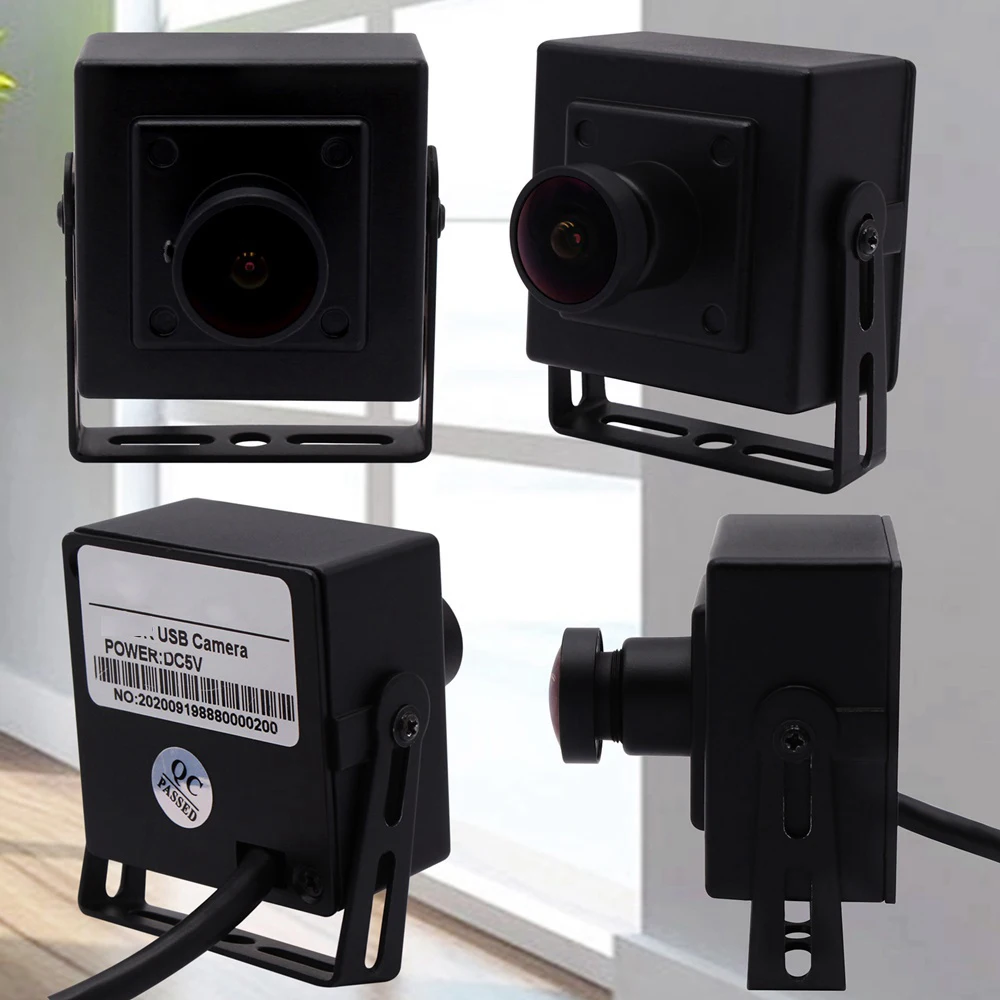

Product Show
Company Information
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
