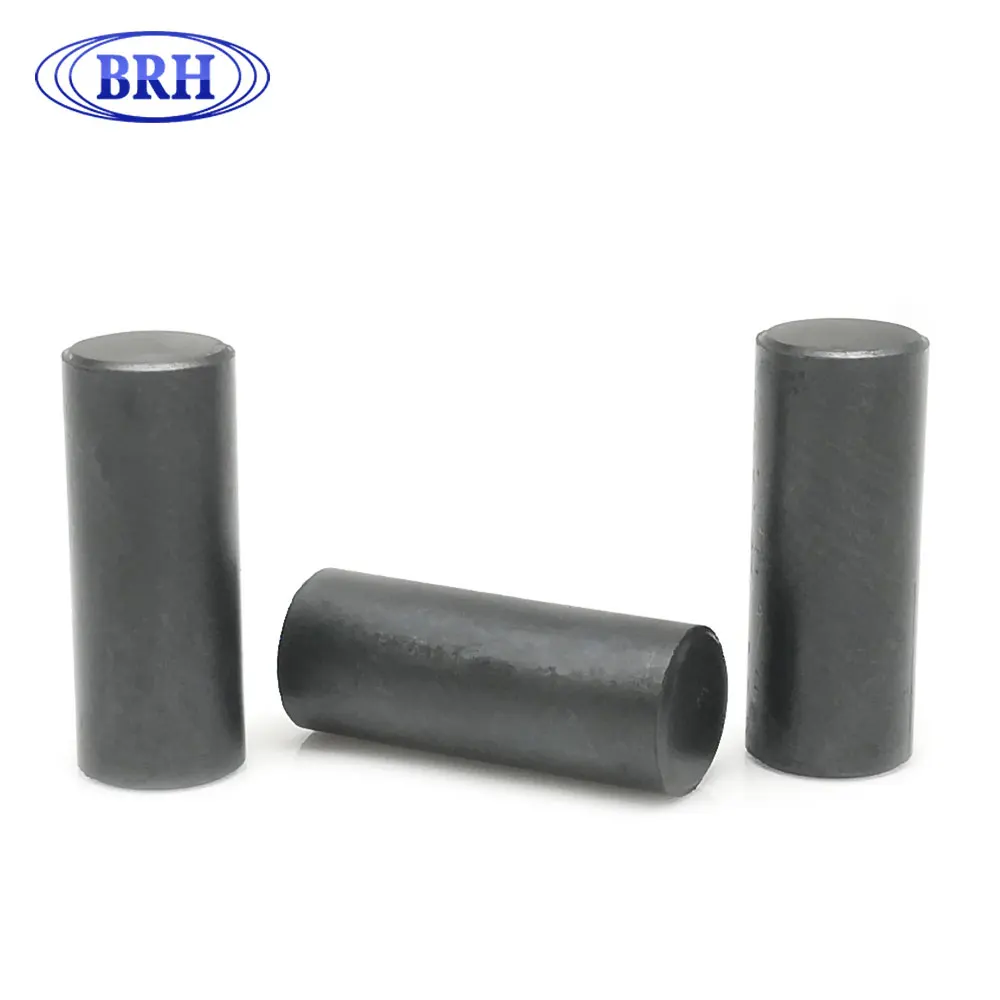

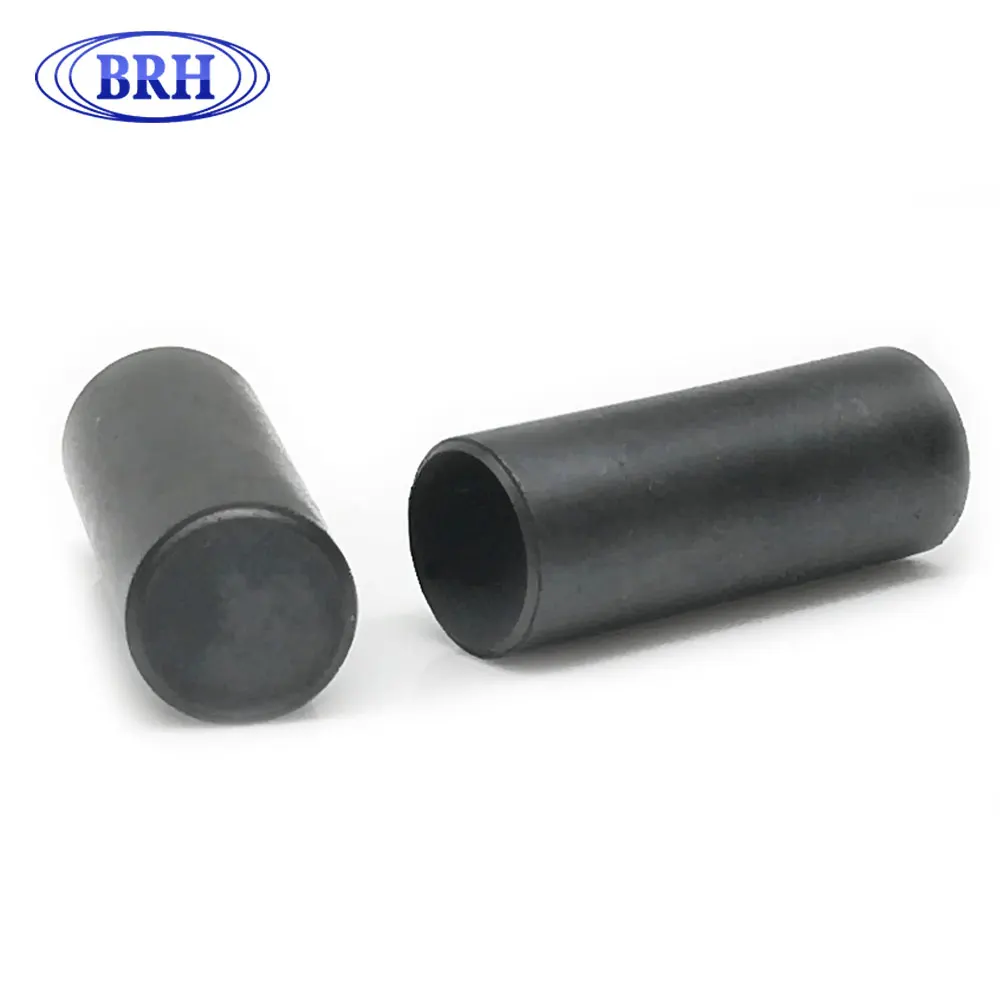

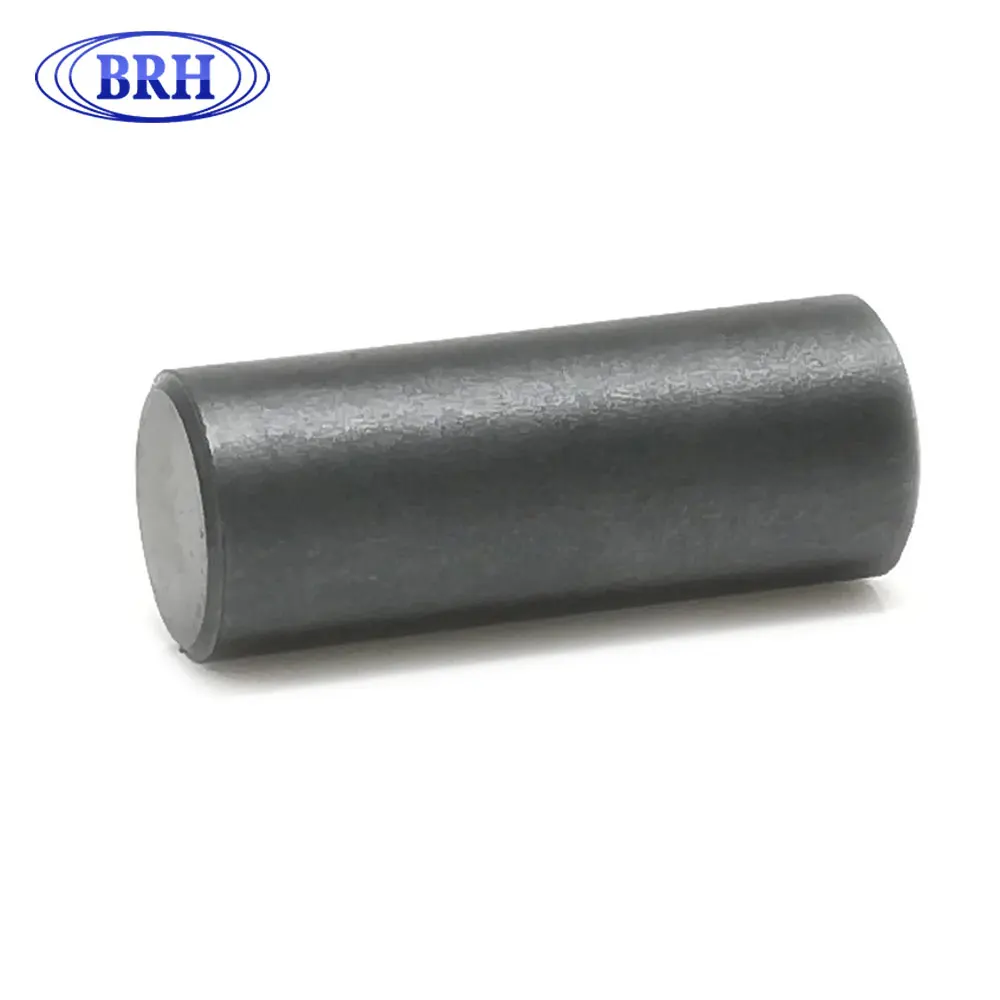

R 8*20 bar shaped antenna soft ferrite impeder rod core
R 8*20 bar shaped antenna soft ferrite impeder rod core
R 8*20 bar shaped antenna soft ferrite impeder rod core
R 8*20 bar shaped antenna soft ferrite impeder rod core
R 8*20 bar shaped antenna soft ferrite impeder rod core

R 8*20 bar shaped antenna soft ferrite impeder rod core

Share on (60778989003):


Price:

Quantity:


Product Overview

Description


Description
\t

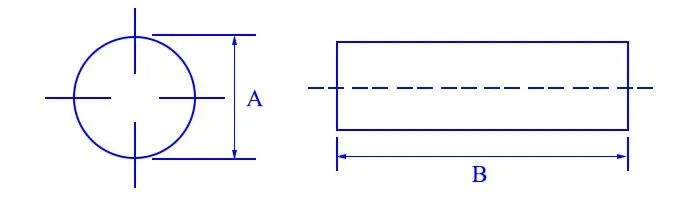

SIZE CODE （mm)
\t
A
\t
B
\t
A2 R 8*20
\t
8.0±0.50
\t
20.0±1.00
Parameter
\t
Electrical Requirements
\t
SIZE CODE （mm)
\t
A2 R 8*20
\t
L（µH）
\t
3.7µH ± 15%
\t
TEST FREQ
\t
1KHz / 0.25 V
\t
WIRE
\t
0.6 Φ × 10.5 TS
\t
TEST INSTRUMENTS
\t
HP-4191A
\t
TEMPERATURE
\t
23℃
\t
HUMIDITY
\t
80% RH
\t
Test Datas For Pre Production Samples
\t
MEAS.
Item
\t
L（µH）
AT100KHz
\t
A
m/m
\t
B
m/m
\t
Suggest
\t
3.7µH ± 15%
\t
8.0±0.50
\t
20.0±1.00
\t
1
\t
3.77
\t
7.90
\t
20.18
\t
2
\t
3.75
\t
7.91
\t
20.18
\t
3
\t
3.78
\t
7.86
\t
20.11
\t
4
\t
3.74
\t
7.89
\t
20.25
\t
5
\t
3.72
\t
7.85
\t
20.17
\t
6
\t
3.71
\t
7.89
\t
20.18
\t
7
\t
3.75
\t
7.92
\t
20.22
\t
8
\t
3.74
\t
7.98
\t
20.11
\t
9
\t
3.75
\t
7.92
\t
20.15
\t
10
\t
3.70
\t
7.88
\t
20.15
\t

\t

\t

\t

\t
X-bar
\t
3.74
\t
7.90
\t
20.17
\t
R
\t
0.08
\t
0.13
\t
0.14
\t
The above test datas are just for reference，actual results may differ due to different production batches
