8 port Impinj R2000 UHF RFID reader module 0 10m range with 9dBi Antenna
- Category: >>>
- Supplier: Shenzhen Rodinbell Technology Co. Ltd.
Share on (60778997461):
Product Overview
Description
8 port Impinj R2000 UHF RFID reader module 0-10m range with 9dBi Antenna
Product Description
1. Module Specifications:
Operating Voltage | 3.7V – 5 V |
Standby Mode Current | <50mA (EN high level) |
Sleep Mode Current | |
Operating Current | 1.2A +/-10%, 600mA +/-10%(Low-power Mode, few tags) |
Operating Temperature | - 20 °C - + 55 °C |
Storage Temperature | - 20 °C - + 85 °C |
Humidity | < 95% ( + 25 °C) |
Air Interface Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C ISO 18000-6B |
Spectrum Range | 860Mhz – 960Mhz |
Supported Regions | US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China Japan Korea Malaysia Taiwan |
Output Power | 0 – 33dBm |
Output Power Precision | +/- 1dB |
Output Power Flatness | +/- 0.2dB |
Receive Sensitivity | < -85 dBm |
Peak Inventory Speed | > 700 tags/sec |
Tag Buffer Capacity | 1000 tags @ 96 bit EPC |
Tag RSSI | Supported |
Antenna Detector | Supported |
Ambient Temp Monitor | Supported |
Working Mode | Single/DRM |
Host Communication | TTL Uart port |
GPIO | 2 inputs optical coupling, 2 outputs optical coupling |
Max Baud Rate | 115200 bps |
Heat Dissipation |

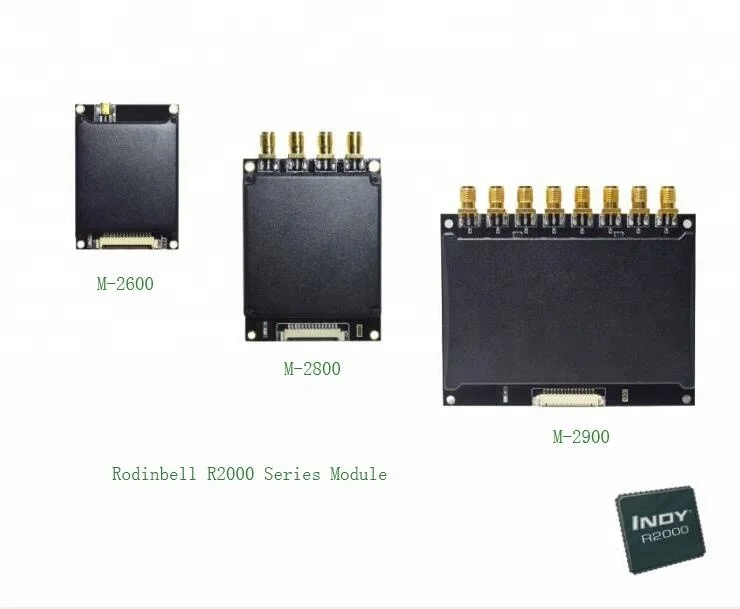

2. Comparison for R2000 series reader modules:
3. R2000 series reader module evaluation kit:
Packaging & Shipping
Packaging: Safe Export Package with Express Delivery
Shipping: usually 5-10 working days
Our Services
Warranty:
3-year.
RMA:
Available if the products fullfill below situations:
Proper Use under Instruction.
Disassembly only by professionals anthorized.
Unauthorized removal or repair excludes in RMA.
Damage by natural disasters and force majeure is not inclued in RMA.
Company Information
Founded in 2010, Shenzhen RodinBell Technology Co., Ltd. is one of the leading companies that offers products and solutions confining industrial and commercial intelligent equipment.
With the importance we attached to the integrity of research, development and innovation, and to the respect for independent intellectual property rights, RodinBell R&D team is made up of engineers and designers including those who had worked in microwave communications,embedded operating systems, application development and industrial design for more than 20 years.
