Sunta 4-Channel PIP AHD Full Realtime Color Video Quad Splitter With TVI AHD CVI D1 PORT High definition Resolution Quad video Realtime display Support Infrared remote control Support multiple different display modes
4-Channel PIP AHD Full Realtime Color Video Quad Splitter With TVI AHD CVI D1 PORT Main Feature:

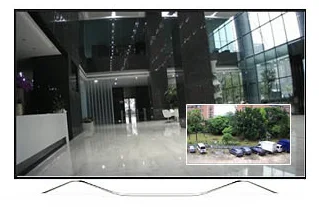

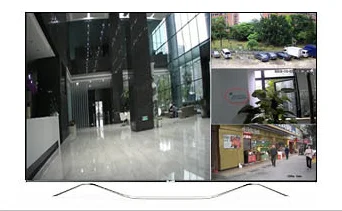

1. HDMI & VGA display 2. High Resolution Display Quality 3. NTSC/PAL. 4. English menu. 5. Each image quality can independently adjust. 6. The image can auto switch each other.. 7. PIP function, display channel number can be edited 8. Dual Split function,each picture position can adjustable and display channel number can be edited. 9. ZOOM function,A zoomed area can be moved while zoom function is invoked. 10. High Quality image freeze function,more than one image can freeze in different channel 11. image loss alarm 12. Screen automatic switching time 3 ~99 seconds can be set 13. Supports 2 channels of CVBS video output 14. Support HDMI/VGA output and the resolution of output can setting(1024x768,1280x1024,1440x900,720P/50/60,1080P/50/60). 15. Support IR remote controller
SUNTA LUHOOVISION 4-Channel PIP AHD Full Realtime Color Video Quad Splitter With TVI AHD CVI D1 PORT technical parameter:
Video system: NTSC/PAL Image Refurbish: PAL:25 f/s;NTSC:30f/s Resolution PAL: 720×576;NTSC:720×480 Video input: 4 channel video signal input ,1Vp-p,75Ω Video output: 1 channel master monitor output, 1Vp-p,75Ω 1 channel assistant monitor output, 1Vp-p,75Ω 1 port VGA output 1 port HDMI output Auto switch: 0~99 Sec Alarm out: No language: English menu Video adjust: Brightness ,Contrast, Saturation, Hue, can be adjustable Power Consumption: 4.8W(400mA) Power Supply: DC 12V Operation Environment: -10℃~ +60℃ GW: 1.1Kg Product Size: 210mm*130mm*40mm Product Box Size inside: 239mm*158mm*55mm Product Box Size outside: 490mm*330mm*302mm 20PCS/box

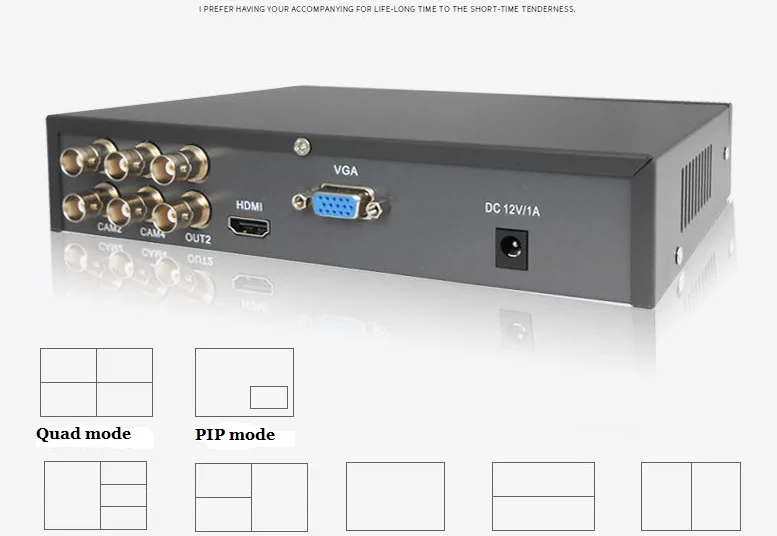

4 IN 1 OUT AHD color quad splitter with HDMI VGA output;PIP mode; 1080p HD resolution.

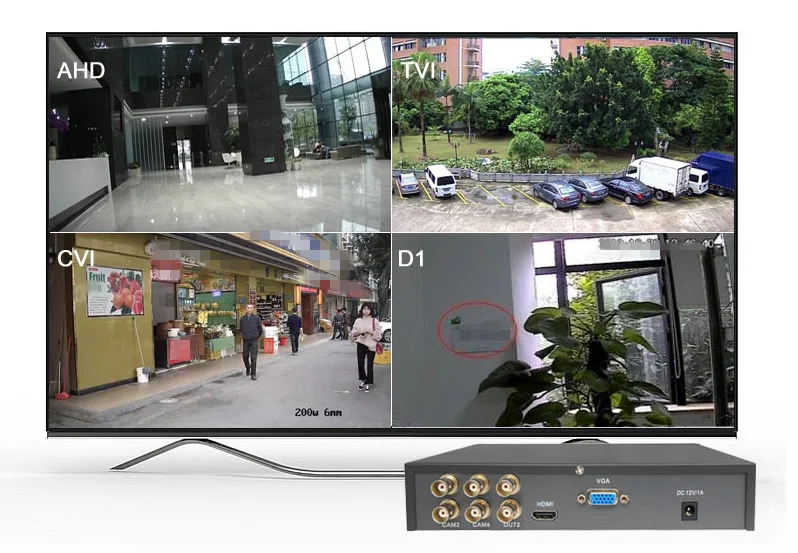

Four images in One screen,seamless switch,support AHD/TVI/CVI/D1 4 Video signal input.
Shenzhen Sunta Technology Co. LTD: Professional manufacturer of 2CH 4CH 8CH Mobile Car DVR,Car black box etc. vehicle security and surveillance products.
Shenzhen Sunta Technology Co., Ltd. (hereinafter referred to as SUNTA) is a high-tech security company specializing in R&D, production, sales and service of Mobile DVR/MDVR,CAR DVR, car driving recorder, car/vehicle cameras and Color multiplexer and screen segmentation systems. Has registered its own "LUHOOVISION" brand. SUNTA specializes in 2CH 4CH 8CH Mobile dvr,car DVR driving recorder,car black box,car camera; 2 channel, 4 channel, 8 channel, 16 channel Color multiplexer/picture splitters, industrial and automotive image processing systems and other fields of integrated applications. The independent research & development and innovative product models have leading advantages in similar products. All key components of the product are imported from Japan, Europe and the United States, which ensures the stable and reliable quality of the whole machine. All products are produced in strict accordance with the ISO9001 quality certification system, and passed CE, FCC certification and national security alarm system quality supervision and inspection Certification. Over the years, the company adhering to the product concept of "customer-oriented, excellence". Strict manufacturing process control, Six Sigma quality requirements, and a comprehensive team that integrates structure, hardware, software and manufacturing technologies makes "SUNTA LUHOOVISION" considered by the industry as one of the most potential suppliers of security products. SUNTA also provides OEM and ODM services, professionally design video surveillance image processing systems for customers. At the same time, agents and distributors are welcomely invited to join us. More MDVR,color multiplexer color quad processor and surveillance cameras, monitor cameras,vehicle camera etc. security and surveillance products, please feel free to contact us by email SKYPE or send us messages by alibaba trade manager.

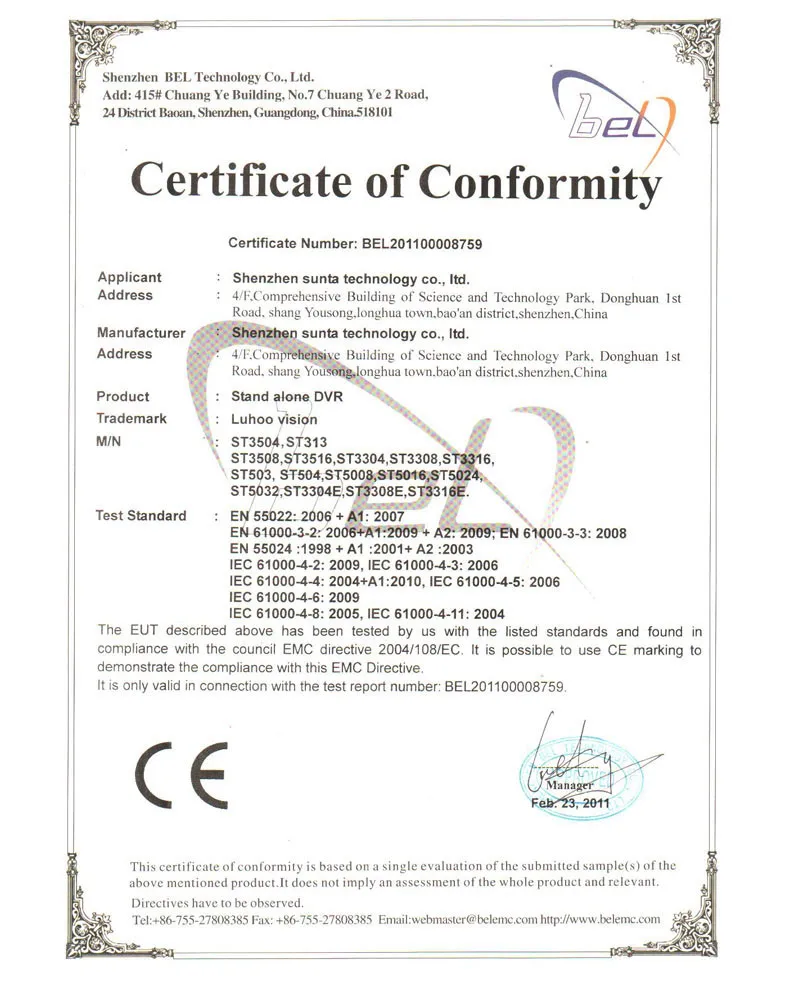

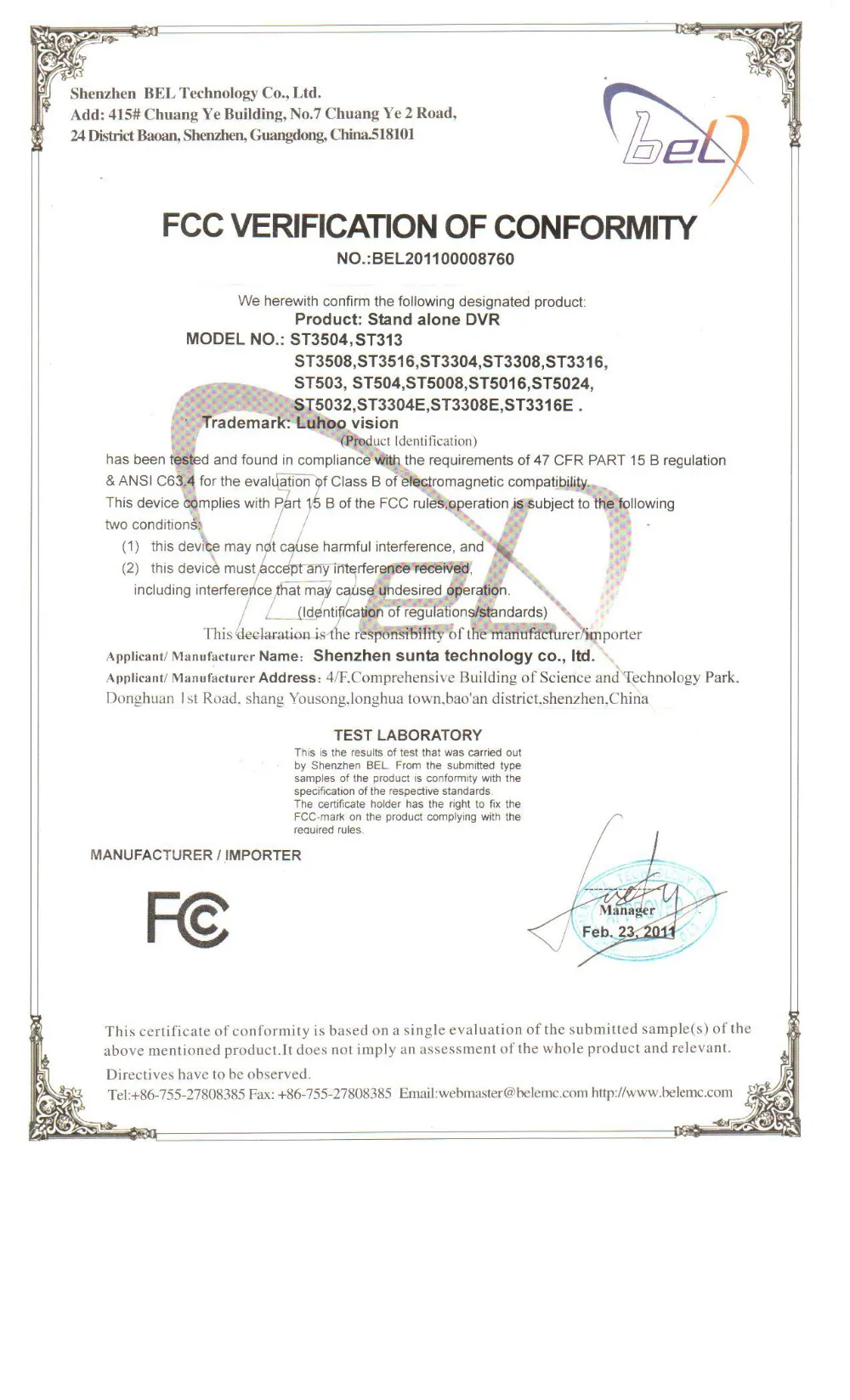

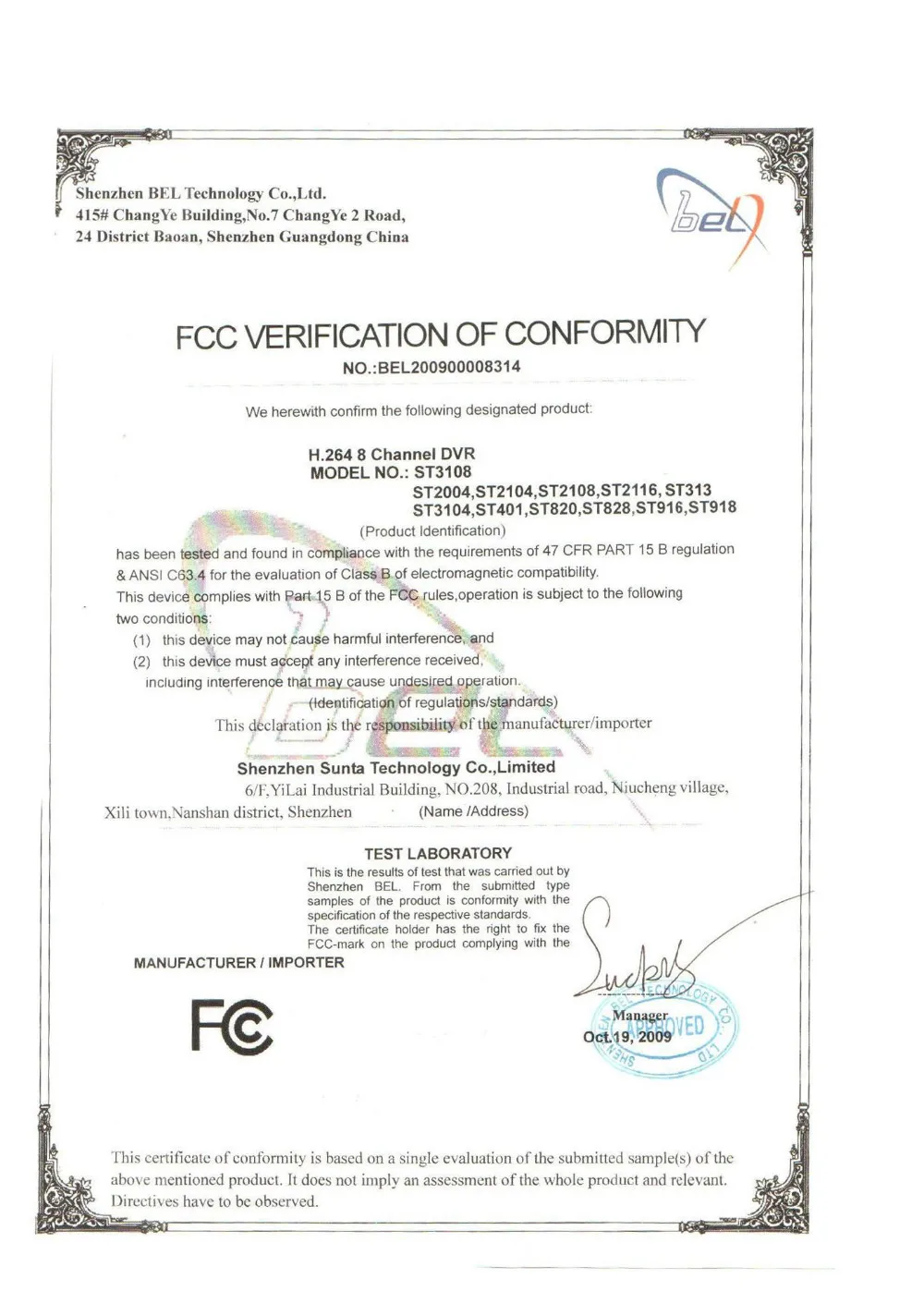

Certifications
