Product Overview
Description
ASCE30 ASTM A1 standard light steel rail

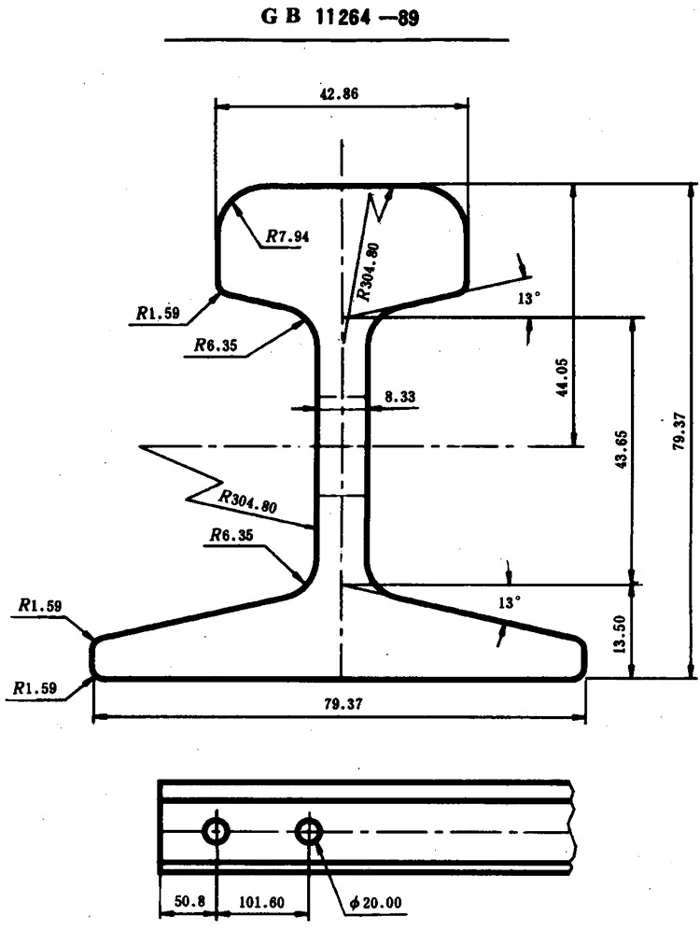

This rail just same as 15kg/m Chinese standard rail, we always have stock, can deliver it timely, the material is Q235 or 55Q, length 6m or 8m.
We can supply many kinds of steel rails, also produce steel rails according your order, usually the quantity of one kinds should more than 50 tons, for special type of rail, if we don't have mould, we can make the mould as your design drawing, but the quantity should upto 500 ton.
| Q235 | Mechanical property | Chemical composition | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.3 | 0.30-0.70 | 0.05 | 0.045 | |||
| 55Q | Mechanical property | Chemical composition | ||||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cu | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | ||||
| 685min | 197 | 0.5-0.6 | 0.15-0.35 | 0.6-0.9 | 0.05 | 0.045 | 0.4 | |||||
| Light rail | Height (mm) | Bottom width (mm) | Head width (mm) | Middle thickness (mm) | Length (m) | Weight (kg/m) | Standard |
| 8 | 65 | 54 | 25 | 7 | 6 | 8.42 | YB |
| 18 | 90 | 80 | 40 | 10 | 6 & 8 | 18.06 | YB |
| 24 | 107 | 92 | 51 | 10.9 | 8 | 24.46 | YB |
| 12 | 70 | 70 | 38.1 | 7.54 | 6 | 12.2 | GB |
| 15 | 79 | 79 | 42.86 | 8.33 | 6 & 8 | 15.2 | GB |
| 22 | 93.66 | 93.66 | 50.8 | 10.72 | 8 & 10 | 22.3 | GB |
| 30 | 108 | 108 | 60.33 | 12.3 | 8 & 10 | 30.1 | GB |
Other rails
I. Rail for Railway
1. Standard: TB/T2344-2012, TB/T3276-2011
43 kg/m rail, 50 kg/m rail, 60 kg/m rail, 75kg/m rail
Material: U71Mn, U75V, U76CrRE, U20Mn
2. Standard: GOST-R51685
P50 rail/R50 rail, P65 rail/R65 rail, P75 rail/R75 rail
Material: K76, M76T
3. Standard: UIC860
S49 rail, UIC54 rail, UIC60 rail
Material: 900A, 350HT
4. Standard: JIS E1101
JIS50N rail, JIS60 rail
Material: 235HBW, 340HH, 370HH
5. Standard: AS1085, BHP RT STD
AS50 rail, AS60 rail, AS68 rail
Material: R260, R320, R350HT
6. Standard: AREMA
90 RA rail, 100 RE rail, 115 RE rail, 132 RE rail, 136 RE rail
Material: SS, HH
7. Standard: ASTM
TR45 rail, TR50 rail, TR57 rail, TR68 rail
Material: R260, R320, 350HT
8. Standard: BS11
BS75A rail, BS90A rail, BS100A rail
Material: 900A, 1100
9. Standard: EN 13674-1
49E1 rail, 50E2 rail, 54E1 rail, 60E1 rail, 60E2 rail
Material: R260, R260Mn, 350HT
II. Switch Rail
Standard: TB/T3109-2013
50AT1 rail, 60AT1 rail, 60AT2 rail, 60TY1 rail
Material: U71Mn, U75V, U76CrRE
III. Crane Rail
Standard: YB/T5055-2014, ASTM A759-2000, DIN536
QU70 rail/KP70 rail, QU80 rail/KP80 rail, QU100 rail/KP100 rail, QU120 rail/KP120 rail, CR175 rail, A45, A55, A65, A75, A100, A120, A150
Material: U71Mn, 900A
IV. Grooved Rail
Standard: EN 14811:2006
59R2 rail, 60R2 rail
Material: U75V
