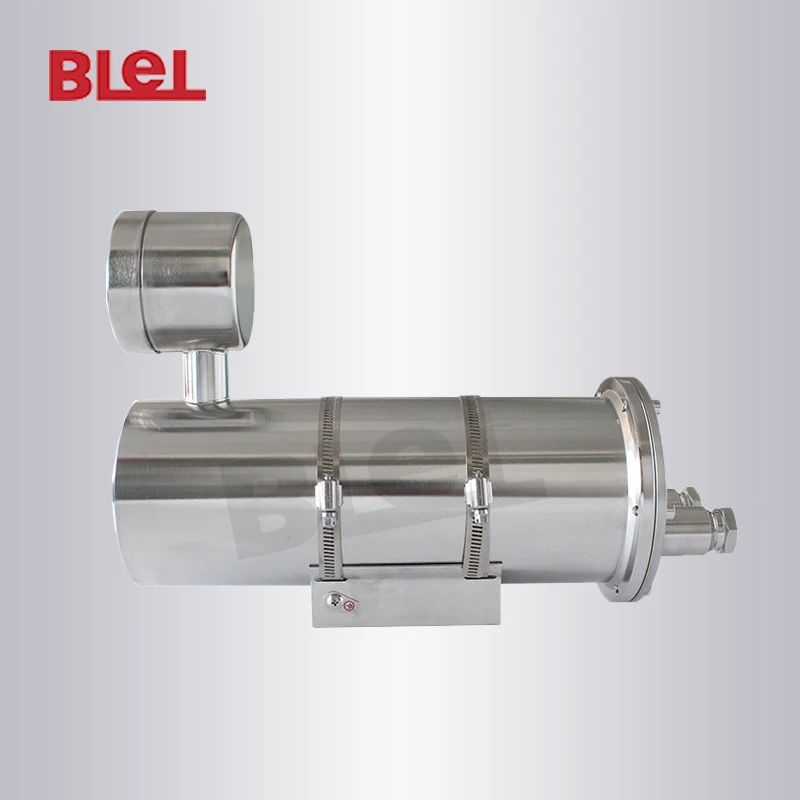

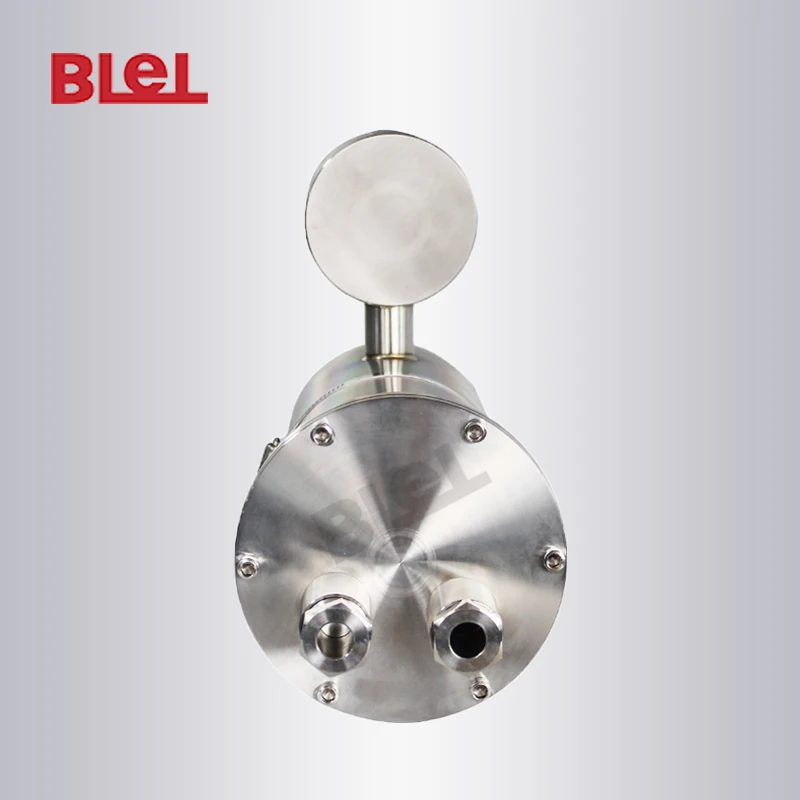

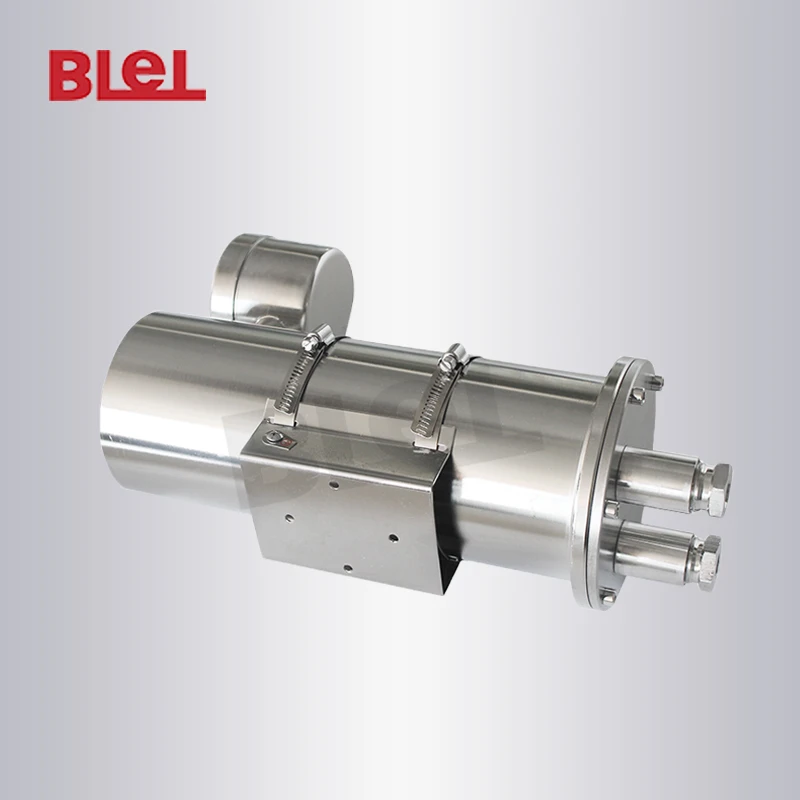

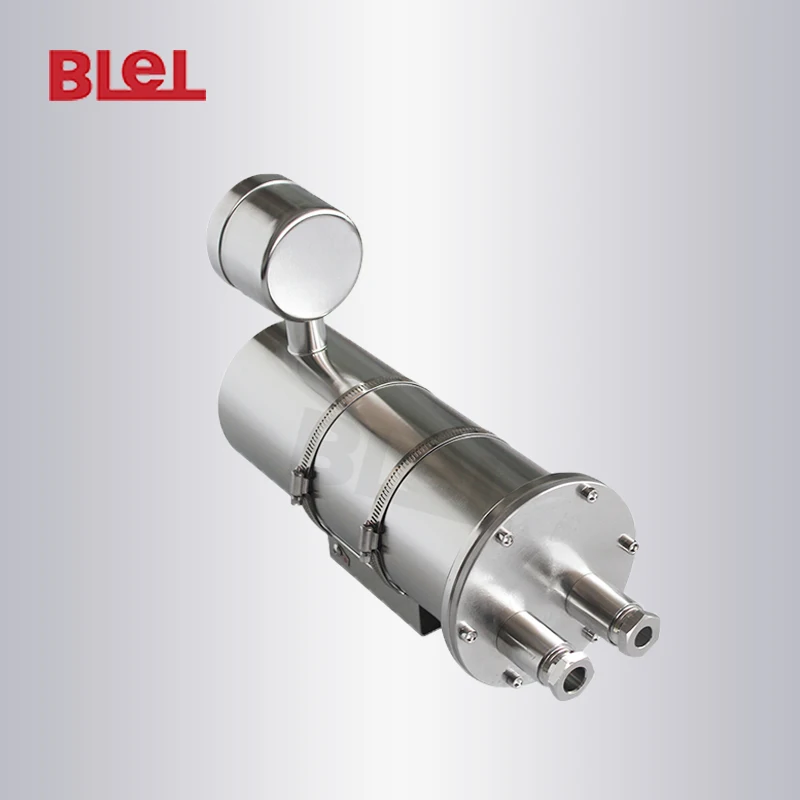

| Product Name: | Explosion proof CCTV Camera built in 2MP 30X Camera |
| Product Model: | iBL-FB3230-I8Z |
| Resolution: | 2MP |
| EX Marking: | EXIIC T6 ,IP 68 |
| IR: | Up to 100m |
| Power Supply: | DC12V |

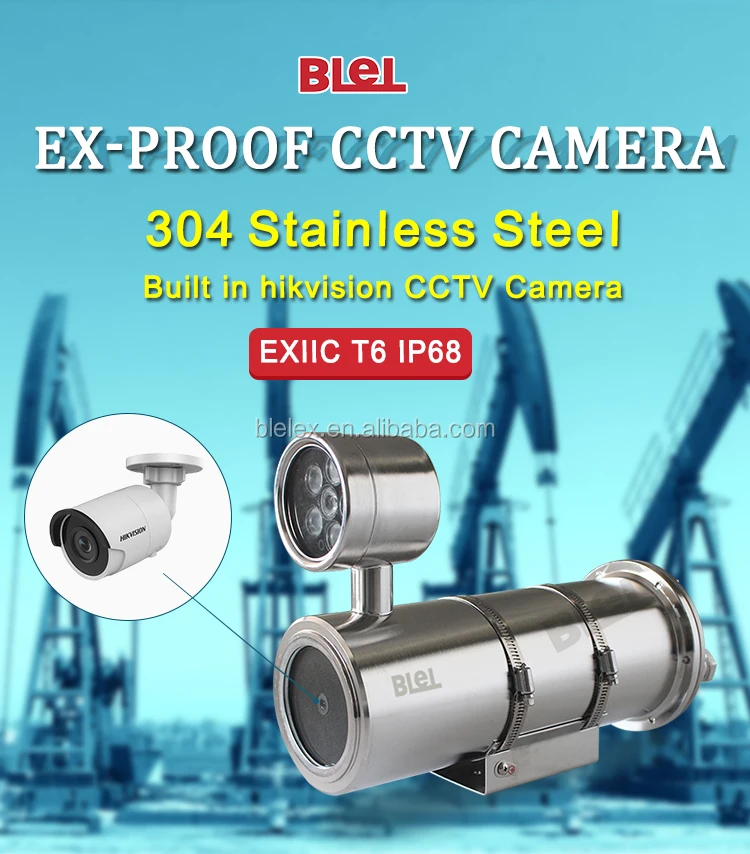

The equipment has obtained the highest certification of Class II explosion-proof and certification of temperature (T). Explosive atmospheres formed by explosive mixtures of T1 to T6 flammable and explosive gases are located in Zones 0, 1 and 2 and flammable and explosive dusts are mixed with air to form explosive atmospheres in areas 20, 21, and 22, except coal mines. Methane gas other than explosive gas, dust environment. Such as: refining, oil extraction, gas, recovery, fireworks production, food processing and storage, gas stations and other environments.

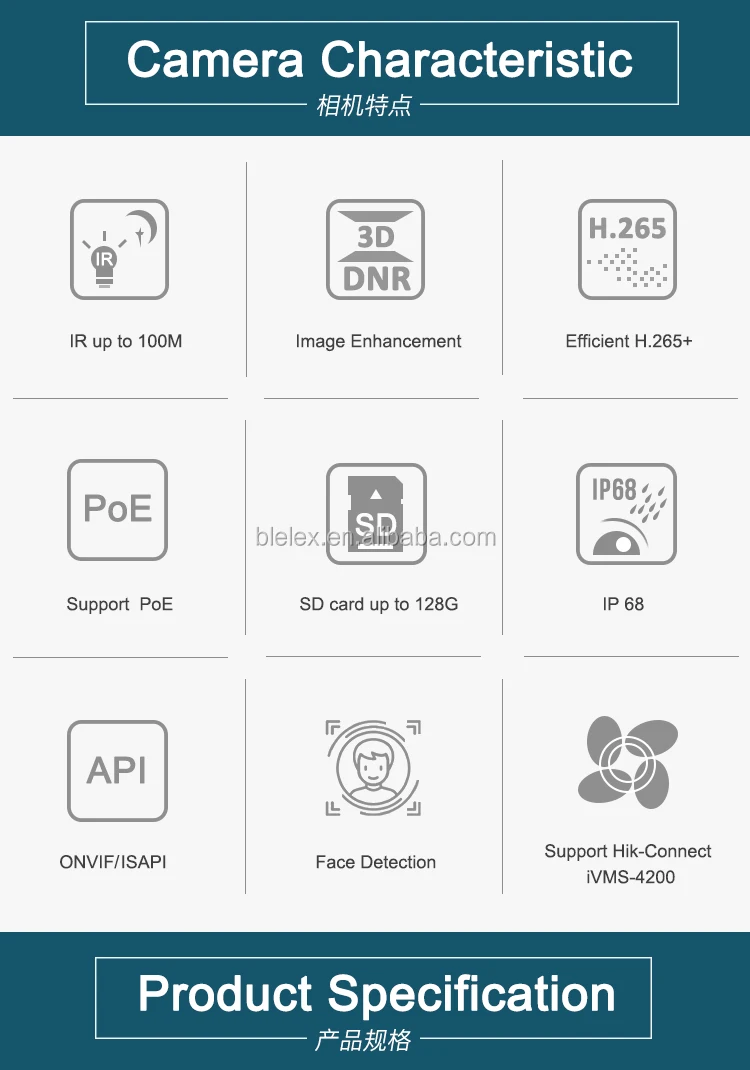

Product features:
Explosion-proof mark: Exd IIC T6 Gb / ExtD A21 IP66 T80 °C
·Protection level: IP68
·Product Standard: Q/006-2016

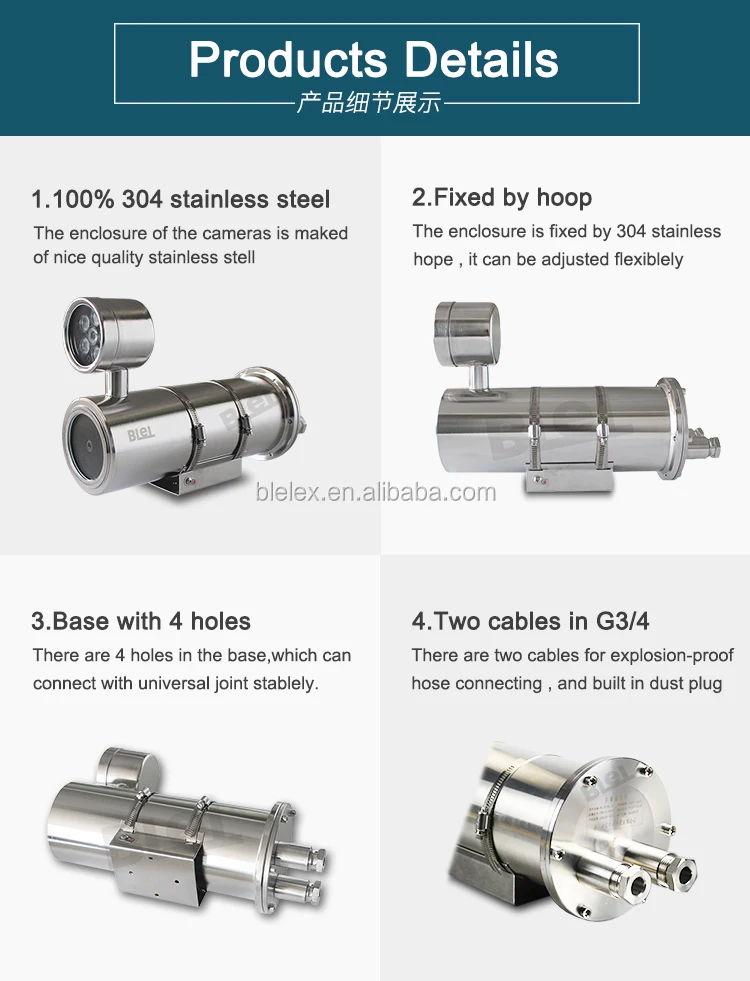

·Stainless steel design, double explosion-proof certification
· Wide voltage design supports custom AC and DC POE power supply
· Precision processing of window glass, self-cleaning function, and use in hydrofluoric acid environment
Order model: iBL-FB3230-I8Z 2MP zoom camera
Product Size:
| Camera | |
| Image Sensor: | 1/2.8" Progressive Scan CMOS |
| Min. Illumination: | 0.01Lux @(F1.2,AGC ON), 0.028Lux @(F2.0,AGC ON), 0 Lux with IR |
| Shutter time: | 1/3 s ~ 1/100,000 s |
| Slow shutter: | Support |
| Lens: | 2MP |
| Lens Mount: | M12 |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Compression Standard | |
| Video Compression: | H.264/MJPEG/H.264+ |
| H.264 code profile: | Main Profile |
| Video bit rate: | 32Kbps~16Mbps |
| Image | |
| Max. Image Resolution: | 1920x1080 |
| Frame Rate: | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) |
| 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) | |
| Image Enhancement: | BLC/3D DNR/ROI |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In |
| Network | |
| Network Storage: | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI |
| Interface | |
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port |
| General | |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | I3: Max. 6W; I5: Max. 7.5W; I8: Max. 10.5W |
| Weather Proof: | IP67 |
| IR Range: | I3: 30 meters; I5: 50 meters; I8: 80 meters |
| Weight: | i3 5kg (i8 6kg) |

Q:Can you orrder customize different sizes of explosion-proof housing ?
A: Yes, we are a factory. We offer customize service.
Q: Once I place the order , how long it will take to get the products?
A:As usual , it will take about 7-15 business days to manufacture the goods. But the final time will depend on your final order .
Q: Which field can the explosion-proof cameras be used for ?
A: The explosion proof cameras can be used in kinds of fields: energy industry, coal industry ,chemical industry,gas station,vehichles for transport fuel ,prison ,etc.
