Vehicle Parking Sensor Customized 4 Input Radar Sensor Parking Car Camera Radar System With Radar Host Box
- Category: >>>
- Supplier: Luview Co. Ltd.
Share on (60779157544):
Product Overview
Description
Specification
Customized 4 Input Radar Sensor Parking Car Camera Radar System With Radar Host Box

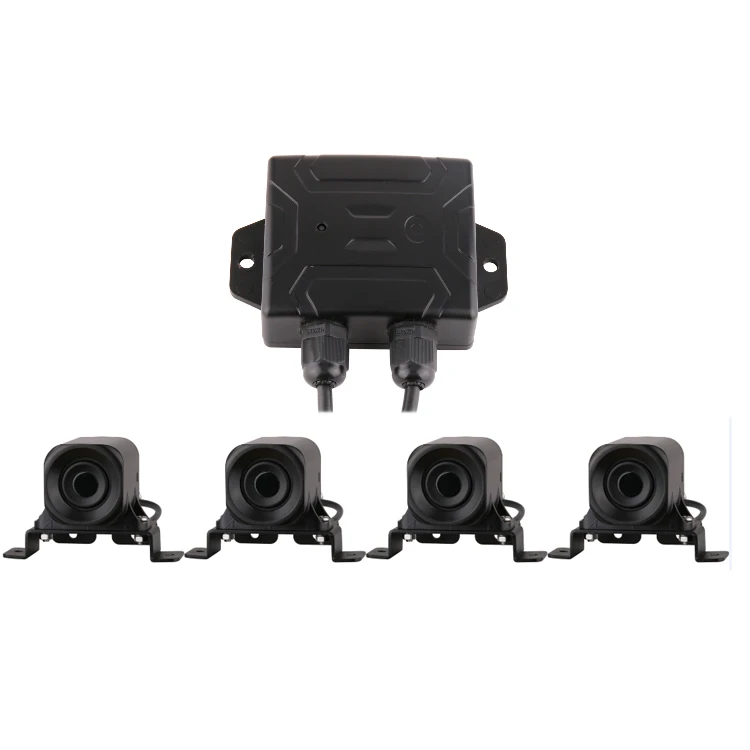

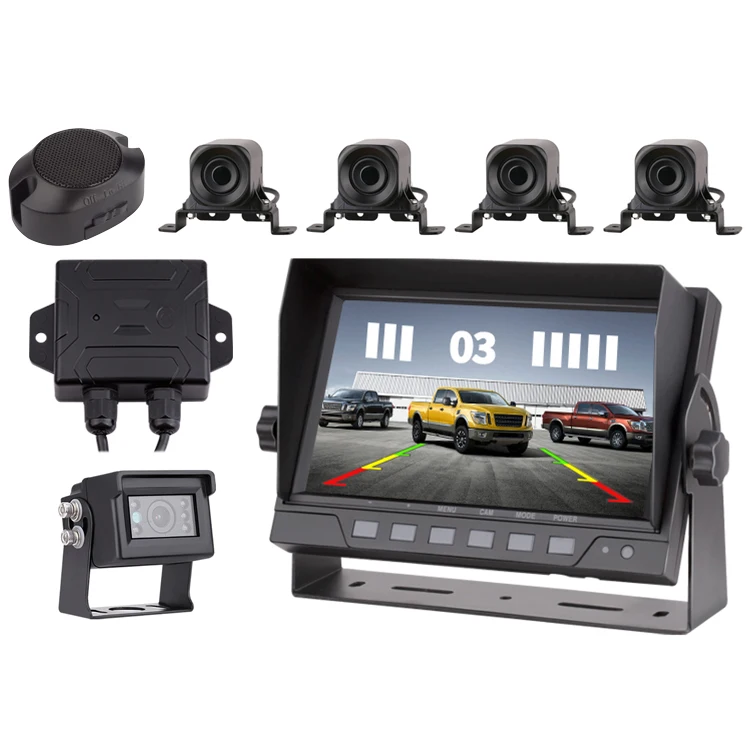

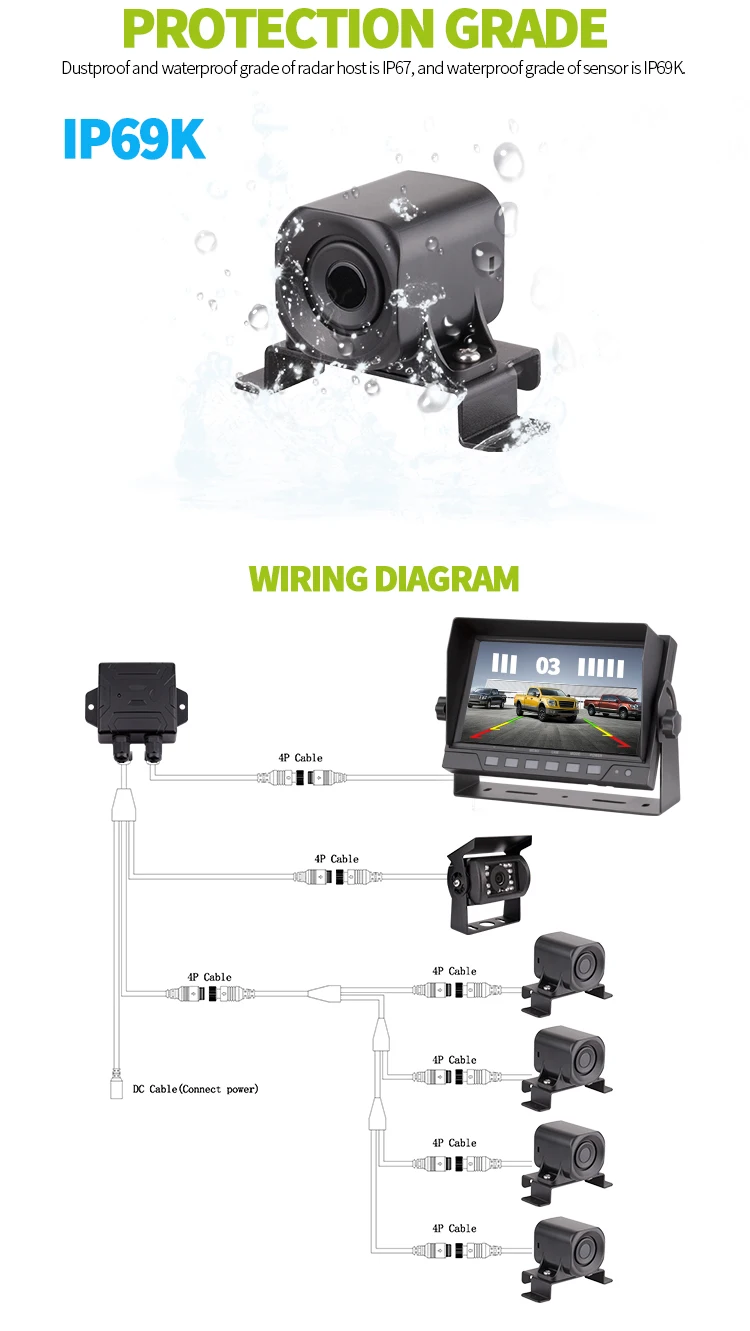

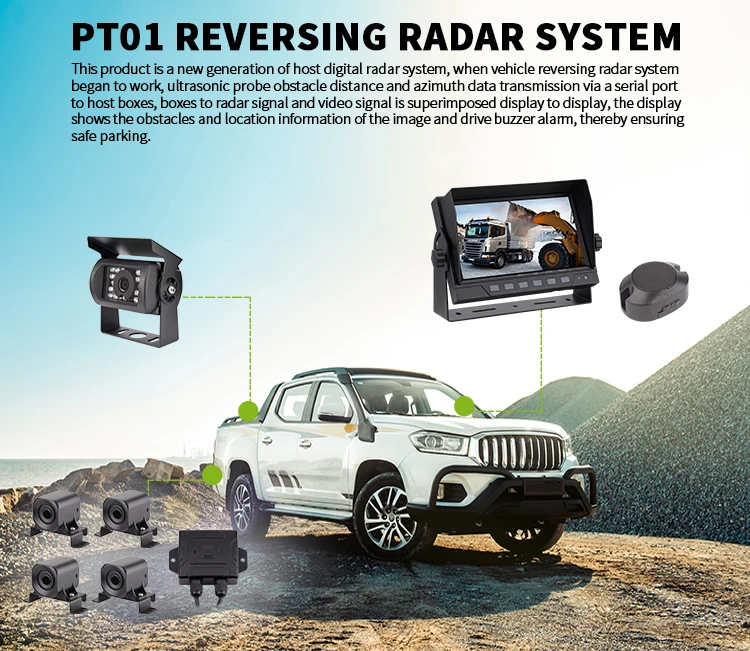

1. The whole radar system consists of four probes, four brackets and one main engine (2, 3 and 4 probes can be selected according to the size of the vehicle and the requirements of customers); the new generation reversing radar system is more convenient to install, stable and reliable in quality, and has strong anti-jamming ability

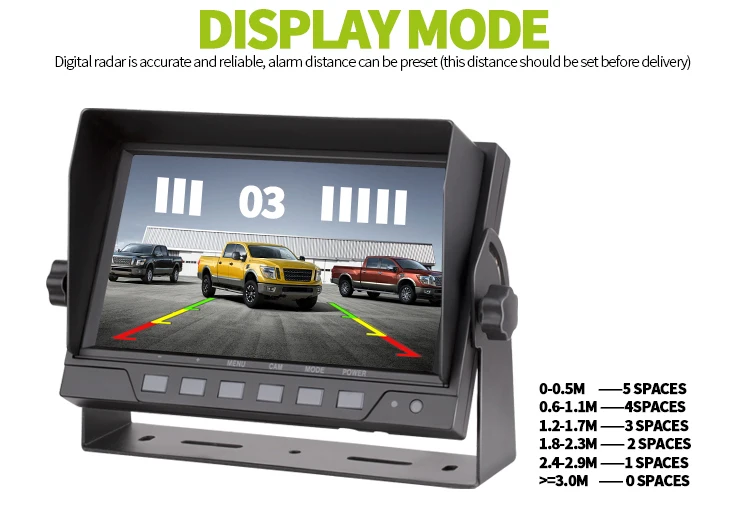

2. High-precision range detection, the whole radar system can set the predictive distance (this distance needs to be set before leaving the factory)
3. Radar adopts serial communication mode, and system diagnosis can be carried out by connecting external diagnostic tools through serial port
4. Power supply mode with wide voltage
3. Radar adopts serial communication mode, and system diagnosis can be carried out by connecting external diagnostic tools through serial port
4. Power supply mode with wide voltage

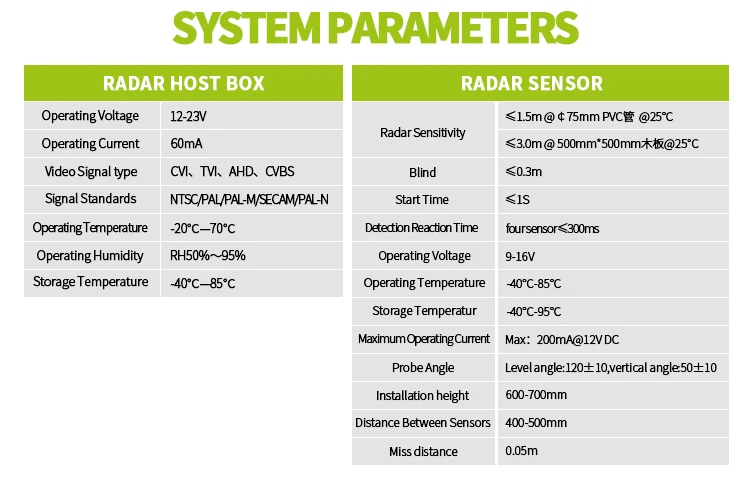

Radar host box | Radar sensor | ||||
Operating Voltage | 12-32V | Radar Sensitivity | ≤1.5m @Dia 75mm PVC pipe @25℃ | ||
Operating Current | 60mA | Transmission power | ≤3.0m @ 500mm*500mm board @25℃ | ||
Video Signal type | CVI、TVI、AHD、CVBS | Blind | ≤0.3m | ||
Operating temperature | -20℃-70℃ | Start Time | ≤1S | ||
Signal Standards | NTSC/PAL/PAL-M/SECAM/PAL-N | ||||
Storage temperature | -40℃-85℃ | Detection Reaction Time | Four sensor≤300ms | ||
Storage humidity | RH50%~95% | Operating Voltage | 9-16V | ||
Operating Temperature | -40℃-85℃ | ||||
Storage Temperatur | -40℃-95℃ | ||||
Maximum Operating Current | Max：200mA@12V DC | ||||
Rated Voltage | 12V±0.2V DC | ||||
Probe Angle | Level angle:120±10,vertical angle:50±10 | ||||
Distance Between Sensors | 400-500mm | ||||
Miss distance | 0.05m | ||||
Operating Temperature | -40℃-85℃ | ||||
Storage Temperature | -40℃-95℃ | ||||
Customized Service
Connector Type Customized
Camera chip solutions and product connectors can provide customized services accordingto customer requirements.
Monitor Optional
Optional customization 4-6 inches, 7 inches, 9-12 inches monitor, touch function, multi-split screen, ruler function, remote control, wifi wireless and other functions customization.
Sample service
All products support sample service, you can send an inquiry or contact online customer service for specific details.
Package
About Us
FAQ
Q: What are your warranty terms?
A: The warranty period of our products is 1-3year, but the parts that are consumables are not covered by the wananty.
Q: Are you a real factory?
A: Yes, we are a leading professional manufacturer in China, engaged in R&D, production and sales of automotive rear-view
products.
Q: How long is the delivery time?
A: Usually, the sample order is 3 to 5 days, and the custom prodtuct order is 15 to 20 working days.
Q: what are the payment terms?
A: Wiretransfer, FOB, CIF or EXW payment is also acceptable.
Q: Does it support OEM or ODM?
A: Of course, we can accept OEM & ODM orders atany time.
Q: Does your product have a certificate?
A: Yes, our products have CE, FCC, RoHS, E-mark, ITAF16949, CCC, IP69K certificates.
Q: what are the packaging conditions?
A: Usully we pack the goods in a neutal white box When the order reaches the MOQ we can also make custmized boxes according to your requirements.
A: The warranty period of our products is 1-3year, but the parts that are consumables are not covered by the wananty.
Q: Are you a real factory?
A: Yes, we are a leading professional manufacturer in China, engaged in R&D, production and sales of automotive rear-view
products.
Q: How long is the delivery time?
A: Usually, the sample order is 3 to 5 days, and the custom prodtuct order is 15 to 20 working days.
Q: what are the payment terms?
A: Wiretransfer, FOB, CIF or EXW payment is also acceptable.
Q: Does it support OEM or ODM?
A: Of course, we can accept OEM & ODM orders atany time.
Q: Does your product have a certificate?
A: Yes, our products have CE, FCC, RoHS, E-mark, ITAF16949, CCC, IP69K certificates.
Q: what are the packaging conditions?
A: Usully we pack the goods in a neutal white box When the order reaches the MOQ we can also make custmized boxes according to your requirements.
