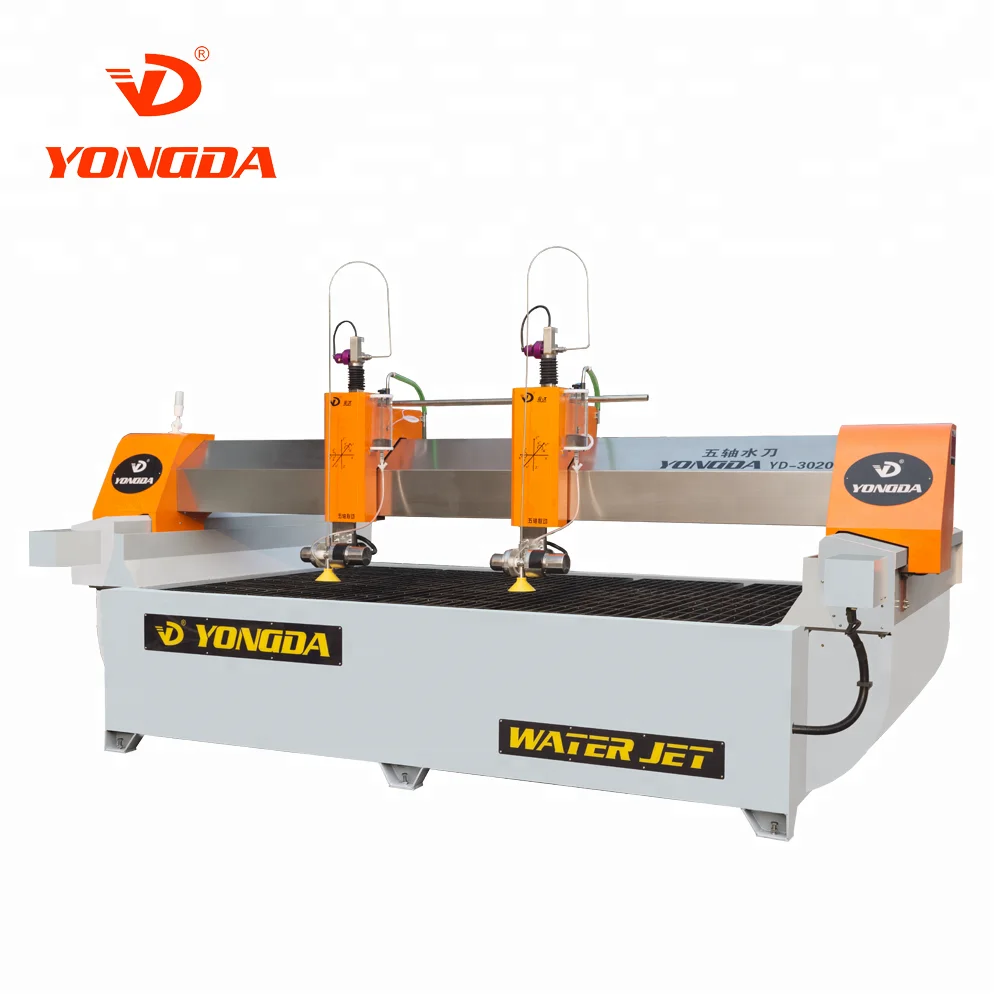

YD 3020 AB 5 Axis waterjet glass cutting machine automatic processing
YD-3020 AB 5 Axis waterjet glass cutting machine automatic processing
YD-3020 AB 5 Axis waterjet glass cutting machine automatic processing
YD-3020 AB 5 Axis waterjet glass cutting machine automatic processing
YD-3020 AB 5 Axis waterjet glass cutting machine automatic processing
YD-3020 AB 5 Axis waterjet glass cutting machine automatic processing
YD-3020 AB 5 Axis waterjet glass cutting machine automatic processing

YD 3020 AB 5 Axis waterjet glass cutting machine automatic processing

Share on (60779160998):


Price:$55,000.00

Quantity:


Product Overview

Description








 PRODUCT RECOMMENDED






























YONGDA YD-2515 3D engraving machine The CNC multifunctional engraving machine carving stone ceramic metal and glass






YD3020B Yongda 5 Axis Bridge Cutting Machine marble granite bridge saw cnc 3D stone bridge saw engraving machine for sale


CNC()




YONGDA YD4020 3 AXIS CNC Center stone machining center specially designed for sanitary countertop CNC control system full-option


YH-1200 6+6




YONGDA YH-1200( 6+6)new stone square edge and bevel edge Polishing Machine automatic chamfering machine bevel edge grinding







Product Description













 PRODUCT SPECIFICATIONS







YONGDA AB 5 AXIS water jet has a high cost performance in the North American market, the first generation of three-dimensional AB 5 AXIS water jet which was launched in year 2013, solve the headache of half bottom cutting surface bumpy which affects the pattern quality. It realizes arc plate cutting, cylinder cutting... make impossible possible. AB 5 AXIS cutting head can make arbitral curve cutting from 0° to 10°, curve changing is controlled by computer which make it more stable.






















































































ModelYD-1212YD-2015YD-2515YD-3015YD-3020YD-4020
StructureFlying-armFlying-armFlying-armFlying-armBridgeBridge
Cutting table size1300×1300mm2100×1600mm2600×1600mm3100×1600mm3100×2100mm4100×2100mm
StrokeX-axis1200mm2000mm2500mm3000mm3000mm4000mm
Y-axis1200mm1500mm1500mm1500mm2000mm2000mm
Z-axis100mm
A-axis±20°
C-axis±20°

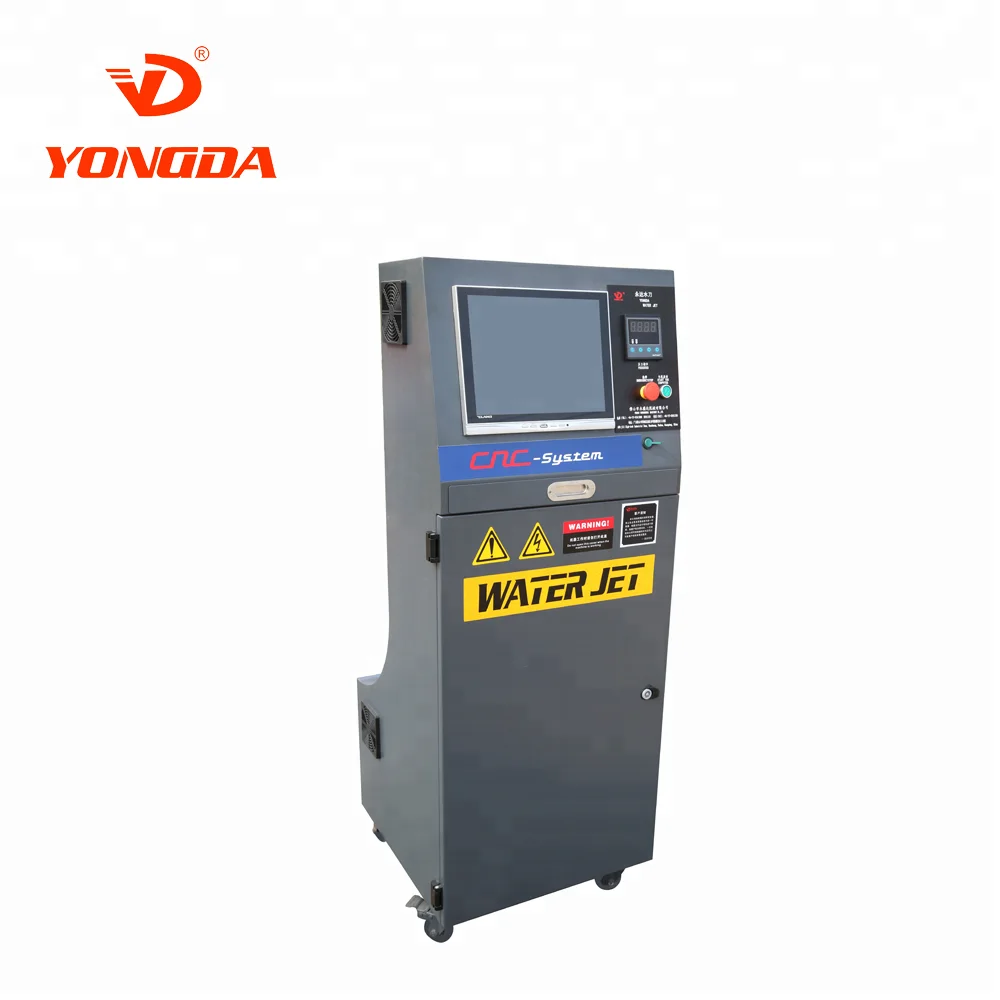

CNC controllerAC servo system
AccuracyCutting±0.1mm
Repeatability±0.05mm
Traverse speed6000/15000mm/min
Power supply220V/380V/415VAC--50/60HZ







ab750










 PRODUCT ADVANTAGES










yb









3D cuttingArbitrary curve and arbitrary angle5 axis linkage







yb3









Long life and low maintenanceHigh-precision machining center processingServo drive, higher control accuracy







yb2










Apply unique oil immersion


lubrication



All accessories go through the


three-dimensional testing center













 CUTTING EFFECT
