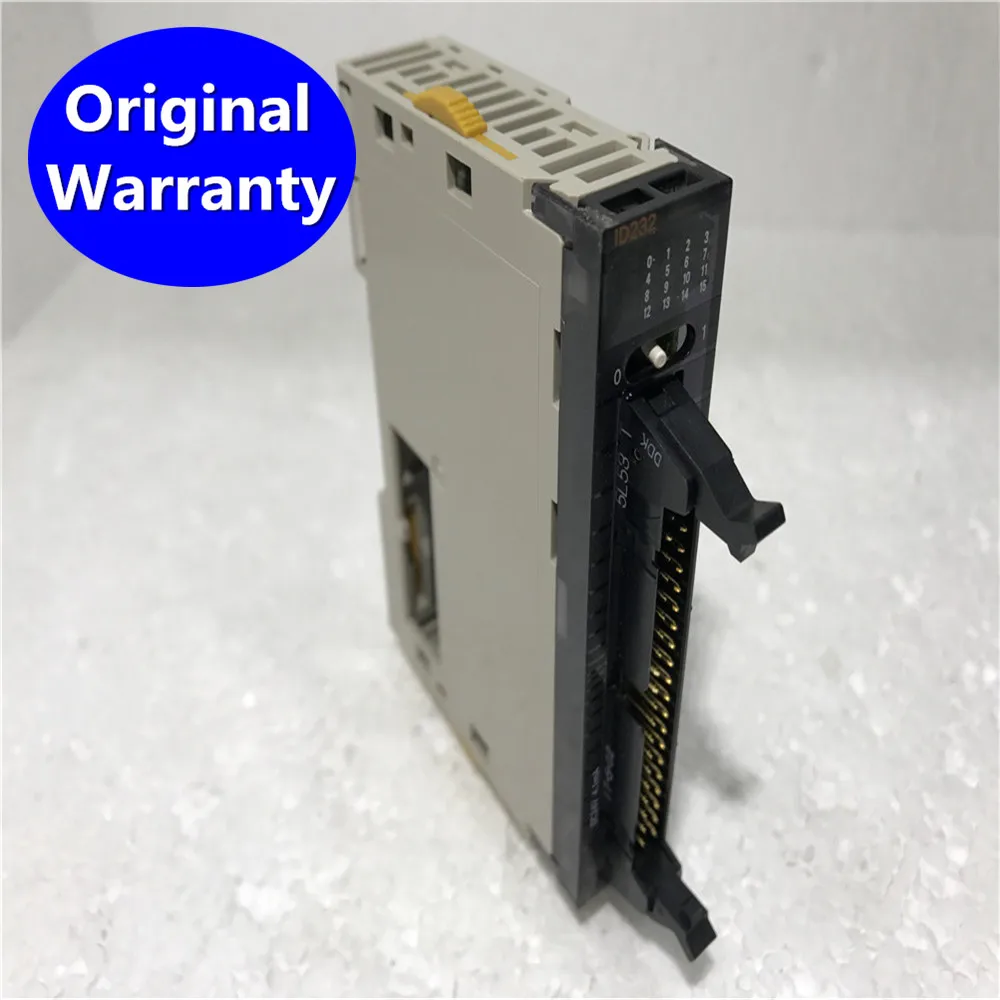

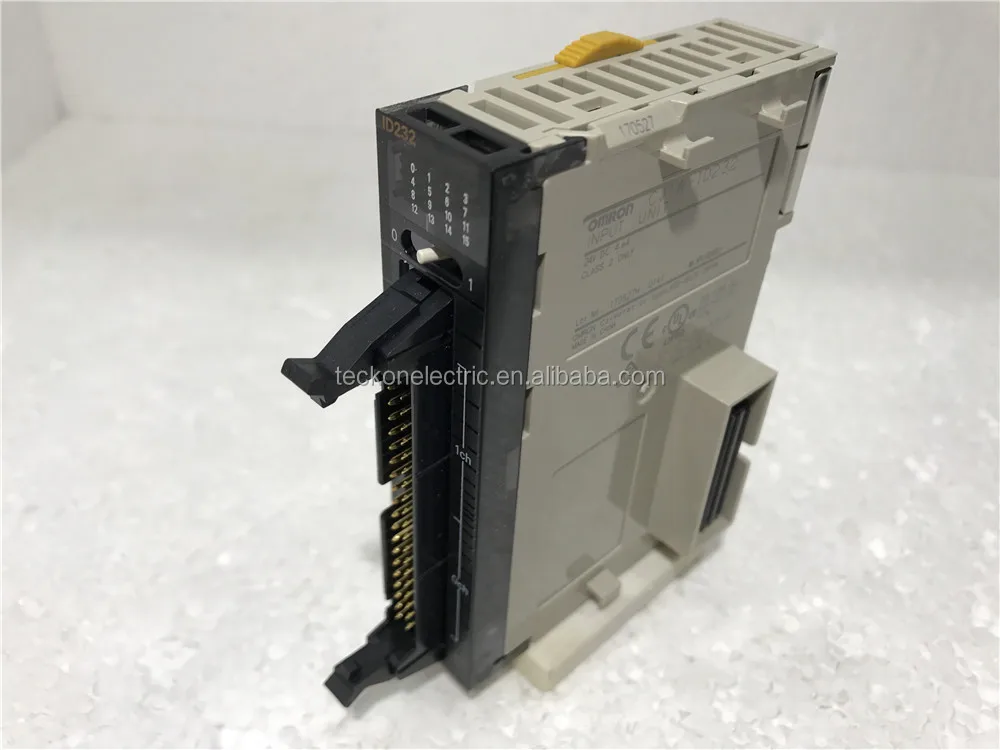

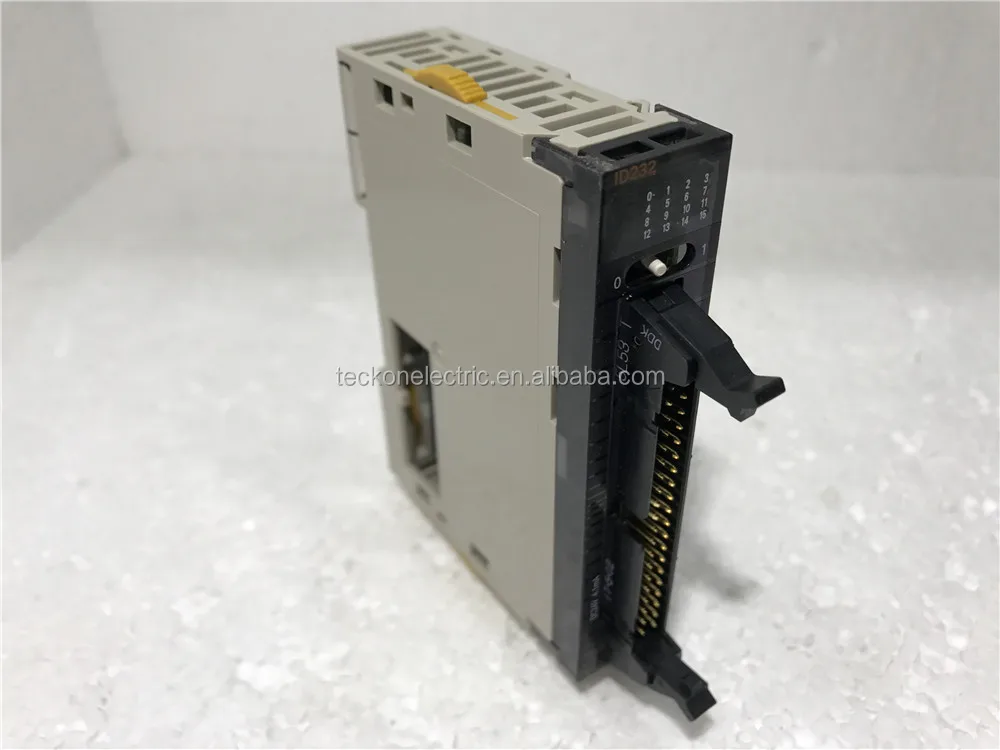

CJ1W ID232 Omron CJ1W Input Module
- Category: >>>
- Supplier: Teckon Electric (Shanghai) Co. Ltd.
Share on (60779198092):
Product Overview
Description
New & Original CJ1W-ID232 Omron CJ1W I/O Units IN STOCK
| Product name | Inputs | Outputs | Output type | External connection | Model |
| DC Input units | 8 | -- | -- | Removable terminal block | CJ1W-ID201 |
| 16 | -- | -- | Removable terminal block | CJ1W-ID211 | |
16 (high speed) | -- | -- | Removable terminal block | CJ1W-ID212 | |

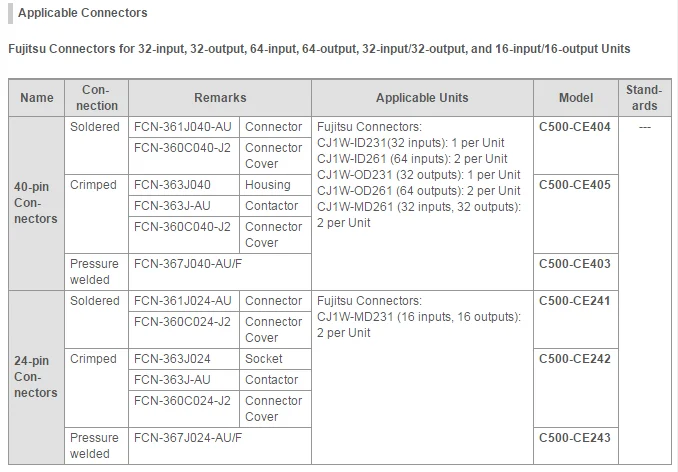

32 | -- | -- | Fujitsu connector | CJ1W-ID231 | |

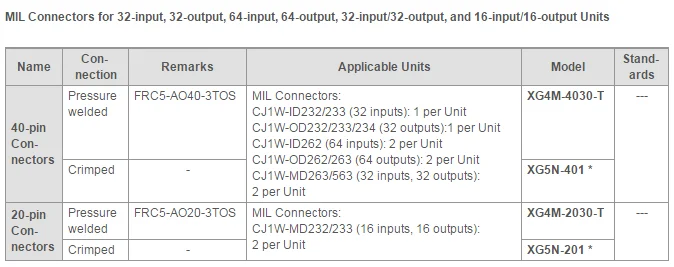

32 | -- | -- | MIL connector | CJ1W-ID232 | |
| 32 (high speed) | -- | -- | MIL connector | CJ1W-ID233 | |
| 64 | -- | -- | Fujitsu connector | CJ1W-ID261 | |
| 64 | -- | -- | MIL connector | CJ1W-ID262 | |
| AC Input units | 8 | -- | -- | Removable terminal block | CJ1W-IA201 |
| 16 | -- | -- | Removable terminal block | CJ1W-IA111 |
| Product name | Inputs | Outputs | Output type | External connection | Model |
| Relay Contact output Units | -- | 8 | -- | Removable terminal block | CJ1W-OC201 |
| -- | 16 | -- | Removable terminal block | CJ1W-OC211 | |
| Triac Output Unit | -- | 8 | -- | Removable terminal block | CJ1W-OA201 |
| Transistor Output Units | -- | 8 | Sinking | Removable terminal block | CJ1W-OD201 |
| -- | 8 | Sinking | Removable terminal block | CJ1W-OD203 | |
| -- | 16 | Sinking | Removable terminal block | CJ1W-OD211 | |
| -- | 16 | Sinking | Removable terminal block | CJ1W-OD213 | |
| -- | 32 | Sinking | Fujitsu connector | CJ1W-OD231 | |
| -- | 32 | Sinking | MIL connector | CJ1W-OD233 | |
| -- | 32 | Sinking | MIL connector | CJ1W-OD234 | |
| -- | 64 | Sinking | Fujitsu connector | CJ1W-OD261 | |
| -- | 64 | Sinking | MIL connector | CJ1W-OD263 | |
| -- | 8 | Sourcing | Removable terminal block | CJ1W-OD202 | |
| -- | 8 | Sourcing | Removable terminal block | CJ1W-OD204 | |
| -- | 16 | Sourcing | Removable terminal block | CJ1W-OD212 | |
| -- | 32 | Sourcing | MIL connector | CJ1W-OD232 | |
| -- | 64 | Sourcing | MIL connector | CJ1W-OD262 |
| Product name | Inputs | Outputs | Output type | External connection | Model |
| DC Input/Transistor Output Units | 16 | 16 | Sinking | Fujitsu connector | CJ1W-MD231 |
| 16 | 16 | Sinking | MIL connector | CJ1W-MD233 | |
| 32 | 32 | Sinking | Fujitsu connector | CJ1W-MD261 | |
| 32 | 32 | Sinking | MIL connector | CJ1W-MD263 | |
| 16 | 16 | Sourcing | MIL connector | CJ1W-MD232 | |
| TTL I/O Units | 32 | 32 | -- | MIL connector | CJ1W-MD563 |
| Product name | Inputs | Outputs | Output type | External connection | Model |
| Interrupt Input Unit | 16 | -- | -- | Removable terminal block | CJ1W-INT01 |
| Quick response Input Unit | 16 | -- | -- | Removable terminal block | CJ1W-IDP01 |
| B7A Interface Units | 64 | -- | -- | Removable terminal block | CJ1W-B7A14 |
| -- | 64 | -- | Removable terminal block | CJ1W-B7A04 | |
| 32 | 32 | -- | Removable terminal block | CJ1W-B7A22 |
