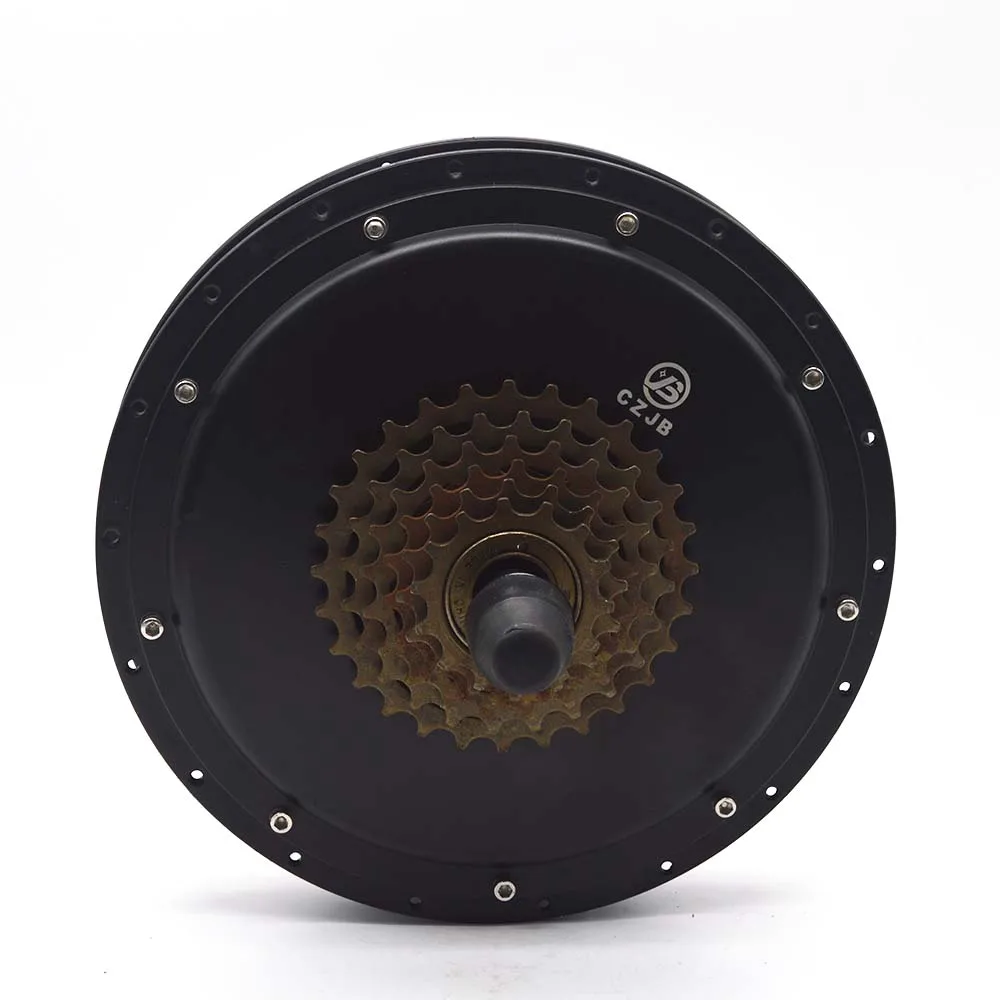

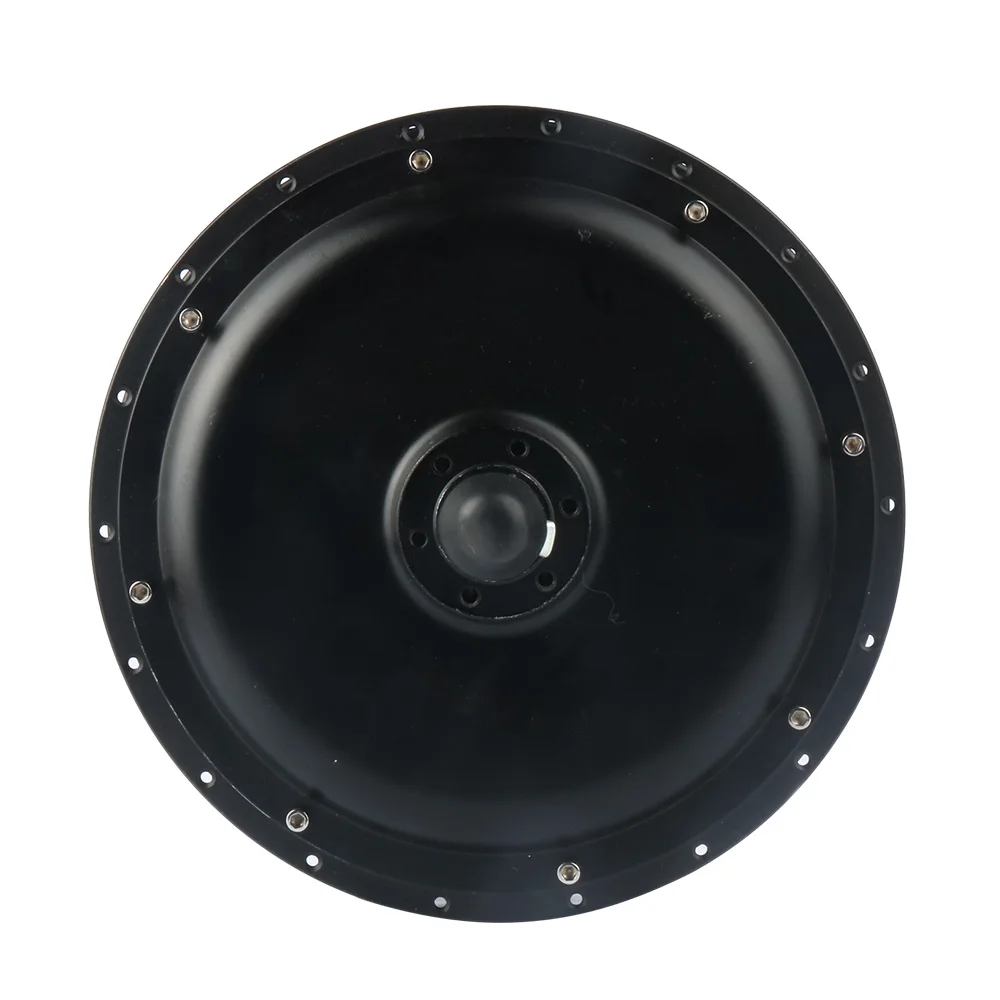

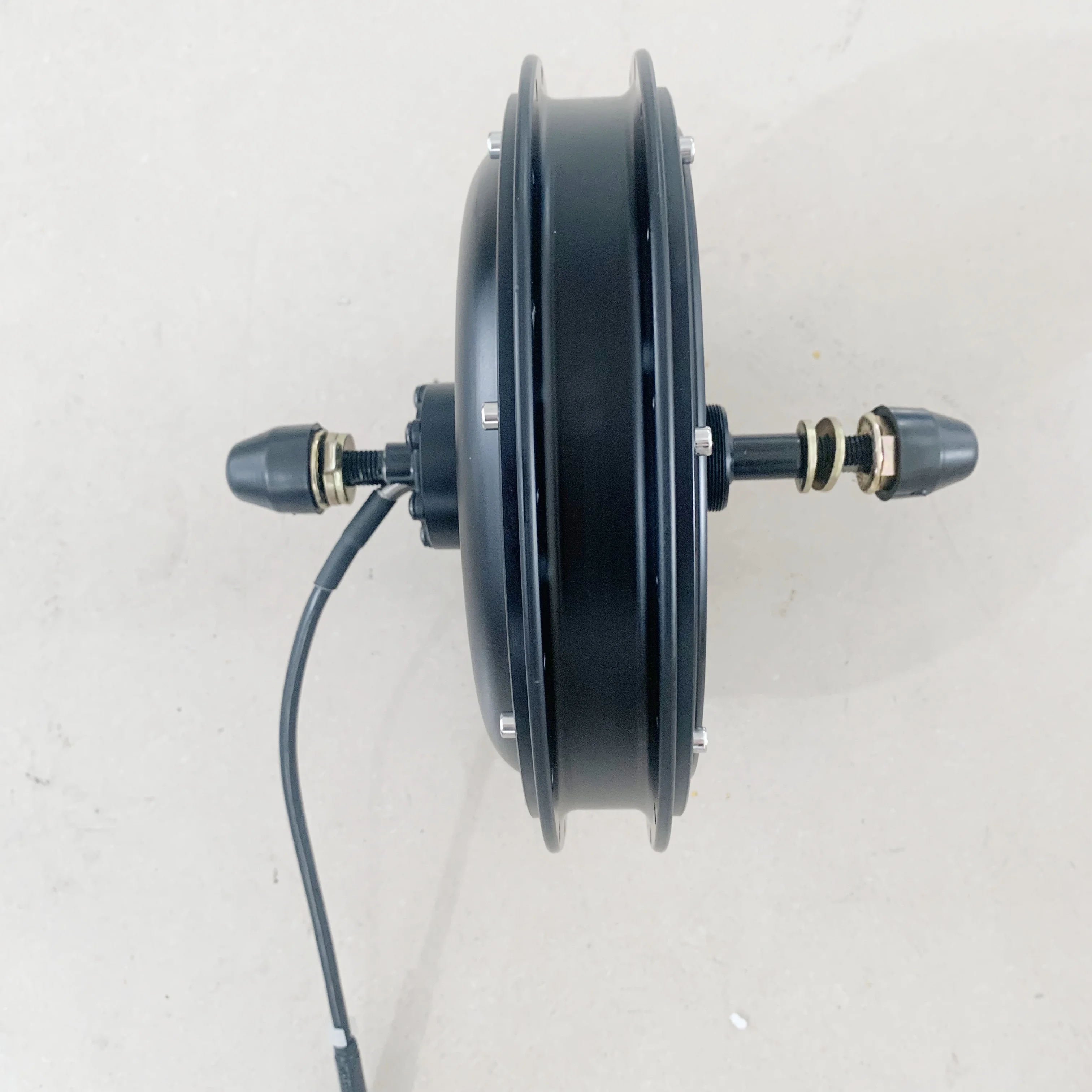

CZJB 205 35 48V 1000W 50km/h rear direct drive electric bicycle motor
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (60779223922):
Product Overview
Description
Product Description
MAIN TECHNICAL PARAMETER | ||||||||
MOTOR CODE | CZJB-205-35 | |||||||
RATED VOLTAGE | 48 | |||||||
RATED POWER | 1000W | |||||||
RATED SPEED | 50KM/H | |||||||
SPOKE SPECIFICATION | 36H*12G/13G | |||||||
DROPOUT | 135MM | |||||||
CABLE LOCATION | SHAFT CENTER RIGHT/LEFT | |||||||
DRIVE AND FREEWHEEL | 6-7S | |||||||
WHEEL SIZE | 26" | |||||||
WATERPROOF GRADE | IP65 | |||||||
MORE DETAILS PLS CONTACT US ON TRADEMAMAGER OR SEND INQUIRY! | ||||||||

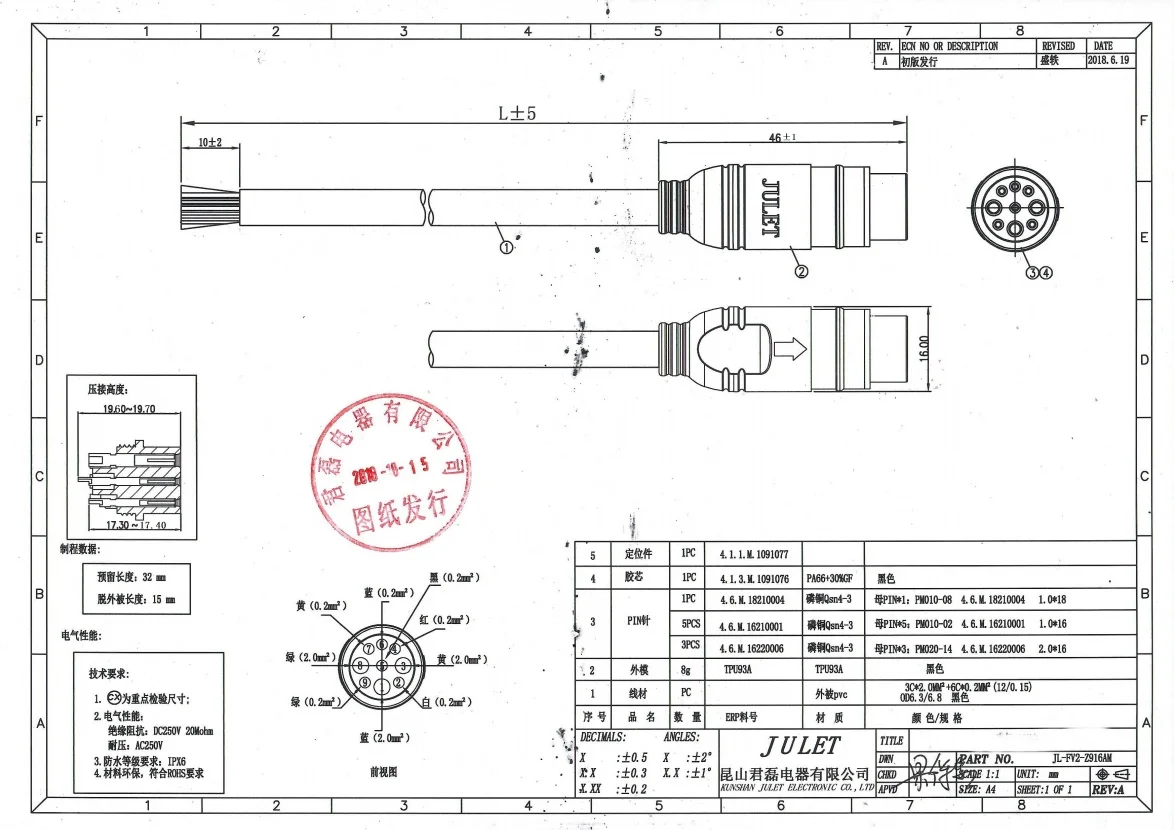

Nine pins waterproof cables(2.0 square for 1000W)
motor female connector:200mm female: rear :800mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
motor female connector:200mm female: rear :800mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
Our Advantages
*E-bike hub motor manufacturer
*support e-bike system customization
*16 years professional experience of e-bike gear motor
*continuous R&D
*ODM&OEM
*ISO9001,CE,ROHS,SGS,UKCA,
*Western America Service Center
*support e-bike system customization
*16 years professional experience of e-bike gear motor
*continuous R&D
*ODM&OEM
*ISO9001,CE,ROHS,SGS,UKCA,
*Western America Service Center
Product Application
