thread rolling rollers

Product Overview

Description

Thread rolling machine

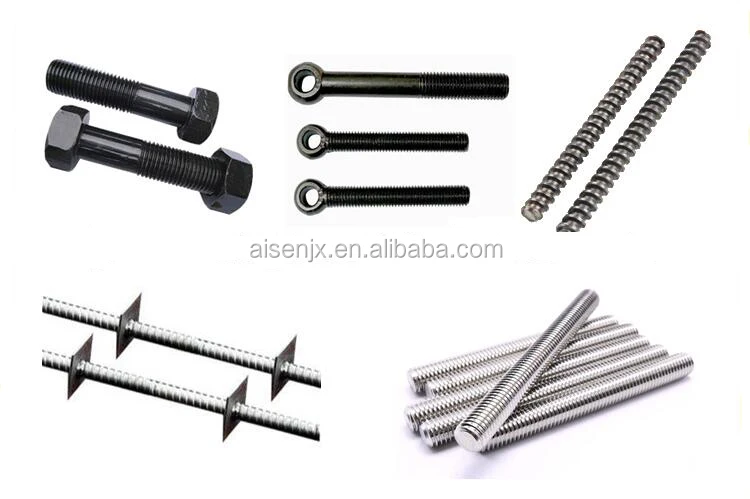

This model is widely praised for its rational price, easy maintenance and high quality. besides axial and radial process, it is used to process regular and irregular bolt, through screw etc. with optional embossing roller embossing roller. the through screw made with this machine in zhejiang standard parts base has been exported to US Canada and Europe.



Specification:

Pressure of roller max:	150KN	Rotary speed of main shaft:	36,47,60,78(r/min)
Working dia:	4-48mm	Feed speed of movable shaft:	5mm/s
OD of roller:	120-170mm	Thread length:	no limits
BD of roller:	54mm	Main power:	4kw
Roller width max:	100mm	Hydraulic power:	2.2kw
Dip angle of main shaft:	+-5degree	Weight:	1700kg
Center distance of main shaft( stroke):	120-240mm	Size:	1500*1380*1140mm

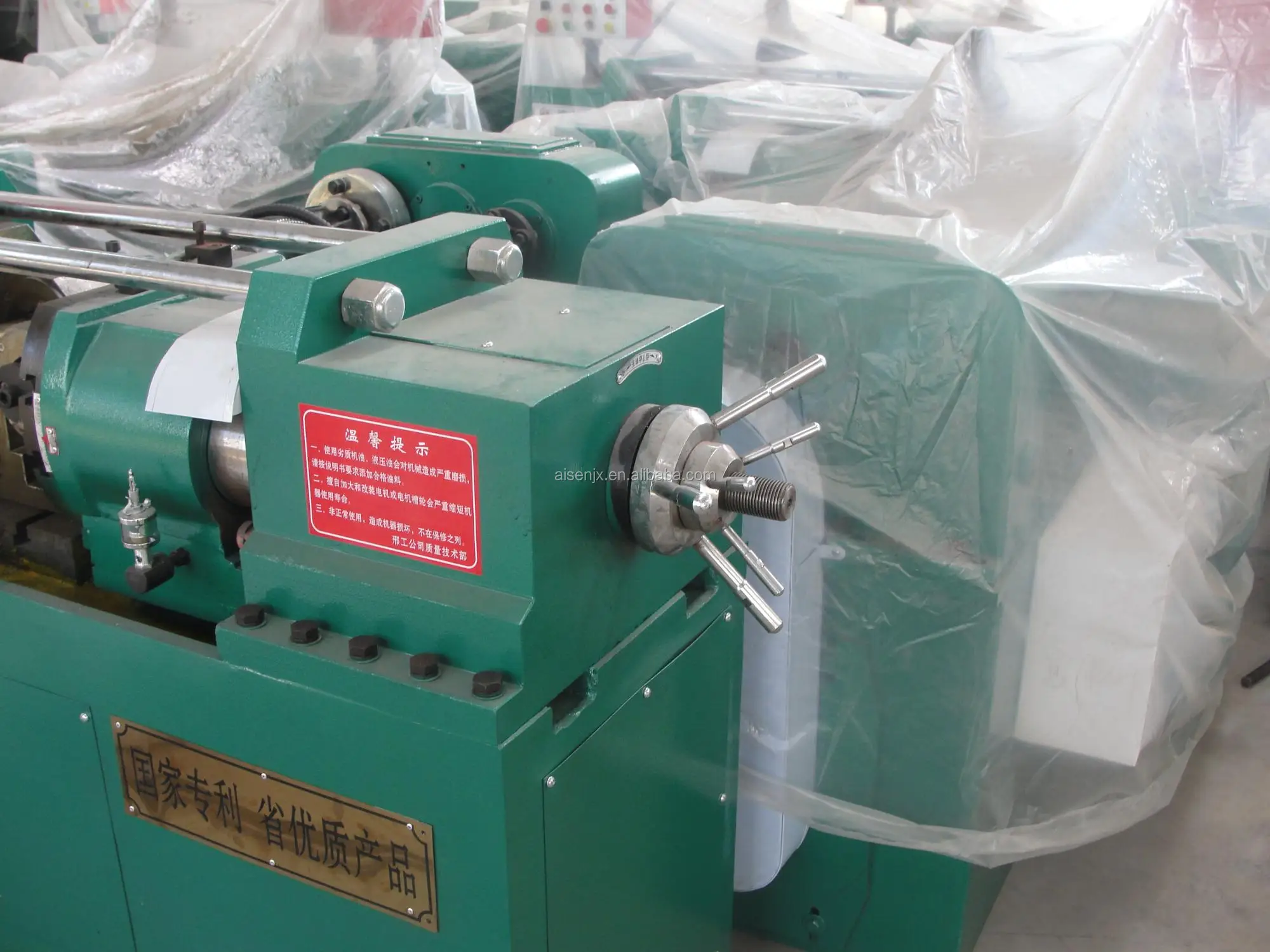

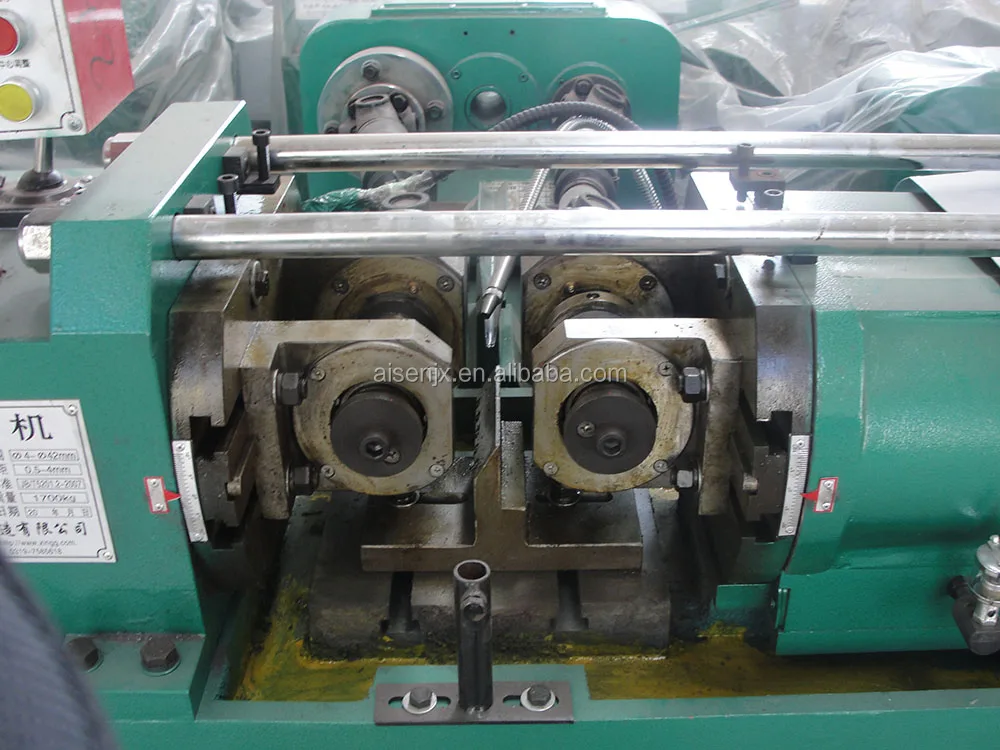

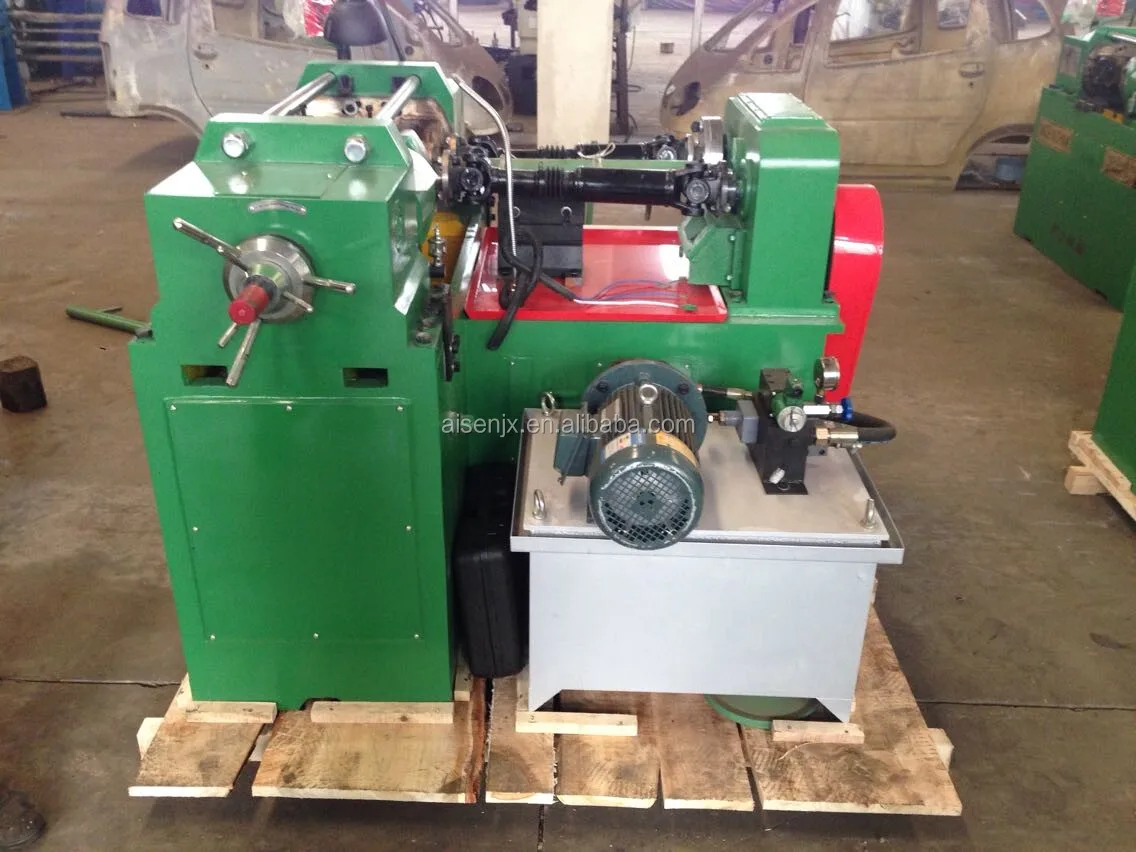

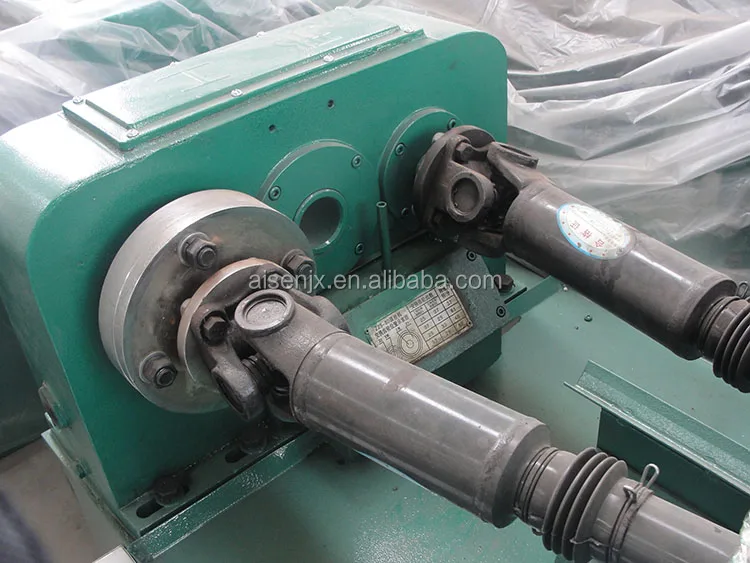

Equipment details show:
