ATJ600 Automatic Box Former(Packaging Forming Machines)
- Category: Packaging Forming Machines >>>
- Supplier: Shanghai SHM International Trading Co. Ltd. [Shanghai China]Shanghai
Share on (60779233092):
Product Overview
Description

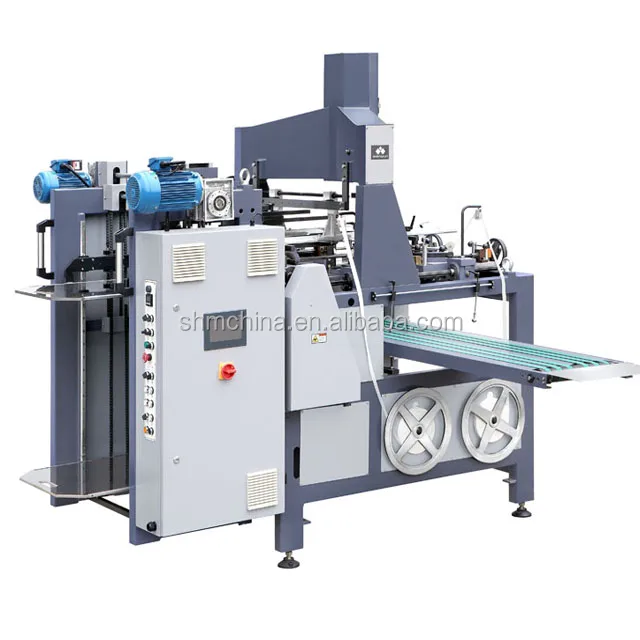

ATJ600 Automatic Box Former
MAIN FEATURES:
1. It adopts PLC control and friendly HMI.
2. Automatic feeding cardboard, Max. staboard table adopt on-line feeding.
4. Easy to change mold, suitable for different sizes of products.
5. The hot-melting glue tape auto conveying, cutting and four-angle sticking, forming the box in one process.
6. Auto alarm when the tape run out.
MAIN SPECIFICATIONS:

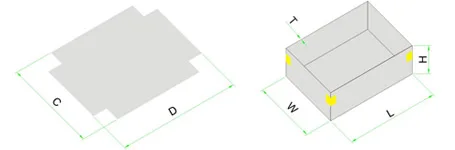

Cardboard size(C×D) | 600×800mm(Max) |
Cardboard Thickness | 0.8-3mm |
Min Box Size on W side | 50mm |
Max Box Size on W side | 400mm |
Min Box Size on L side | 100mm |
Max Box Size on L side | 600mm |
Min Box Size on H side | 15mm |
Max Box Size on H side | 150mm |
Max Speed | 35sheets/min |
Heater power | 1.8kw |
Motor power | 2.4kw |
Weight | 1550kg |
Dimension(L×W×H) | 2350×2500×2300mm(L×W×H) |
FAQ
1.Q : What about the price of the machine?
A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information.
2.Q:How long is the warranty of the machines ?And other Service ?
A: Warranty is 12 months after the machines arrive.
Our engineer can provide service overseas if you need.
And we also provide installation and operation training.
3. Q : How about your delivery time ?
A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more.
4.Q:What`s the price term and payment method?
A:We usually use Fob, CIF and CFR.
Payment method : 100 % T/T (30% deposit + 70% before shipment ) OR 100% L/C.
