Cylinder blocks boring machine T806,T806A, T807, T807K

Product Overview

Description

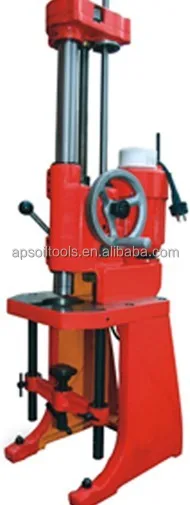

Cylinder reboring machine T806,T806A,T807 ,T807K





Specifications



The boring machine is mainly used for reboring engine cylinders of automobiles,motor cycles, middle & small-tractors.

Reliable performance ,widely use, processing accuracy high productivity. Easy and Flexible operation

Good rigidity ,amount of cutting







Main specifications

Model	T806	T806A	T807	T807K
Boring diameter	39-60mm	45-80mm	39-70mm	39-80 mm
Max. boring depth	160 mm	170mm	160 mm	170 mm
Spindle speed	486 r/min
Spindle feed	0.09 mm/r
Spindle quick reset	Manual
Motor voltage	220/380 V
Motor power	0.25 Kw
Motor speed	1440 r/min
Overall dimension	330x400x1080 mm
Machine weight	80 kg	85kg	81 kg	85 kg

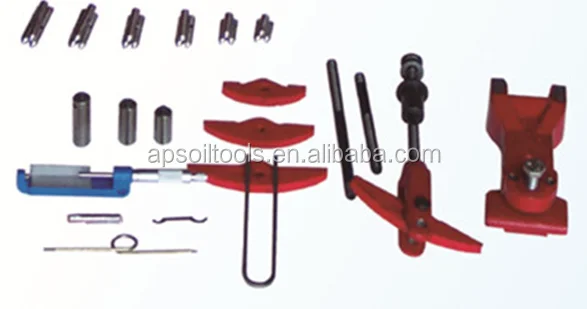

Standard accessories:

Specific micrometer, Centering rod, Tension spring, Cutter sharpening attachment, Upper cylinder packing ring, Lower cylinder packing ring, cylinder press ring, Boring sleeve, Centering device, specific spanner for micrometer, Hex. Socket wrench, Boring cutter, Spring(for cutter)





Optional Accessories:

1.Cutter Sharpener

Packing List
NO Accessories(T807) Specification Quantity
1 Specific micrometer 35-70 1 pcs
2 Centering rod 3pcs.each 4 sets
3 Tension spring 1 pcs
4 Cutter sharpening attachment By option 1 set
5 Upper cylinder packing ring 50,60,70 3 pcs
6 Lower cylinder packing ring 50,65,75 3 pcs
7 Cylinder press ring 42,52,62,72 4 pcs
8 Boring sleeve 1 pcs
9 Centering device 1 set
10 Specific spanner for micrometer 1 pcs
11 Hex. Socket wrenches S=3 1 pcs
12 Boring Cutters 4 pcs
13 Multi-wedge belt 1 pcs
14 Spring (for cutter) 4 pcs

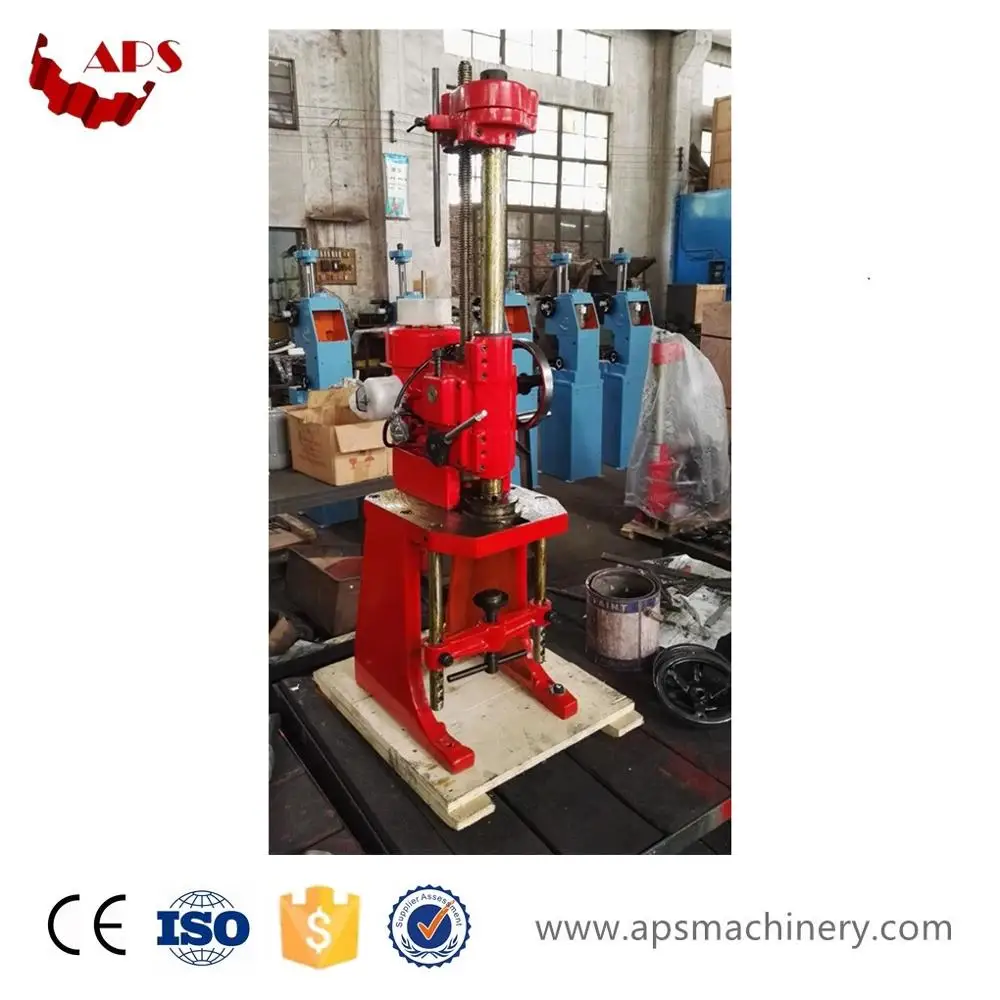

Machine real photos:  T807K

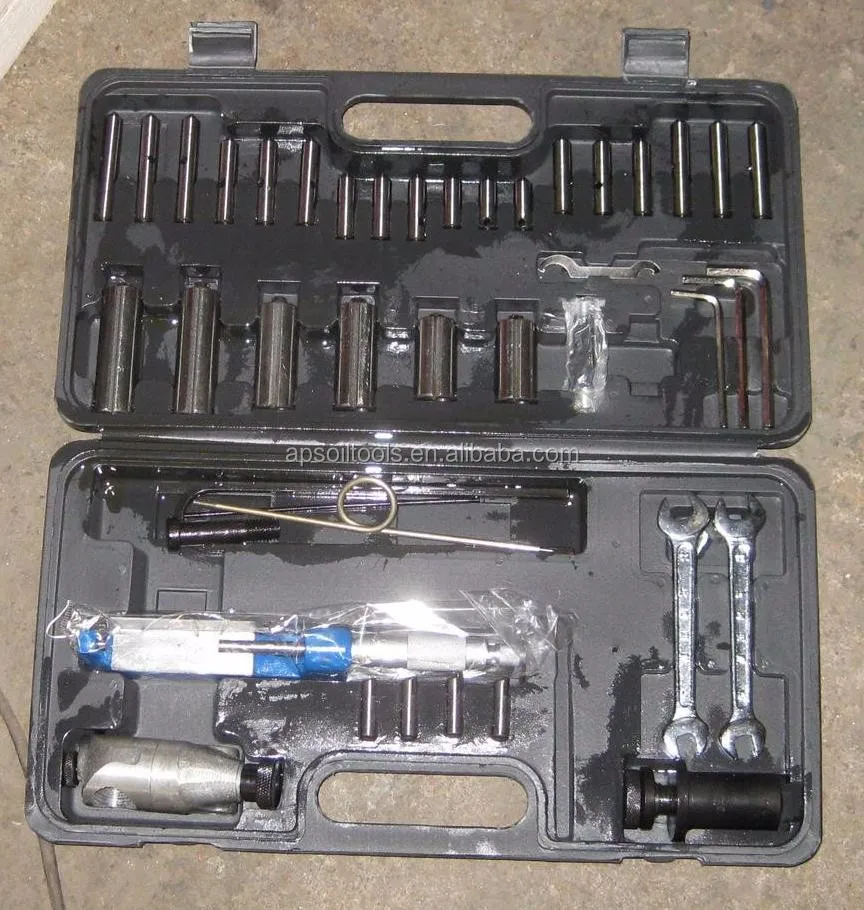

Tools:

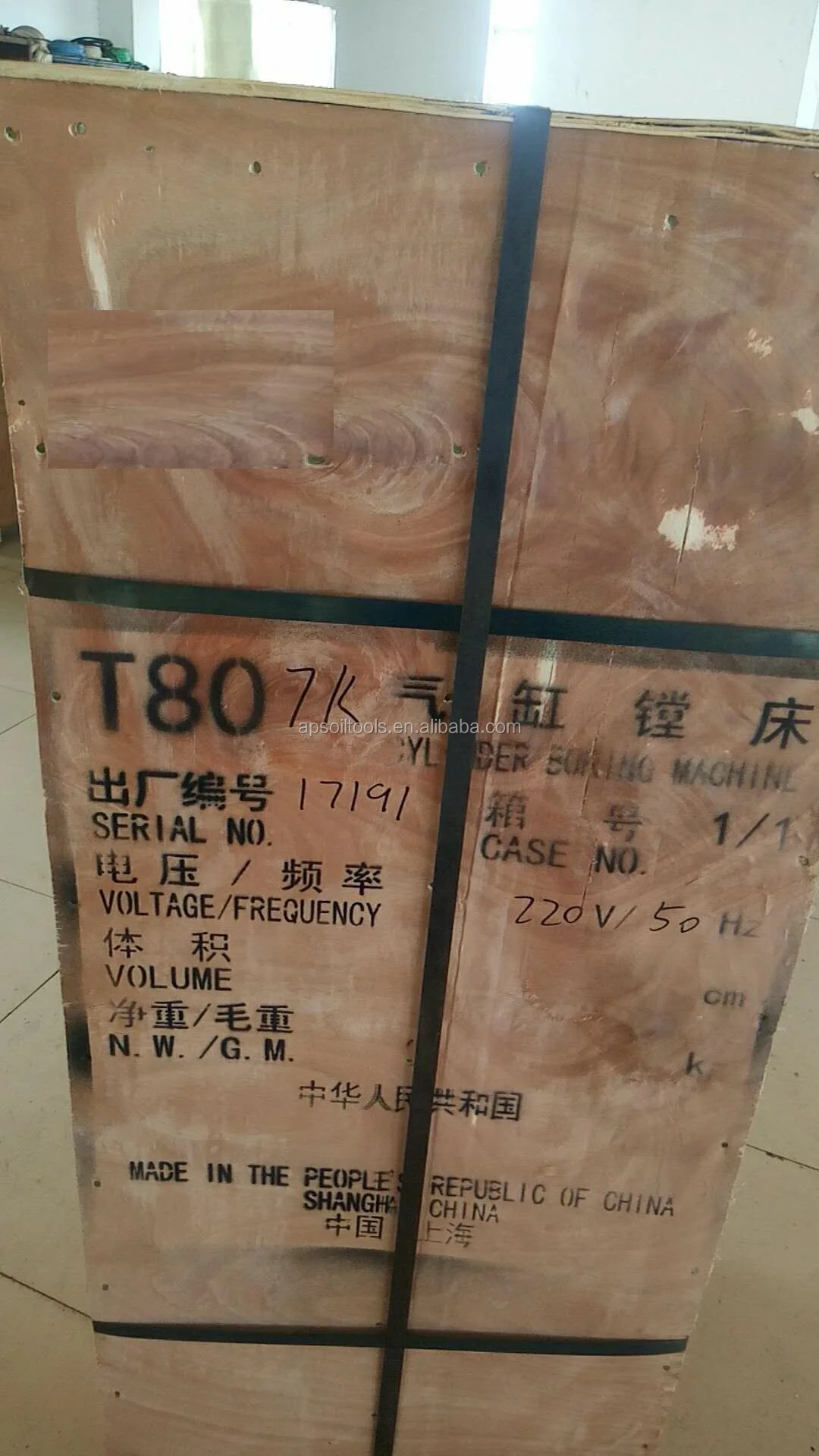

Export plywood case
