Anti Theft Bike Sharing System Lock Smart Lock ODM/OEM GPS Solar Power
- Category: >>>
- Supplier: Shenzhen Jimi IOT Co. Ltd.
Share on (60779282359):
Product Overview
Description

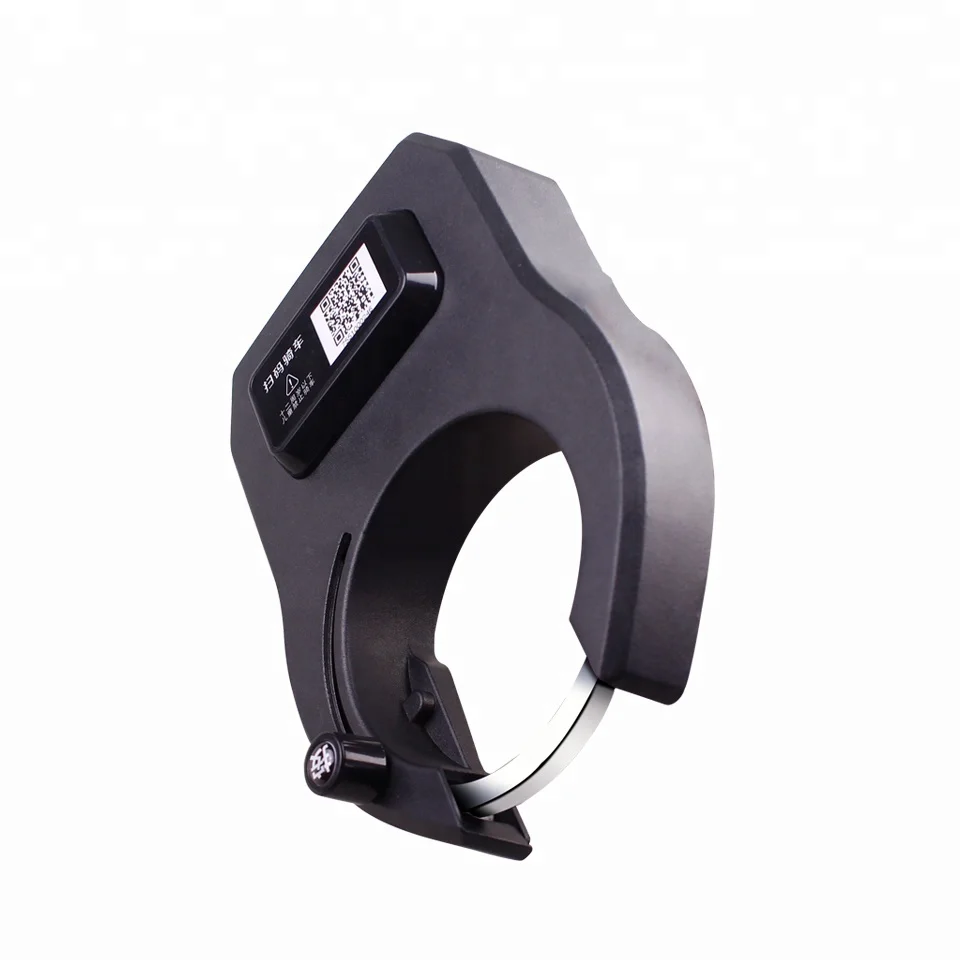

Anti Theft Bike Sharing System Lock Smart Lock ODM/OEM GPS Solar Power
- 10000mAH battery
1000mAh battery and intelligent power management ensure 45 days working time

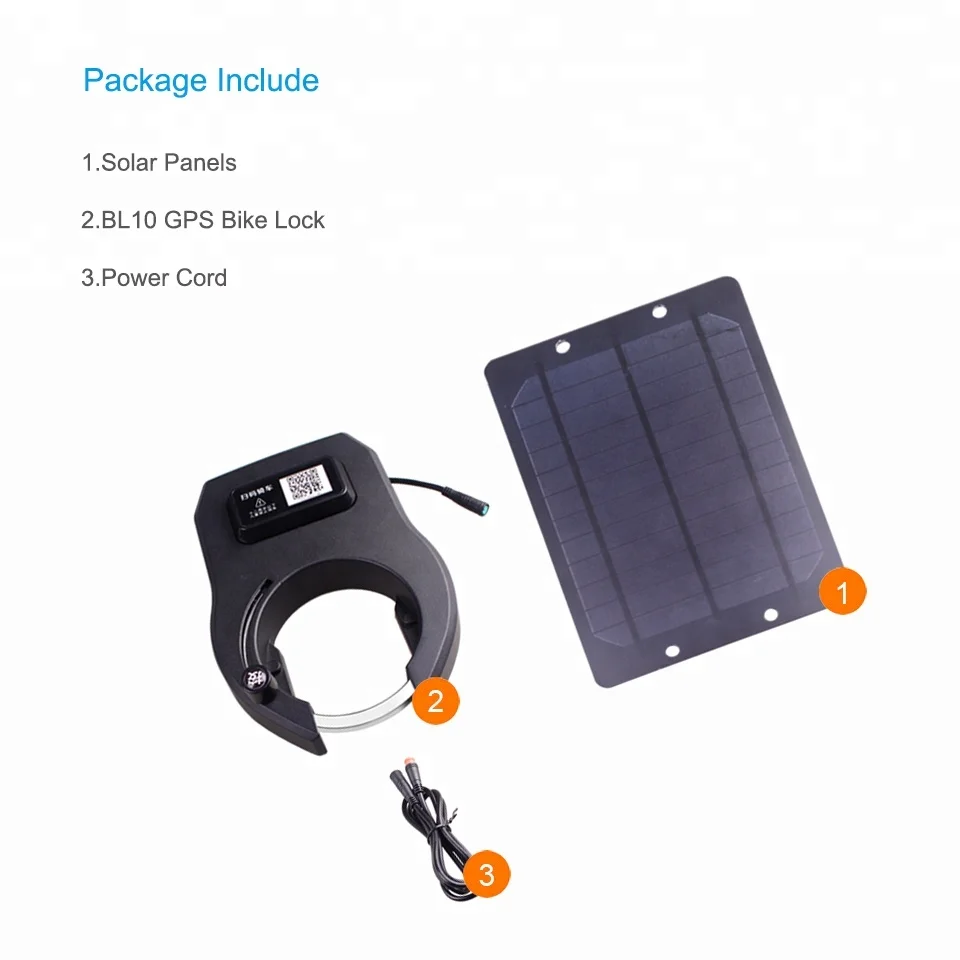

- Solar charing
Mono-crystalline silicon solar panels provide solar-energy conversion

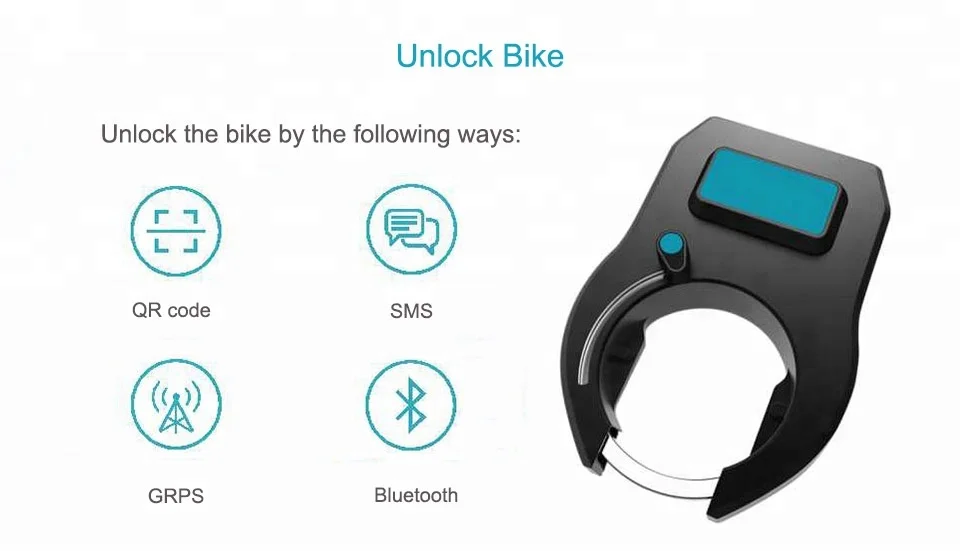

- Lock/unlock bike via SMS/APP
GPRS technology ensures efficient and reliable unlocking

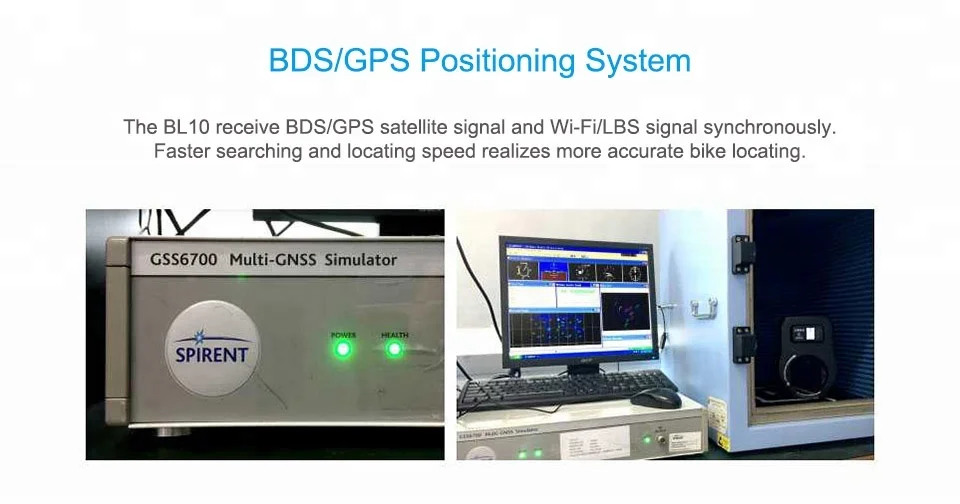

- GPS /LBS positioning
Faster searching & locating speed realizes more accurate bike locating
- Geo-fence
Create virtual barrier to define geographical boundaries
- IPX6 Water Proof
Able to withstand inclement weather conditions
BL10 spec
| GSM Specification | |
| CPU | CPU MTK2503, dominant frequency 260MHz |
| Communication mode | GSM |
| GSM Frequency | 850/900/1800/1900MHz |
| GPRS | Class 12, TCP/IP |
| Memory | 64Mb |
| Phrase error | RMSPE<5, PPE <20 |
| Receive sensitivity | Class II RBER2% (-102dBm) |
| GPS Specification | |
| Chip | MTK high sensitivity GPS chips |
| Frequency | GPS L1, 1575.42MHz |
| Channel | 66 |
| Location accuracy | 5-10 meters |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| Main Specification | |
| WIFI location accuracy | 3-50 meters |
| iBeacon location accuracy | 1-10meters |
| G-sensor | BMA 250E |
| Antenna | Built-in quad band GSM antenna |
| Battery | 10000mAh (built-in 3.7v/2500mAhx4 battes 18650) |
| Charging | Solar energy(6v/5w) |
| Average working current | About 60mA |
| Average standby current | About 4mA |
| Working condition | Temperature: -20°C-60°C, Humidity 5%-95% |
| Waterproof | IPX6 |
| Packing Specification | |
| Gross weight | 2kg |
| Packing dimension | 21x14.5x6cm |
Company Information
JIMI Electronics Co.,Ltd, located in NanShan District, Shenzhen, China. As a leading and advanced wireless communication solution provider in China, we mainly manufacture Smart Rearview Mirror DVR, Smart GPS Navigation and GPS Tracker.
Our advantages:
1. Focus on wireless communication with more than 14years experiences.
2. Powerful R&D team with over 200 engineers.
3. 3 factories for manufacturing chips, integrating and assembling.
4. Complete Solution hardware,software and mobile APP.
5. OEM,ODM acceptable.
We, the Jimi family, not only seek to build a brand, but establish a philosophy of life along the process as well. We sincerely hope that by setting up the standard of top quality with tangible price, we can help restore the true value of a commercial product, and by doing so create a better life for everyone.
Our Factory
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
OEM Service
We supply the OEM Service for every purchaser whose order quantity is over 500 pieces.
Packaging & Shipping
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment and all details are confirmed.
2. For order over 500pcs or customized order, lead time will be with 4-6 weeks.
3. Please contact me timely to make sure the current inventory.
