LED Panel Light Automatic Assembly Machine Glue Dispensing and Mounting PCB board back lit panel glue dispenser

Product Overview

Description

LED back-lit panel light automatic glue dispensing and PCB board mounting machine is designed to assemble LED back-lit panel light in the process of dispensing glue and also mounting the PCB board. Direct glow panel light is more and more popular now. The production process is a little different from traditional edge-lit LED panel light. It requires PCB board with lens sticking with the light plate bottom. Two steps need labor cost, one is dispensing glue, the other is sticking the PCB board. The LED panel light automatic glue dispensing and PCB board mounting machine can be used to replace manual operation, to reduce labot cost.



Technical Parameter

Model	TC-60
working range	300*300mm,300*600mm,600*600mm
moving speed	Max≤300mm/sec
repeat accuracy	±0.05mm
power source	cylinder
glue volume	depends on glue viscosity
glue container	2600ml barrel
glue viscosity	Max≤20000CPS
control	PLC+touch screen
air pressure	0.5-0.8Mpa
voltage	AC220V 50HZ / 2000W



 Machine Features

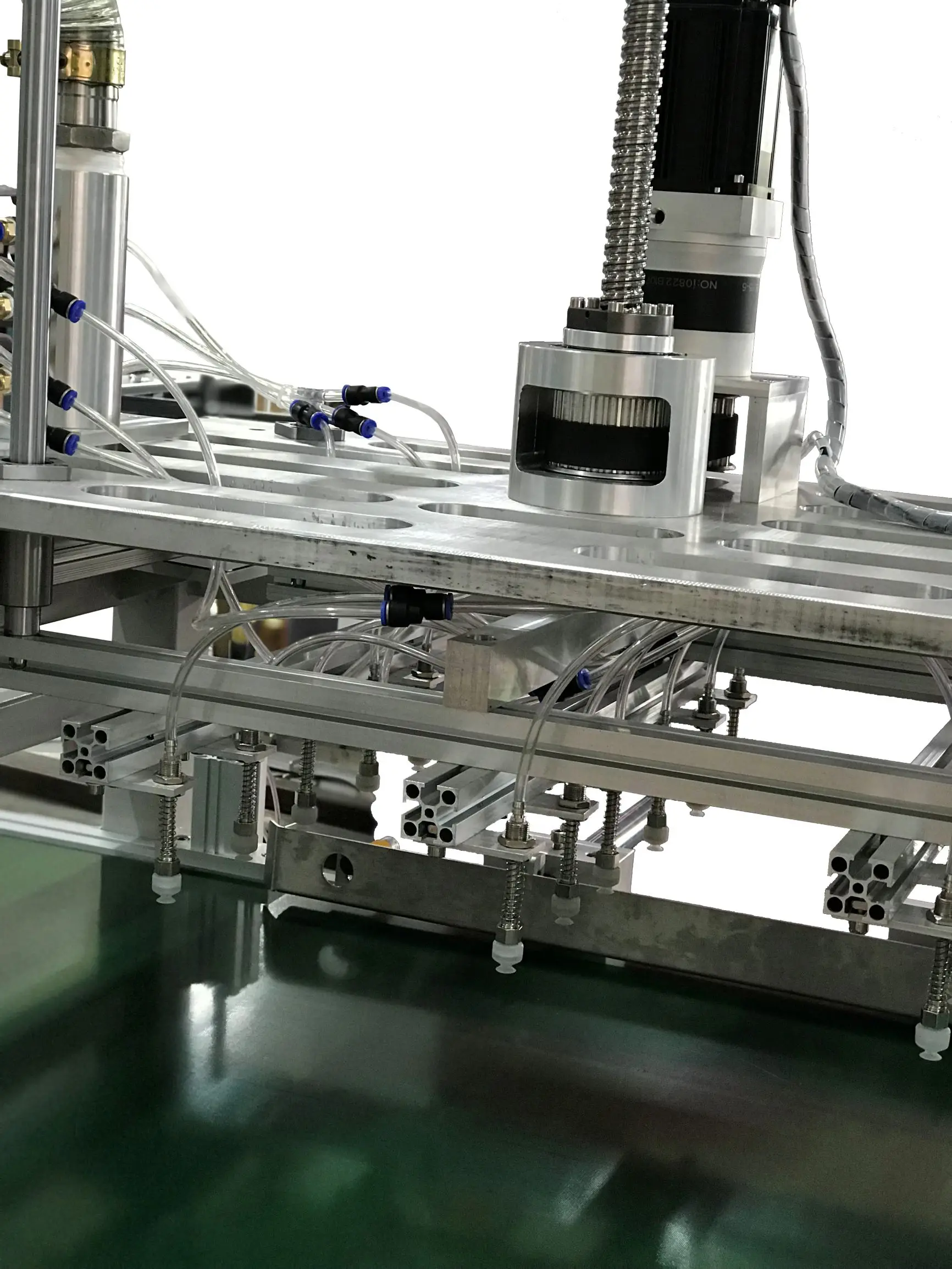

• specialy designed for direct glow panel light, equipped with multi-glue heads and automatic mounting device
• productivity is about 500-800pcs/h
• conveyor belt width ,moving speed and mounting device can be adjusted, match with worker's operation speed and different size panel
•  workpiece sensor enables automatic gluing or stop

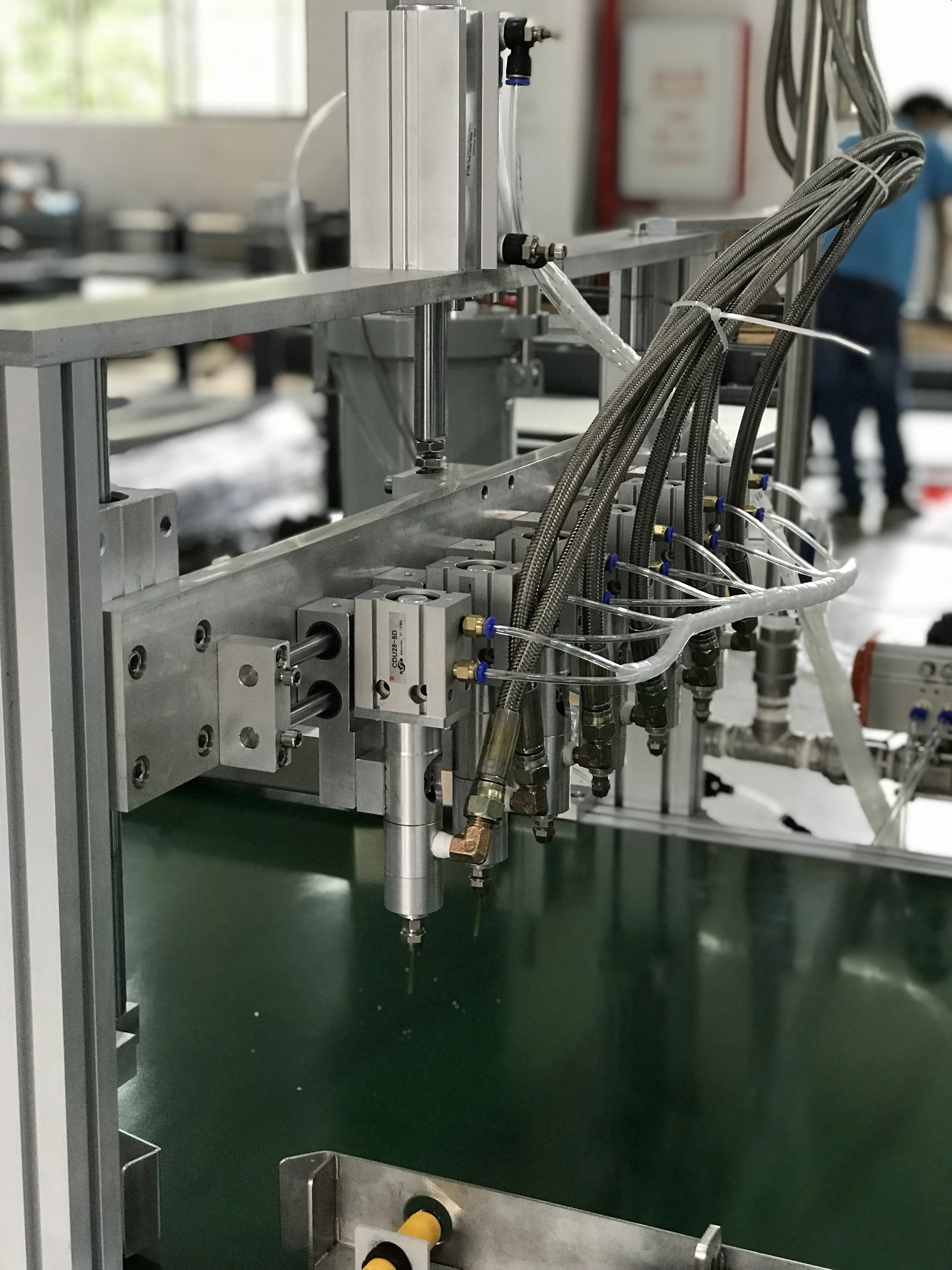

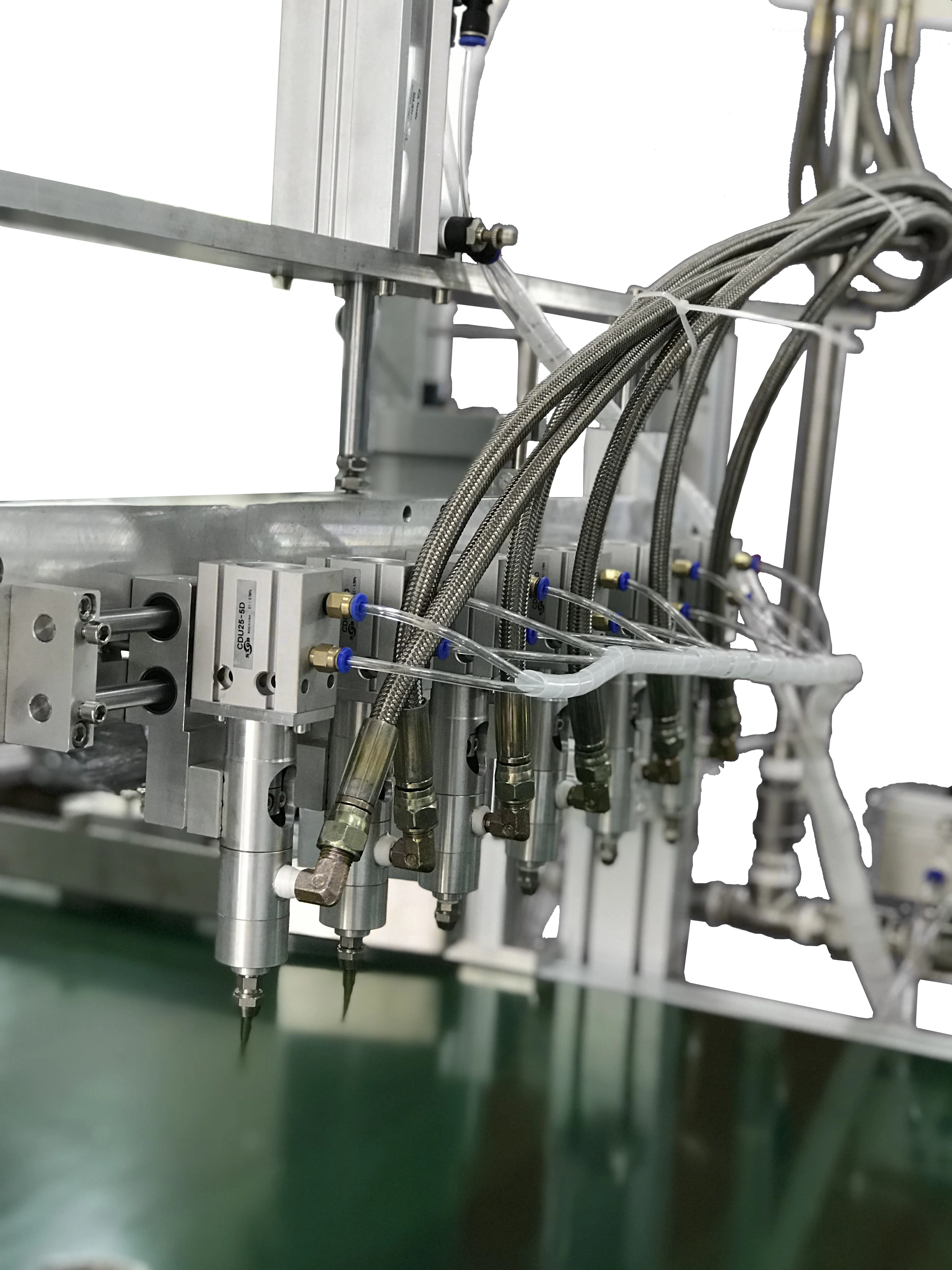

• glue valve can be controlled independently with good glue control performance
• 2600ml glue feeding system reduce frequency of changing glue bottle
• greatly improve product quality and also reduce labor cost
