low power consumption 240x160 dots monochrome lcd display with led backlit
Product Description
2017 custom RA8835 controller 240x160 dots matrix industrial grade lcd module
Display types: SMT, STN, FSTN, blue, gray, yellow green
Dot matrix: 240 x 160 dots
Duty: 1/160
Bias: 1/12
Input voltage: 5.0/3.3V DC
Controller: RA8835
Connector: zebra
LED backlight colors: white, blue and yellow green
Operating temperature: 0 to 50 or -20 to 70°C
Storage temperature: -10 to 60 or -30 to 80°C

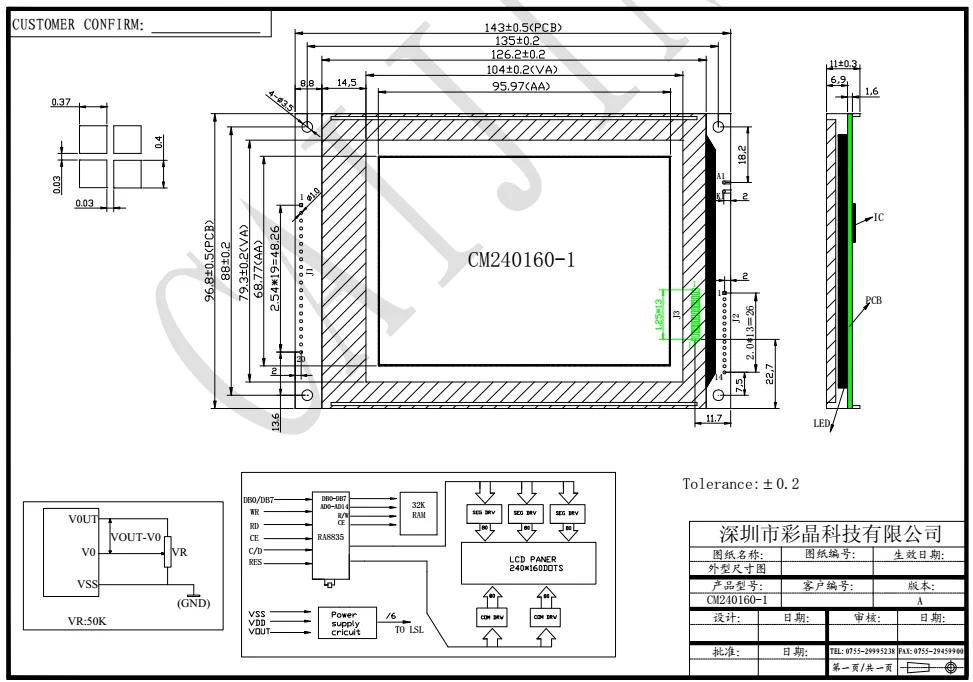

Sizes:
VA: 104.0 x 79.3mm
AA: 95.97 x 68.77mm
Module dimensions: 143.0 x 96.8 x 11.0mm
low power consumption 240x160 dots monochrome lcd display with led backlit
low power consumption 240x160 dots monochrome lcd display with led backlit
Product Certificates
low power consumption 240x160 dots monochrome lcd display with led backlit
Our Services
Our advantage and service
15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance
Free sample for some styles
Product usage
LCD module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .
Contact Us
Shenzhen Brilliant Crystal Technologic Co.,ltd
Bella Zou
Skype:cjsz2002
QQ:2829642402
cjsz2002#hotmail.com
Celand whatsapp:+86-15889302786
Tel:+86-0755-29485608
Website:www.cjlcd.com & www.cj86.com
https://szcmlcd.1688.com/
Related Product
low power consumption 240x160 dots monochrome lcd display with led backlit
| Display content | Model NO. | Outline size | V.A | DOT SIZE | controller | Voltage | Interface |
| 240x160 | CM240160-1 | 143×96.8×11 | 104×79.3 | 0.37×0.4 | RA8835 | 5V/3V | serial/parallel |
| 240x160 | CM240160-2 | 91.3×64.5×7.4 | 69.4×47 | 0.261×0.261 | ST7529 | 3V | parallel |
| 320x240 | CM320240-1 | 143×97.9×11 | 104×79.3 | 0.27×0.27 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-2 | 103×77×12.6 | 80.4×61 | 0.225×0.225 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-3 | 160×109×11 | 122×92 | 0.33×0.33 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-4 | 139×120×12 | 103×79 | 0.27×0.27 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-9 | 103×77×7.9 | 80.4×61 | 0.225×0.225 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-12 | 160×109×11 | 122×92 | 0.33×0.33 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-13 | 139×120×12 | 103×79 | 0.27×0.27 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-15 | 160×109×11 | 122×92 | 0.33×0.33 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-20 | 92.8×71.8×8 | 79.5×59.5 | 0.22×0.22 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-28 | 106.2×81.7×6.3 | 94.4×71.4 | 0.27×0.27 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-29 | 139×100×11.4 | 103×79 | 0.27×0.27 | RA8835 | 5V/3V | serial/parallel |
