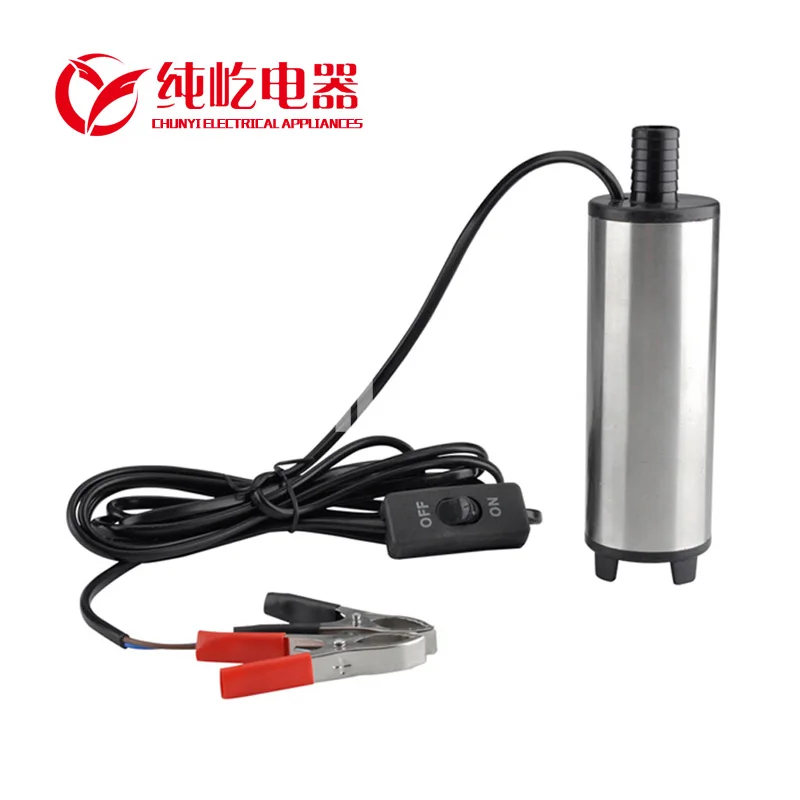

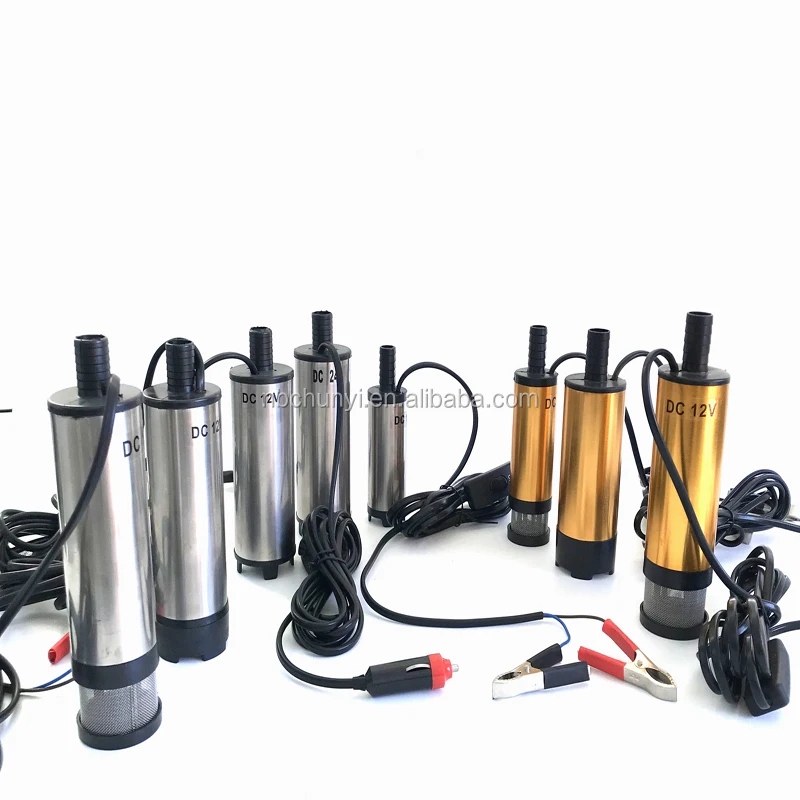

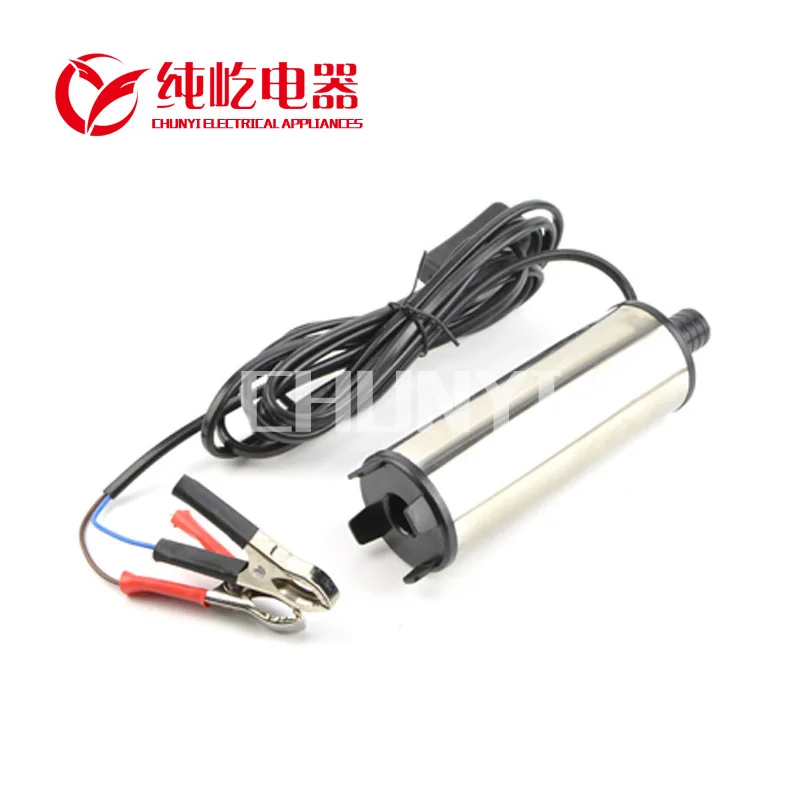

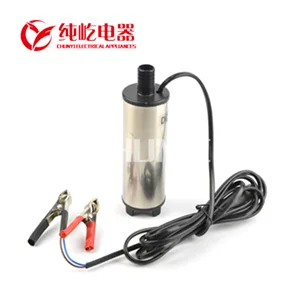

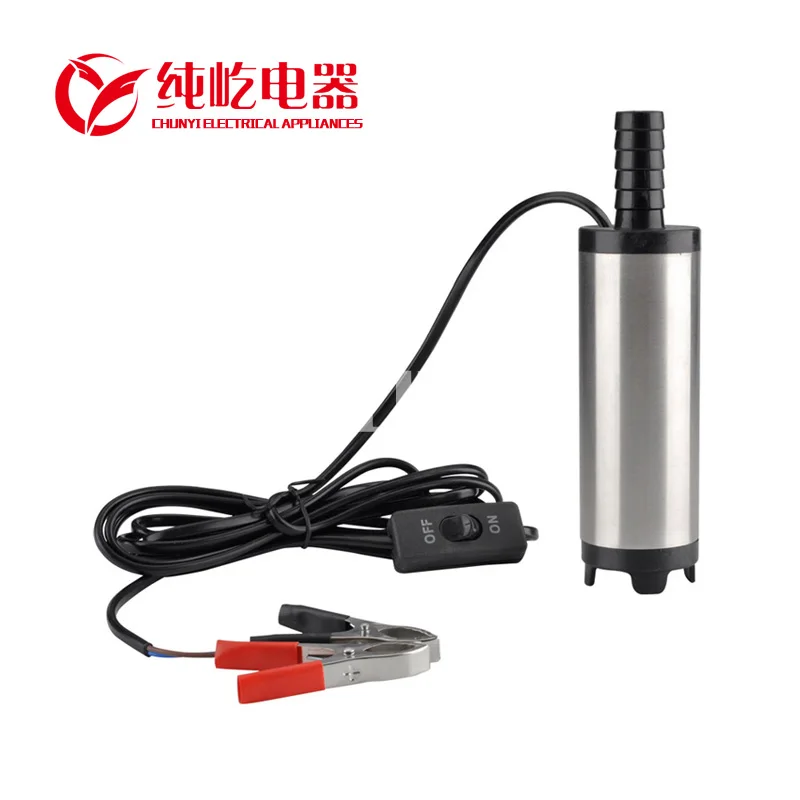

DC12V/24V electrical 12 volt pump truck oil diesel fuel pump 38mm/51mm diameter diesel transfer pump submerged pump

Product Overview

Description

pls talk with me about your inquirement before you place an order,freight will be different according to your qty!



DC12V/24V diesel  fuel lift pump electrical pump for truck oil CY-803 /wr-803 China factory water pump

 small type specification:

1. Test Voltage: DC12V/24V
2. Motor Racing Speed: 8500r/min 3.Flow: 15L/min
4. Wire length: 0.3MM²×3M
5. The tubing diameter: 16MM
6. The outer diameter: 38mm
7. Steel body



big type specification



1. Test Voltage: DC12V/24V
2. Motor Racing Speed: 8500r/min 3.Flow: 30L/min
4. Wire length: 0.5MM²×3M
5. The tubing diameter: 19MM
6. The outer diameter: 50mm
7. Steel body

Operation Instruction:

   1.When it works, first should put clean pump in the middle of diesel/ water bucket, does not allow empty load operation

   2.Pay attention to the load capacity of bucket when the pump is running, do not exceed load capacity line.

   3.The pump is strictly prohibited pumping gasoline, alcohol and other flammable liquids.

   4.The water hose is self-provided.

   5.Don't make change the anode and cathode of battery clamp when clip the barrery.
