Product Overview

Description

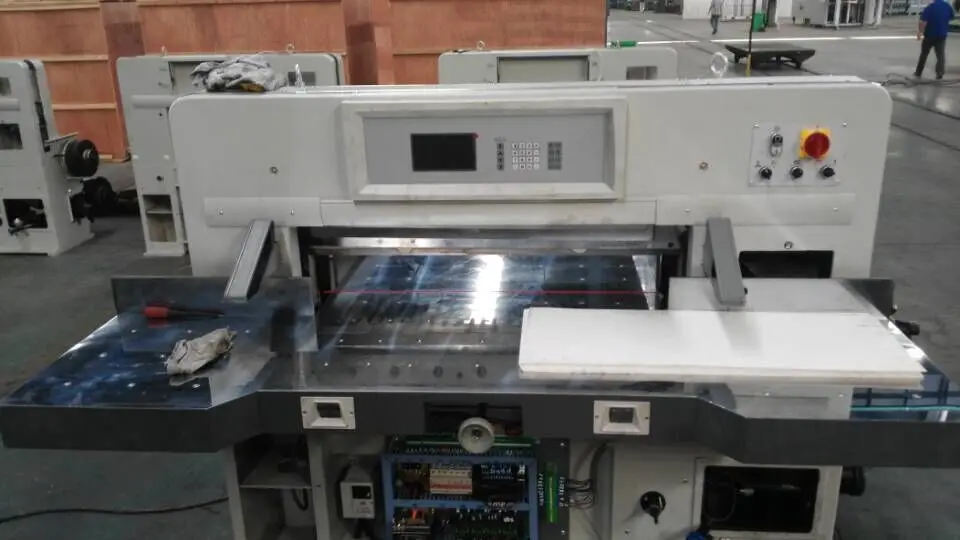

industrial cutting machine



industrial cutting machine.jpg



Description
The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table (1000mm×800mm) is optional.


Ball lead screw and linear guide-rail makes paper impeller run smooth, low noise , accurate positioning, enhance the cutting precision and speed greatly, prolong the service lift of paper cutter.


Safety device for knife bed, overloading protection for cutting, automatic return safety device.
Flat worm speed reducer transmission.


Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted,The paper is pressed twice by pressure-increased system .
Imported electric components LGOMRONSIEMENS.
Ejecting device for knife bar.


M15 INCH COLOR LCD
Uses SHARP 15 inch color touch LCD computer control system, with a capacity of 1,000,000 programs and over 50 self-diagnosing functions. Self-diagnosing displays cause of problem and solution. The interface color can be changed at the operators discretion. All major languages are available at the touch of a button. Display precision is 0.01vmm, the systems mechanical accuracy is 0.01 mm, backguage speed is 18m/min.


M11 10.4" COLOR TOUCH LCD
Uses original imported computer control system from Micocut (Colter & Peterson, USA with a capacity of 250,000 programs and self-diagnosis functions. The display is available in eleven languages. display precision is 0.01mm, the systems mechanical accuracy is 0.05mm, backguage speed is 10m/min.


M10 10.4" COLOR LCD
Adopt original import Japanese computer control system, 9999 programs. Max.Backgauge speed is 10m/min. their paper-pushing servo motor (Japan Product) trans for it have small no ise/high speed and short reaction time, else we can adjust the speed conecutively(cutting speed 6m/min-18m/min). the locating accuracy can reach 0.05mm.


M8 8" COLOR LCD
Uses original imported computer control system from Microcut (Colter&Pererson,USA ) with a capacity of 250,000 programs and self-diagnosis functions. The display is available in 11 languages. Display precision is 0.01mm, the systems mechanical accuracy is 0.05mm, backguage speed is 10m/min.


M5 7.5" COLOR LCD
Adopt a dvanced Japanese computer control system, 7.5 Color LCD, adot Japanese Panasonic technology of frequency conversion and timing. System configuring precision is by 0.05mm. the position accuracy is less than 0.1mm. 100 programs and every program 100cutting sizes can be stored. Max. Backgauge speed is 8m/min, with self-diangnosis and process indication.



Technical data of industrial cutting machine

Model

XHQZK780

XHQZK920

XHQZK1150

XHQZK1300 XHQZK1370 XHQZK1640 XHQZK2000 XHQZK2200

Cutting width

(mm)

780

920

1150

1300 1370 1640 2000 2200

Cutting length

(mm)

780

1060

1150

1300 1450 1600 1600 1600

Cutting height

(mm)

120

110

135

130 145 145 120 120

Cutting speed

(t/m)

32

32

42

42 42 42 42 42

N.W(KG)

2100

2300

2800

3500 3800 4500 4600 5100

Motor(kw)

3

3

5.5

5.5 5.5 7.5 7.5 7.5

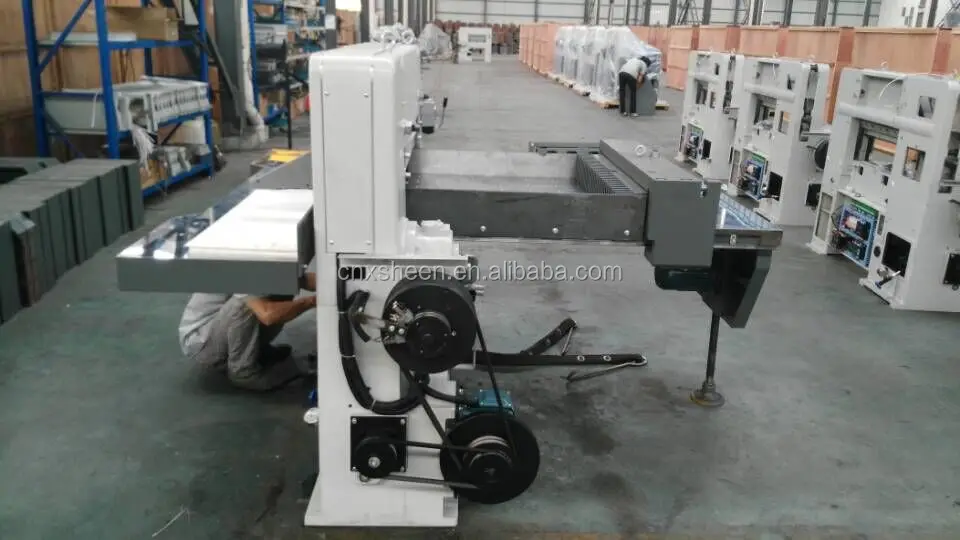

Machine images

 industrial cutting machine.jpgindustrial cutting machine.jpgindustrial cutting machine.jpgindustrial cutting machine.jpg
