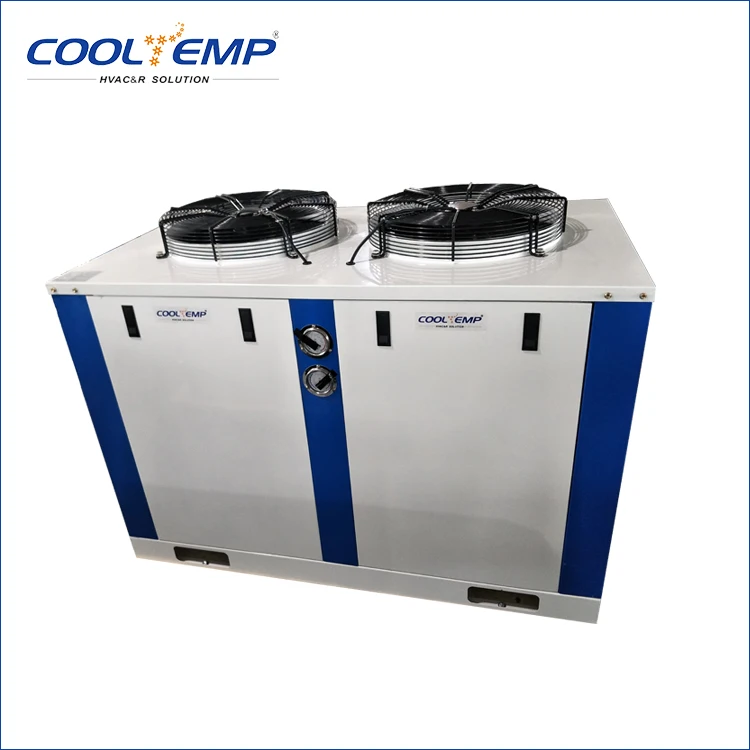

Refrigeration Parts Application and CE Certification Copeland Refrigeration Condensing Unit

Share on (60779386712):


Price:RUB 15,163.60 - RUB 151,636.00

Quantity:


Product Overview

Description

photobank-1png



Coponents

Brand
Compressor Copeland
Air Cooled CondenserCOOL TEPM
Liquid ReceiverChina Brand
Oil SaperatorChina Brand
Sight GlassDanfoss
Pressure ControllerDanfoss
High & low Pressure Gaugetext..
Solenoid valveDanfoss
Stop ValveChina Brand
Hand ValveChina Brand
FilterDanfoss
Frame



Main Technical Data of Air-cooled semi-hermatic units:

Unit ModelCompressorCooling capacityPower supplyReceiverOverall sizeInstallationConnection tube (mm)
ModelPower
HPKWVLLength WidthHeightLengthWidthSuctionliquid
LK-ACH28/CA0300CA-0300

3

5.353PH/380V/50HZ7.57206506006804001910
LK-ACH34/CA0400CA-040046.947.57706506557304002512
LK-ACH41/CA0500CA-050057.6108206507557704002512
LK-ACH55/CA0800CA-0800811.62159407008608904203216
LK-ACH80/CA1000CA-10001017.6320122085096011705703216
LK-ACH100/CA1500CA-15001521.425144085096013905803819

Working Condition:R22,Evaporation temperation is -15℃,condensing temperature is 30℃.



Main Technical Data of Water-cooled semi-hermatic Units:

Unit ModelCompressorCooling capacityPower supplyOverall sizeInstallationConnection tube (mm)
ModelPower
HPKWKWVLength WidthHeightLengthWidthSuctionliquid
LK-WT03/CA0300C-030032.25.353PH/380V/50HZ8103006506002501910
LK-WT04/CA0400CA-0400436.7410103507207803002512
LK-WT05/CA0500C-050053.77.0810103507207803002512
LK-WTH08/CA0800CA-080085.59.7610803507208503003216
LK-WTH10/CA1000C-1000107.514.2511203508008903003216
LK-WTH15/CA1500C-15001510.520.412204008009903503819



Working Condition:R22,evaporation temperature is -15℃,condensing temperature is 30℃.
