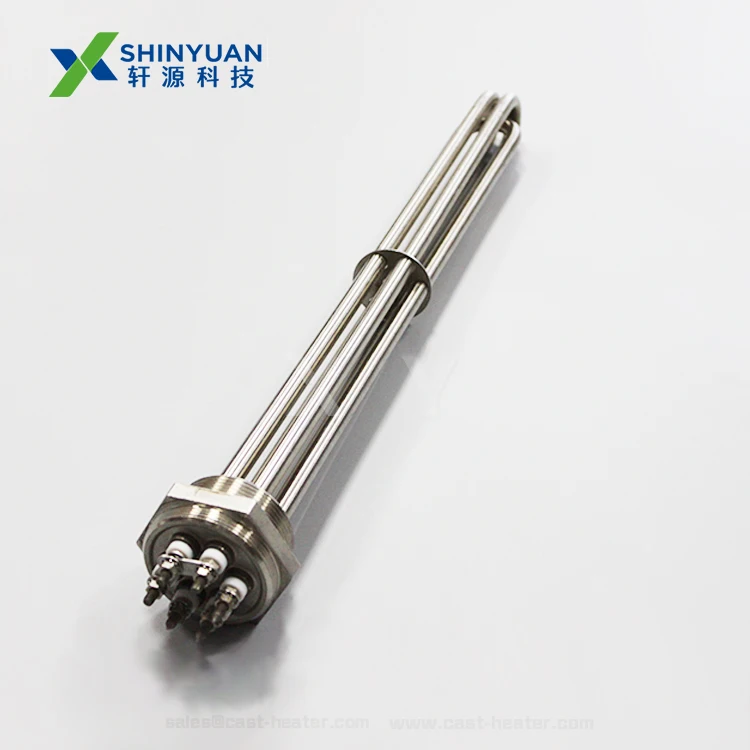

Geyser Water Submersible Flange Heating Element

Product Overview

Description

Description for Geyser Water Submersible Flange Heating Element

Xuanyuan flange immersion heating tubular are used by the process heat industry for a wide range of applications. This type features a broad selection of screw plug sizes, wattage, materials and junction box types. Screw plug heaters may be threaded directly into a sufficient tank wall or used with a companion coupling

Specifications for Geyser Water Submersible Flange Heating Element

Tube Material: SS 304,310S,316,800,840,Copper

Voltage:customized

Power:customized( (1500W-2500W)

Power tolerance:-5%-0%

Resistance wire: Ni80Cr20 or Ocr25AI5

Tube diameter:7mm-9mm

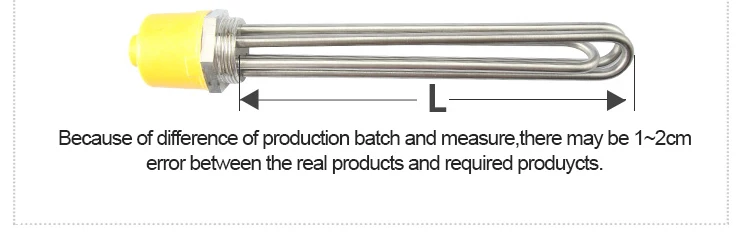

Shape&Diamension:Customized

Leakage current is less than 0.5mA

Hi-pot (AC)test:1500V/min,2mA

Leakproofness:afford air pressure 1.5 MPa

Surface treatment:scale-proof or corrosion-proof



Material analysis for Geyser Water Submersible Flange Heating Element

C = Copper Sheath

Hot Water Storage for washrooms, showers, part washing or rinsing, freeze protection of sprinkler systems and cooling towers.

SA = 304 Stainless Steel

Tanks or processes with tar, asphalt, wax, heat transfer fluids, oil and other petroleum products, fuel oil, alcohol, caustic, and other "heavy" mediums.

SB = 316 Stainless Steel

Detergent based cleaning solutions, liquid ammonia, vegetable oil, Deionized water, electroless nickel and other alkaline plating solutions.

T = Titanium

Seawater, brine, chromic acid, Deionized water.

N = Incoloy

Air and many gases, Deionized water and other high temperature processes.

TF = Teflon

Hydrofluoric acid,ammonia bi-fluoride, Deionized water.

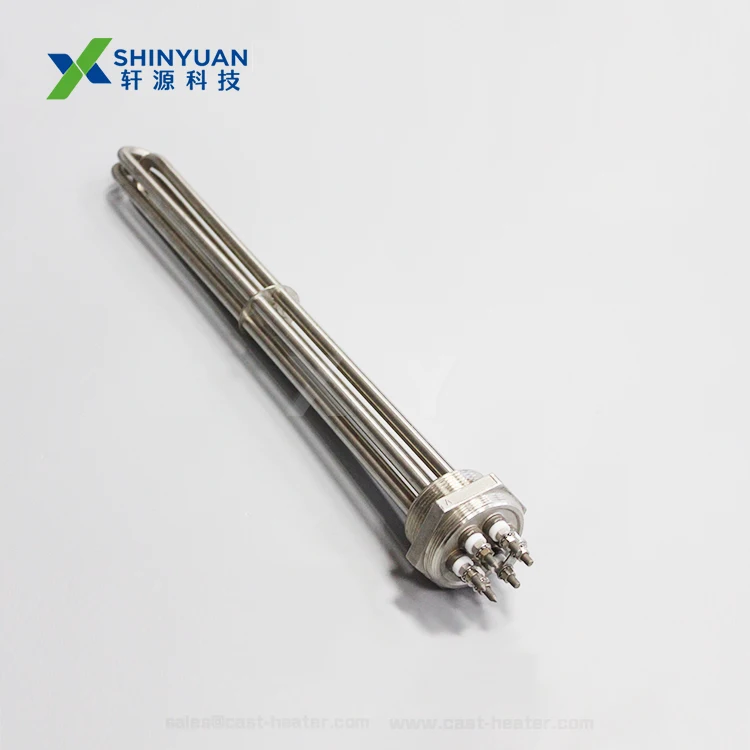

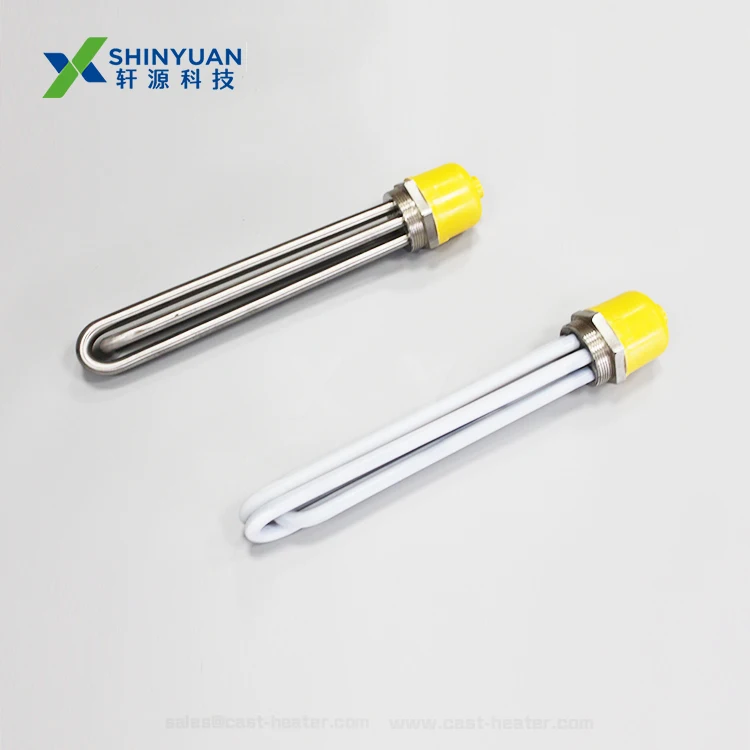

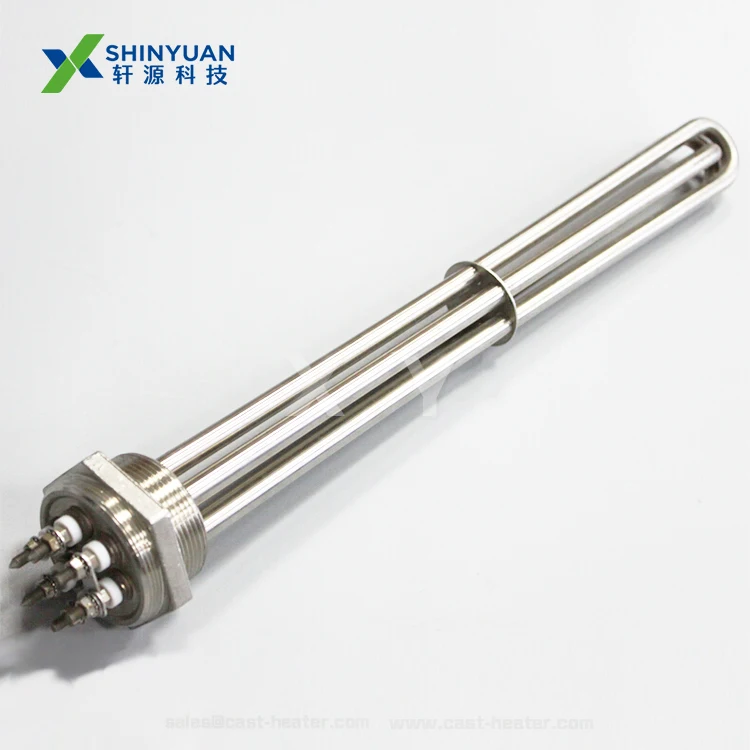

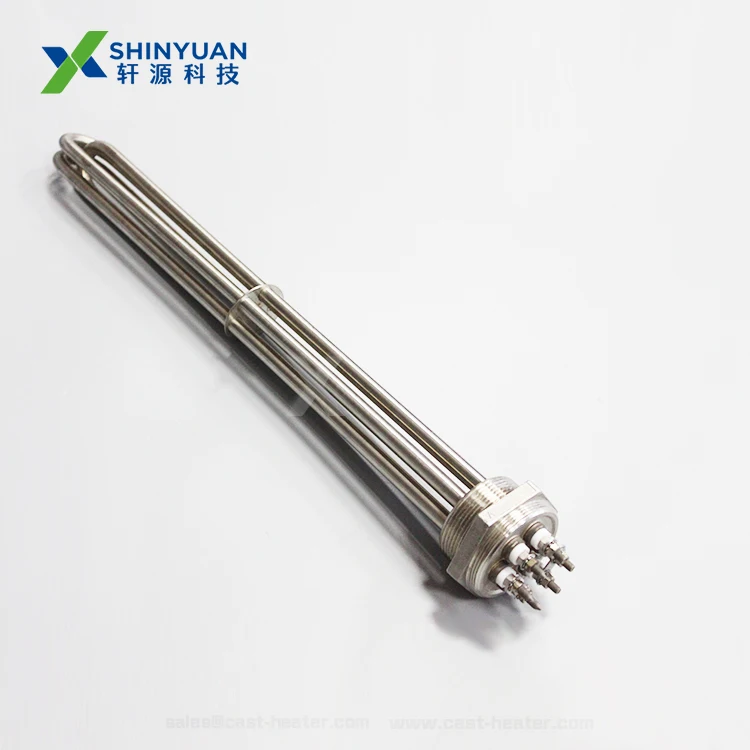

Product Photos of Geyser Water Submersible Flange Heating Element

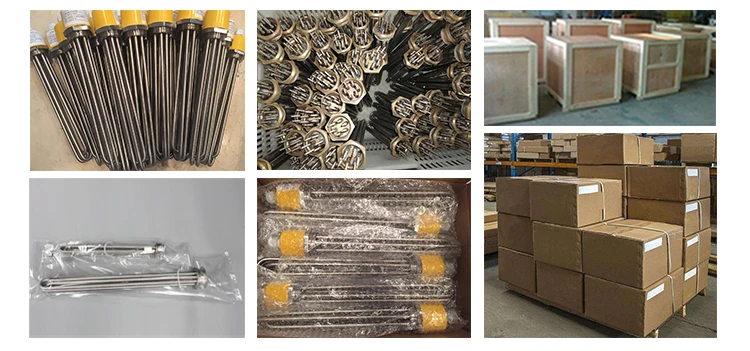

Packaging & Shipping

Packaging: carton box, wooden case or stainless steel immersion heater element with flange for water boiler

Delivery Detail:7-15 working days after CFM payment

Comopany Information

Yancheng Xuanyuan Heating Equipment Technology Co.,ltd are the direct supplier with more than 20 years of manufacturing Cast heaters , 3D pritner cartridge heaters , Mould heater rod ,Flange Heater,tubular heater,stainless steel heater, and so on .

   Our company has a modern standard working area of 10000 m2, There are 80 sets of various precision machining and checking facilities. It also has technical talented people over 30%. Our company has an abundant ability to develop new products and perfect checking means.

   Product coverage nationwide and has entered Western Europe,North Africa, South America and Southeast Asia market.
