AOEYOO 100M HDMI Network Cable Extender over Cat5/6

Product Overview

Description

HDMI 120m Network Cable Extender is based on TCP/IP standard. It can transmit HDMI or DVI-D signal up to 395 feet (120 meters) by using one CAT5e/6 cable. With the advantage of TCP/IP standard, you can extend your HD video to multi-ple displays by using an network switch



Features:

• Follow the standard of TCP/IP


• Support HDMI 1.3 and provide backwards compatibility


• HDCP1.1 & 1.2 protocol compliant


• Support point-to-point mode(one HDMI Sender connect to one HDMI Receiver), one point-to-many mode and cascade connection mode(one HDMI Sender connect to multiple 4.HDMI Receivers by a Network Switch)


• Support IR extender function. DVD,Set-Top Box and other devices which support IR remote control can be controlled remotely with the IR Remote Controller by the HDMI 6.Sender and HDMI Receiver

Specification:

HDMI Resolution	480p,576p,720p,1080p
Audio Sample Rate	32kHz,44.1kHz,48kHz and 38KHz
IR Remote Control	NEC
HDMI Version	HDMI 1.3
HDCP Version	HDCP 1.2
Power Adapter	Input: 100V - 240V (50 - 60Hz) Output: 5V/1A
Power Consumption	HDMI Sender: 3W  HDMI Receiver: 3W
Operating Temperature/Humidity	0 - 70℃/ 10% - 80%RH(No Condensation)
Storage Temperature/Humidity	-10 - 80℃/ 5% -90% RH(No Condensation)
Size(L-W-H)	93.8×65×20(mm)
Weight	165g×2

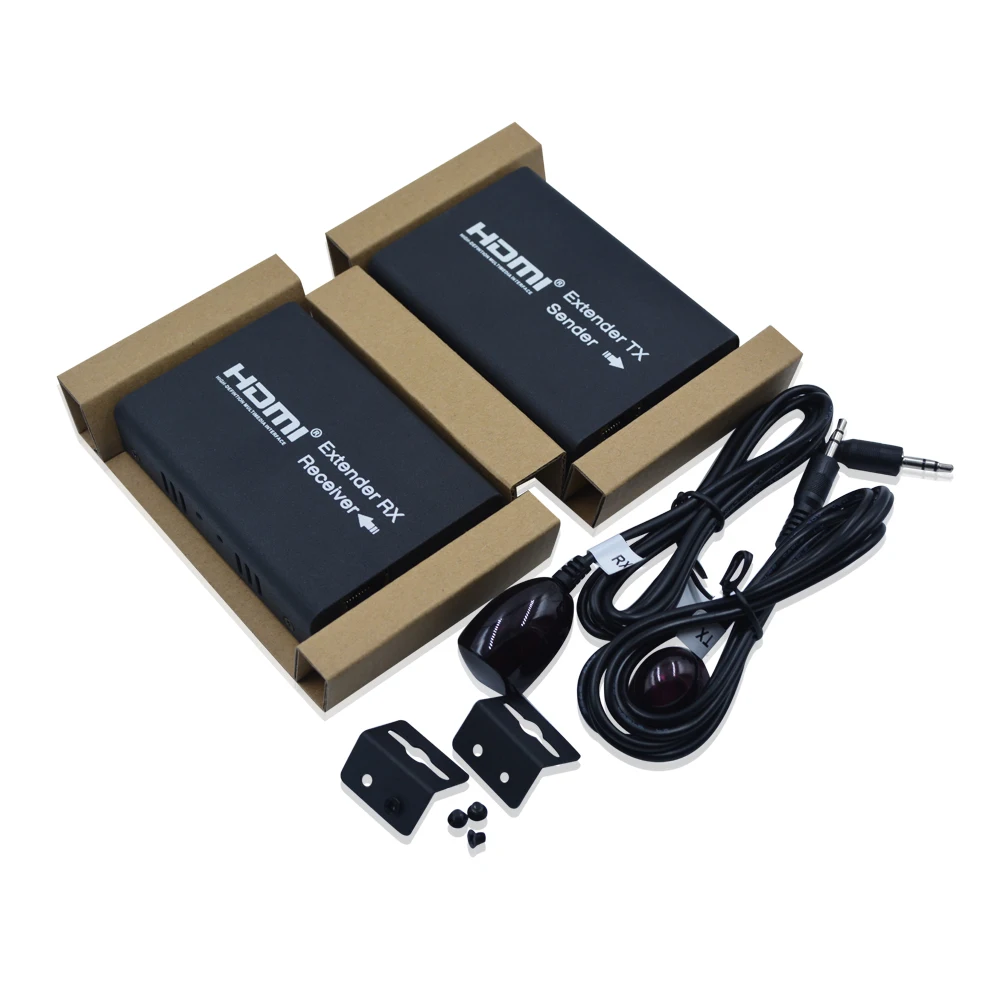

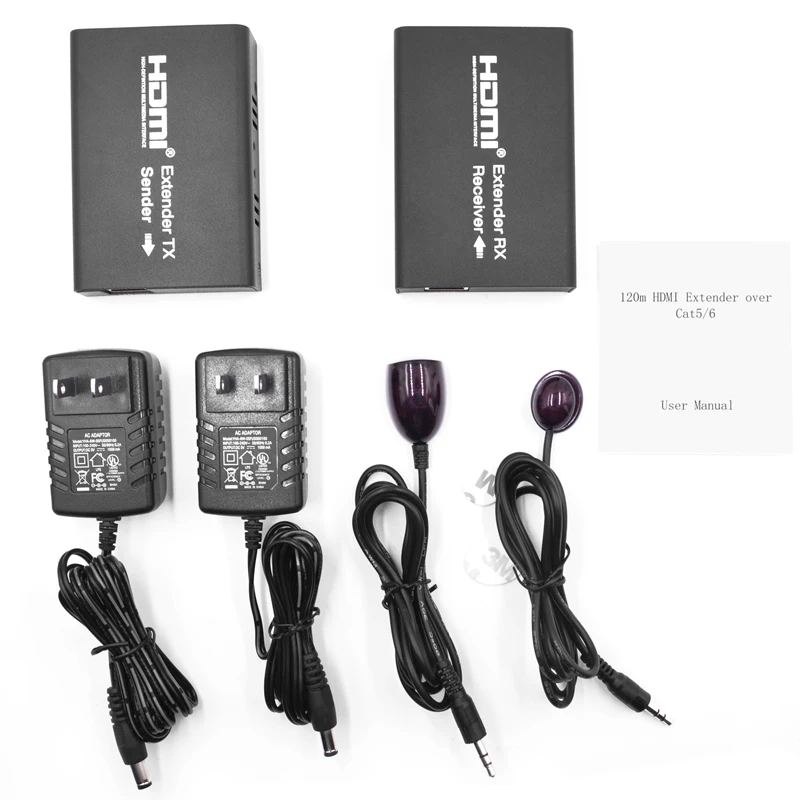

Package Contents:

1xHDMI to RJ45 sender TX

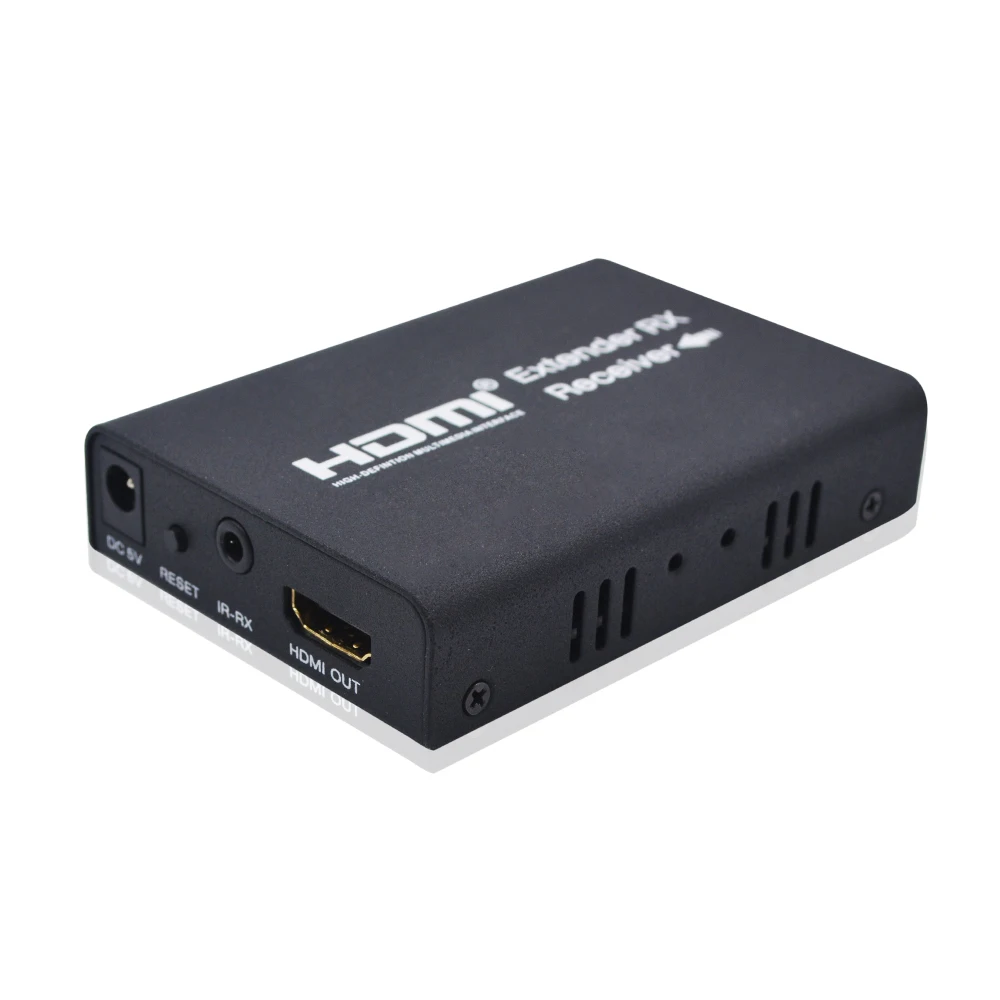

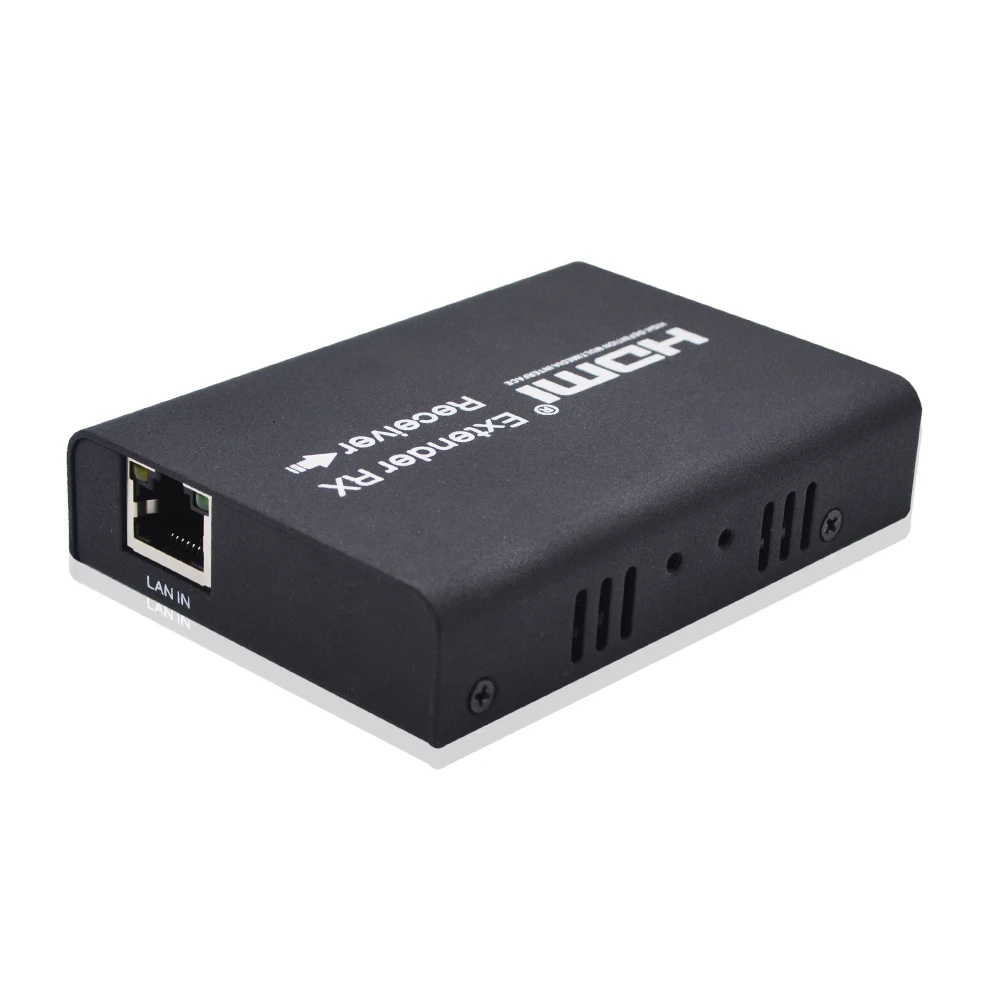

1xRJ45 to HDMI receiver RX

1xIR blaster extension cable

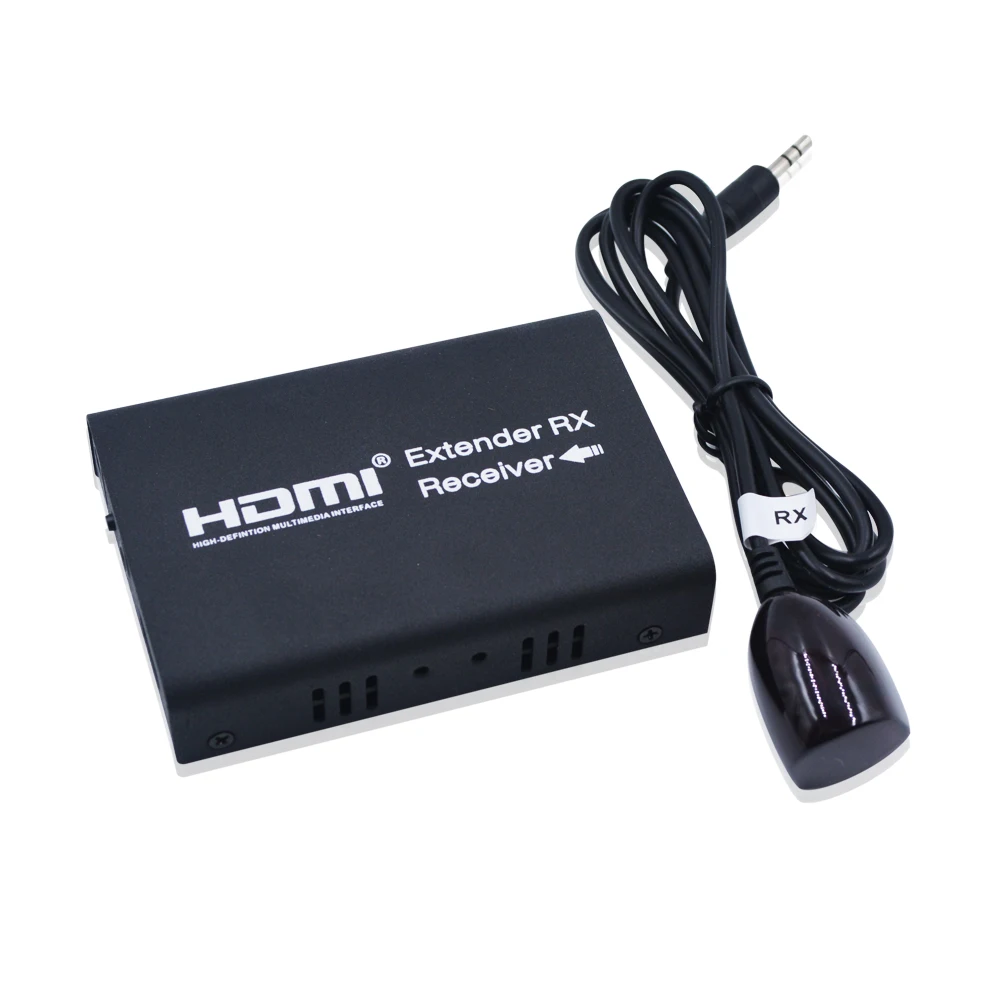

1xIR receiver extension cable

2xDC 5V Power

1xUser Manual
