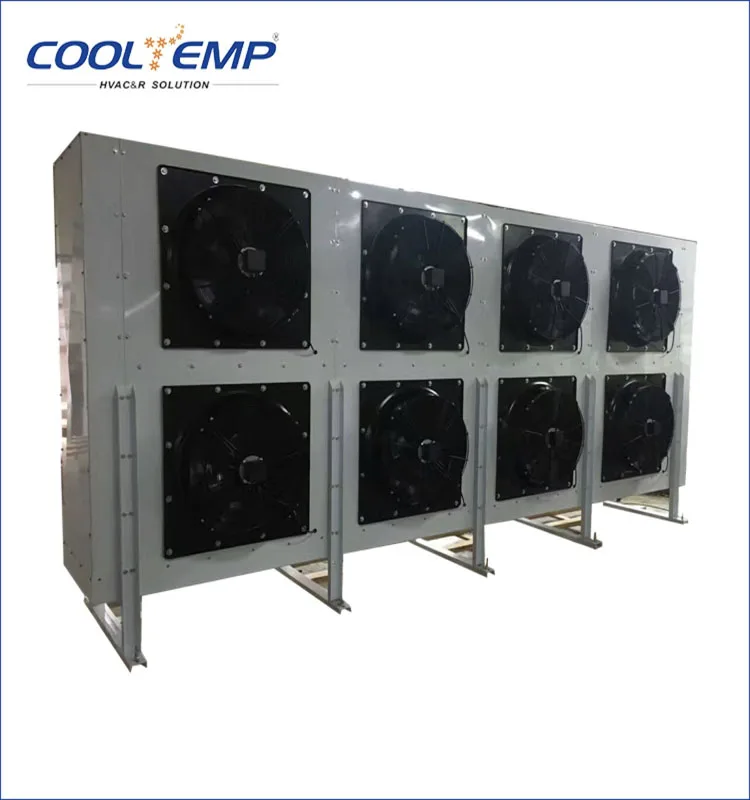

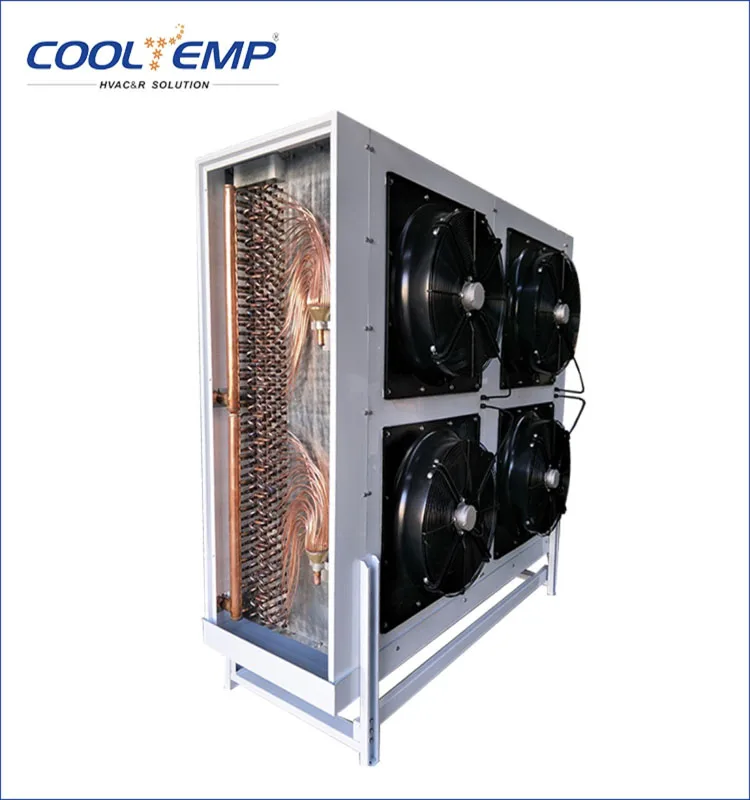

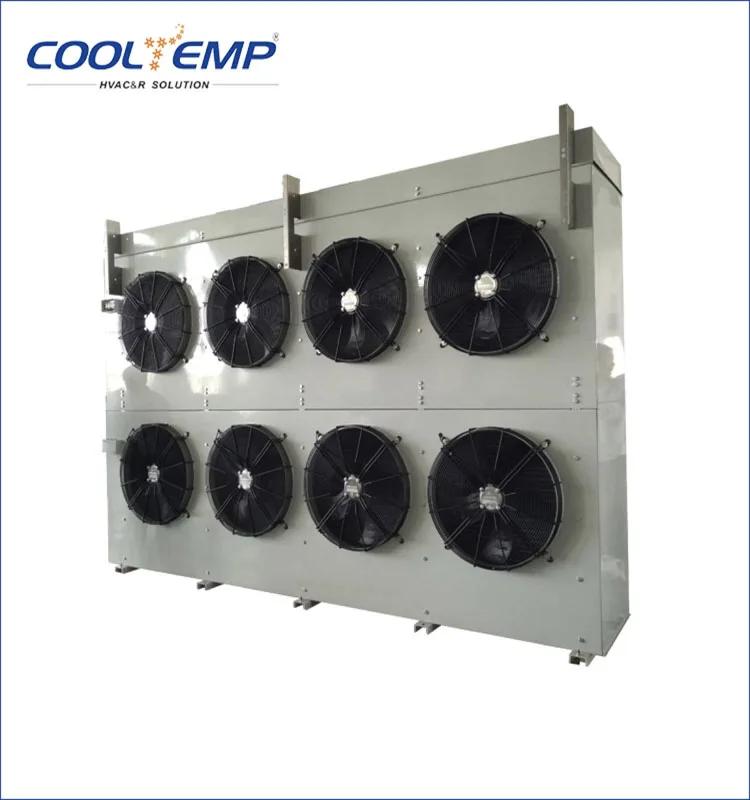

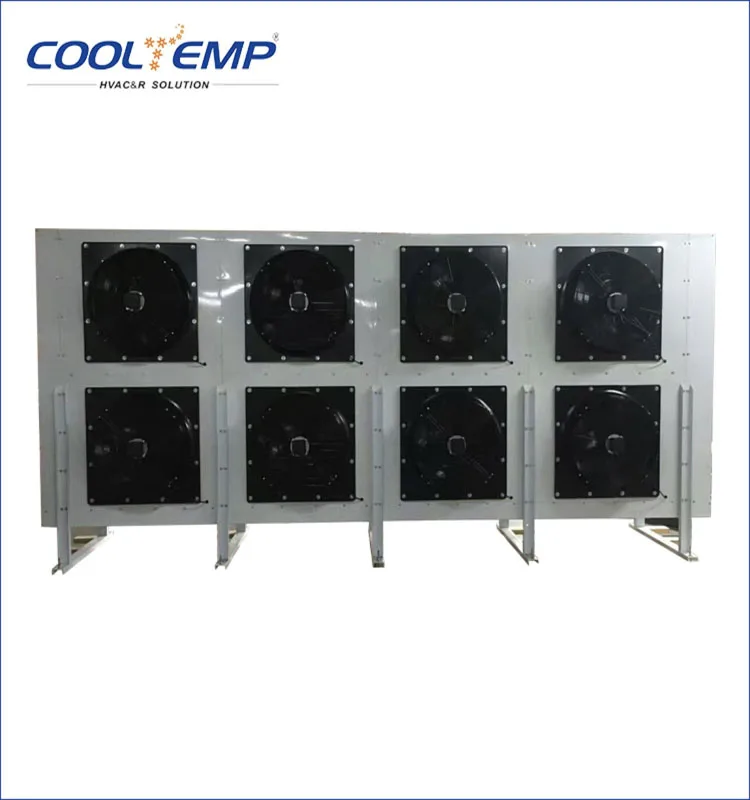

Copper Tube Aluminium Fin Evaporator For Blast Freezer Cold Storage
- Category: >>>
- Supplier: Shengzhou Lanco Refrigeration Equipment Co. Ltd.
Share on (60779491711):
Product Overview
Description
| Ceiling Type Fast Frozen Unit Coolers Fan:Φ630mm Fin Space:9.0mm/18mm Inner-charge | |||||||||||||||||||
| Model | SC4 Capacity(KW) | SC5 Capacity(KW) | Tube length | Surface | Circuit Vol. | Fan | Heater | InTube (inch) | OutTube (inch) | Net Weight (KG) | Electrical Defrost Drawing no. | Water Defrost Drawing no. | |||||||
Airinlet Ta-25℃ Evaporation Te -31℃ | Airinlet Ta -34℃ Evaporation Te-40℃ | ||||||||||||||||||
| R22 | R404A | R22 | R404A | m | m2 | dm3 | Fan Mot no. | Air Flow (m3/h) | Air Throw (m) | Fan Mot Amper (A) | Fan Mot Power (W) | Electric Defrost (A) | Electric Defrost (W) | ||||||
| LK6T632 | 18.0 | 17.6 | 14.8 | 14.7 | 288 | 76 | 39.0 | 630*2 | 26600 | 31 | 6.4 | 3200 | 18.9Δ | 10800 | 7/8 | 1-5/8 | 280 | LK16 | LK22 |
| LK8T632 | 21.7 | 21.4 | 17.9 | 17.9 | 384 | 102 | 53.0 | 630*2 | 24200 | 29 | 6.4 | 3200 | 28.4Δ | 16200 | 1-1/8 | 2-1/8 | 310 | LK16 | LK22 |
| LK6T633 | 27.5 | 27.2 | 22.5 | 22.5 | 432 | 114 | 59.0 | 630*3 | 29900 | 32 | 9.6 | 4800 | 28.4Δ | 16200 | 1-1/8 | 2-1/8 | 380 | LK17 | LK23 |
| LK8T633 | 32.7 | 32.5 | 27.1 | 27.1 | 576 | 153 | 79.0 | 630*3 | 36300 | 30 | 9.6 | 4800 | 42.6Δ | 24300 | 1-3/8 | 2-1/8 | 420 | LK17 | LK23 |
| LK8T634 | 37.9 | 37.5 | 30.6 | 30.6 | 691 | 183 | 95.0 | 630*4 | 44800 | 31 | 12.8 | 6400 | 51.3Δ | 29250 | 1-3/8 | 2-1/8 | 510 | LK18 | LK24 |
| Defrost electric heating pipe connection:Δ triangle connection . | |||||||||||||||||||
| Floor Type Fast Frozen Unit Coolers Fan:Φ630mm Fin Space:9.0mm/18mm Inner-charge | |||||||||||||||||||
| Model | SC4 Capacity (KW) | SC5 Capacity(KW) | Tube length | Surface | Circuit Vol. | Fan | Heater | InTube (inch) | OutTube (inch) | Net Weight (KG) | Electrical Defrost Drawing no. | Water Defrost Drawing no. | |||||||
Airinlet Ta-25℃ Evaporation Te -31℃ | Airinlet Ta -34℃ Evaporation Te-40℃ | ||||||||||||||||||
| R22 | R404A | R22 | R404A | m | m2 | dm3 | Fan Mot no. | Air Flow (m3/h) | Air Throw (m) | Fan Mot Amper (A) | Fan Mot Power (W) | Electric Defrost (A) | Electric Defrost (W) | ||||||
| LKY6T634 | 36.0 | 35.2 | 29.6 | 29.4 | 576 | 152 | 79.0 | 630*4 | 53200 | 31 | 12.8 | 6400 | 37.9Δ | 21600 | 2*7/8 | 2*1-5/8 | 560 | LK25 | LK27 |
| LKY8T634 | 43.4 | 42.8 | 36.4 | 35.8 | 768 | 204 | 105.0 | 630*4 | 48400 | 29 | 12.8 | 6400 | 56.8Δ | 32400 | 2*1-1/8 | 2*2-1/8 | 620 | LK25 | LK27 |
| LKY6T636 | 55.0 | 54.4 | 45.6 | 45.0 | 864 | 228 | 118.0 | 630*6 | 79800 | 32 | 19.2 | 9600 | 56.8Δ | 32400 | 2*1-1/8 | 2*2-1/8 | 760 | LK26 | LK28 |
| LKY8T636 | 65.4 | 65.0 | 55.4 | 54.2 | 1152 | 306 | 158.0 | 630*6 | 72600 | 30 | 19.2 | 9600 | 85.3Δ | 48600 | 2*1-3/8 | 2*2-1/8 | 840 | LK26 | LK28 |
| Defrost electric heating pipe connection:Δ triangle connection /star connection Y,Y must be connected to the neutralline. | |||||||||||||||||||

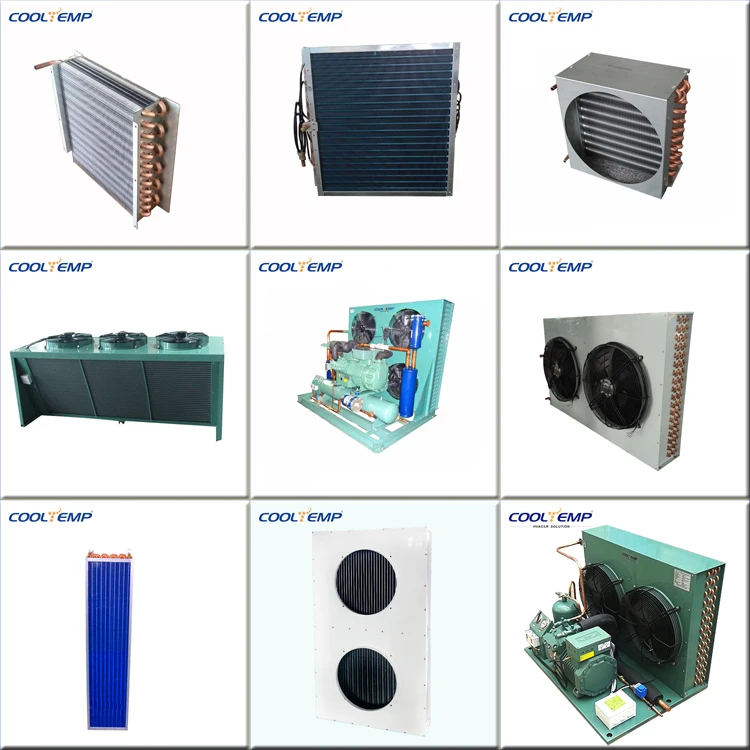

Related Products
Why We Say We Should Be Your Preferred Supplier ?
Service:
We put our Customer first no matter Big or Small,Your Business is most important
to us We are here to support you.
Technology
With the support of a Competent R & D team giving strong technical support
to help you make your job more easy.
Factory Equipment
We have a fully fitted factory for sheet metal processing offering a range of
materials to suit what the Customer demands are;
Coil heat exchanges manufacturing offering range fin profiles and material
required from bare type to hydrophilic fin coil(blue fin) where corrosion control
is required;
Inner grooved copper tube and smooth copper tube optional ; Vertical Tube
Expander Machine and Tunnel Dryer Machine to get efficient and make sure
our high quality products; Fully painting service either our standard choice
Blue ,Green,Black,White or Customized to your Choice.
Sales Marketing
Are Customer Focused Solve Purpose of bringing you an easy pleasant
company to deal with.
Factory Location Advantage
We are closed to Shanghai, Ningbo,Hangzhou,Yiwu etc City ,it takes around
1.5-3 hours to our factory from one of those cities by car, and it takes 2 hours
from Guangzhou/Shenzhen to our airport(Hangzhou xiaoshan airport),Warmly
welcome to visit Us When you are available,thank you !
