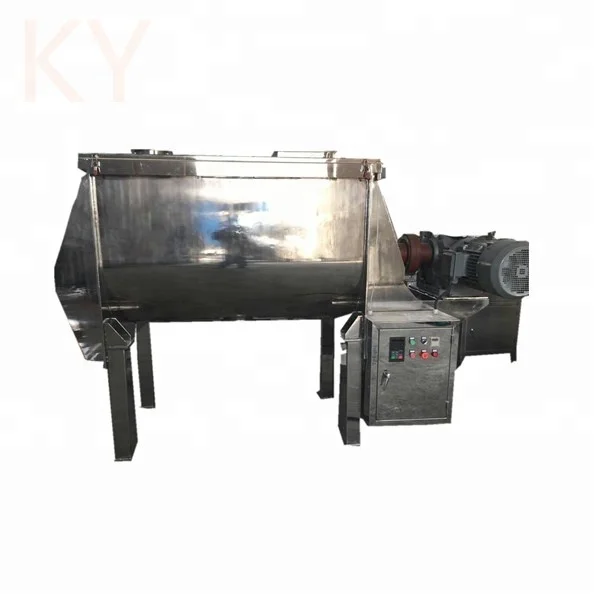

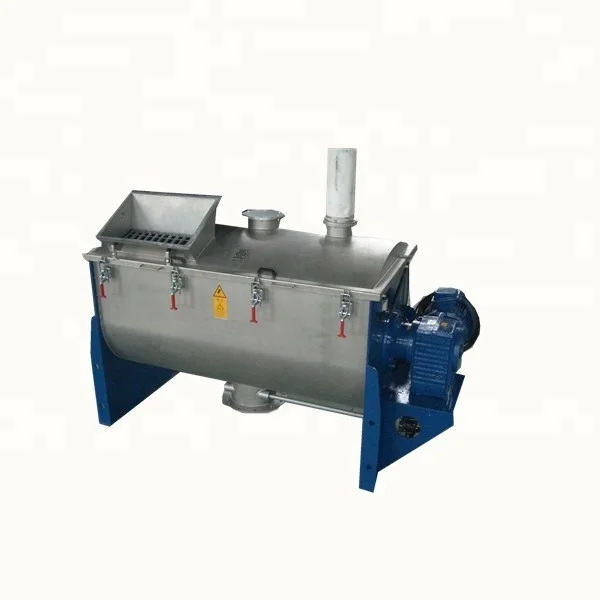

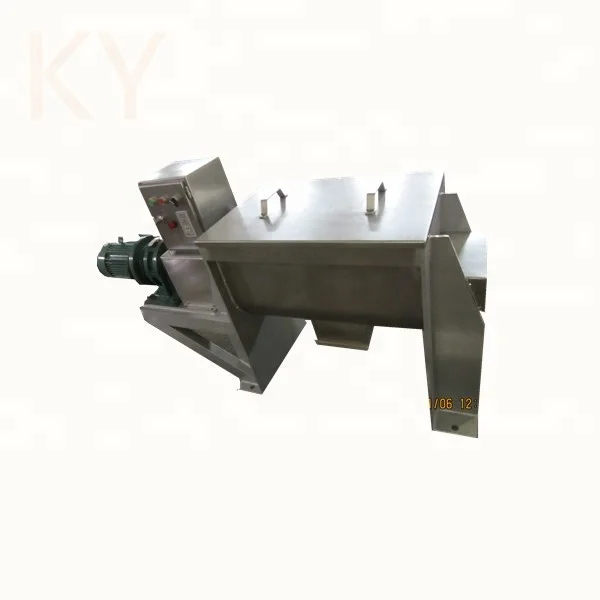

WLDH Series condiment mixing machine
WLDH Series condiment mixing machine
WLDH Series condiment mixing machine
WLDH Series condiment mixing machine
WLDH Series condiment mixing machine

WLDH Series condiment mixing machine

Share on (60779494294):


Price:RUB 150,675.80 - RUB 2,260,137.00

Quantity:


Product Overview

Description

Product Description

Main Application

WLDH series ribbon mixer is widely used for the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, or paste material in pharmaceutical, foodstuff, chemical, pesticide, plastic, dyestuff industries, etc.

Working Principle

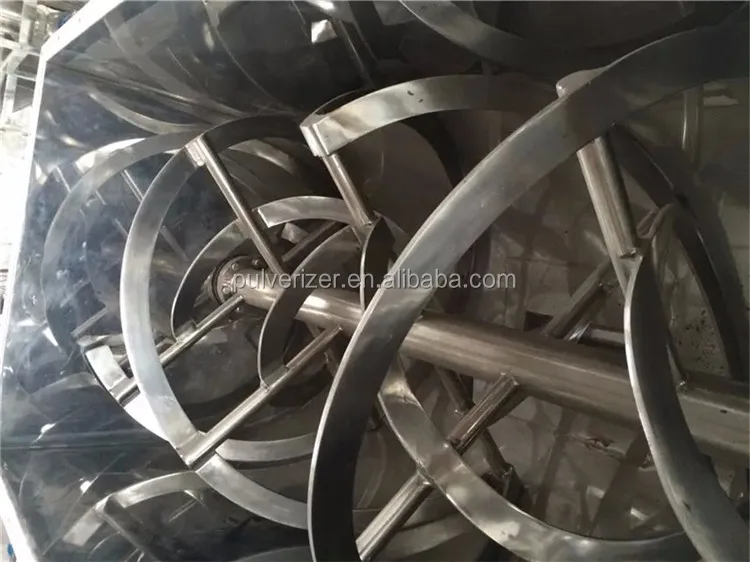

The machine consists of U-shape container, main shaft, transmission parts and agitating ribbon blades which usually have double or triple layers ,the outside screw gathers the material from sides to center and the inside screw transports the material from center to sides to form convection mixing. It has a good effect to the mixing of viscous or adhesive powder material. The cylinder cover can be fully open so as to clean the machine and change the raw material.

Model
Total volume（m³）
Production capacity(kg/batch)
Mixing time(min)
Motor power(kw)
Mixing speed(r/min)
Overall dimension(mm)
Weight(kg)
WLDH-100
0.1
40
8-20
2.2
58
1190×740×770
320
WLDH-300
0.3
120
8-20
3
53
2030×630×980
510
WLDH-500
0.5
200
8-20
4
49
2320×730×1130
920
WLDH-1000
1
400
8-20
7.5
42
2800×920×1320
1450
WLDH-1500
1.5
600
8-20
11
42
3180×1020×1550
1950
WLDH-2000
2
800
8-20
15
42
3310×1120×1640
3160
WLDH-3000
3
1200
8-20
18.5
37
3750×1290×1820
3300
WLDH-4000
4
1600
8-20
22
37
4220×1400×1990
3620
WLDH-5000
5
2000
8-20
30
31
4220×1500×2100
4620
WLDH-6000
6
2400
8-20
37
31
4700×1610×2260
5400
WLDH-8000
8
3200
8-20
45
27
4420×2150×2470
6880
WLDH-10000
10
4000
8-20
55
27
5520×2960×2720
7900

Main Features

1) Simple structure in horizontal U shape ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ，bearings and operation parts.
3) Cover has safty net.
4) On both sides of mixing barrel, hermetic seals are adopted.
5) Powder discharge adopts pneumatic valve.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
It depends
Weight
It depends



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
It depends
Weight
It depends



Packaging Details
If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.
