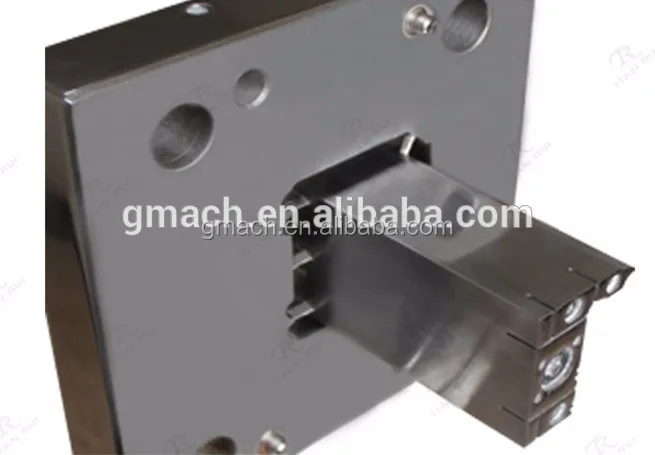

Gmach UPVC PVC WPC profile extrusion window mould/window frame moulding design and custom

Product Description

Size: Various sizes and customized

Mould material: 3Cr17, 3Cr17MoNiV, DIN1.2316 or as per your request

Mould cavity: Single or multi-cavity

Mould composition: Die head, aluminum heating boards, calibrators and water tank

Feature: High polished surface, stable discharging, soft-hard, surface layer, cladding and steel-plastic co-extrusion

Service: Provide complete set of formulation, technology and perfect after sale service

Sample: Sample will be arranged by express courier for customer approval

Main Features of this  PVC window and door profile extrusion mould

1. Using the overall flowing path core support structure

The structure of the PVC profile mould

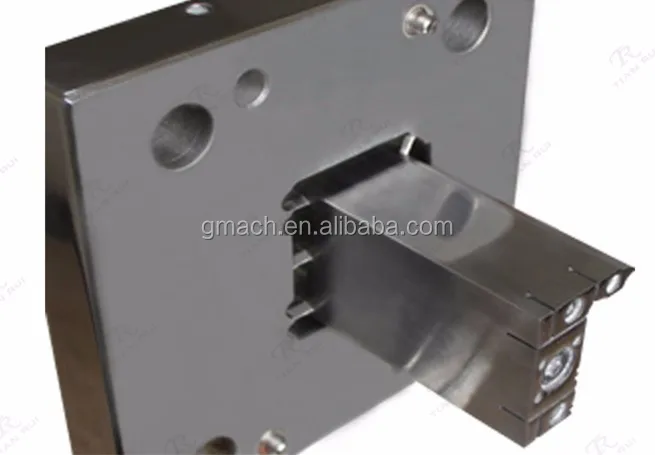

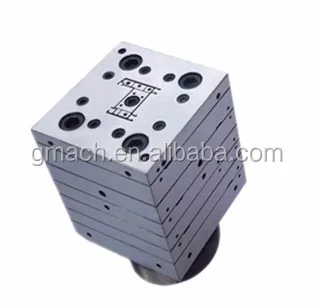

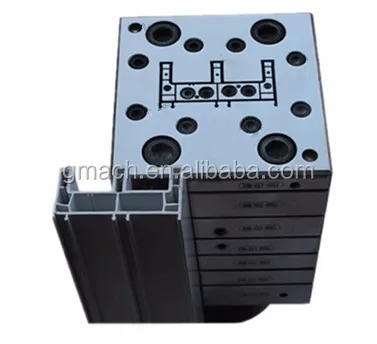

Part 1

Name: Dies head
Brand: Gmach
Original: China
Mould material : 3Cr17, 3Cr17MoNiV, DIN1.2316 or Negotiable

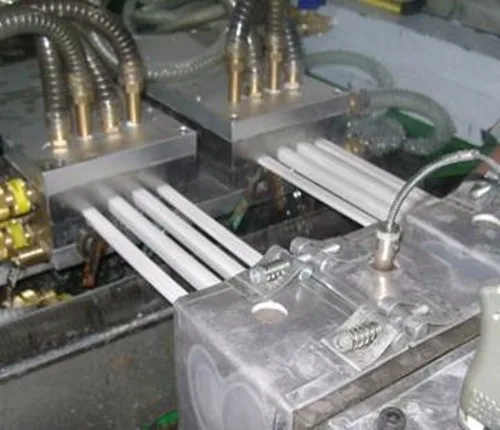

Part 2

Name: Calibrators
Brand:Gmach
Original: China

Cool down and form the profile, the smaller the resistance is  better

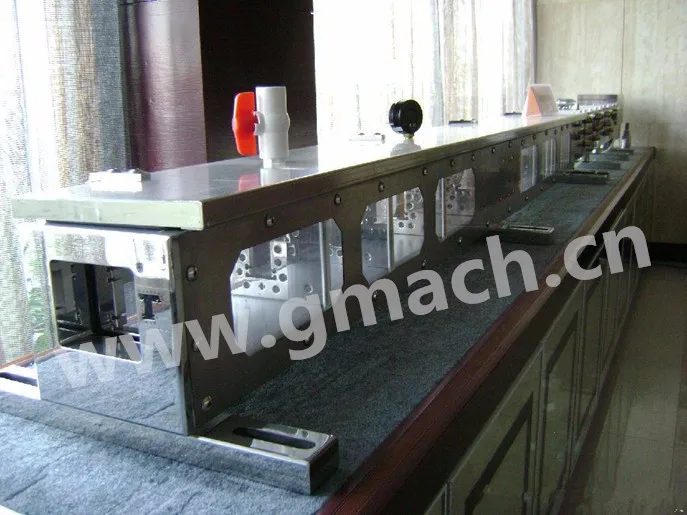

Part 3

Name: Water tank
Brand: Gmach
Original: China
Divided into three kinds: organic glass, stainless steel, pp board. They have wonderful tightness, brief frame, easily be processed

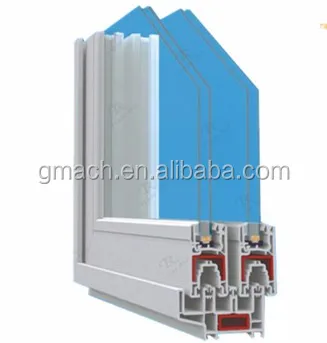

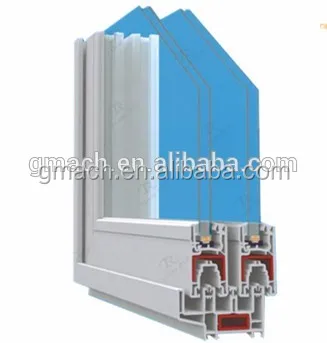

PVC profile show

We can design the mode as customer requirement , the different shape ,you just need to show what you want ,we can do it

Gmach Service

Zhengzhou Great Machinery Co.,Ltd, a high-tech company with deep technology background and strong work team and services in China. Our global team is dedicated to equipping our customers with the competitive solutions. Our business across the hydraulic screen changer/ melt filter, melt gear pump, extrusion dies,and plastie recycling granulator.



Gmach is a rapidly growing company, it has a large number of sensior technicians and and full of passion and ambitious young people. the deep technical background and sense of responsibility work team determine it is standing on a high starting point.



We do not just supply the products , but also provide value-added solutions to more customers in more markets all around the world . In the process, we're helping manufacturers everywhere improve productivity, cut costs, increase energy efficiency, eliminate scrap, reduce cycle times and do whatever else it takes to succeed in today's complex global economy.



Our team is committed to provide customers the best products with ever improving design. Strict production and quality control,and the perfect pre-sales and post-sales services.



We are on the way to be your most reliable and trustworthy partner, now more than ever.
