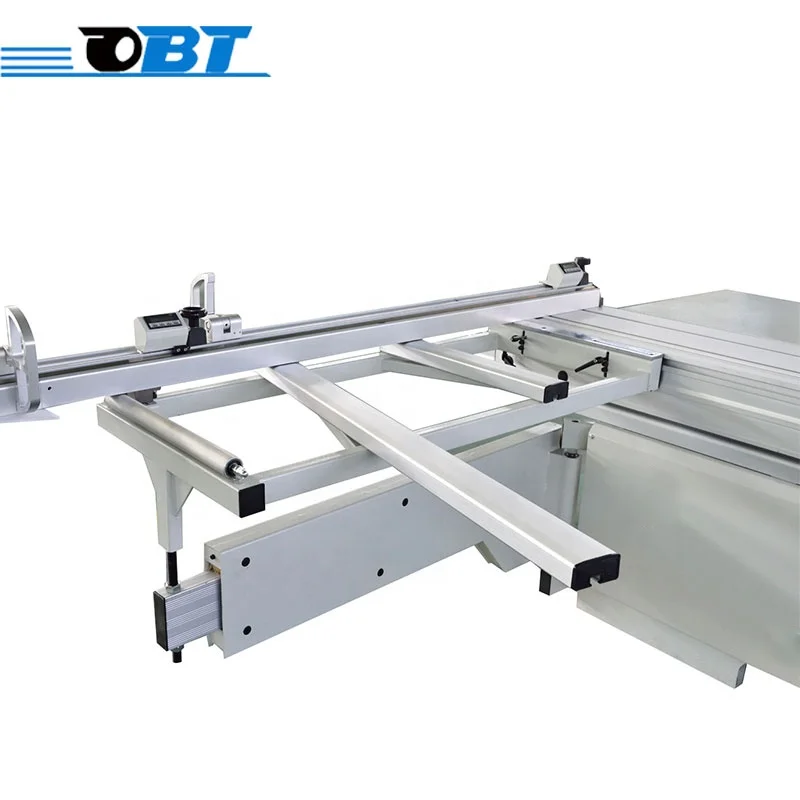

Cheap precision electric woodworking sliding panel cut saw machine

Product Overview

Description

Cheap precision electric woodworking sliding panel cut saw machine





Technical Parameters



Model	OBT6132S
Function	Electric lift/electric tilt 45 degree
Dimensions Sliding Table	3200*380mm
Maximum Sawing Length	3200mm
Maximum Sawing Width	1250mm
Saw Blade Diameter	300mm(Φ250-Φ350)
Maximum Sawing Thickness	70mm
Spindle Speed	4000/6000rpm
Spindle Diameter	30mm
Tiling Saw Blade	45°
Main Motor Power	5.5kw
Scribing blade Specifications	Φ120mm
Scribing Blade Speed	8000r/min
Shaft Diameter	20mm
Scoring Power	1.1kw
Weight	860kg
Wooden Boxed Weight	900kg
Dimensions	3250*3450*900mm
Loading Quantity	20 units/40HQ







Application

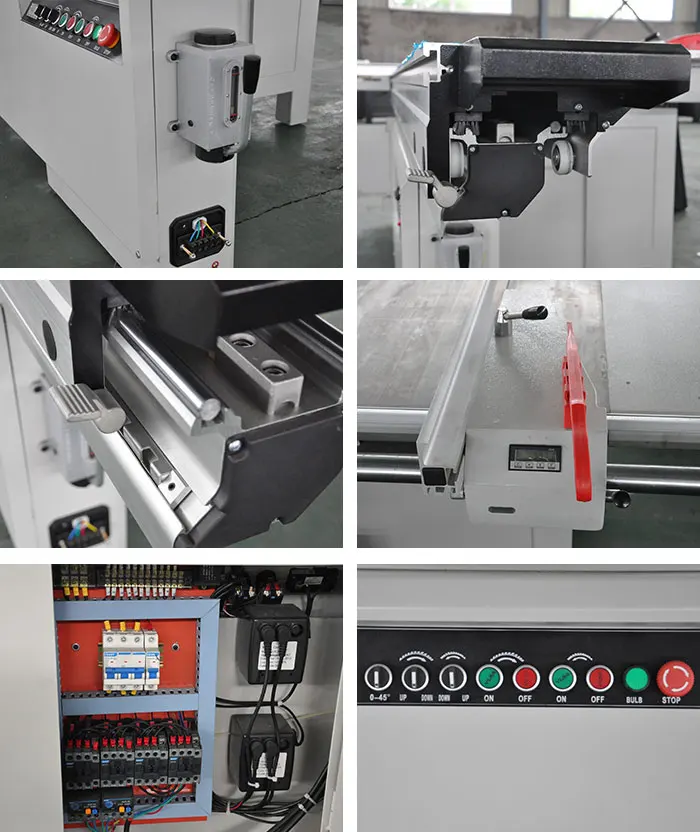

Machine Advantages

45°angle saw blade

• Saw blade tilt available,
• Not only 90°sawing,but also 0° to 45°,that'll be better for cutting work



Machine Frame

• Laster cutting frame
• Plastic spray surface treatment

Internal structure and table

• Qualified material,painting and anti-corrosion

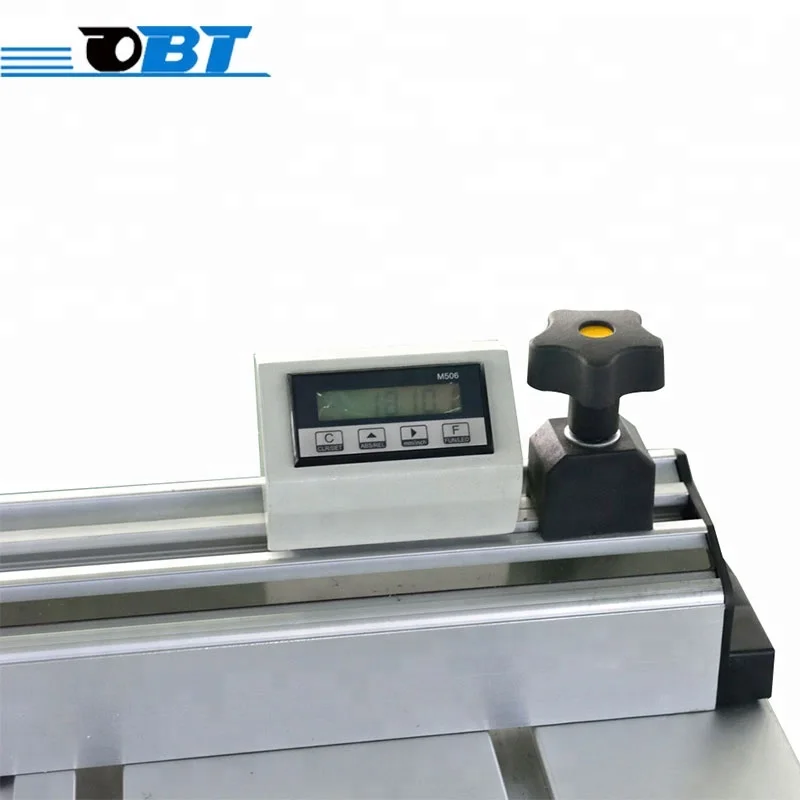

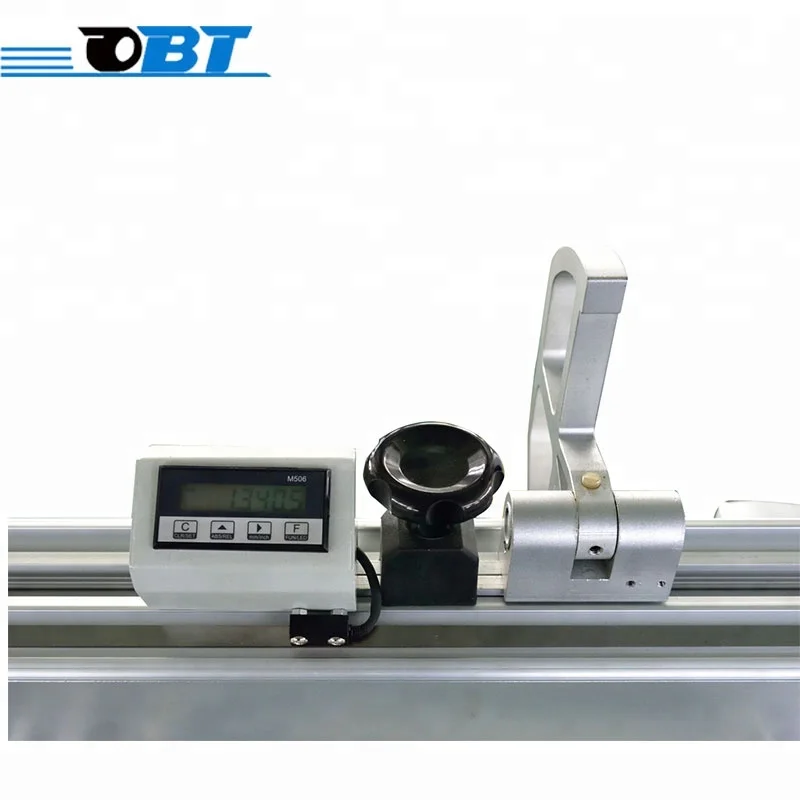

• Extendable measuring stick
• Aluminum track,stability and non displacement
• Guarantee the precision of cutting process

Motor and parts

• High-strength parts,more longer working life
• Pure copper wire motor 5.5+1.1KW
• SKF bearing



If you want more detailes, click  now, you will get the best quotation.

Spare parts



FAQ

1. Can you advise me the dimensions of sliding table? -Yes. It's 3200*380mm. The size is suitable for you.

2.What's the tiiling saw blade? --It's 45°.But the cutting plate can be used for cutting  0-45° plates in the factory.

3.What's your warranty?---In 12 months.

4.What's your lead time?---In 30 working days.
5. What's your delivery term?---FOB Qingdao China usually, also can be CIF/DDU/DDP to your side if you need.
6.What's your payment term?---30% T/T deposit, balance T/T payable before delivery after inspection.

7. Can I visit your factory before place an order? ---Yes. Sure. Welcome to our factory any time.
