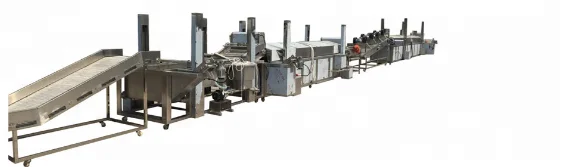

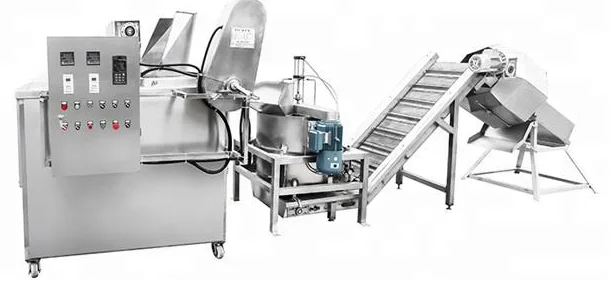

Small scale potato chips production line, small scale french fries production line

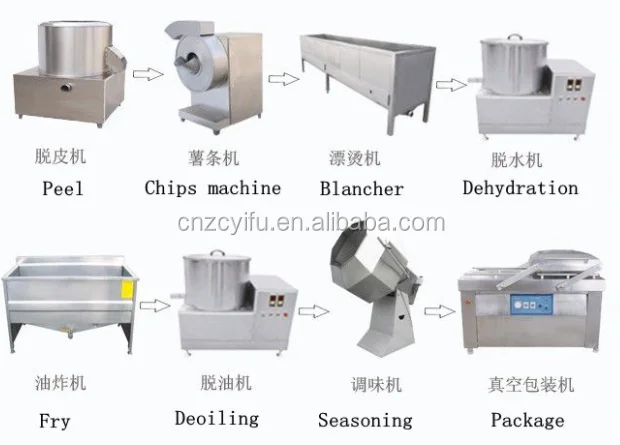

1.Using batch fryer as frying machine to making potato chips .
2. Using continuous fryer as frying machine to making potato chips

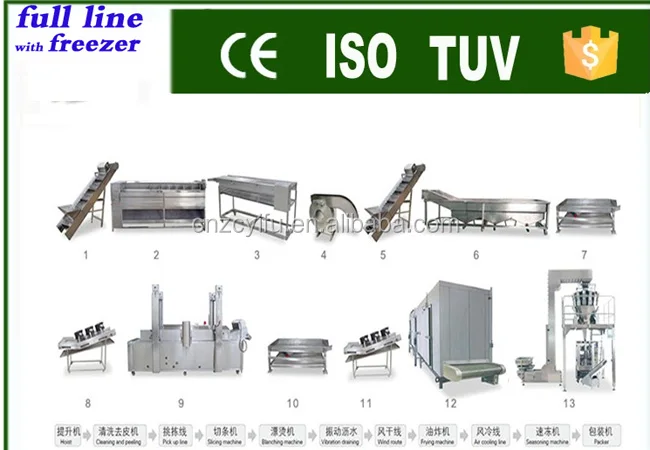

Equipment and components

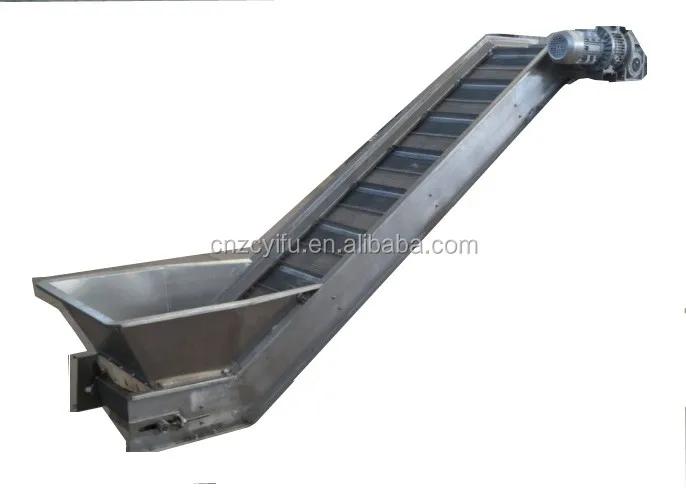

1. Hoister with water spray
It is used to preclean potato, soften the potato skin, then hoist potatoes into washing and peeling machine.

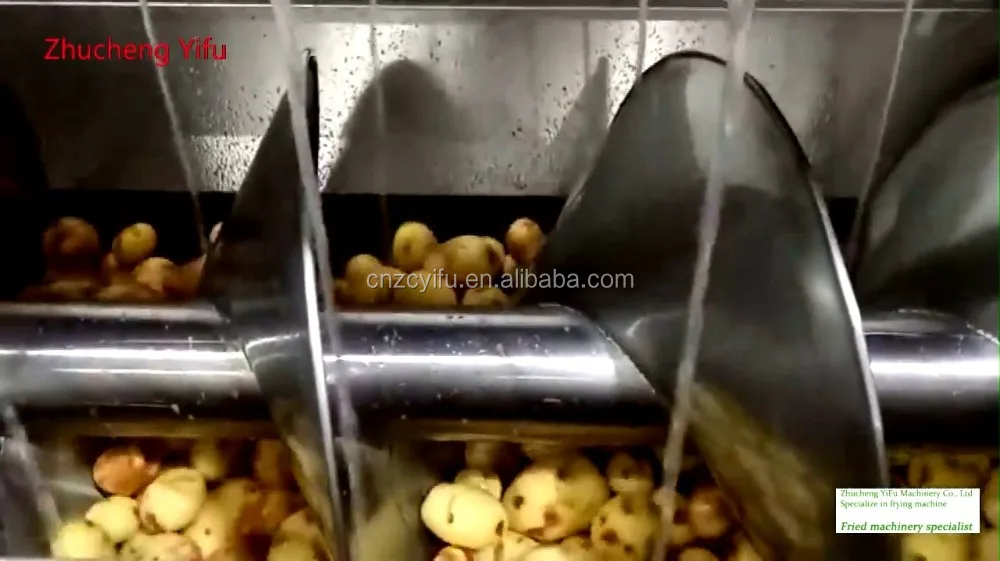

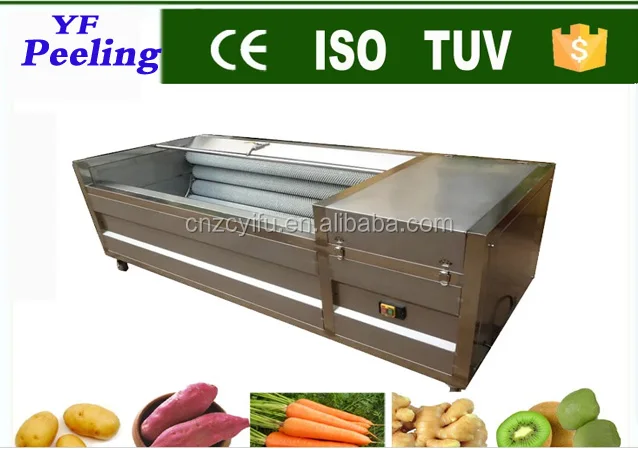

2. Washing and peeling machine
This machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely.

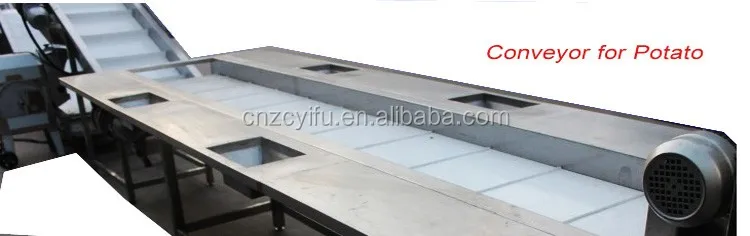

3. Inspecting table
This machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.
4. Hoister with water spray
This machine is used to re clean potatoes again, then hoist potatoes into cutting machine.

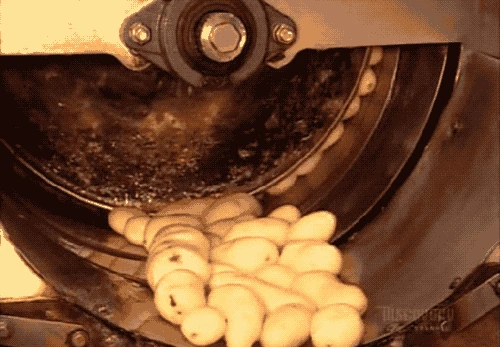

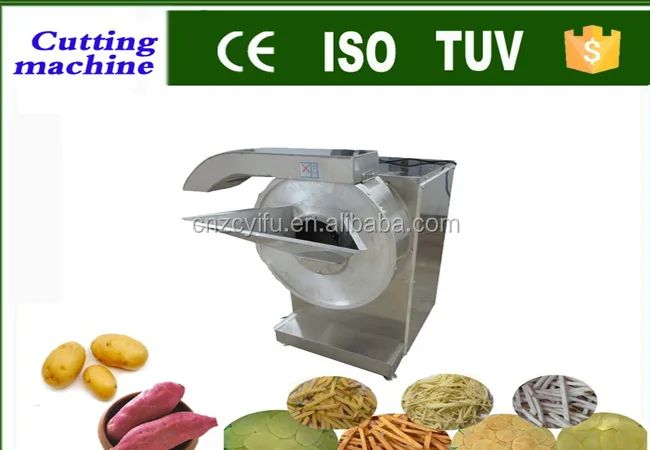

5. Potato cutter
This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important. ( Size of french fries customized) usual is Size:6*6/8*8/10*10
6. Rinsing machine
This machine used to washing potato starch and protect potato from oxidation, keep its original color.

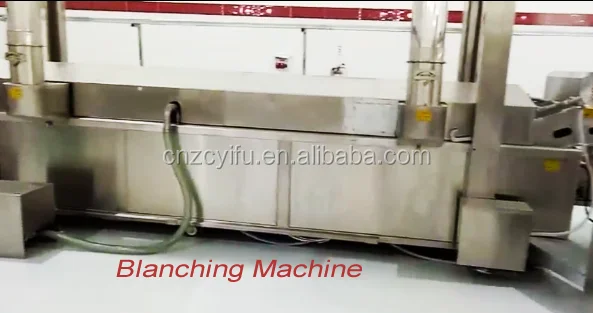

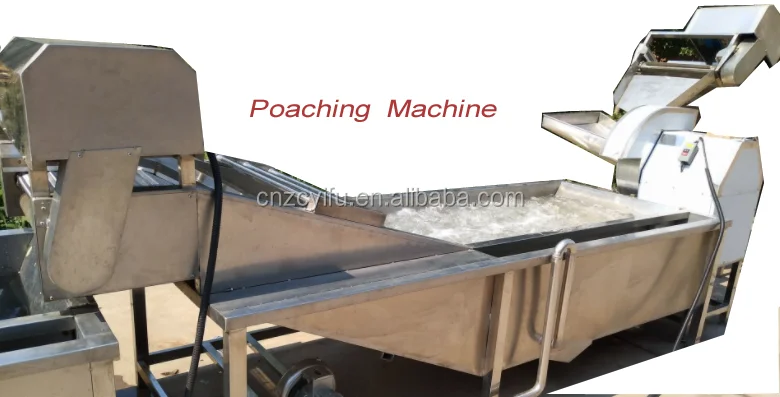

7. Blanching machine
This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the reducing sugar, also after blanching, it will get inner soft taste of french fries.
8. Vibrating machine to de-water
Used to remove water. Also have many holes at the end of machine to leak out small part and waste part potato.
9. Electric dryer:
Remove water, drying fries

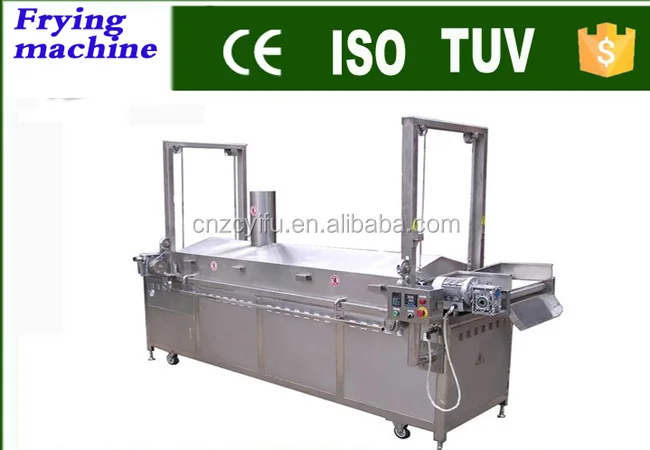

10. Continuous frying machine
This machine is automatic to unified fry sticks in short time.
11. Vibrating de-oil machine:
This machine is used to de-oil with the vibrating.
12. Cooling line:
Use fan to blow off the water on stick surface, then deliver sticks into the freezer.
13. Conveyor :Used between cooling line and quick-freezing machine.
14. Fluidized-type freezer
It is used to quick freezing the french fries in short time, fries center temperature at -18 ℃, Can the maximum keep the original flavor and product quality. 15. Conveyor:Used between quick-freezing machine and packing machine. 16. Automatic weighing and packing machine
It is used to pack the french fries automatically, including bucket Elevator.
The main machine parameter of French Fries , the figure means the length of machine :
Machine Type Capacity(100kg/h) Model Parameters Usage Item
1.Washing and peeling machine semi/full automatic YFW2400 Friction peeling, 1.5kw Peel for potato
2.Cutting machine semi/full automatic YFC-600 Merchancial, 1.5kw Cut into sticks
9.Weighting and packing machine semi/full automatic YFP-650 12kw Packing
Detailed Images

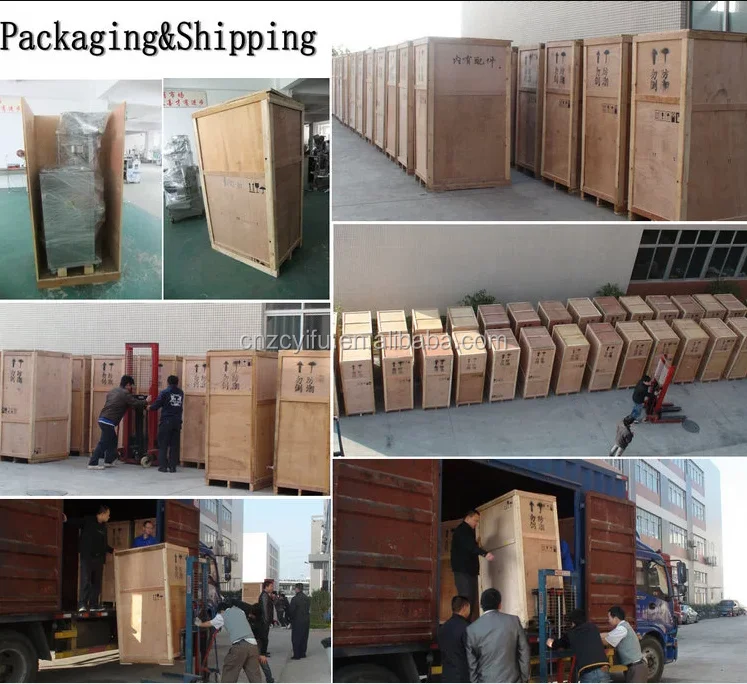

Packing & Delivery
Our Service
1) Design and manufacture the equipment 2) Inspect and running all machine before dispatch 3) Engineers available to service machinery overseas 4) One year quality guarantee 5) 24 hours technical support by e-mail. 6) English software, user manual
Our Company
Zhucheng Yi Fu Machinery Co., Ltd., is the earliest in the vacuum frying equipment, pure oil frying machine , oil and water mix frying lines, low temperature quick-frozen lines, sterilization lines, drying line, cleaning washing machine manufacturers.
1.Frying solution ( potato chips, french fries ,meat, Tofu ,Fish peanut,cake ,chicken , fruit , vegetable ..)
2.Potato solution: frozen french fries production line, potato chips production line.
