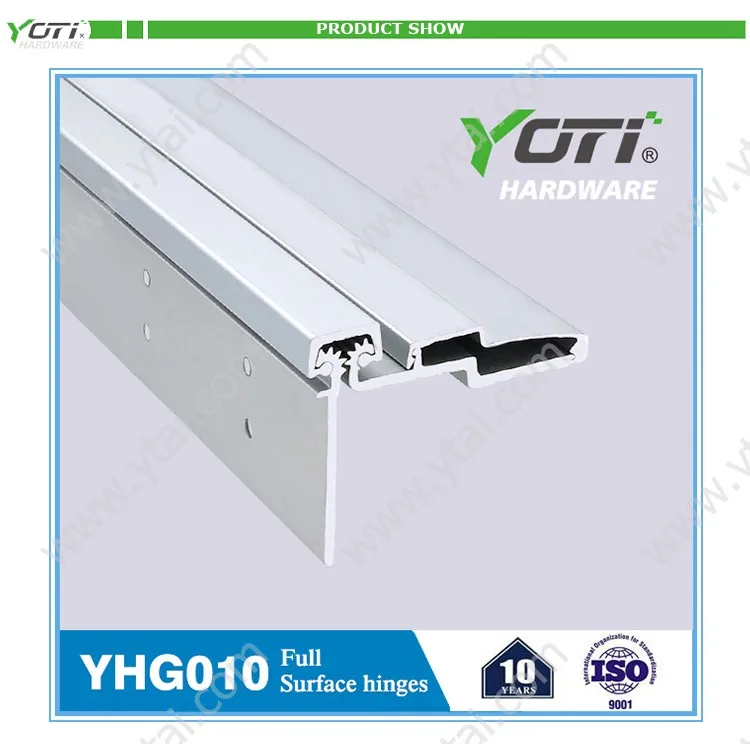

YHG010 Heavy Duty Half Surface Chinese Geared Continuous Hinge Door Aluminum
- Category: >>>
- Supplier: Wenzhou Yongtai Electric Co. Ltd.
Share on (60779564717):
Product Overview
Description
Product Description
Yoti Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance. | ||||||||
Length (inches) | Length (mm) | Sex Bolts (Door) | Pan Head (Door) | Screws (Jamb) |
83 | 2108 | 8 | 19 | 19 |
95 | 2413 | 10 | 19 | 20 |
119 | 3023 | 12 | 23 | 23 |
◇CLEARANCE: 5/32" (4 mm) minimum recommended hinge side Plus standard lockside clearance ◇FASTENER: 1/4-20 x 1-1/4" Sexbolt (Screw + Post) #12-24 X 11/16" Flat Head Self-Drill Screws ◇LENGTH OPITIONS: 83" & 95" & 119" & Custom ◇DOOR REINFORCEMENT: None required ◇FRAME REINFORCEMENT: None required to 200 lbs. Heavier weight use 16-gauge channel. ◇CERTIFICATE: ANSI & BHMA GRADE 1 FIRE RATED: UL 10B/10C ◇SPECIAL FEATURES: For renovation with new door and / or frames No mortising of doors or frame required Will cover hinge cut outs in frames Flush mount no inset Frame and door leaf alignment ribs for proper hinge location | ||||||||

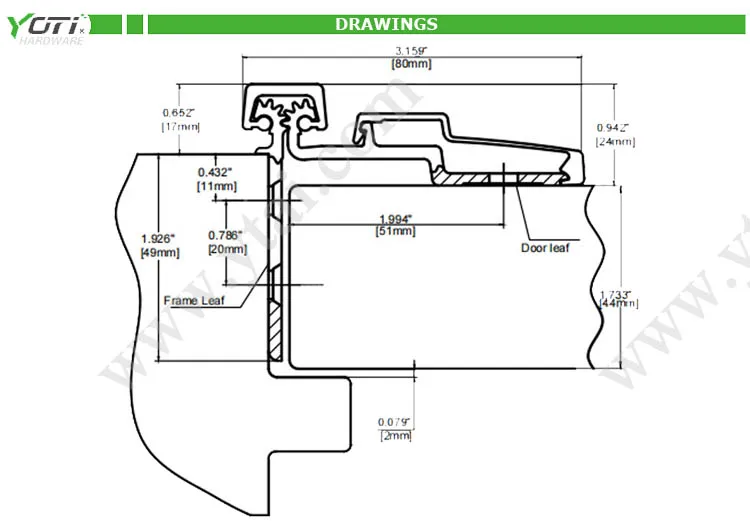

Detailed Image
Related Imformation
Packaging&Delivery
FAQ
Contact
