Product Overview
Description
CW6180 China Manufacture High Precision Chinese Metal Lathe Machine Price
Feature:
This heavy duty horizontal face lathe series include : CW6180,CW6110,CW61120,This lathe is a special purpose heavy duty horizontal face lathe and it is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces
Bed width 600mm, limit load 4TONS
Standard Accessoires
4-jaw chuck, vibrashock
two centers, tool box with tools
wrenches, coolant system
follow rest, English Operation manual

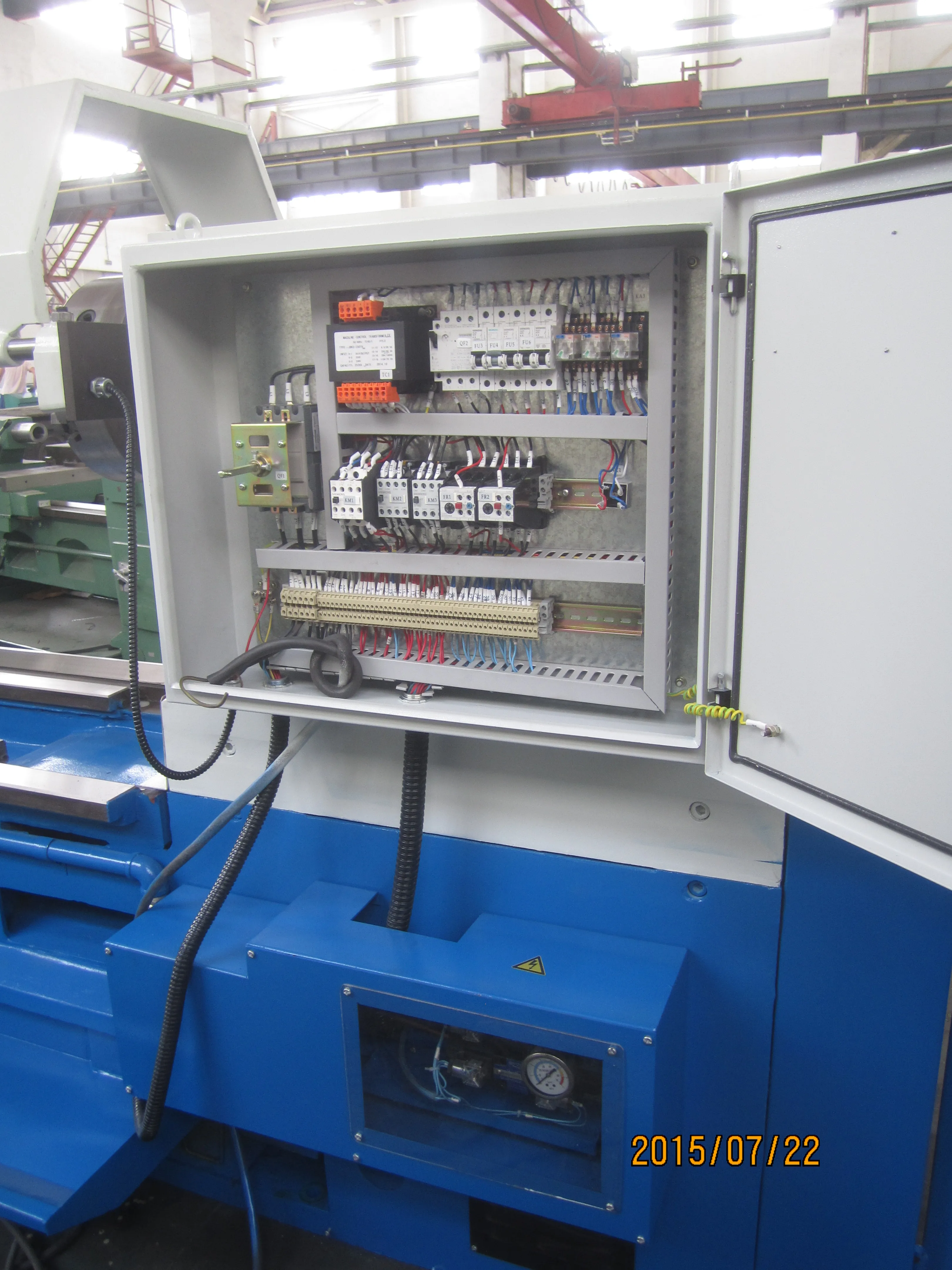

Accuracy test report Schneider Electrical part
Main specification
| MODEL | CW6180 | CW61100 | CW61120 | |
|
| CW6280 | CW62100 | CW62120 | |
CAPACITY | Max.swing over bed | Φ800mm(31-1/2") | Φ1000mm(39") | Φ1200mm(47-1/4") | |
| Max.swing over gap | Φ1000mm(39") | Φ1200mm(47-1/4") | Φ1400mm(55") | |
| Max.swing over cross slide | Φ480mm(18-3/4") | Φ680mm(26-3/4") | Φ680mm(26-3/4") | |
| Center distance | 850/1350/1850/2850/3850/4850/5850/7850/9850/11850mm (33 1/2",53",73",151 5/8",191",230 3/8",309",387 3/4",466 1/2") | |||
| Width of bed | 600mm(23 1/2") | |||
HEAD STOCK | Spindle hole | Φ105mm(4 1/4") (Φ130mm(4 1/4"),available for CW6180) | |||
| Spindle taper | Φ120mm(4 3/4") taper 1:20 | |||

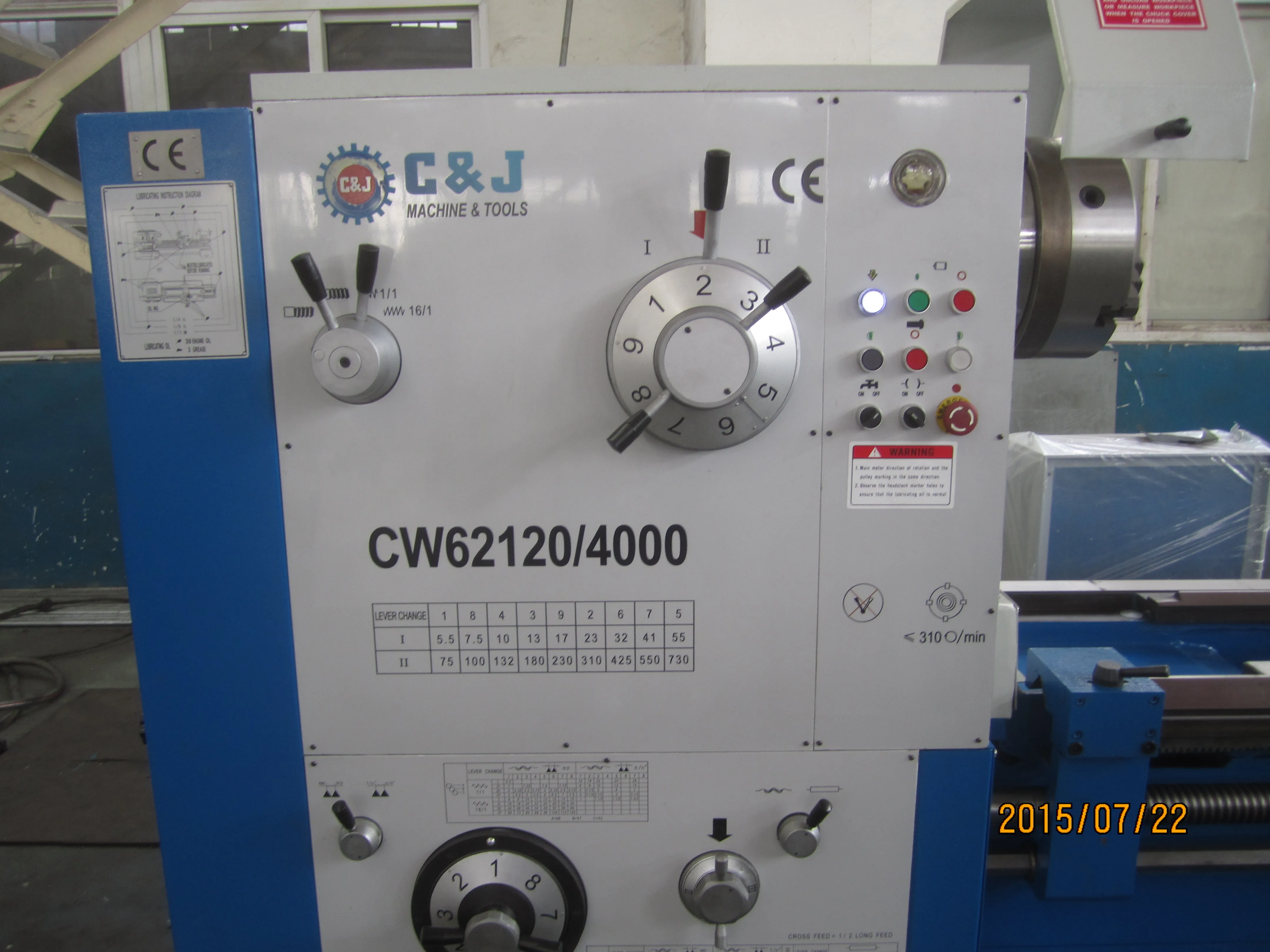

| Spindle speeds | 0.75-1000r/min | 5.5-730r/min | ||
GEAR BOX-THREAD&FEEDS | Metric threads mm | 1-240mm (52) | |||
| Inch threads TPI | 1-14 (26) | |||
| Module threads mm | 0.5-120mm (53) | |||
| Diametral threads DP | 1-28 (24) | |||
| Longitudinal feeds range | 0.1-24.3mm/r | |||
| Cross feed range | 0.05-12.15mm/r | |||
| Rapid feed:long/cross | 4000mm/min,2000mm/min | |||
TOOL-POST | Tool section | 32mm×32mm(1-1/4"x1-1/4") | |||
CARRIAGE | Cross slide travel | 370mm(14-1/2") | 430mm(17") | ||
| Compound rest travel | 200mm(7 3/4")(travel for A type:170mm(6 2/3")) | |||
TAILSTOCK | Sleeve diameter | 100mm(3-3/4") | 120mm(4-3/4") | ||
| Sleeve taper | Morse 6 | |||
| Sleeve travel | 240mm(9 1/2") | |||
STEADY REST | Steady rest | Φ20-200mm(3/4"-7 3/4") | |||
| Follow rest | Φ20-135mm(3/4"-5 1/4") | |||
MOTOR | Main motor | 11kw(15kw) 15HP(20HP) | |||
| Rapid feed motor | 1.1kw (1.5HP) | |||
N.W | kgs | 4600/5000/5200/5800/6400/7000/7900/9000/104000/11700kgs | |||
OVERAL SIZE | Length | 3000/3500/4000/5000/6000Φ7000/8000/10000/12000/14000mm | |||
| Width | 1170mm | |||
| Height | 1250mm | |||

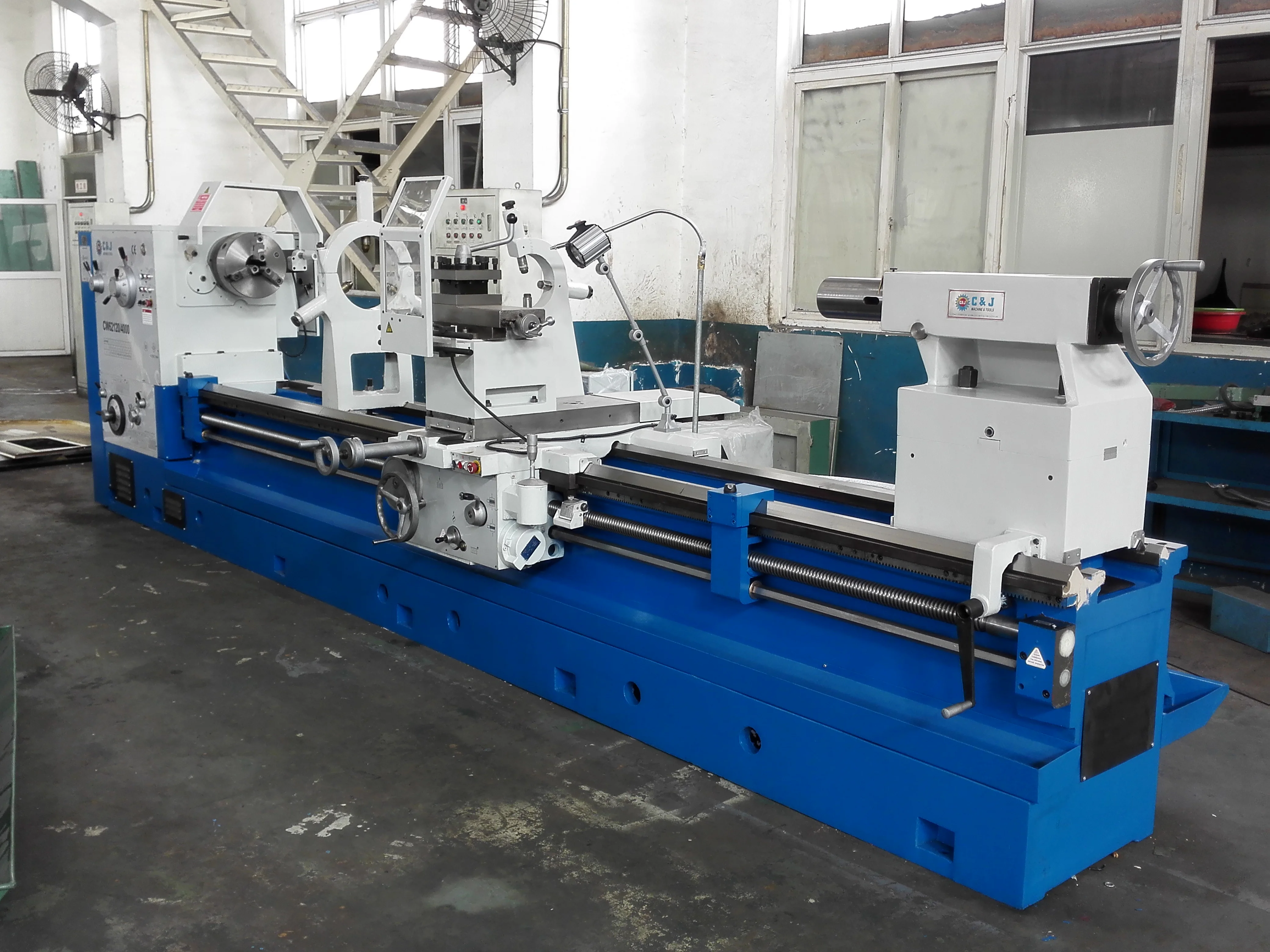

CW6180 conventional gap bed lathe machine
