Product Overview

Description


Product Description

Product Application


     Coal Briquette Making Machine ,  can also be called (charcoal briquette extruder equipment,carbon powder rod machine,sawdust carbon powder rod machine, straw charcoal powder rod machine, bamboo charcoal powder rod making machine, coal powder rod making machine, etc.)

     Coal Briquette Making Machine, is used to produce Coal slime powder/Charcoal powder/Carbon powder /Paper pulp/Coke dust and other materials.The briquette extruder is a main equipment in the complete equipment of the fuel forming section in the ammonia plant and gas plant. It is a new process to replace the fuel powder coal into a round (or six prism or square) coal rod with a certain strength, and the new process of burning in the gas making furnace. The traditional process of burning coal for gas making.

\t
SIZE
\t
MBJ140
\t
MBJ180
\t
MBJ210
\t
MBJ300
\t
MBJ400
\t
Capicity
\t
1~2T/h
\t
2~3T/h
\t
3~4T/h
\t
3~5T/h
\t
6~10T/h
\t
Molding
Specification

\t
20~40mm
\t
20~60mm
\t
20~80mm
\t
20~80mm
\t
20~80mm
\t
Speed of Mainshaft
\t
46~60
round/minute
\t
39~60
round/minute
\t
35~60
round/minute
\t
35~60
round/minute
\t
35~60
round/minute
\t
Spiral Blade Number
\t
4
\t
4
\t
4
\t
4
\t
4
\t
Electric Motor
\t
Y160m-4 11kw
Y160L-4 15kw
\t
Y180m-4 18.5kw
Y180L-4 22kw
\t
30~37kw
\t
37~45kw
\t
160kw
\t
Reducer
\t
ZQ350
\t
ZQ400
\t
ZQ500
\t
ZQ650~750
\t
ZQ850
\t
Bearing
\t
7511,211,
210,1350
\t
7614,314,
313,1206
\t
7619,319,
318,1206
\t
31320,320,
319,1207
\t
32322,322,
321
\t
Weight
\t
600KG
\t
800KG
\t
1000KG
\t
1000KG
\t
1000KG
\t


Remark
\t

Spindle rotation speed is the lowest rotation number, can be based on the current size, load

weight, output level appropriate increase

     Coal Briquette Making Machine adopts hard gear reducer with small volume and high bearing capacity. The inner impeller of the coal rod extruder is designed with thickened blade, the impeller and the liner inside the cylinder are made of wear-resistant precision casting material, the life is increased 4-5 times than that of the common material, and the outlet of the head of the coal rod is made of wear-resistant alloy steel which can be replaced easily.

Main Features

1) Energy saving and envirenmentally freindly, turn waste into treasure.

2) Reasonable structure ,easy in operation,installation and maintation. Low price, less power consumption, easy to move.

3)  Running in a high automatization and intellectualization, no pollution, high efficiency, high-        performance.


Detailed Images

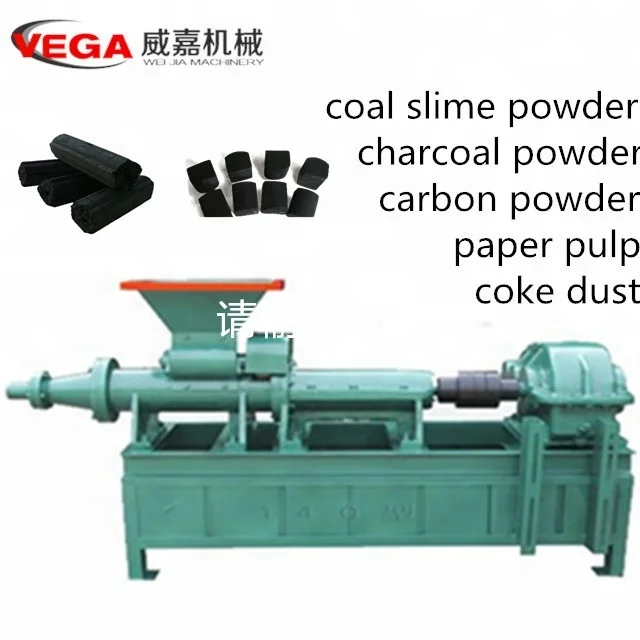

 Raw Materials,


Coal slime powder/Charcoal powder/Carbon powder /Paper pulp/Coke dust and other materials.

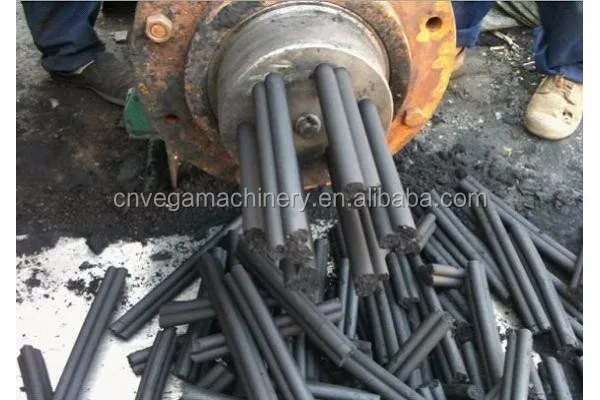

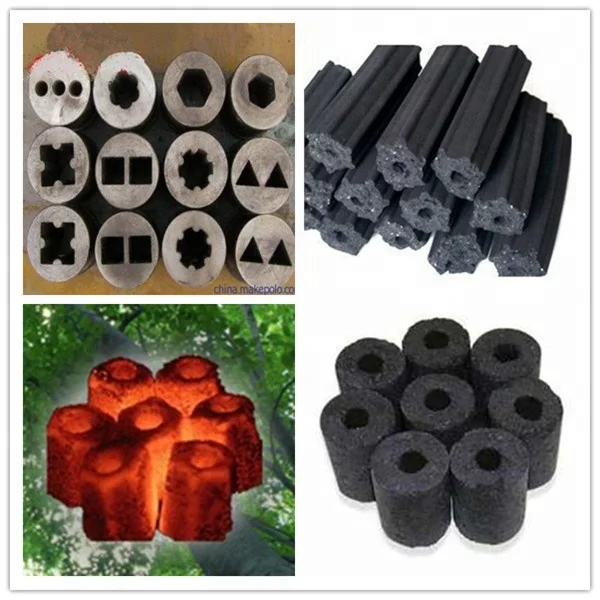

Production products,

The product can be used for barbecue charcoal, heating charcoal, industrial charcoal and so on. It is smokeless and odorless, easy to burn, calorific and durable

Work process

 Technological process: The motor passes the power to the transmission through the triangle belt, the transmission output shaft passes the power to the propulsion shaft through the floating coupling, and the propelling coal material on the propulsion shaft is pushed out by the molding die, and the ideal high-pressure coal rod is produced.



Lowest price, high-performance,high quality,good after-sale service Briquette Rod making equipment.

You're worth it.

Our Service

Pre-Sales Service

* Supporting Inquiry and consult.

* We will test every product before the packaging.

* Customers could have the factory tour if they want.

*  Factory tour.

After-Sales Service

* Our engineer will go to cusyomer's company to        training the workers how to instal and use the    machine if necessary.

* Engineers available to service machinery overseas.


* Providing the accessory.

Packing & Delivery
\t
Packaging
\t
Size
\t
2.4m*1.2m*1.5m
\t
Weight
\t
600kg/800kg
\t

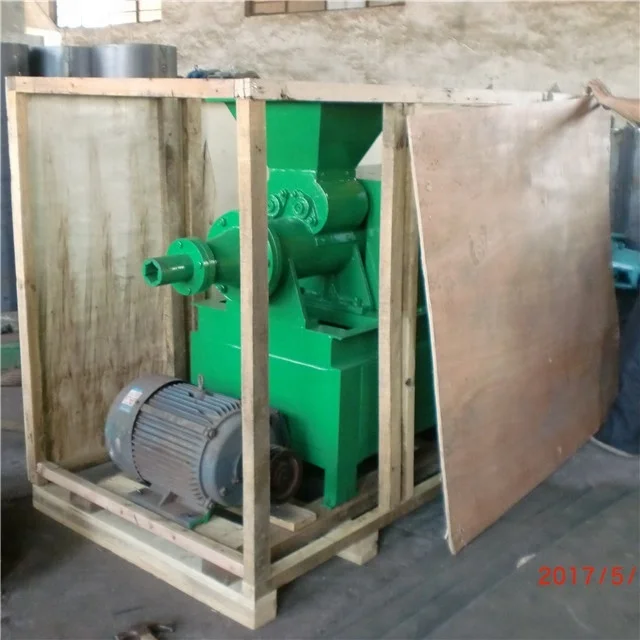

Packaging Details
\t

Normal package is wooden box or container.(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will provide special way of packaging to meet customers requirements.
Product Concept


Serving customers wholeheartedly, saving energy, protecting environment and no pollution is our product concept.


We wish to contribute for the energy - conservation and environment - protection together with you.

About Us

We are professional factory to provide cusyomer the product with lowest price, high quality, good after-sale service and best guarantee.

We are convinced that you will be satisfy by our high-performance products and lowest price. We'll try our best to meet the all of needs from customers and make consumers be satisfy.
