Product Overview
Description

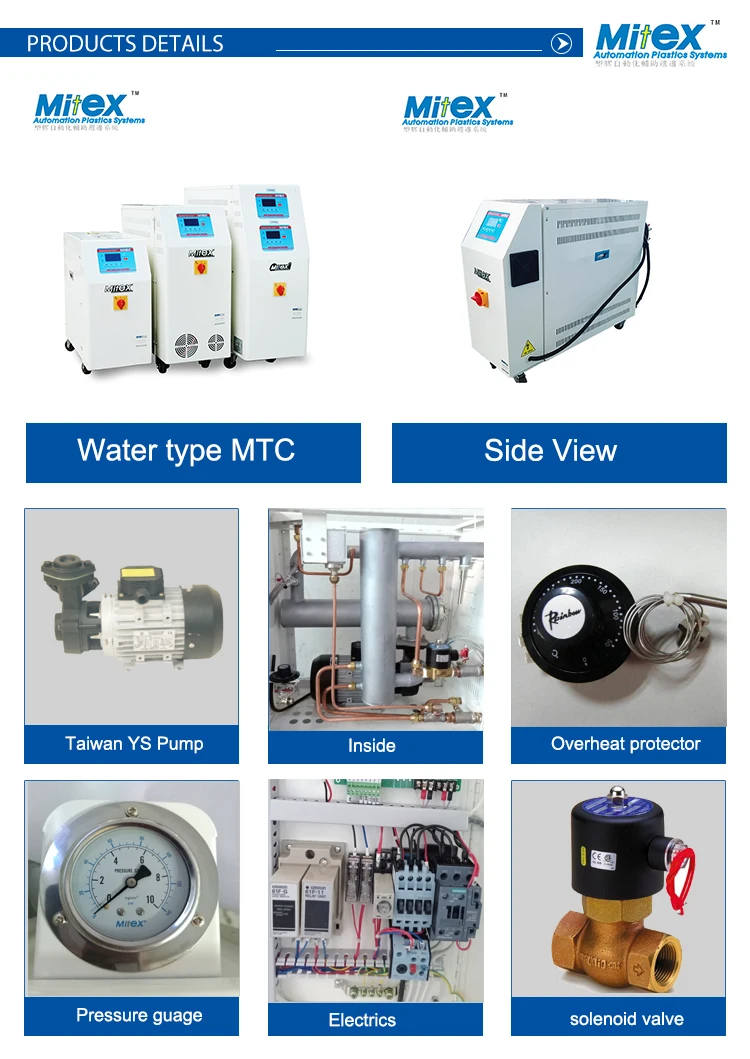

| FEATURES of water type mold temperature controller |
♦Maxium operating temperature:120℃ ♦ high efficiency oil cycle pump,big flow rate,long servicfee life ♦ Hot water piping is single unit design extended to 4 inlet and 4 outlet separation tubes to avoid leakage. ♦ Rapid heating and cooling. Temperature kept stable at all times ♦ P.I.D. multi-stage temperature control system can maintain a mould temperature with accuracy of ±0.3°C, saves above electricity 35% ♦ Equipped with high pressure protection, safety pressure relieving, automatic oil supplying and air exhausting.
MITEX MTC Series 12KW Thermolator Heating Units,which are used to heat up the mould and maintain temperature, and they can be used in other similar applications. High temperature water from the mould is returned to the cooling tank and cooled direct cooling. |
| Safety Protecting And Indication System |
♦Power source phase deficient protection ♦Circuit breaker ♦Pump reversal protecting and indicating lamp ♦Pump over load protecting and indicating lamp ♦Water shortage protecting and indicating lamp ♦Over heat protecting and indicating lamp ♦By-pass pressure lose circuit ♦Cooling compulsory ♦Temperature deviation alarm and indicating lamp ♦Break down alarm buzzer |
| Specifications |
| Product Model | MTC-1210G | MTC-1210S | MTC-1220S | MTC-1230S | MTC-1210G-TS | ||||||||||||
| Power | AC380V 3 phase, 50HZ | ||||||||||||||||
| Max. working temp. | 120℃ | ||||||||||||||||
| Temp. Control Accuracy | ±0.5 C | ||||||||||||||||
| Heat Transfer Medium | Water | ||||||||||||||||
| Cooling Method | Direct Cooling | ||||||||||||||||
| Control Mode | P.I.D control | ||||||||||||||||
| Heating Energy KW | 9 | 9 | 12/18 | 18/24 | 9*2 | ||||||||||||
PUmp | Seal method | Mechanical Method | |||||||||||||||
| Motor capacity (KW) | 0.75 | 0.75 | 1.5 | 2.2 | 0.75*2 | ||||||||||||
| Max. pressure | 0.38 | 0.22 | 0.24 | 0.26 | 0.38 | ||||||||||||
| Max. flow (L/Min) | 56 | 165 | 235 | 315 | 56 | ||||||||||||
| Perfromance | Flow rate (L/Min) | 58 | 52 | 25 | 22 | 110 | 165 | 23 | 170 | 235 | 30 | 240 | 315 | 385256 | |||
| Total Head | 10 | 21 | 38 | 22 | 20 | 6 | 23 | 20 | 7 | 26 | 20 | 7 | 22 | 21 | 38 | ||
| Cooling method | Direct cooling | ||||||||||||||||
| Cooling Capacity (KW) | 11 | 50 | 11*2 | ||||||||||||||
| Pipe size | circulation line | Main pipe | 1 inch | ||||||||||||||
| Branch pipe | 3/8" 4 direction | 3/8" 8 direction | |||||||||||||||
| Cooling line | 3/8" | 3/4" | 3/8" | ||||||||||||||
| Alarm | Phase reverse, medium shortage, pump overload, temp. upper and lower limite, over heat | ||||||||||||||||
| Water pressure | 0.1-0.3Mpa | ||||||||||||||||
| Accessories | 5M power cable | ||||||||||||||||
| Dimension (CM) | 85*29*65 | 107*31*70 | 113*34*84 | 113*34*84 | 110*34*94 | ||||||||||||
| Net weight (KG) | 54 | 60 | 110 | 120 | 105 | ||||||||||||

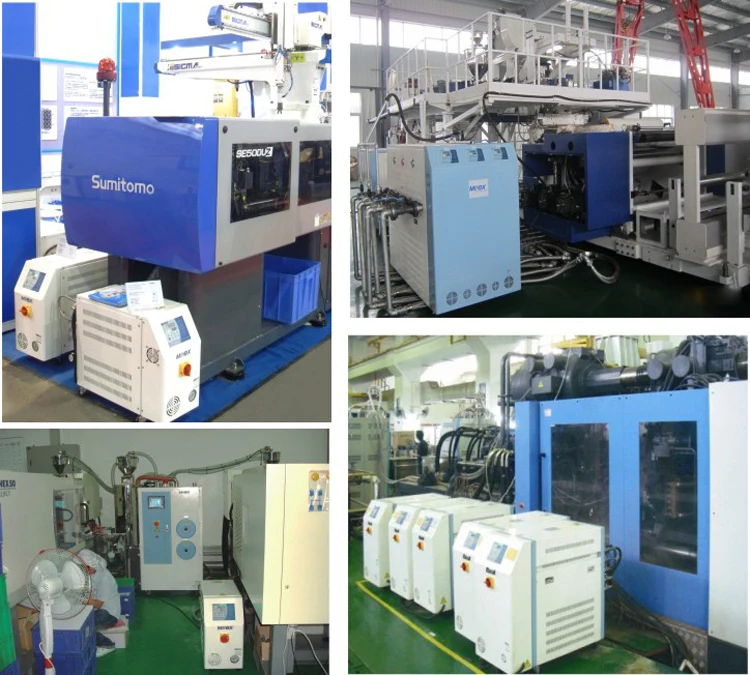

| Customer cases |
|
