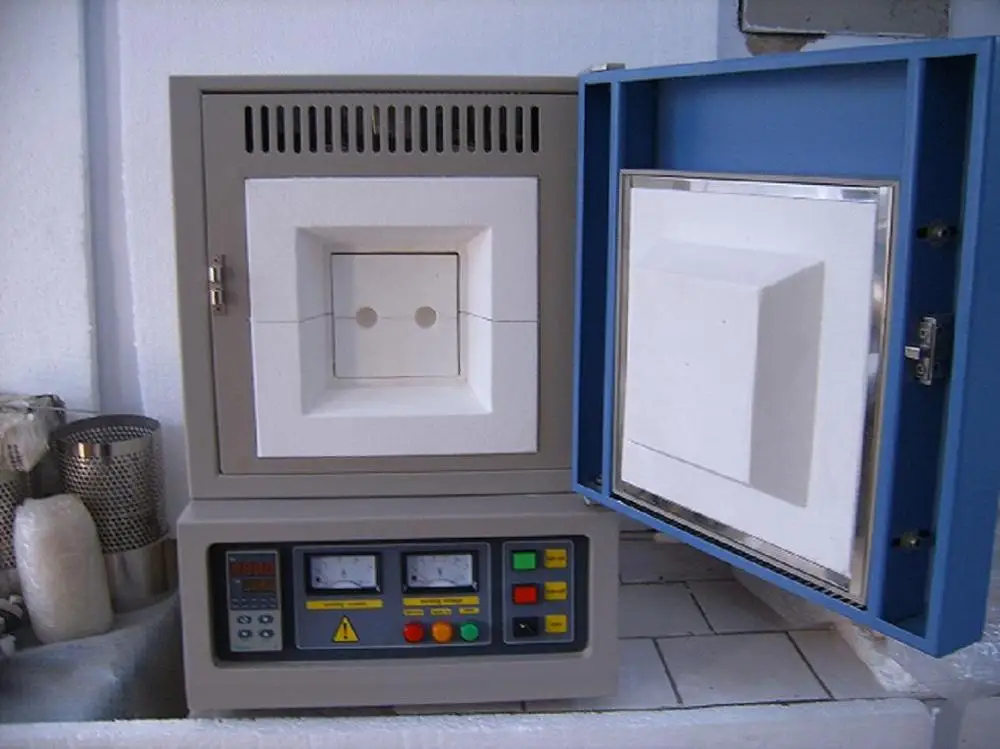

1400degrees box muffle furnace, SiC heaters furnace

Product Overview

Description

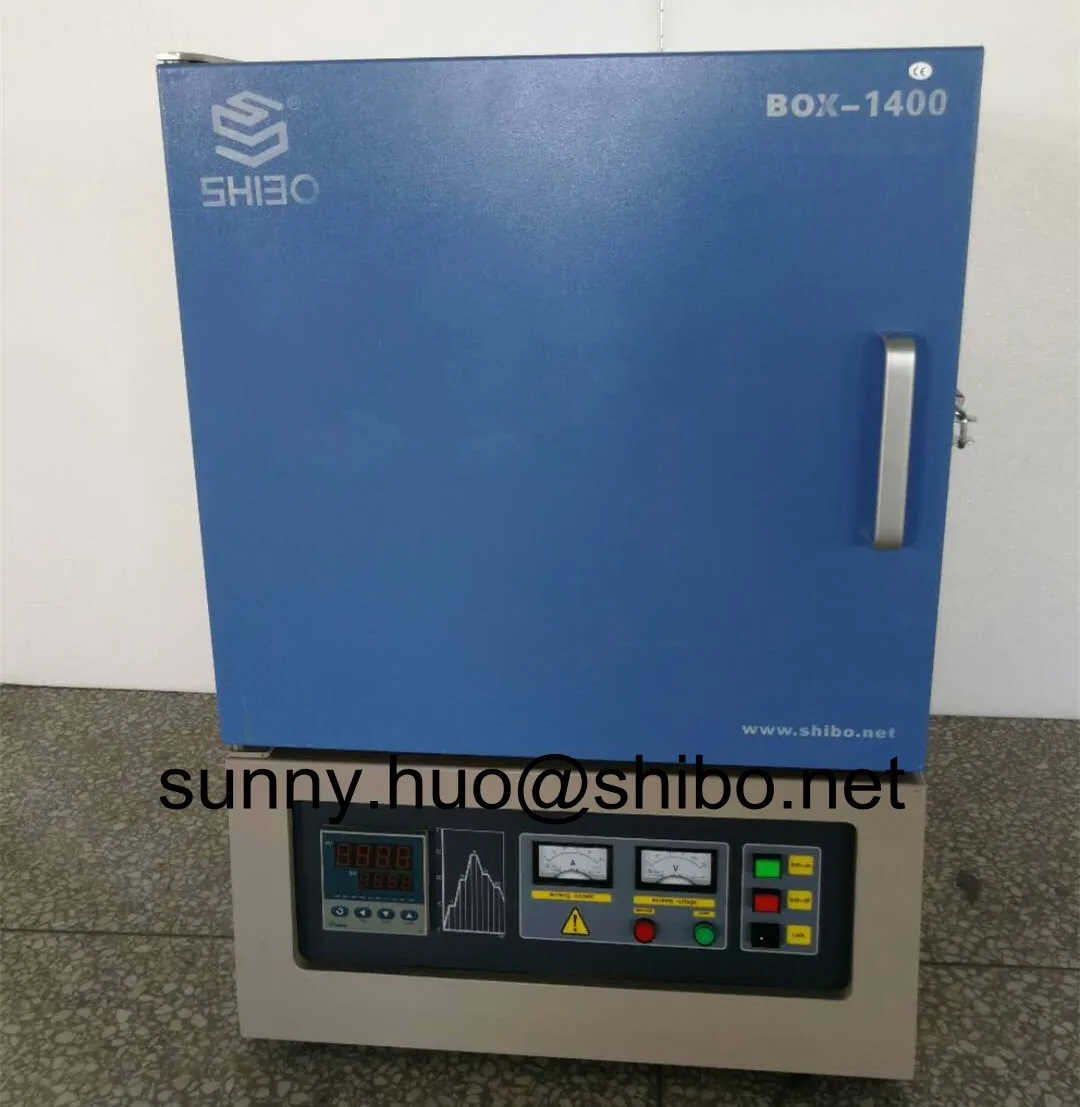

BOX-1400 lab furnace uses SiC heater as heating element, adopting 50segments programme to control the temperature. The chamber is used polycrystalline alumina fiber. Double shell structure with air cooling system ensuring the furnace rise and cool quickly;



Main features

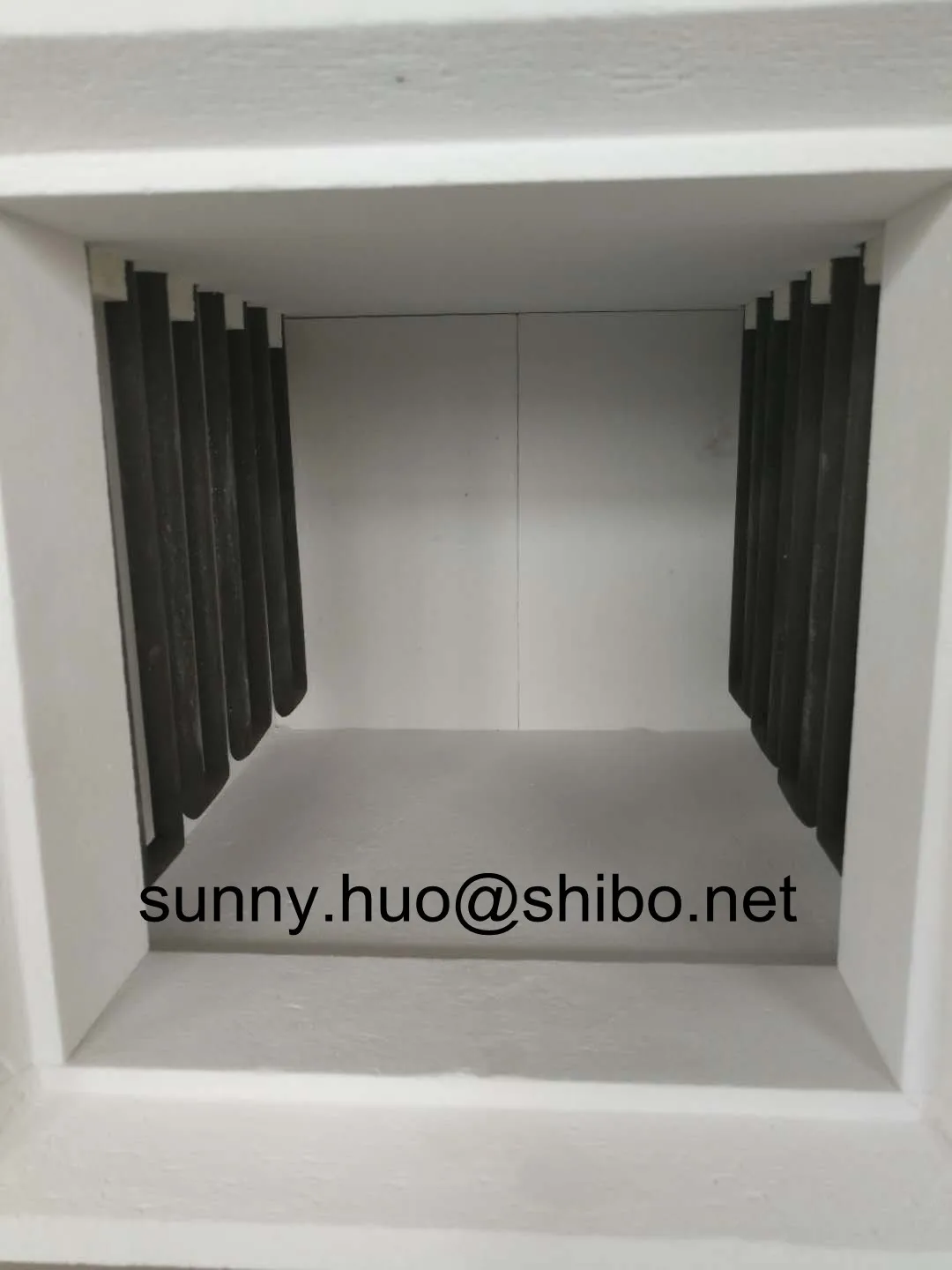

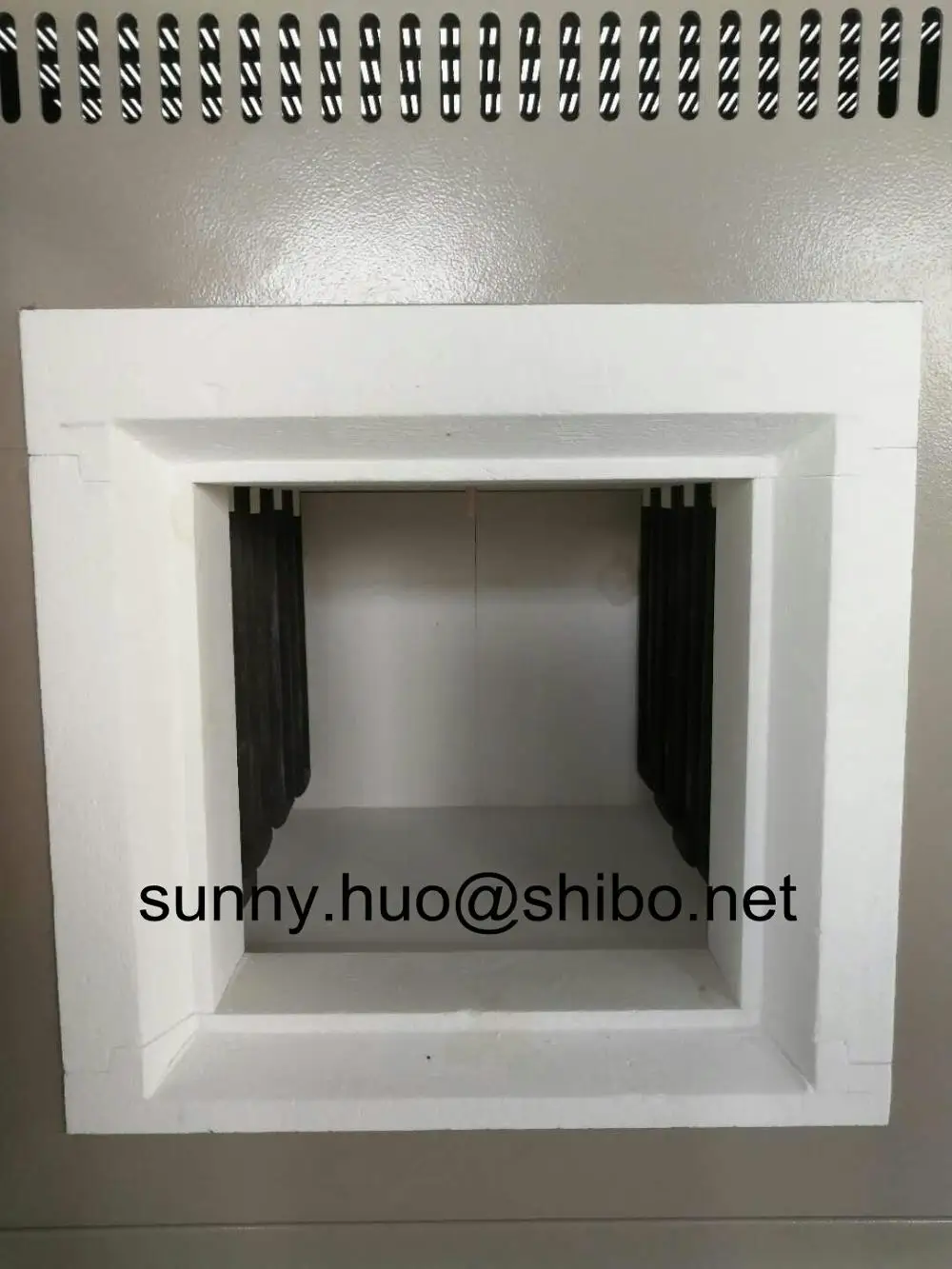

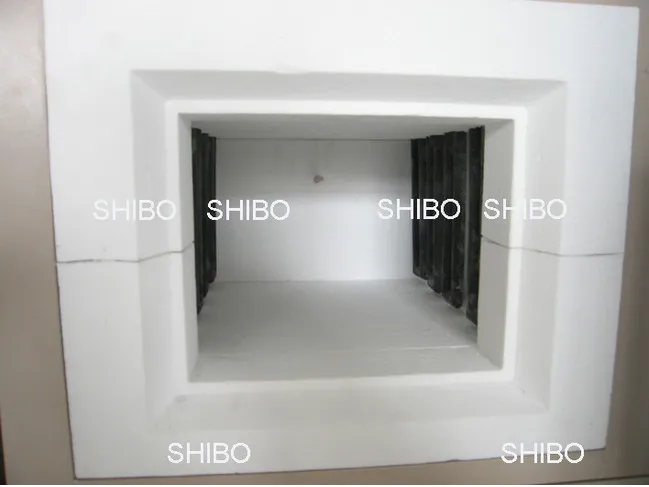

1. The furnace uses high quality polycrystalline alumina fiber as chamber material, saving energy, small volume, fast temperature rising and cooling.

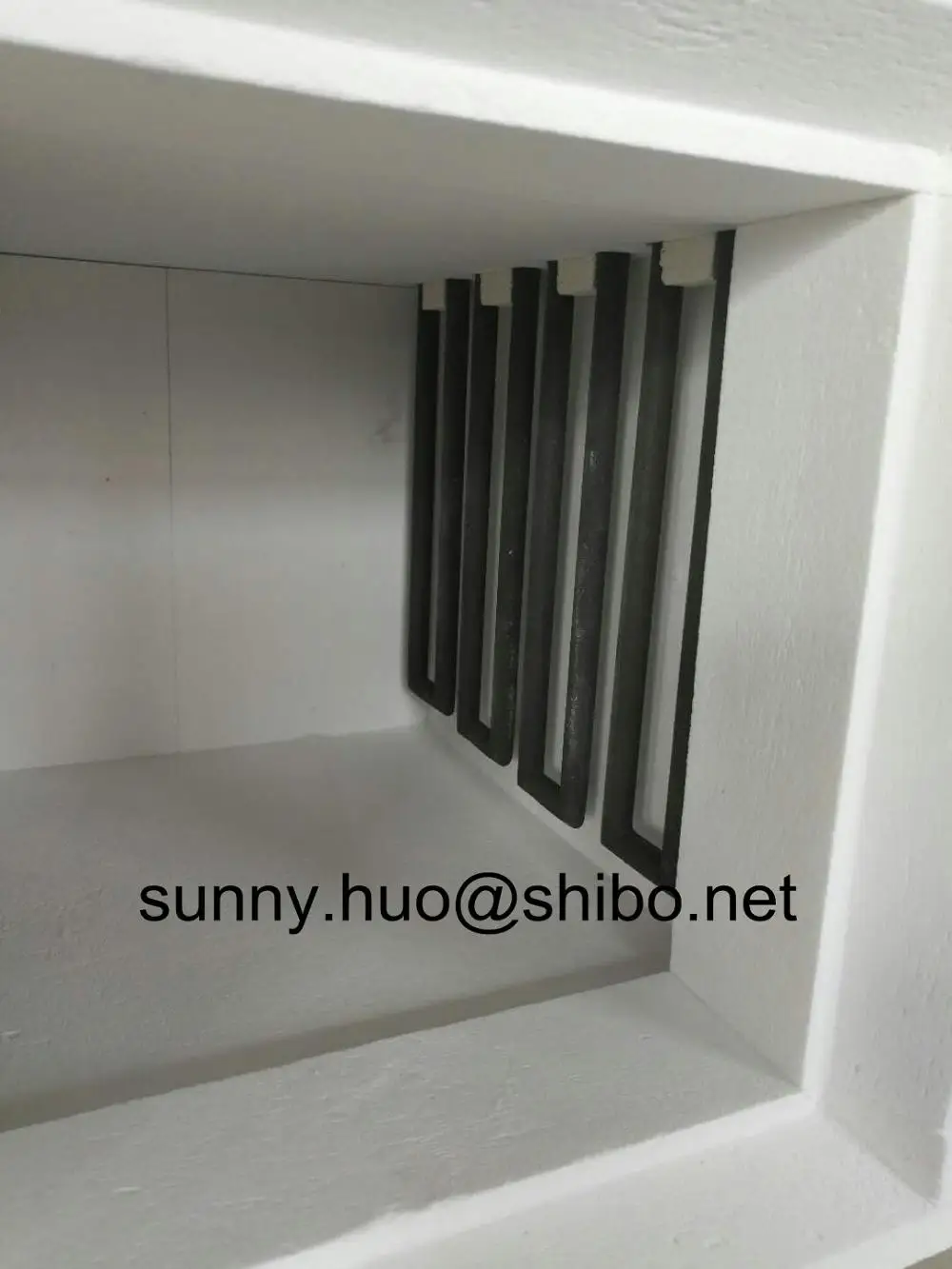

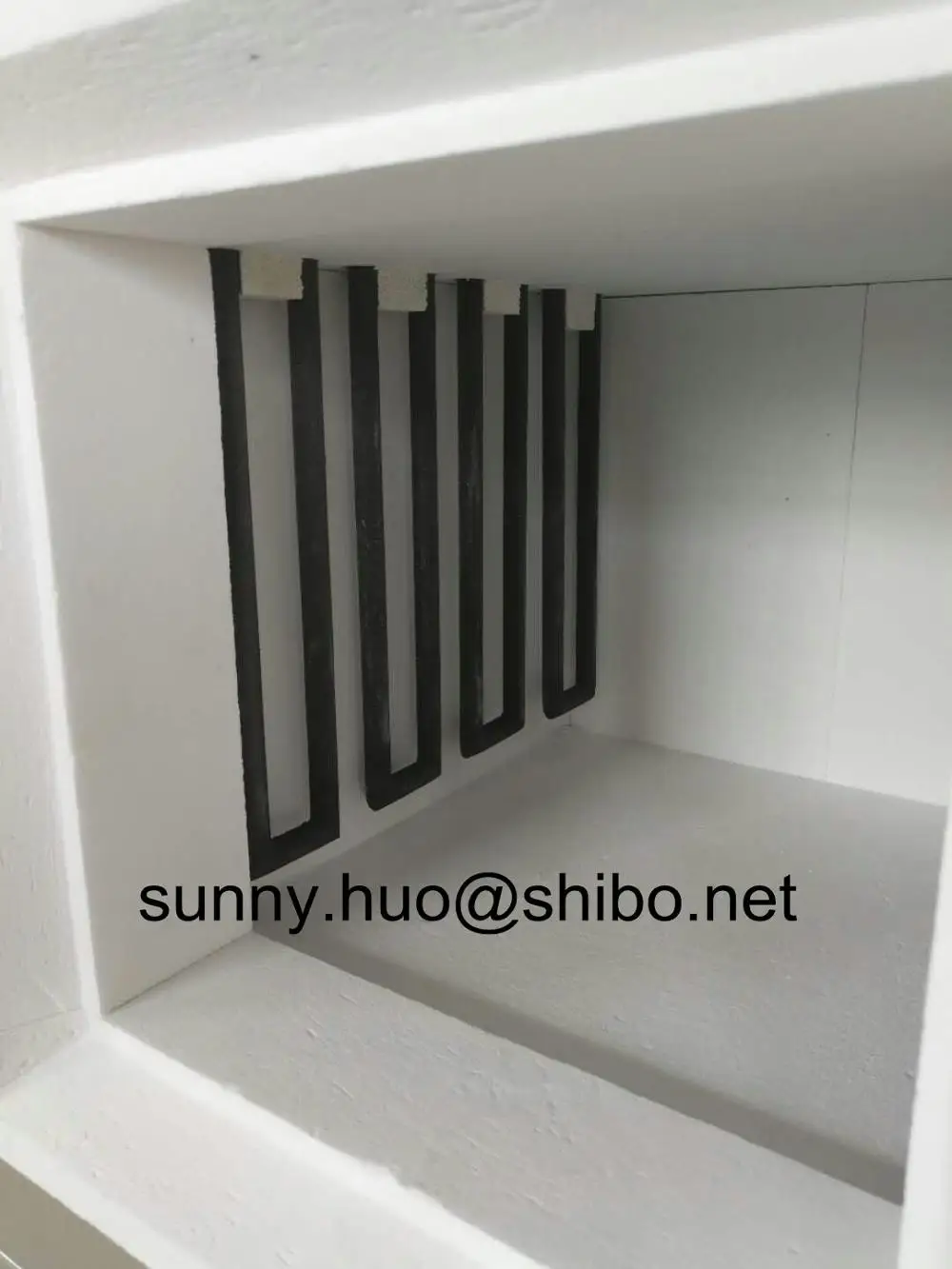

2. High quality U type SiC heater as heating element greatly improving the using life, perfect double shell design with colling fan ensuring the furnace rise and cool fast.

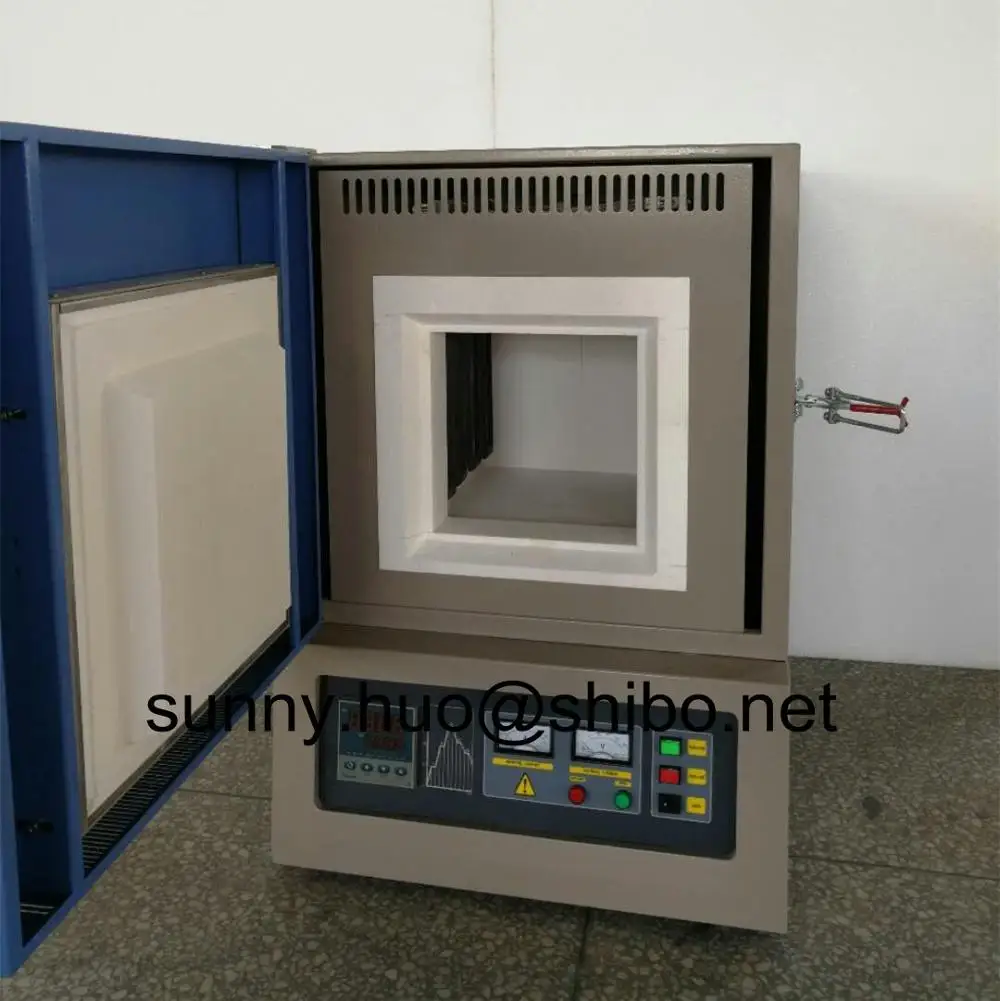

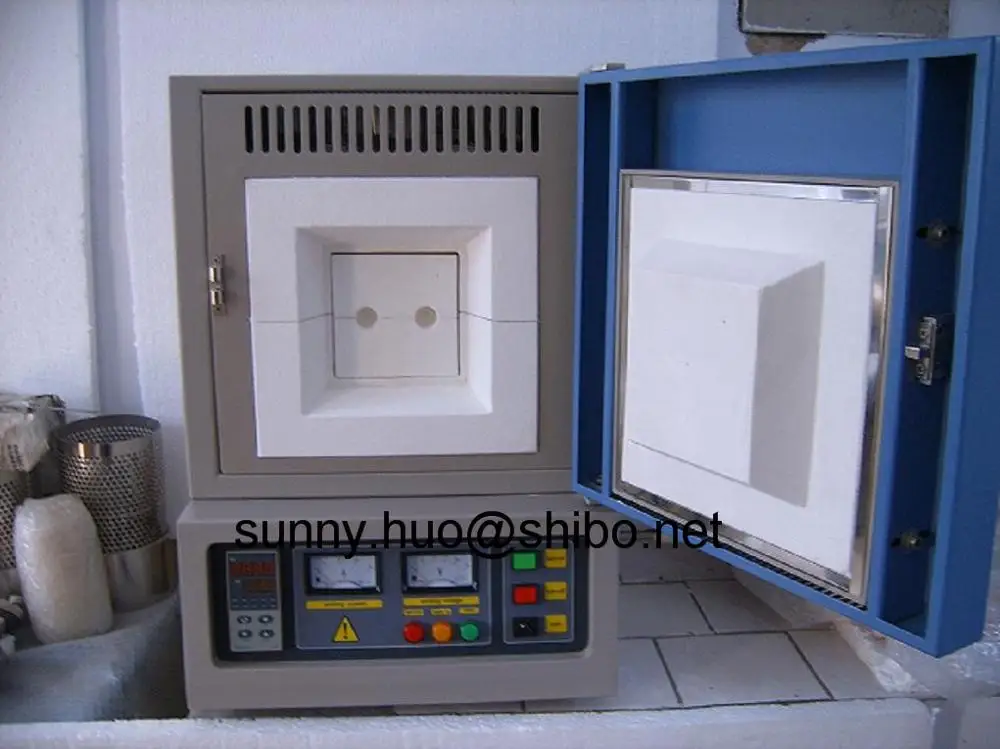

3. Side open door, when the door is open, the power cut off automatically;

4. Over-temperature alarm and power failure, leakage protection, safe and easy operation.

5. CE certified





Standard Chamber Size for choice

Model	Chamber size    (W× H× D mm)	Volume(L)	Rated Power(KW)
BOX-1400	100x100x100mm	1	0.8
BOX-1400	150x150x150mm	3	2
BOX-1400	150x150x200mm	5	3
BOX-1400	200x200x200mm	8	5
BOX-1400	200x200x300mm	12	6
BOX-1400	300x300x300mm	27	8
BOX-1400	300x300x400mm	36	10
BOX-1400	400x400x400mm	64	15
BOX-1400	500x500x500mm	125	25



Technical parameters

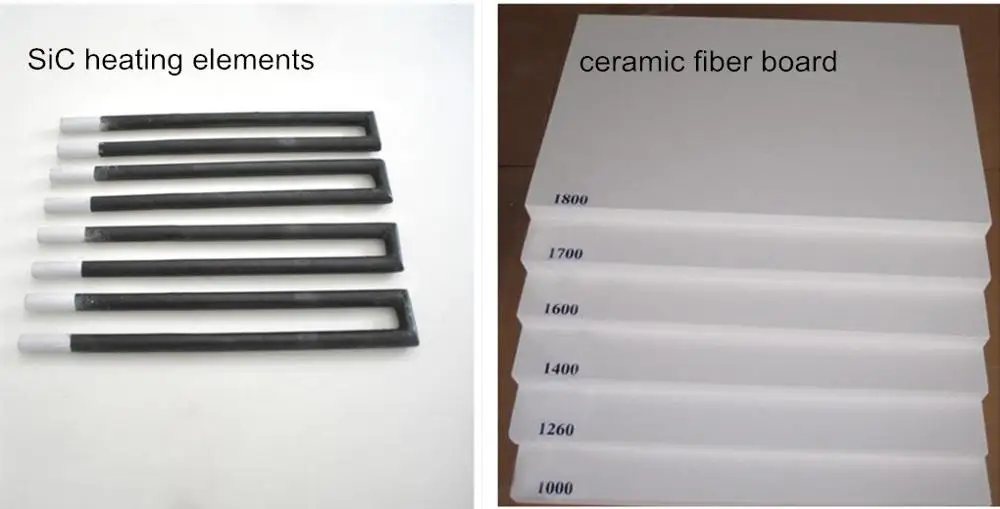

Heating elements: high quality U type SiC heaters

Working temperature: 1300C

Max.temperature: 1400C

Temperature control: intelligent auto-control with 708P temperature controller, 50segments programme

Temperature accuracy: +/-1C

Thermocouple: S type

Voltage: AC220V(or customized AC380V), 50/60Hz



Main application

Dental, university, science research institution, mining industry to do powder sintering, quality inspection.
