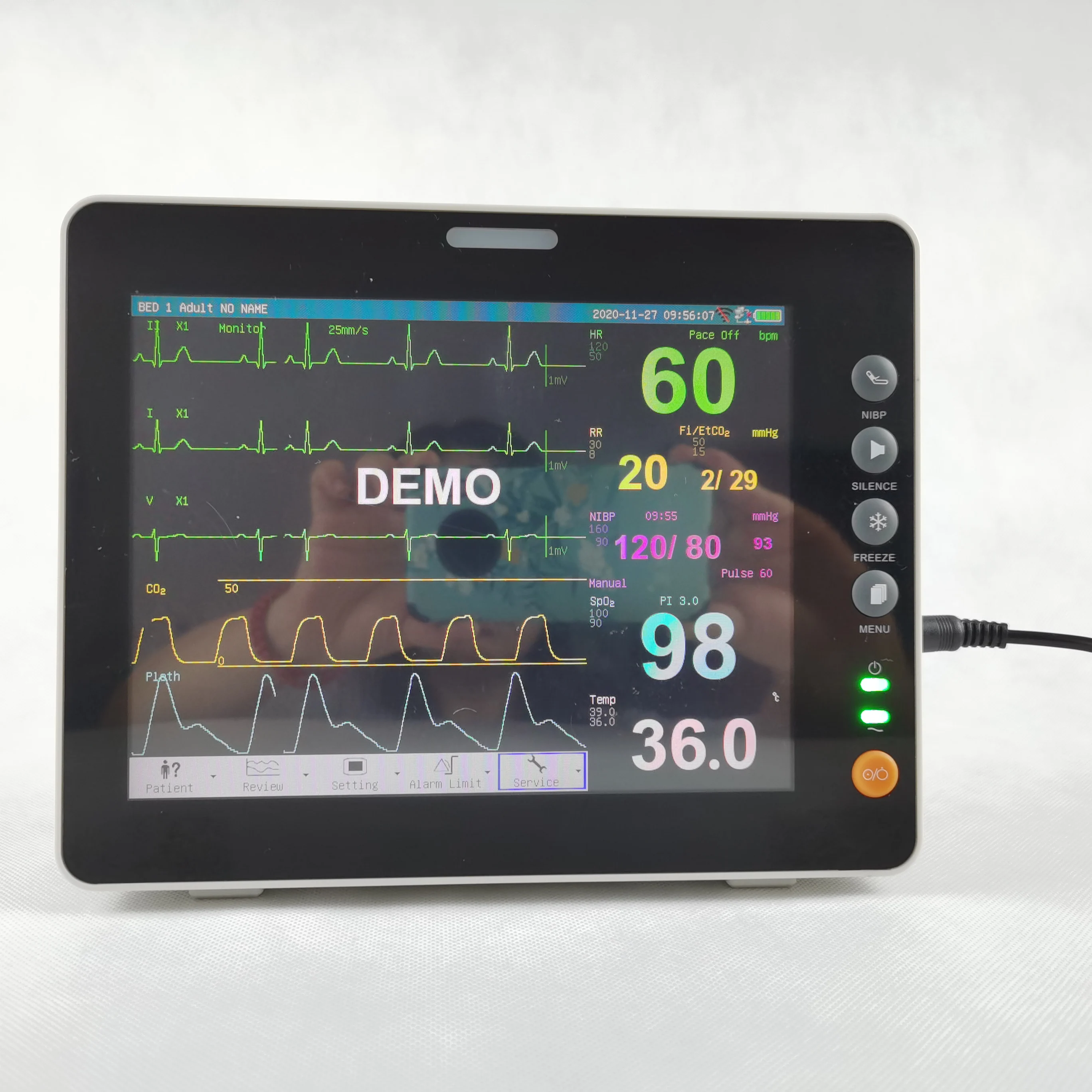

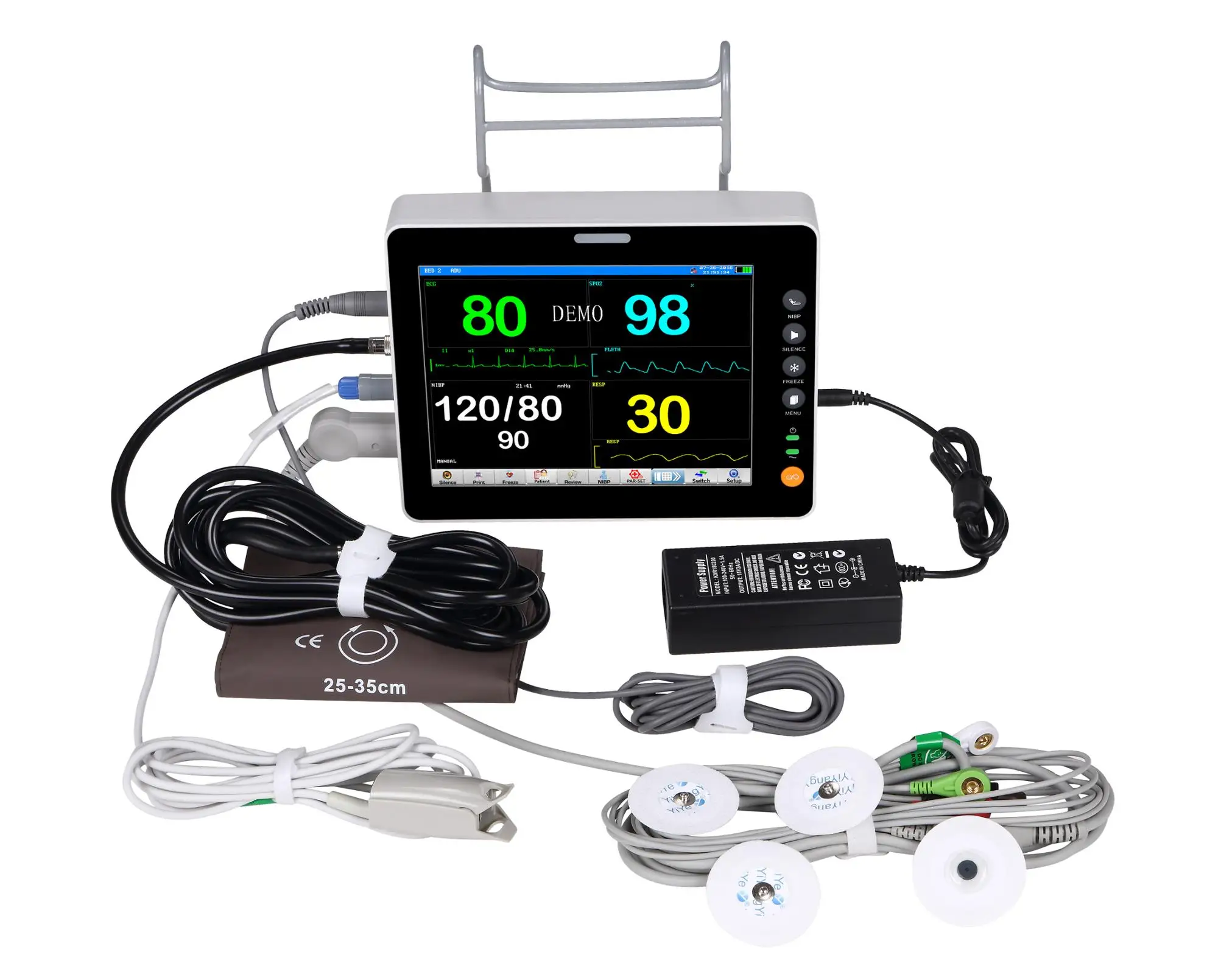

RSD6000 8 Inch 6 parameters Patient Monitor Vital Signs Monitor for hospital clinic use
- Category: >>>
- Supplier: Shenzhen Ronseda Technology Co. Ltd.
Share on (60779651263):
Product Overview
Description
8 Inch Display Patient Monitor Health Care Machine Portable Bedside Home Hospital
Product Details
RSD 6000
Standard: ECG, SPO2, NIBP, TEMP, Resp
Opintal: HDMI, ETO2, Touching screen
SIZE: 8 inch TET LED display
Other: Waterproof, fanless, low energy,Intelligent audio and visual alarm function
Power: Li-Battery (rechargeable)
ECG
ECG Cable: Standard 3/ 5 leads
3 Leads:RA,LA,LL,Leads section:I,II,III
5 Leads:RA,LA,LL,RL,V, Leads section:I,II,III/aVR,aVL,aVF/V
Gain selection:´0.25,´0.5,´1,´2
Heart Rate Range:
Adult:15 ~ 300bpm
Children/Infant/Neonate:15 ~ 350 bpm
Accuracy:±1% or ±1bpm
Resolution:1 bpm Sensitivity >200 uV(Peak to peak)
Input Resistance >5(MΩ)
Bandwidth:
Diagnosis :0.05~130Hz
Monitor:0.5~40Hz
Surgery :1~20Hz
ST segment deviation analysis:
Range:-0.8 mV~+0.8mV
Accuracy:±2.0mV
NIBP
Work mode: Manual, Automatic, Continuous
Unit: mmHg, Kpa
Measurement Range:
Adult: SYS: 40~270mmHg
DIA: 10~215mmHg
MEAN:20~240mmHg
Pediatric: SYS:40~200mmHg
DIA: 10~150mmHg
MEAN:20~165mmHg
Neonatal:SYS:40~135mmHg
DIA:10~100mmHg
MEAN:20~110mmHg
Resolution:1mmHg
Measurement Type :SYS,DIA,MEAN
Overpressure protection
Adult: 300mmHg
Pediatric :240mmHg
Infant/Neonate :150mmHg
SpO2
Measurement range:0~100%
Resolution:1%
Accuracy:±2(70~100%)
Pulse rate
Measurment range:20~300bpm
Resolution:1bpm
Accuracy:±3bpm
Respiration
Measurement Range:
Adult: 2~120BrPM
Child/Infant/Neonate:2~150 BrPM
Resolution:1 BrPM
Accuracy:±2 BrPM
Asphyxiation alarm: 10~40 seconds
Resolution:1BrPM
Accuracy:±2%
TEMP
Channel Number: 2
Measurement Range: 0~50°C
Resolution : 0.1°C
Accuracy:±0.1°C
Response time: ≤ 3min
Power requirement
Voltage:90~245V AC 50/60Hz
Power Consumption:15W
Battery:14.8V 2200mAH Li- Battery
Battery life: 5 hours
DC: 12~20V/2A
Working Environment
Operating Temperature:0 ~ 40 (°C)
Transport and Storage Temperature:-20~60 (°C)
Working Humidity ≤ 85 %
Transport and Storage Humidity: ≤ 93 %
OEM/ODM ARE AVAILABLE!
