3.0V 0410 DC electric 4mm diameter coreless micro mini strong vibration motor with bracket
- Category: Vibration Motor >>>
- Supplier: Shenzhen Ineed Youngsun Technology Co. Ltd.
Share on (60779720412):
Product Overview
Description
Product Description
3.0V 0410 DC electric 4mm diameter coreless micro vibration motor with bracket for mobile phone
1) Electrical performance
Model | motor size (mm) | Rated Vol. | Rated RPM. | Rated Current | Starting Current | Starting Voltage | Operating Voltage | |
Diameter | Overlength | RPM | mA | mA | V DC | V DC | ||
IND-YZ0410J-001 | 4.0 | 14.8 | 3.0 | 9,500±2,000
| 75.0 Max | 90.0 Max | 1.7 Max | 2.2-3.6 |

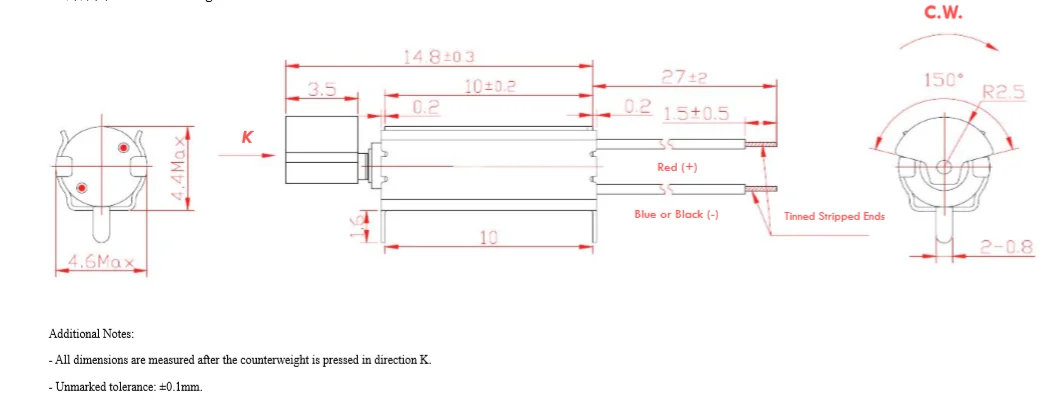

2) Product Drawing

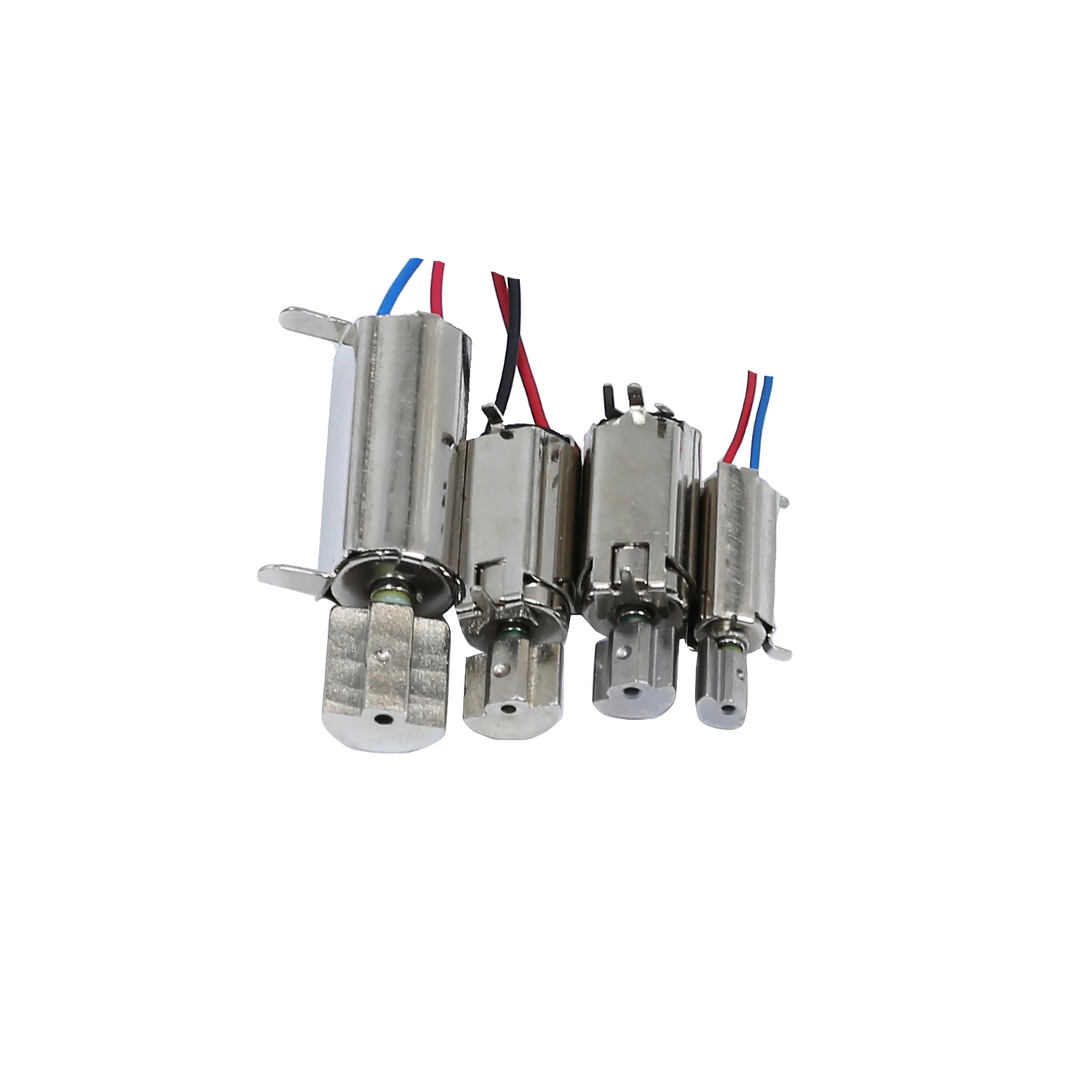

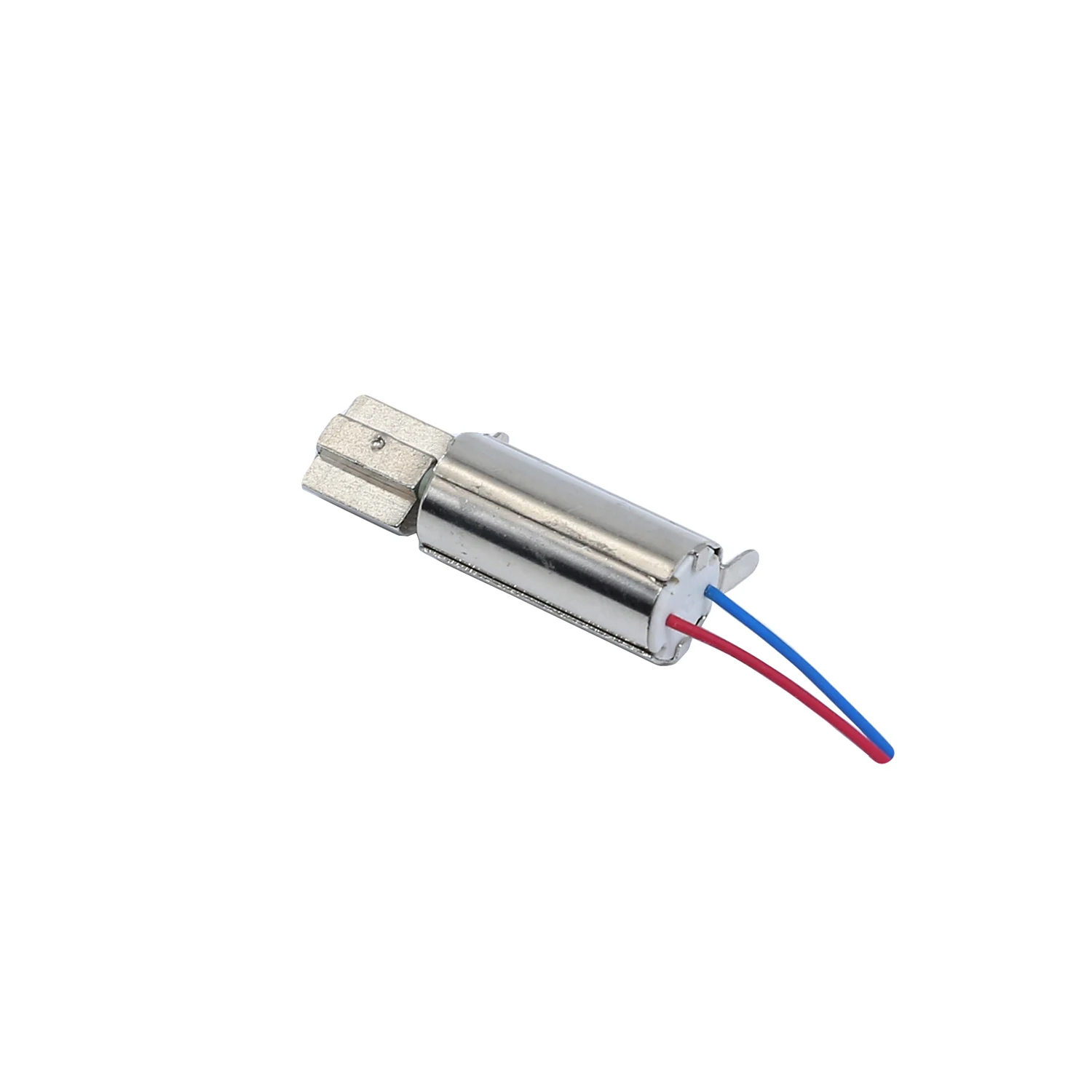

3) Product Details Show
You also could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors.
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, the total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.
4) Main Application
This product is widely used in:
Medical equipment: smart medicine box, blood pressure monitor, blood glucose meter
Cosmetic & beauty industry product: electric cosmetic pen, facial cleansing brush, facial massager, eye care massager
Electric toy: aeromodelling, mini drone, quadcopter, aircraft
Vibrator: contact lens cleaner, electronic devices, sex product, mobile phone
Servo, precise instruments, robot.
Company Information
Manufacturing all kinds of micro motor for over ten years. These motors are widely used in telecommunication devices and health-care products, medical devices and robotic products. Monthly capacity over 15 million motors.We have been making the best efforts to become one of the leading micro motor manufacturers in this industry. By investing ten percent of our annual revenue into R&D as well as advanced facilities, we continue to grow stably.Our mission is to produce cost effective products with good quality to satisfy our customers worldwide. This is the target we aim at now and forever.
1) Competitive Advantages
- Experienced Staff: average 7-year experience in R&D
- International Approvals: ROHS/ISO9001:2015, ISO14001:2015, OHSAS18001:2011
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Small Orders Accepted
- Short Lead Time 2-3 Weeks
2) Production&Equipment
3) Packing Details
4) Contact Information
SHENZHEN INEED YOUNGSUN TECHNOLOGY CO.,LTD.
TEL:+86-0769-2289 1073 FAX:+86-0769-228 1069
CHINA OFFICE:
Room 4-1904, Yuan Meng Ya Ju, Zongbu 3rd Road, Songshanhu North Hi-Tech Park, Dongguan, Guangdong 523808 ,China.
//www.ineedmotors.com
FAQ
1. Can you make the gearbox with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you.
3.What is your MOQ?
Our MOQ is 1000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
6.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
7. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
8. How do contact us ?
Please send an inquiry .
