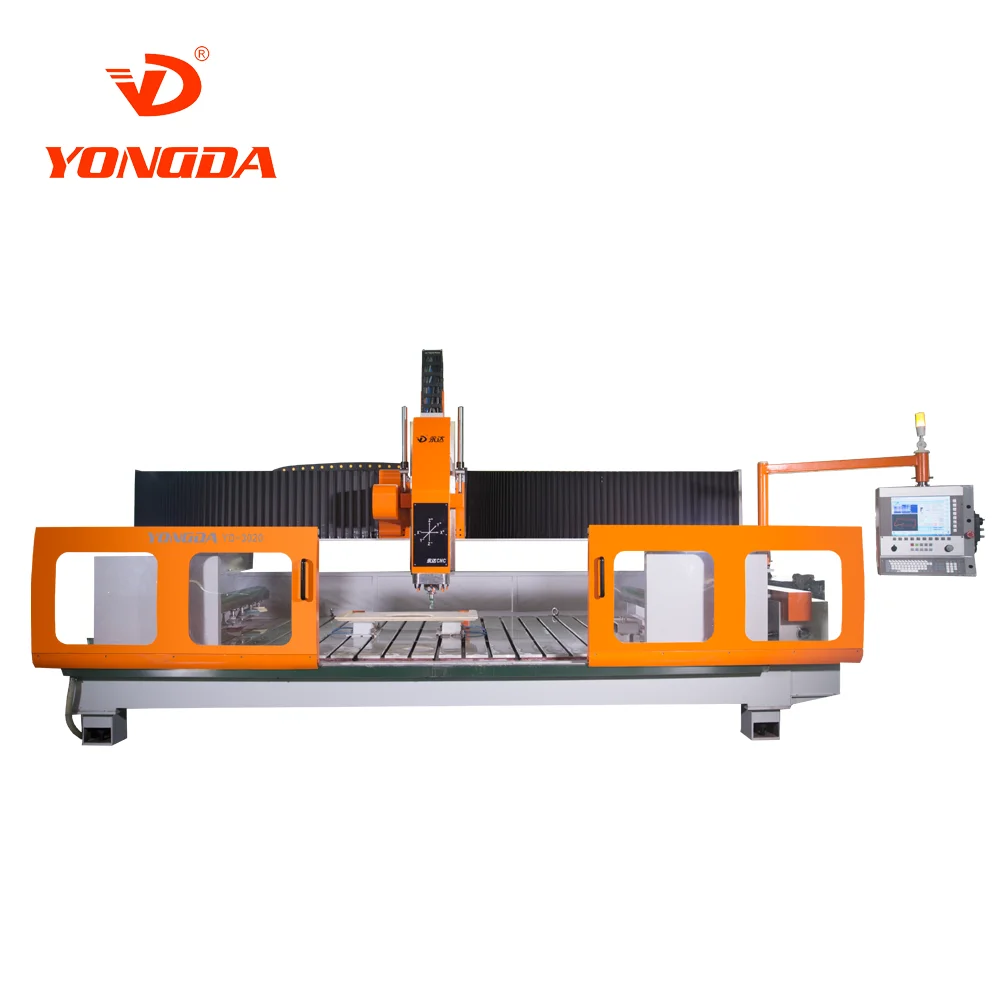

YD 3020 5 AXIS CNC center

Product Overview

Description

PRODUCT RECOMMENDED

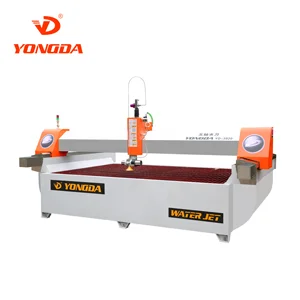

	YONGDA YD4020 AB 5 Axis water jet 3D granite/marble/ceramic/metal/glass cutting machine top water jet stone cutting machine

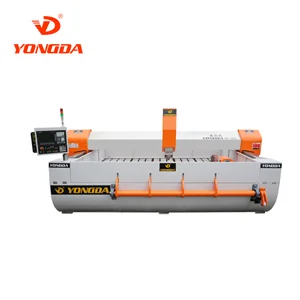

	Yongda YD-3020A 5 Axis Bridge Cutting Machine Bridge Saw machine for cutting granite/stone/marble/quartz stone
	YONGDA YD-2515 3D engraving machine The CNC multifunctional engraving machine carving stone ceramic metal and glass

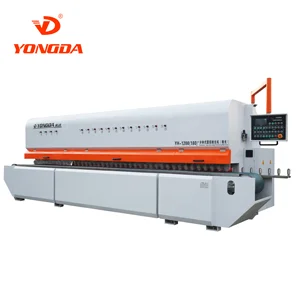

	YONGDA YH-1200 1/2 180 degree Stone Arc-edge Grinding and Polishing Machine automatic chamfering machine bevel (separated type)



PRODUCT SPECIFICATIONS



YD-CNC center We have absolute price advantage in North American market.Under the competitive situation,in order to adapt the fierce competition,pursuing high accuracy,high speed,high efficiency modernized processing method,our company has successfully developed and produced CNC processing centre series relying on advanced technical,superior production condition and abundant experience in manufacutering and developing stone processing machinery for many years,Advanced,multi-functional entire computer numerical control processing center,not only can process various materials,such as marble,granite,ceramic,glass,even micro spar and steel,but also can produce various exquisite curve and luxurious model basin board and kitchenware board;As well as various complex bas-relief,2D and 3D artistic letters--"YONGDA"series CNC processing centre,which provides excellent processing method for classical and modern decoration art.



Items	Unit	High allocation type	Public type
X axis stroke	mm	3000
Y axis stroke	mm	1400
Z axis stroke	mm	350
Max processing thickness of machinable piece	mm	300
CNC system		Italy operating system	Taiwan SYNTEC operating system
Electronic handwheel		EHDW-BA6S-IM
Z axis counterweight device		High quality nitrogen balance system
Wheel-holder spindle motor power	kw	Italy spindle	Chinese spindle (option)
Automatic tool-change		ISO40	BT40
Max diameter of profile polishing wheel	mm	200
Rotation speed of the tool-holder spindle	r.p.m	1-12000
Tool-store	nr	5+5
Water consumption	L/min	45
Compressed air compressure	Mpa	0.8
Spindle cooling method		Chinese high quality cooler
Outer dimension	m×m×m	5.7×2.25×2.5
Total weight	kg	4200
Inverter		Italy	Taiwan Delta
Lubricating system	X,Y axis guide rod apply oil immersed lubrication, Z axis electronic pump automatic lubrication
Digital color photography system	First, the board placed randomly on the workbench is photographed to the working interface, and then the processedgraphics are drawn from the system. The coincidence degree between the processing pattern and the board ismanually adjusted on the system, and the system automatically generates the processing code after the completion.It can be processed without moving the plate and positioning. (for high fit)



PRODUCT MATERIAL

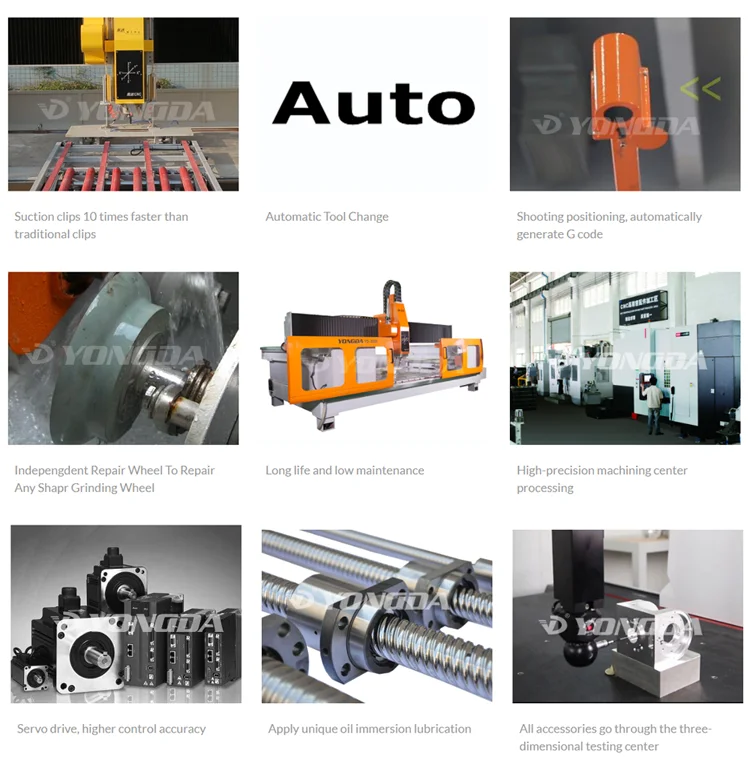

PRODUCT ADVANTAGES

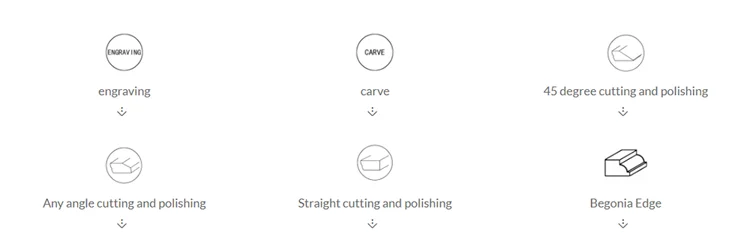

CNC CENTER FUNCTION
