Product Overview

Description


Product Description

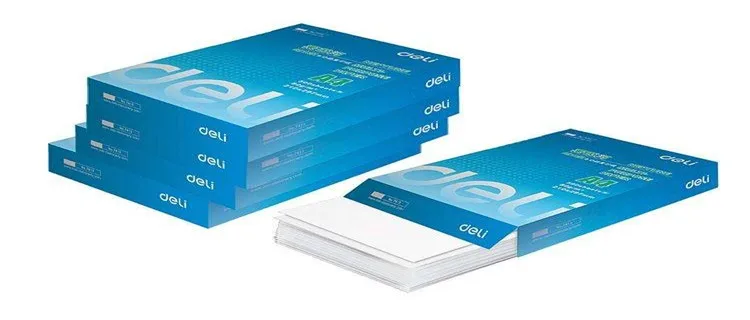

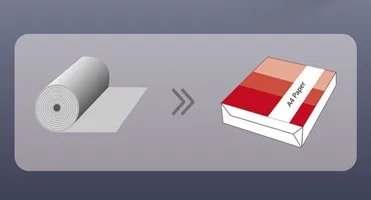

Product Application

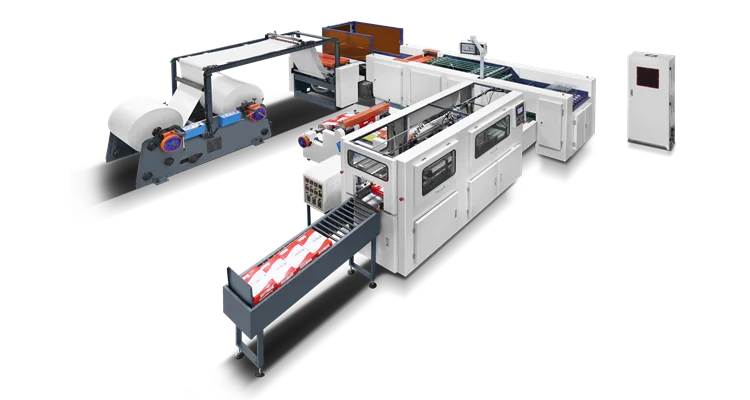

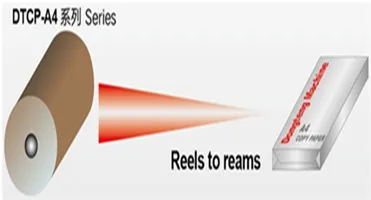

Photocopy Paper Cutting and Packaging Machine (DTCP--A4) is our fully new creation. Advance technology is adopted, enhancing production speed greatly. The cutting precision is highly accurate, and achieving international standards of full automatic production, the effect of saving labor and time are realized simultaneously.

\t
DTCP-A4-5 A4/A3 Copy Printing Paper Sheeting & Wrapping Machine
\t
Unwinding paper reels
\t
1
\t
Number of pocket
\t
2
\t
Recommended width of paper roll
\t
845-860mm
\t
Net cutting width
\t
840mm
\t
Diameter of paper roll
\t
400-1200mm
\t
Diameter of core chuck
\t
3”(76.2mm)
\t
Paper GSM
\t
60-100gsm
\t
Length of sheeted paper
\t
297mm
\t
Sheet quantity per ream(pcs/ream)
\t
250-500
\t
Ream height
\t
30-60mm
\t
Max. Design speed
\t
300m/min
\t
Max. Operating speed
\t
250m/min
\t
Max. Working cutting speed
\t
840 cutting/min
\t
Ream discharging speed
\t
5-6 reams/min
\t
Max. Knife loading
\t
400gsm
\t
Wrapping speed
\t
5-6 ream/min
\t
Compressed air
\t
0.6-0.8 Mpa
\t
Compressed air consumption
\t
300 NL/MIN
\t
Over wrapping paper size(L x W)
\t
386x550-560mm
\t

Paper cutting accuracy
\t
Length
\t
±0.2mm
\t
Width
\t
±0.1mm
\t
Squareness
\t
±0.15mm
\t
Requirement for paper reel
\t
1. Stable speed 2. Paper roll without splice 3. Qualified paper
\t
Transmission
\t
AC Frequency conversion, stepless speed regulating
\t
Main power source
\t
380V 50Hz 3phase 4wires
\t
Control voltage
\t
220V AC/22V DC
\t
Total power
\t
22/20kw
\t
Gluing heating power
\t
2.25kw
\t
Overall dimension
\t
6 x 7 x 2.1m
\t
Weight
\t
9 Ton

Main Features

1.High speed: max. 250m/min

2.High production capacity
3.Small apace required: 7m x 8m
4.Easy operation
5.Less labor power: only 3 men required
6.Low cost
Certifications
Detailed Images

Machine Parts

Adopt advanced magnetic powder brake and hydraulic system in China. It ensures the smooth conveying of paper and does not cause wrinkle and paper breaking.

Main Features

The slitting knife adopts the Italy starting cutter, which has the advantages of accurate positioning, convenient adjustment, excellent quality, long service life and less grinding times.

Machine Parts

Cross-cutting part adopts a whirling cutter structure to ensure high-speed cutting, and adopts the world advanced technology, Germany Luo Shengbao carbide knife. It will be 6 times longer than similar knives, reducing the number of blades.

Main Features

The German imported horse belt and the imported Taiwan Weinview touch screen.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
6 x 7 x 2.1m
\t
Weight
\t
9 T
\t

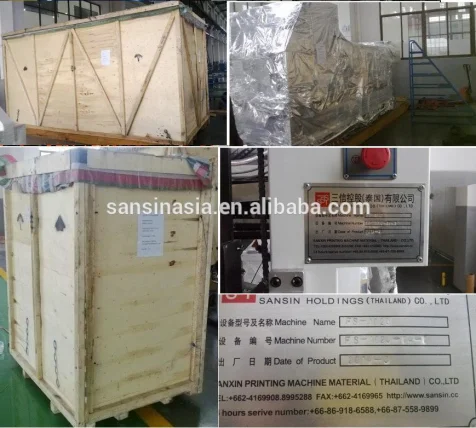

Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
