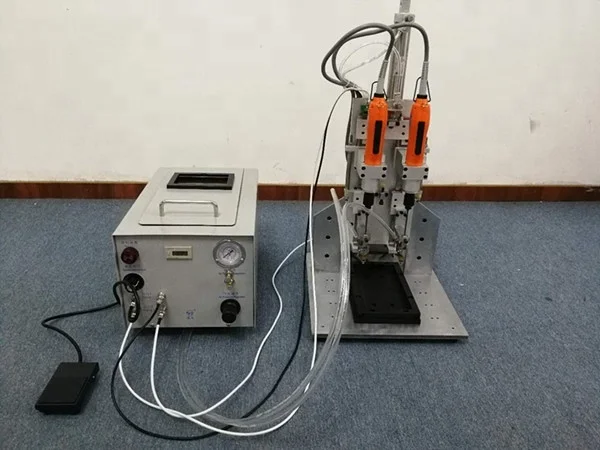

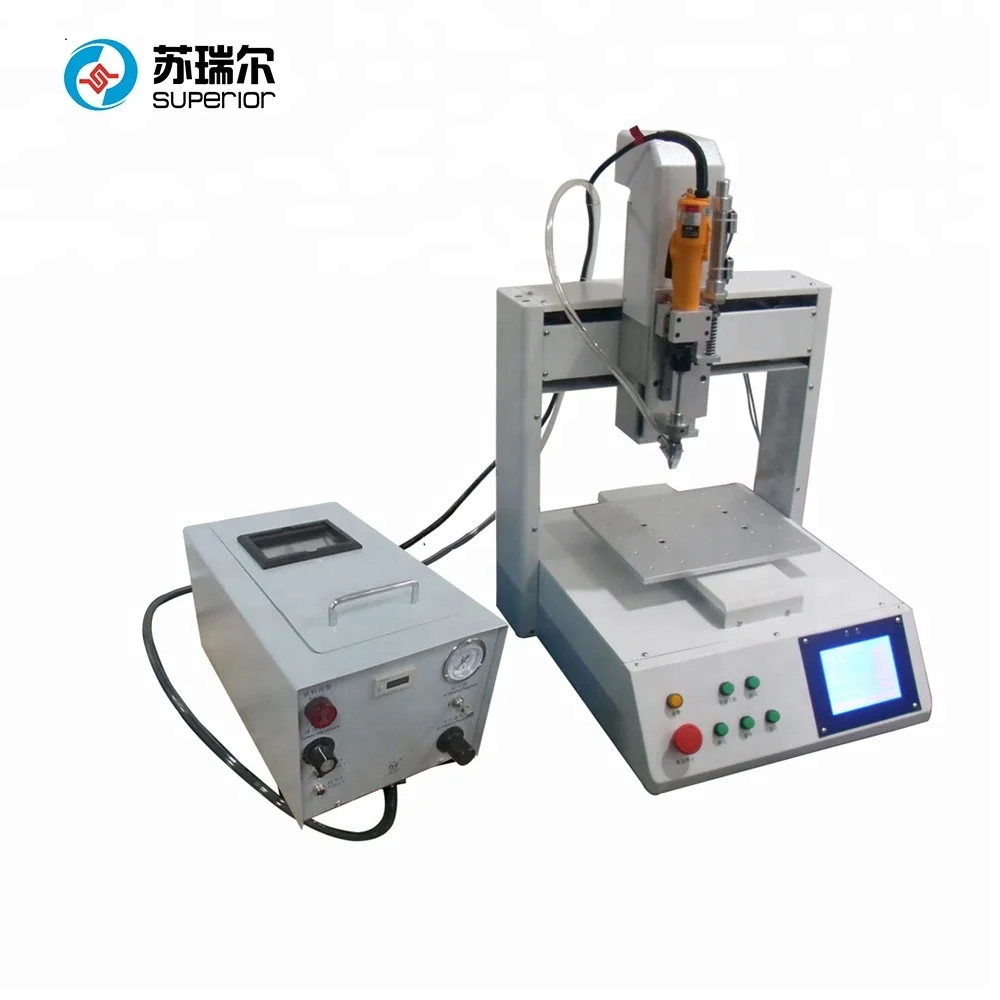

Automatic screw fasten machine for toys assembly

Automatic screw fasten machine for toys assembly, automatic screw locking machine, automatic screwdriver machine.

Machine Parameters :

Voltage : AC220V/50Hz & AC110V/60Hz

Electric Power :30W

Efficiency: 50-70PCS/MIN(Depends on screw length)

Screw capacity of feeding device : M2X6 5000PCS

Screw-feeding Speed : 0.5s/pc

Air pressure: 2-3KGF/CM2

Noise: lower than 65dB

Conveying distance: 1-4Meters

Feeding device Size: 370*250*190MM

Gross Weight: 25KG.

1.Applicable screws: M1-M6.

2.Applicable Screw Head: for any universal type such as straight slot, cross, triangle, groove, torx, hexagonal, H head, etc.

3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.

4. Screw materials: iron, copper, stainless steel, etc.

5. Materials of products to be screwed: plastic, iron, aluminum, etc.

6. Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts and so on.
