Product Overview

Description


Product Description

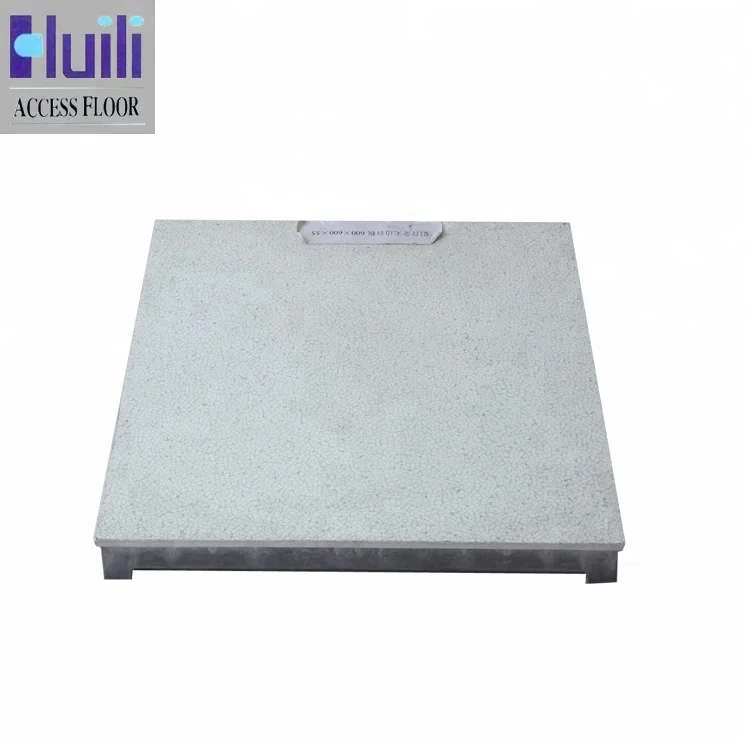

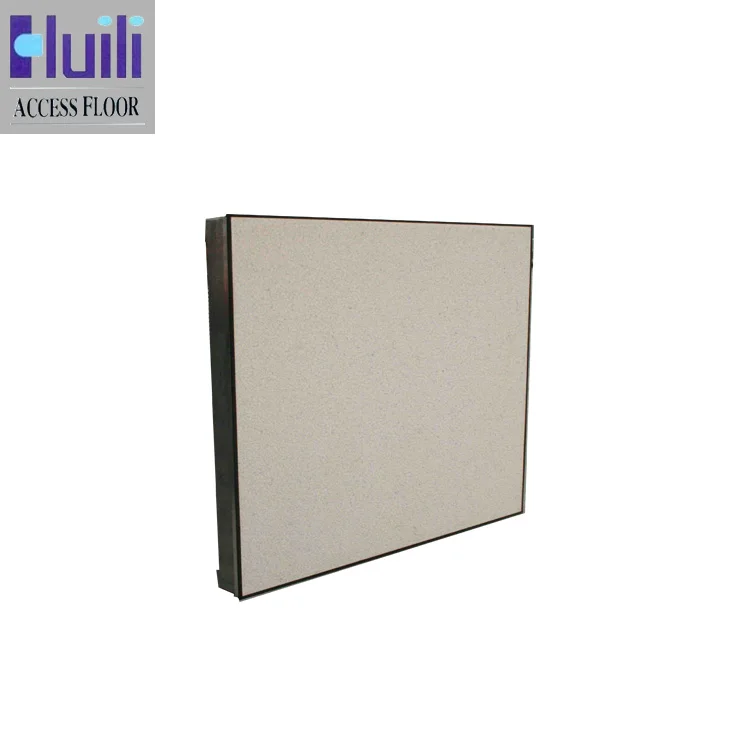

_20180919134456.pngPVC.pngAluminum access floor

Model:             HLS300/500/700/1000/1200/1500

Dimension:    600*600*50mm/55mm

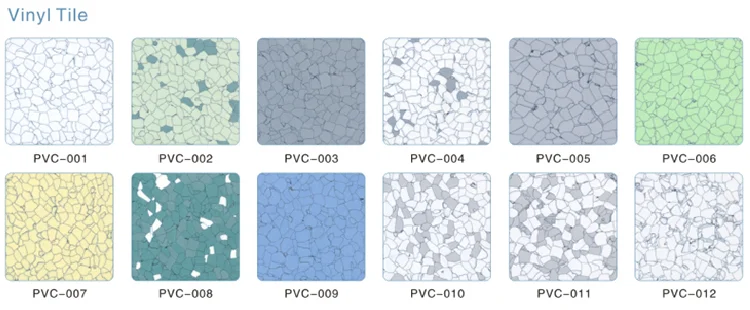

Surface:         HPL or PVC(vinyl tile)

Structure:

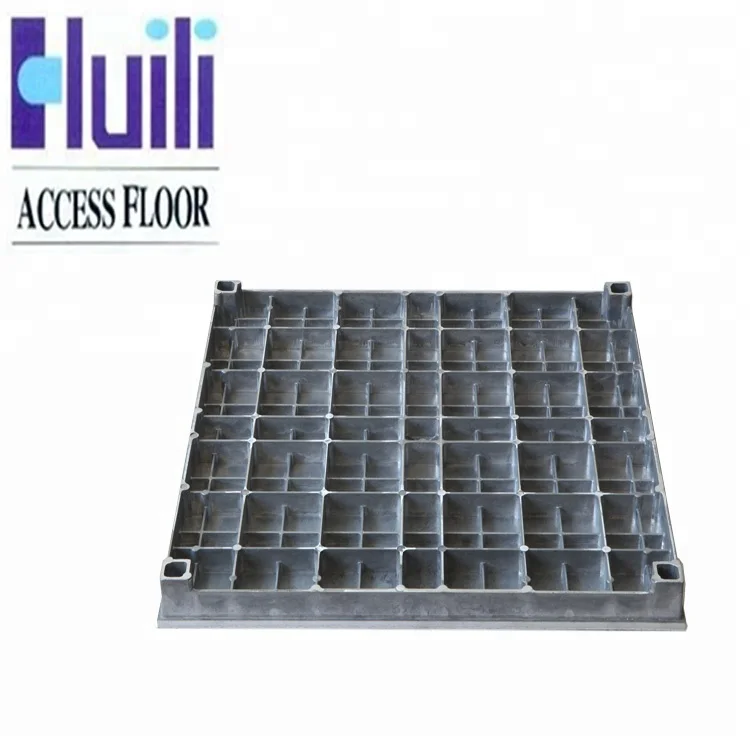

Aluminum shied panel is die-cast by pure aluminum ingot. It is anti-corrosion and high strength. This panel can be epoxy powder coated or nickel chrome plated. Both finish makes the panel gentle glow, anti-corrosion and anti-wear.





Features:

♦Patent design with high dimensional accuracy;

♦Light weight, and very high loading capacity;

♦Good performance of waterproof, excellent fire-proof, contains no ferrous material to disrupt magnetic fields;

♦Conductive gasket ensures continuous and steady conductivity;

♦Recyclable and economical system.





Specifications:

Type Concentrated LoadUltimated LoadUniform LoadSpecial treatmentSystem resistance
HLS300300kgf/6.45cm2  Deflection≤2.0mm600kgf/6.45cm2800kgf/m2  Deflection≤1.0mmEpoxy coating or Ni-Cr plating

Anti-static floor      Conductive 104-106Ω

Static dissipative  106-10Ω

HLS500500kgf/6.45cm2  Deflection≤2.0mm1000kgf/6.45cm21250kgf/m2  Deflection≤1.0mm
HLS700700kgf/6.45cm2  Deflection≤2.0mm1400kgf/6.45cm21700kgf/m2  Deflection≤1.0mm
HLS10001000kgf/6.45cm2  Deflection≤2.0mm2000kgf/6.45cm22000kgf/m2  Deflection≤1.0mm
HLS12001200kgf/6.45cm2  Deflection≤2.0mm2400kgf/6.45cm22200kgf/m2  Deflection≤1.0mm
HLS15001500kgf/6.45cm2  Deflection≤2.0mm3000kgf/6.45cm22500kgf/m2  Deflection≤1.0mm

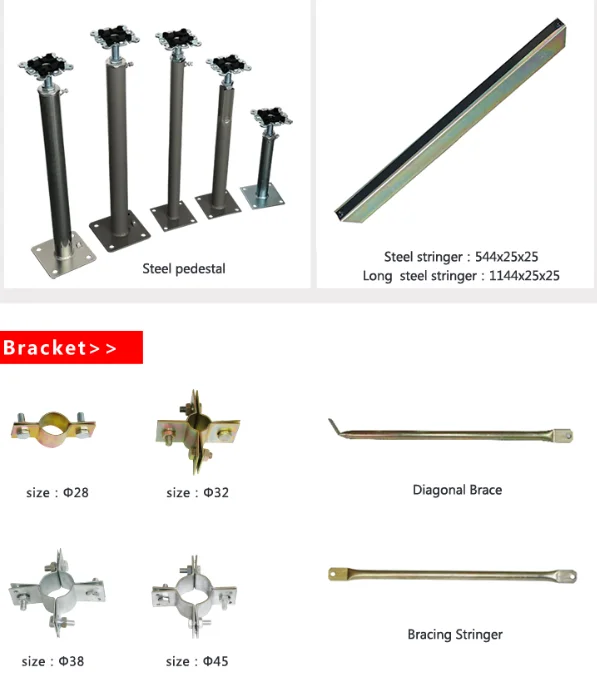

Accessories

 .png






Application

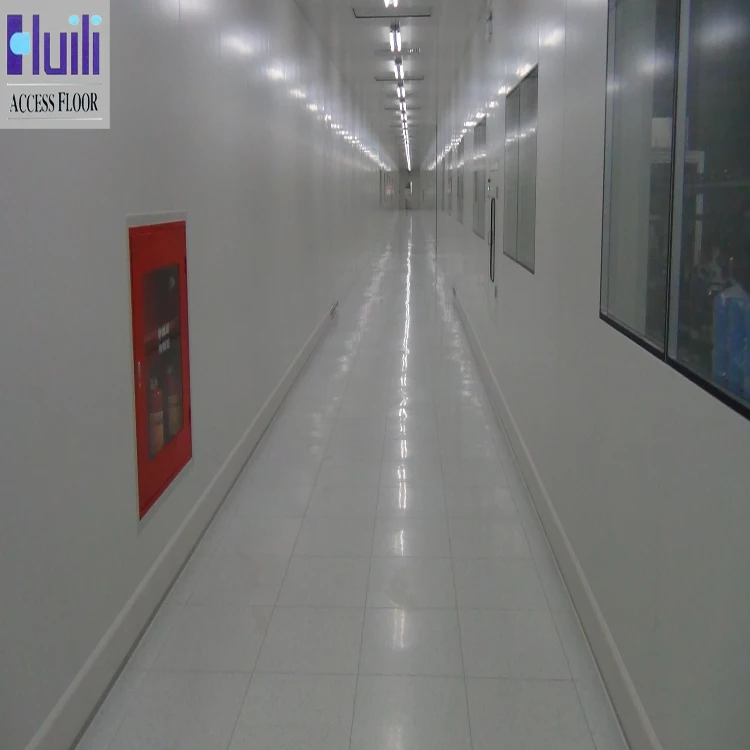

Anti-static die-cast aluminum panel is widely used in military command, space center, data center, ultra clean electronic factories and other high demand place.

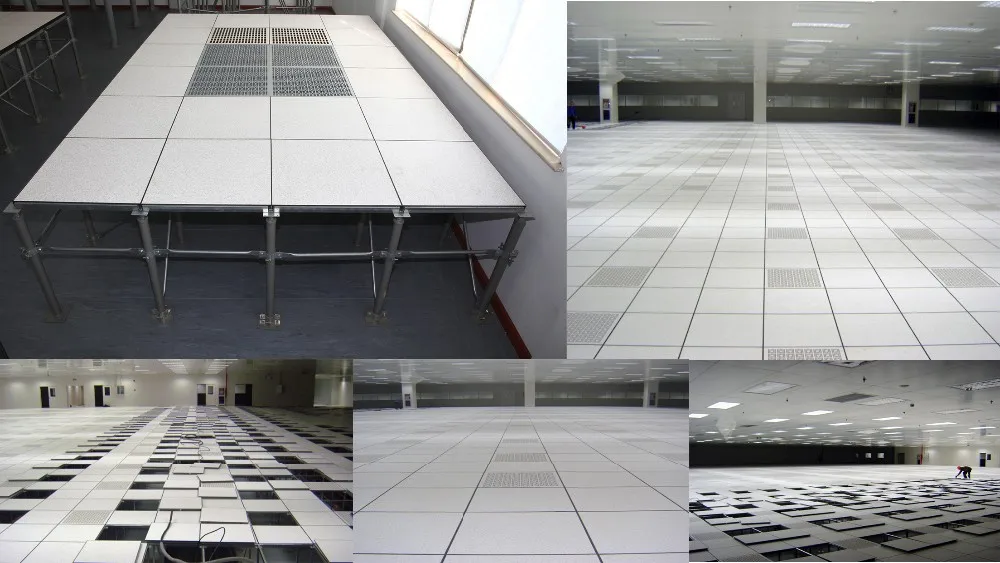

  3  Huili steel panel



  .png







Company Information

Top Strength, High-speed Development

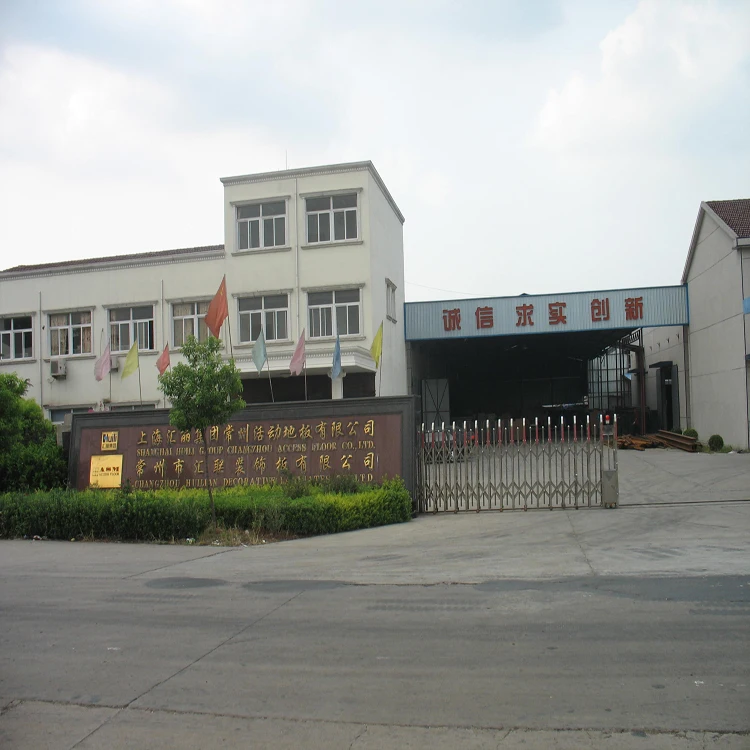

Changzhou Huili Access Floor Co., Ltd., as a high-tech manufacturing company in Jiangsu, is an expert-oriented professional access floor manufacturer, integrating and design, sales and distribution. At present, it has established two large-scale modern manufacturing bases in Changzhou and Shandong. Huili factory covers an areas of 400 acres, of which the workshop area is around 900,000 squaremeters with more than 500 workers. The annual production capacity of various access floors has exceed 4 million square meters.



The Model of High-Quality Access Floor

The company insists on product quality and service over the years in strict accordance with ISO9001:2015 quality management system certification, ISO14001:2015 environment management system certification and OHSAS18001:2007 occupational health&safety management system certification standard. By right of stable and reliable quality and performance, its products have been qualified in tests and certifications at home and abroad.



Scientific and Technological Innovation boosts the take-off of the Company

The company always adheres to technological innovation, managerial scientification and industrial scale-development. developing new ways and pressing ahead with high quality access floor all the time!



Partnership: TATE, ASM, TOPCRETE, UNITILE AND  USG., etc.

For the sake of company IPO progress, under the approval of Jiangsu Administration for Industry and Commerce, "Changzhou Huili Access Floor Co., Ltd" has been officially changed to "Jiangsu Huili Access Floor Co., Ltd" from 04th. Dec, 2017. New title will remain same license level and will not affect any daily operation.











Certifications



_20180419163527     _20180419163522      _20180419163511



Advantages

 6c5c21f0-f0d7-42e2-8b7e-19e664161f46-large      _20180621164022     2



          20 years experience                       24-hour service                         Quality guarantee







FAQ

Q: Are you trading company or manufacturer?

A: We are a leading OEM manufacturer in China or clients abroad about 20 years.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



If you have another questions, pls feel free to contact us as below:
