Cement Silo discharge motorized Flow Control Gate 4 inch gate valve

Product Overview

Description

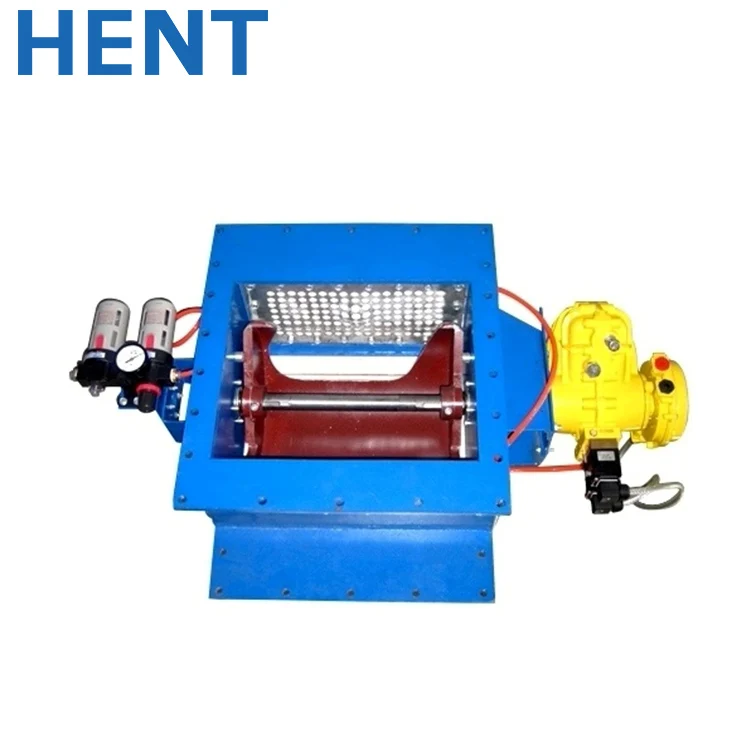

Cement Silo discharge motorized Flow Control Gate 4 inch gate valve

HNET Electric Flow Control Gate



HENT flow control gate is widely used wherever bulk solids have to be discharged from silos and bins, in a metered and controlled manner. Especially in cement and building material industry, HENT flow control gate type electric control valve has been used successfully for many years. This device is also used as dosing and shut-off device for special applications. Ii used the same design and component as per CLAUDIUS PETERS Germany.



HENT electric flow control gate has a share of 80% domestic market and is also well-known worldwide. It is approved and accepted by hundreds of End Users and EPCs in China and abroad, including China Resources Cement Holdings Limited, SINOMA, TCDRI, HCDRI, SUNNSY Group, Lafarge Group, NRCC& SPCC (SA), KCCL & GCL (PK) etc. They are serving in over three hundred cement plants all around the world.



Design Feature



1. Electric actuator: BERNAED-French
2. Accurate loading and metering
3. High sealing, no leakage with stronger, longer lasting blanket seals
4. Welded housing for higher durability and better dependability
5. ZGMn13-2 material for cutout, high hot and wear resistant
6. Electric controller with 4-20mA input signal
7. The compact modular design with exchangeable cassette-type
8. Sealing ensures easy maintenance at low maintenance costs
9. Maximum working temperature: 180°C
10. Low noise & vibration
11. Long service life



SIZE	A	B	C	D	E	F	H
200	435	175	290	507	375	484	257
250	460	200	340		398	520	272
300	485	225	390	509
350	510	250	440
400	535	275	490	500
500	585	325	590	655
630	655	390	730	655	575	730	305











Technical Parameters





Spec		Unit	B200	B250	B300	B400	B500	B630
Items
Valve body	Flow scope	m3/h	40-260	60-360	70-480	90-650	110-820	140-1450
	Angle θ	°	71	71	71	71	71	71
	Diameter Width	mm	200	250	300	346	346	346
	Diameter Length	mm	346	346	346	400	500	600
	Circulation Area	m2	0.012	0.014	0.017	0.026	0.032	0.051
Electric actuator	Model BERNAED		ASP	ASP	AS50	AS100	AS100	BS200
	Maximum torque		250	250	500	1000	1000	2000
	Input, output signal mA		420
	Angle θ°		90
	Input power V		380
Flow properties			Percentage
Working temperature			≤120
	Material		PET5-6	PET5-6	PET5-6	PET5-6	PET5-6
Permeable layer	Ventilation Area	m2	0.057	0.064	0.07	0.09	0.09
	Consumption	m3/min	0.5	0.5	0.5	0.5	0.5
