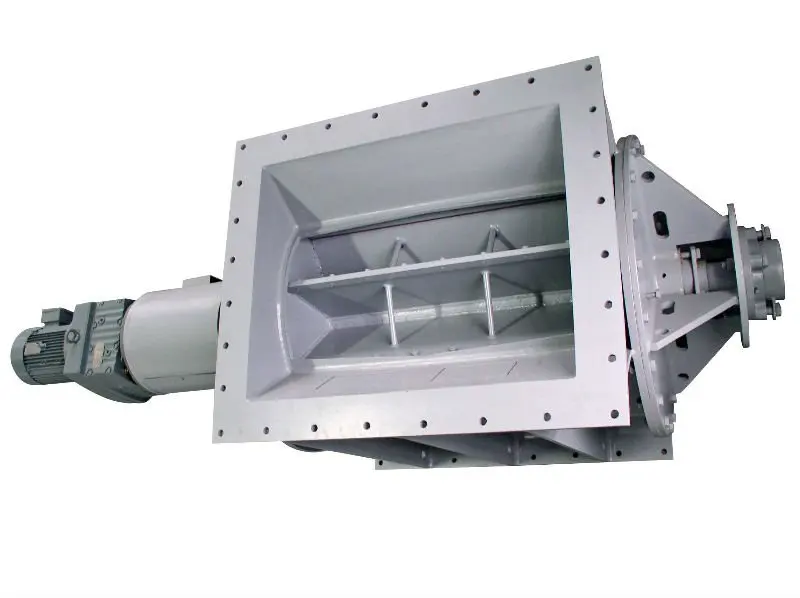

Quality cornet rotary airlock valve with gear and gearbox 4 inch gate valve

Air Locks feed the dry powder or grain material to the accepting instrument effectively under different air pressure .

16MO3 material for the valve body, end cover, dividing wheel,wearrib and inside cover, hot resistance, wear resistant

Axletree and its base shelf :SKF Sweden,high reliability

Electromotor Reducer: SEW German, high stability

Working temperture:≤600°C

Product Description



Model  Spec	Rotor Diameter (mm)	Feed Width (mm)	Max Flow (t/h)	Matching Power (kw)	Length (mm)	Width* Height       (mm)
LV500x700	Φ500	500x700	150	4	2075	620*750
LV630x800	Φ630	630x800	300	5.5	2754	830*900
LV800x1000	Φ800	800x1000	350	7.5	2950	1050*1100
