Automatic Stainless Steel Niehoff Wire Drawing Machines For China
My contact Way
Contactor: Echo Shi
Our Factory
Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995.

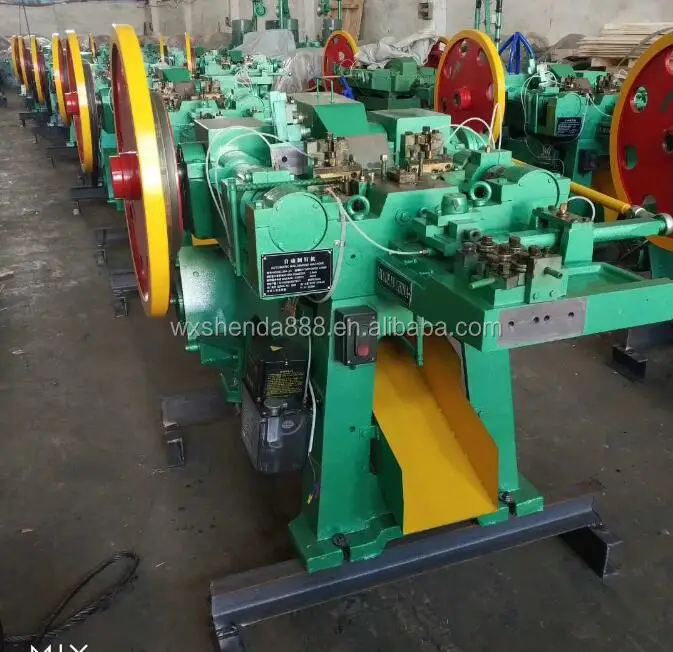

Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.
12-Years Alibaba Golden Supplier
26-Years Manufacturer for nail machines and wire drawing machines
Time proves we are a professional factory with stable quality and competitive price.
We provide one-stop service from design to installation.
How to make nails?

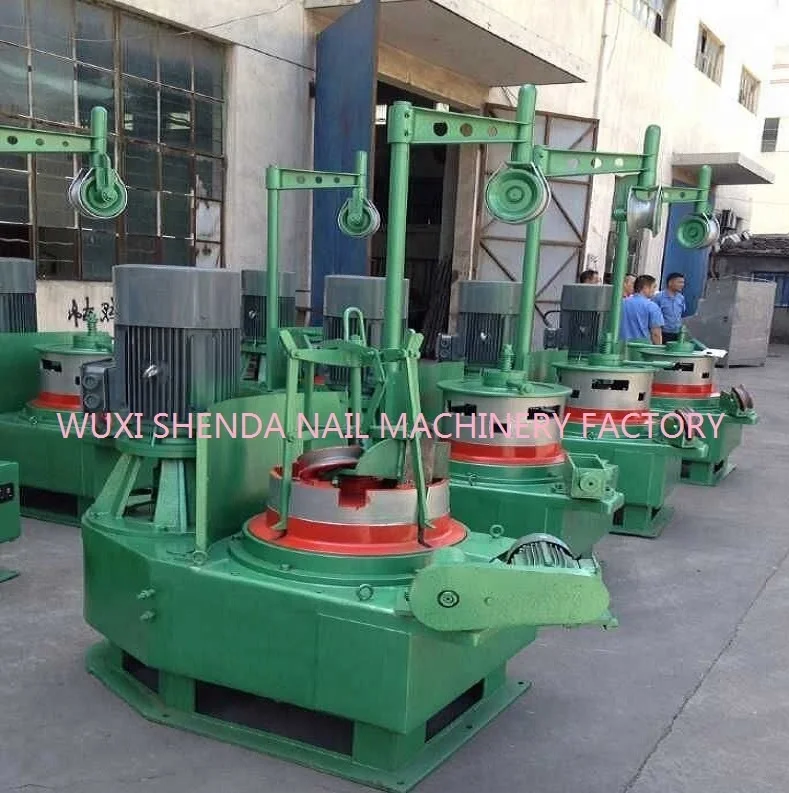

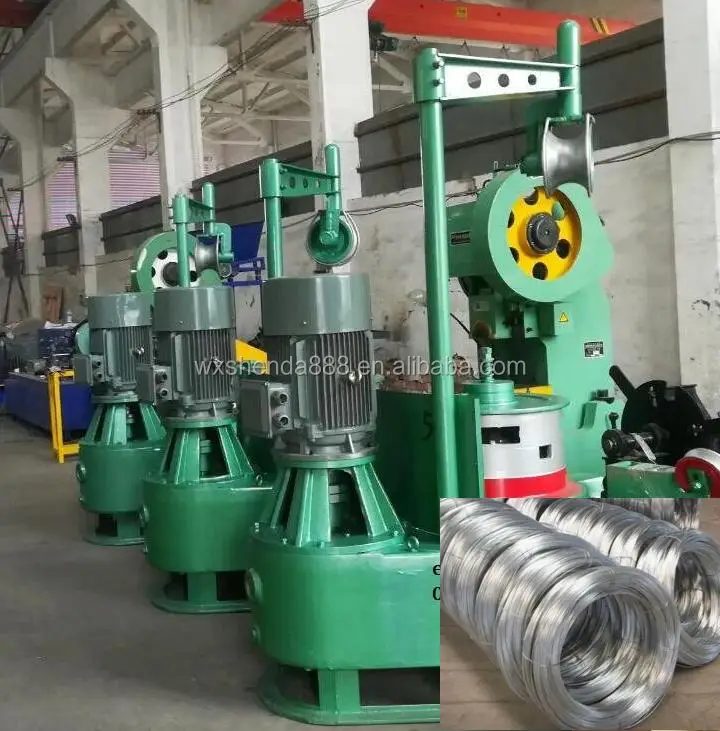

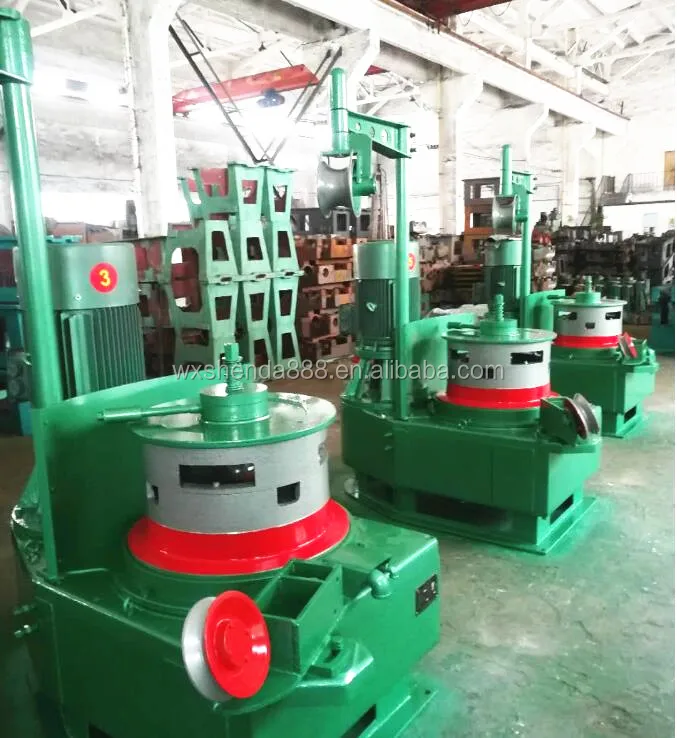

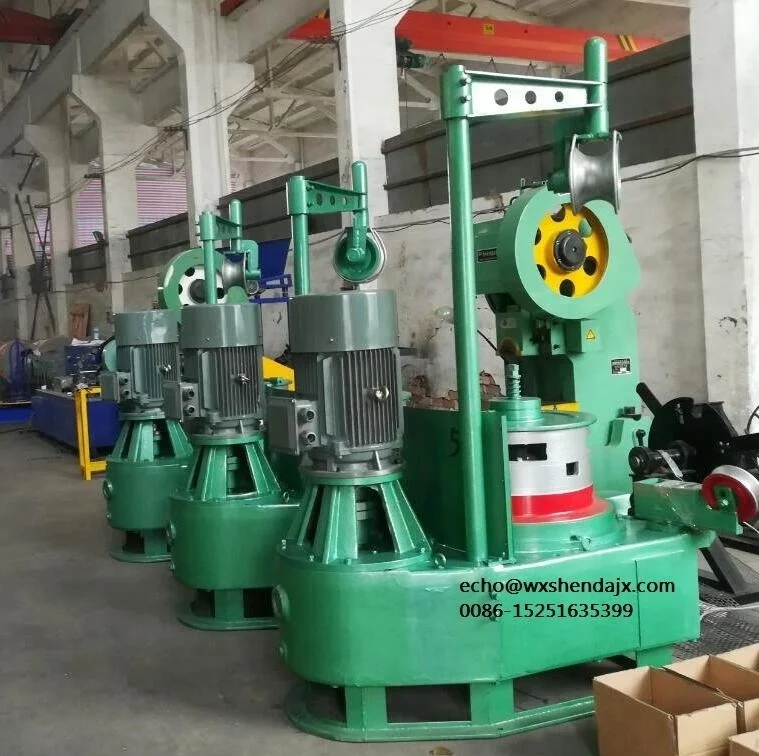

Wire drawing machines
Wire drawing machines, derived by gears, are capable of drawing rod wires of high-medium-,low-carbon steel, copper, aluminum, stainless steel wire act. And applicable to manufacturing industries such as wood screw, nail, conducting wire rope for electrician use, spring etc. With electrical control, this kind of machine is safe in operation, low in noise, and high in efficiency.

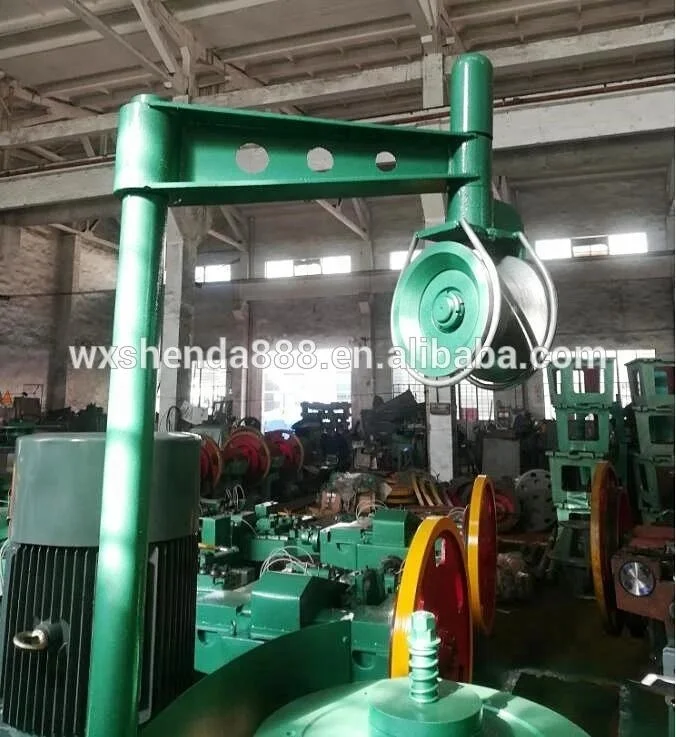

Steel wire in the drawing process, when wrapped in a reel on a certain number of turns, it will go through the tuning roller and into the next drawing die, and through the adjustment of the inverter to achieve the purpose of the front and rear reel speed match. And then through the word wheel take-off machine, making the drawing machine to work properly, and complete the process of drawing.
Specifications of wire drawing machines:
Item
Continuous Multi-block Type
Model
LW- 1-6/ 560
LW-1-7/450
LW-1-6/350
Tensile strength of wire rod
>110kg/mm2
128/mm2
>140/mm2
Max. dia. of wire rod
6.5mm
3.4mm
2.5mm
Min. dia. of wire wire
2.5mm
1mm
0.75mm
Typical configuration
LW1- 6/560
LW1-7/450
LW1-6/350
Max. speed of block
245 m/min
346.9 m/min
200 m/min
Total power
18.5kw
11kw
7.5kw
Weight
2000
1500
1000
Overall dimensions(L*W*H)
170x115x175cm
152x81x170cm
140x80x150cm

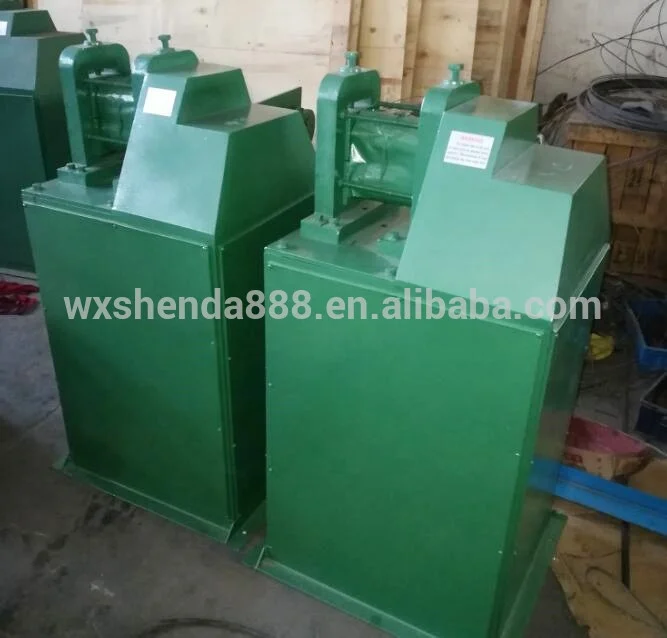

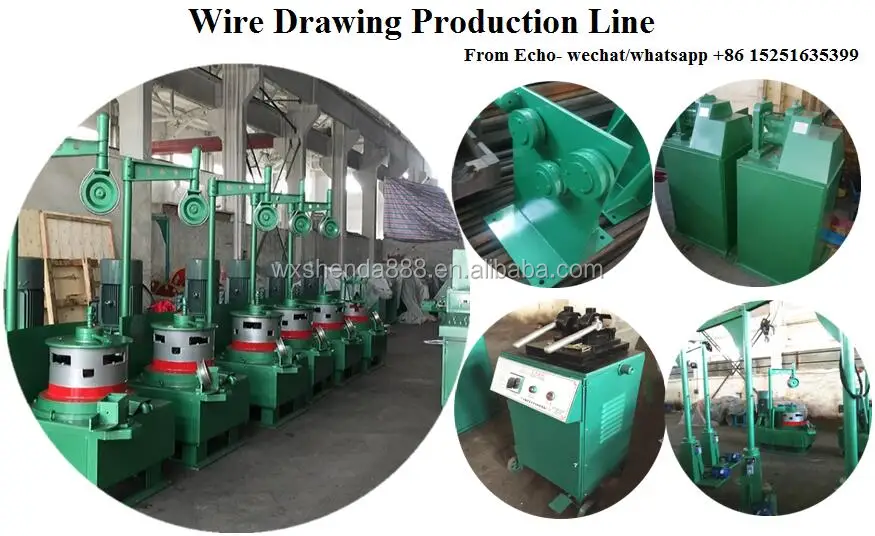

Auxiliary machines for wire drawing production line

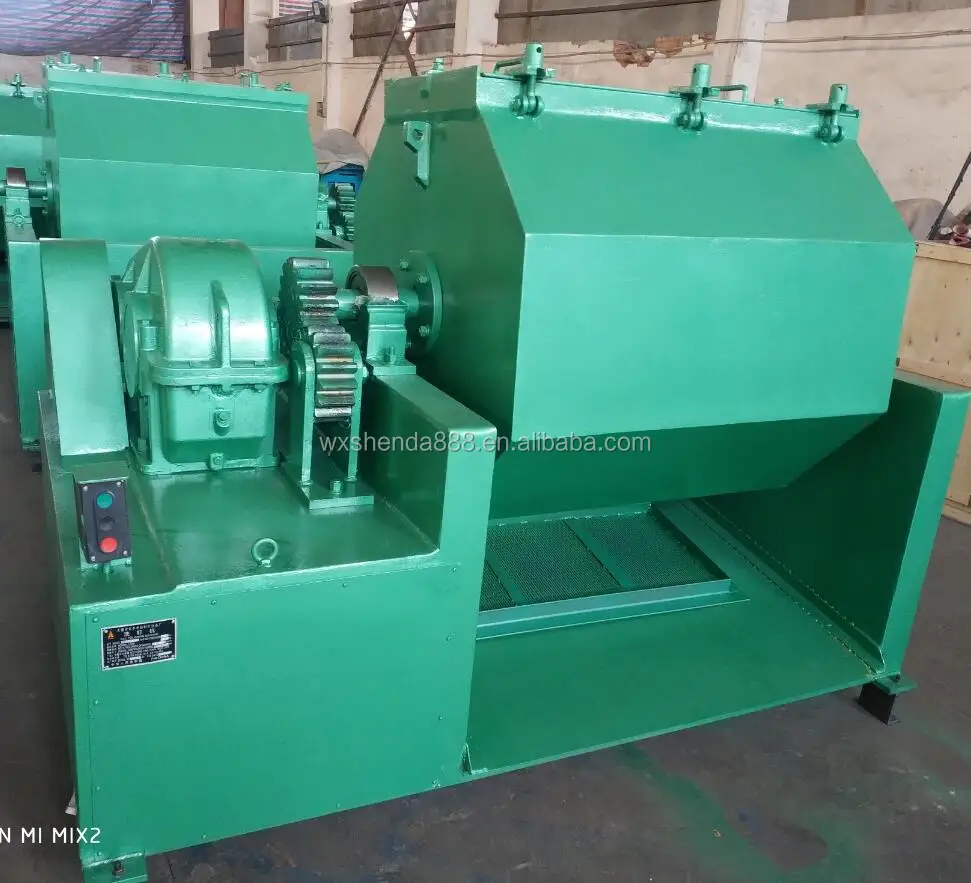

---Descaling machine
---Sharpening machine
---Welding machine
---Discharging
Our Services
1. Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
2. Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
3. After-sales service:
1 years quality guarantee, Life-long Maintenance
FAQ
QUESTION1:Do we need wire drawing machine when nail making?
A1:The raw material with diameter 6.5mm/6.0mm/5.5mm will be drawed to smaller diameter so as to making nail in the nail making machine.
QUESTION2:How many ton does one machine make per day
A2:The output for each model nail machine by pcs/min.So the weight is diffent if diameter and length different.We can calculate if you supply all size
QUESTION3:How can you guarranty the machine quality?
A3:All machine with 12 month guarranty as soon as machine arrive customer.
And our machine is developed products which have planty working in lots of countries.
QUESTION4:How long is the machine delivery time?
A4:Usually there will need 10days for normal machine ,And if the machine order order to make will take a bit long time .Because normal model machine we have stock for sale.
