nut bolt making machine price
- Category: Metal Moulding Machinery >>>
- Supplier: Shijiazhuang Aisen Machinery Co. Ltd.
Share on (60779816015):
Product Overview
Description

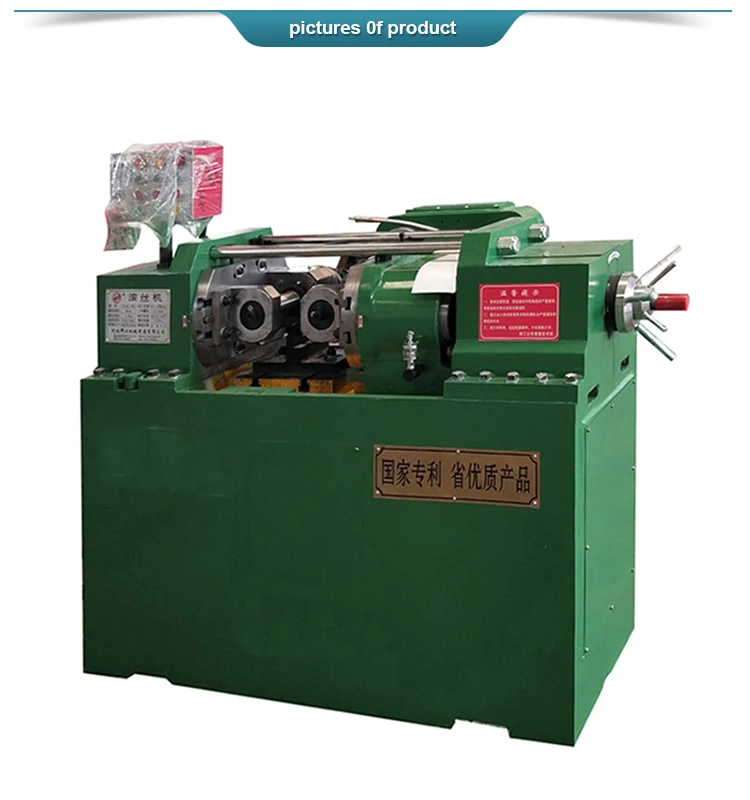

Pictures of product
Product Description

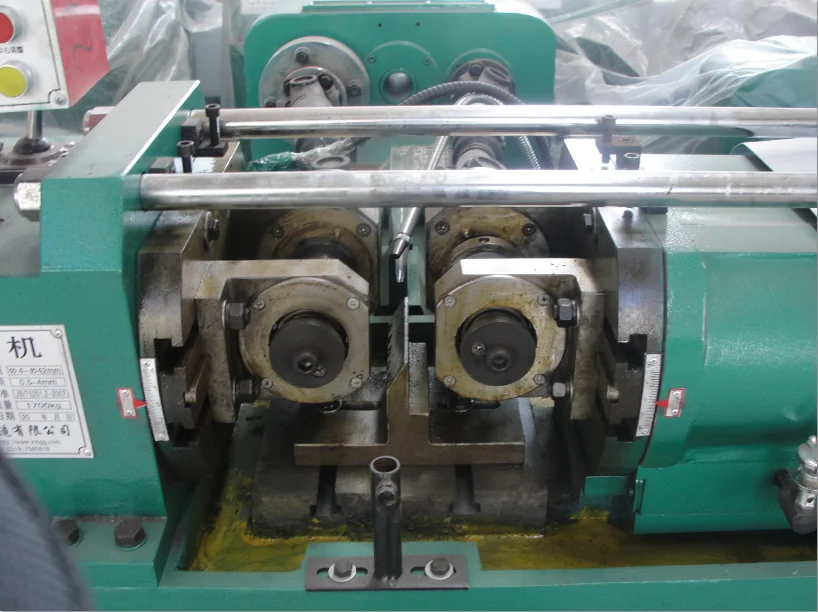

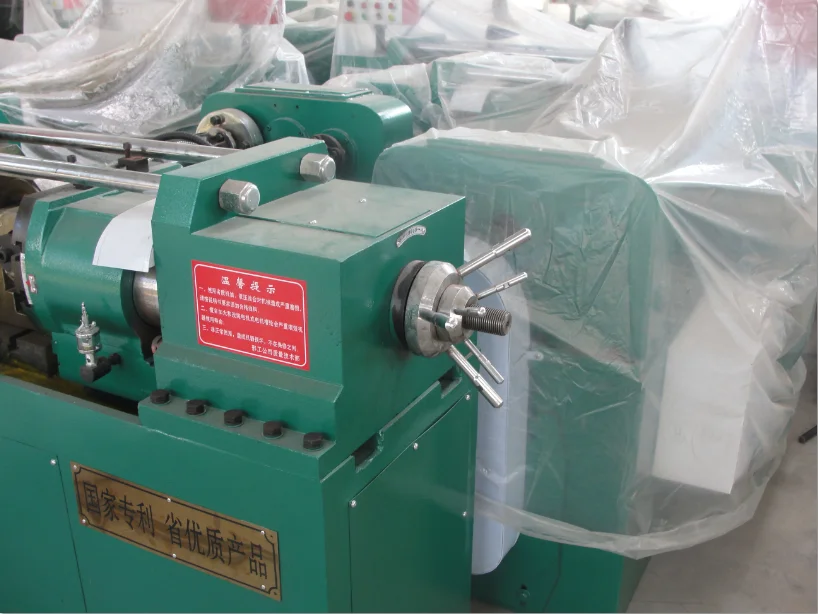

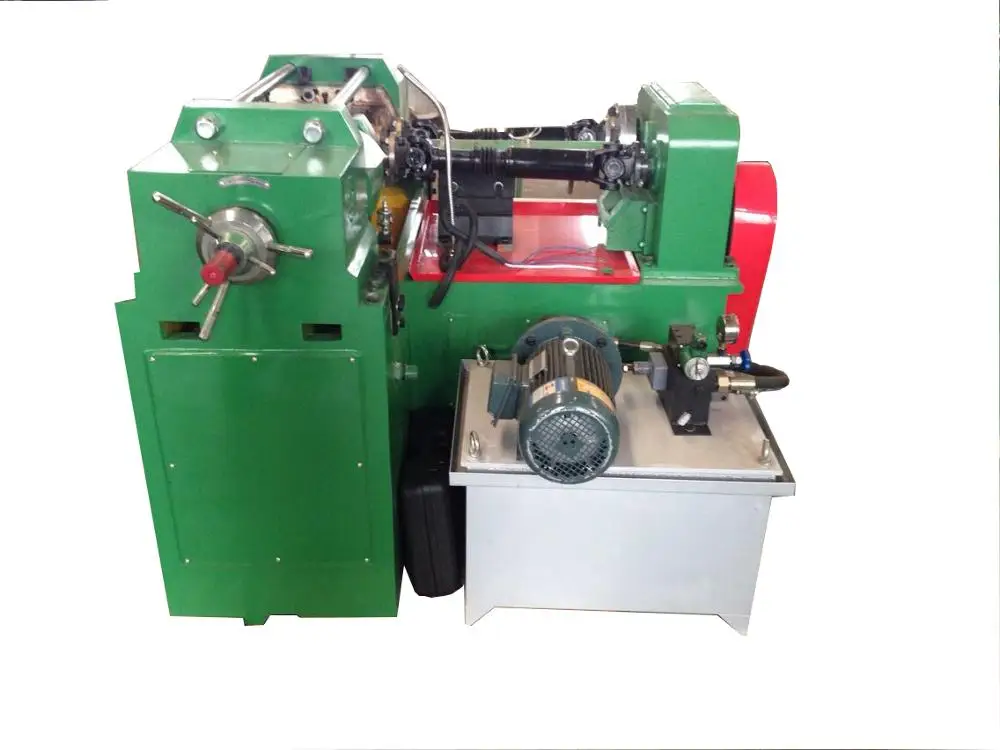

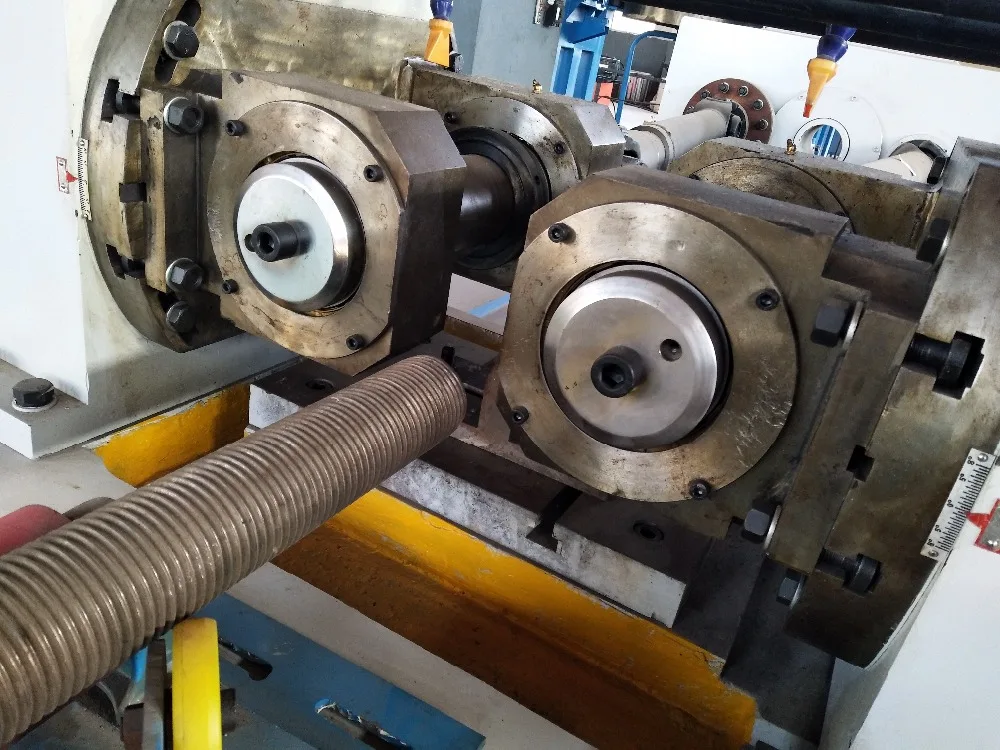

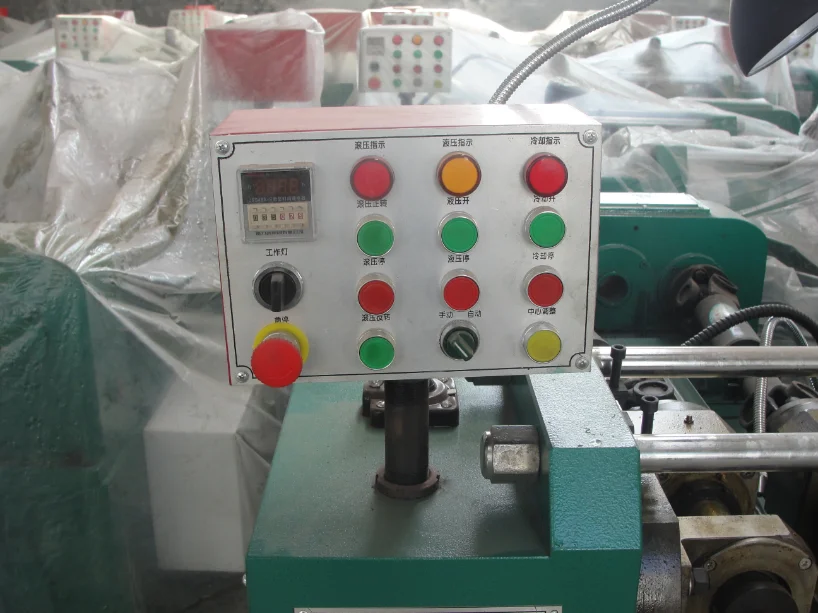

Thread rolling machine

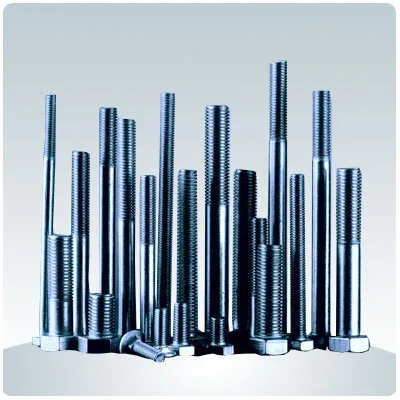

This model is widely praised for its rational price, easy maintenance and high quality. besides axial and radial process, it is used to process regular and irregular bolt, through screw etc. with optional embossing roller embossing roller. the through screw made with this machine in zhejiang standard parts base has been exported to US Canada and Europe.
Specification:
| Pressure of roller max: | 150KN | Rotary speed of main shaft: | 36,47,60,78(r/min) |
| Working dia: | 4-48mm | Feed speed of movable shaft: | 5mm/s |
| OD of roller: | 120-170mm | Thread length: | no limits |
| BD of roller: | 54mm | Main power: | 4kw |
| Roller width max: | 100mm | Hydraulic power: | 2.2kw |
| Dip angle of main shaft: | +-5degree | Weight: | 1700kg |
| Center distance of main shaft( stroke): | 120-240mm | Size: | 1500*1380*1140mm |
Applications
Company Information
Shijiazhuang Aisen Machinery Co., Ltd. Is a professional company for metal processing machinery,
Our main products include various types of roll forming machine, pipe processing machine, wire drawing machine, lathe and other related machines, etc.
Our company regards “reasonable prices, high quality and good after-sales” as our tenet.
Got great feedback and honor from all the clients.
Our products were sold to more than 20 countries already.
We hope to cooperate with more customers for mutual development and benefits. You are welcome to contact us
