Supplier of Pearl 1024p dmx computer light controller with high quality
- Category: >>>
- Supplier: Guangdong Ming Jing Stage Equipment Technology Co. Ltd.
Share on (60779886538):
Product Overview
Description

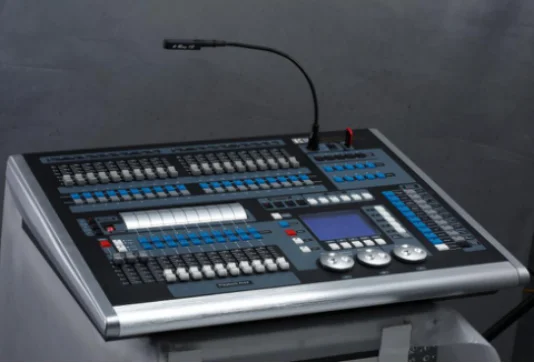

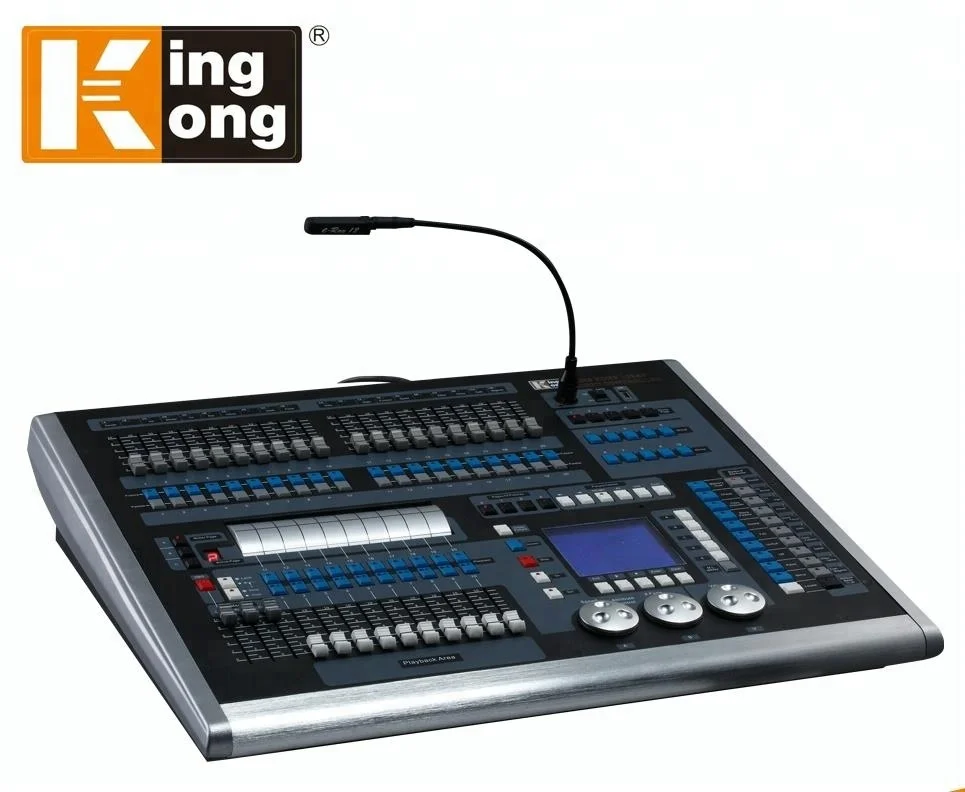

King Kong 1024P DMX Controller
Product Introduction
King Kong 1024P DMX Controller
1. Genuine King Kong Controller Display
2. Chinese and English display can be switched
3. 227 Build-in Shape. Easily create shapes
4. With Roller, easy to turn page
5. Can run 20 playback scenes simultaneous , maximum 600 scenes
6. Adopt imported encoder, accurate to data
7. DMX512 signal output, 3 pin XLR
8. Light library is programmed on the console, its convenient and quick
9. MIDI, Easy to achieve sound and light synchronization
10. Time mode, setting fade in and fade out time independently
11. Data backup, can be easily upgraded remotely
DMX channel | 1024 |
Fixture | 80 |
Re-patched Fixture address | Yes |
Swop Pan/Tilt | Yes |
Reversed channel output | Yes |
Channel slope modification | Yes |
Channels for each fixture | 40 primary + 40 fine tune |
Library | Avolite Pearl R20 library supported |
Scene | 600 |
Scenes to run simultaneously | 20 |
Total Scene steps | 600 |
Time control of Scenes | Fade in/out, LTP slope |
Shapes for each Scene | 5 |
Scene and dimmer by slider | Yes |
Swop Scene | Yes |
Flash Scene | Yes |
Shape generator | Shapes of Dimmer, Pan/Tilt, RGB, CMY, Color, Gobo, Iris and Focus |
Shapes to run simultaneously | 20 |
Master slider | Global, playback, fixture |
Real time blackout | Yes |
Channel value by wheel | Yes |
Channel value by slider | Yes |
Dimmer by slider | Yes |
USB Memory | FAT32 supported |
Difference Between 1024CH Console
| Model | 1024 | 1024S | 1024P | |
Number of Fixtures | 96 | 120 | 80 | |
MIDI | No | Yes | Yes | |
Lighting group | \\ | Support,Can store 20 | Support,Can store 50 | |
Fixture | 96 | 120 | 120 | |
Playback | 60 | 120 | 600 | |
Mode | 1 | 4 | 4 | |
Built in shape | 227 | 227 | 227 | |
Scenes run Simultaneously | 10 | 12 | 20 | |
Turn page by Roller | \\ | \\ | Yes | |
Program to record | \\ | 100 | 100 |

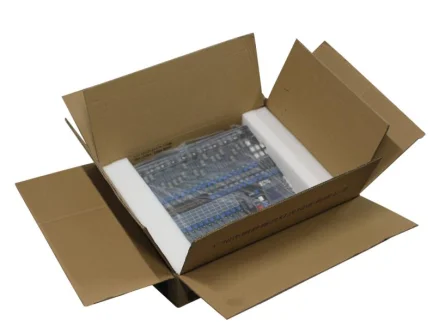

Packaging
In Flight Case: 720X620X295 mm Weight: 30KG
In Carton:: 735X635X305 mm Weight: 15 KG
In Carton: Double protection
Trade Shows
2017 Guangzhou Prolight & Sound
2017 Vietnam PLASE Show
2017 Shanghai
2018 Plase Show Vietnam
Certifications
"King Kong" for DMX controllers and "MJ light" for pro-light equipment.
Safety instructions
l The unit must be well-grounded before using.
l Do not splash any liquid on the unit.
l Do not use or store the unit in a wet or dusty place.
