Полностью автоматическая машина для производства Пластика формования гофрированного листа в блистерной упаковке подкладка поднос плодоовощ упаковывая делая машину

Product Overview

Description



Feature

1. By PLC under automatic mode.
2. The sheet moving by the servo motor: its speed can be adjustable, the torque is large and high precision.
3.It is reliable in thick sheets.
4. With the specially-made alloy track its friction ratio is small and it is stable and quick in drawing sheets.
5. Air channel adopts copper pipe: anti-aging protective, durability.
6.Digital display pressure regulating module control oven temperature: voltage stabilization, temperature stabilization and beautiful and graceful.

7.This machine is made of three parts, the heater part, the forming part and the cutting part.

8.The customer must offer the sample or drawing, then we can design and produce the forming mold and cutting mold.

The machine is no-including the cost of those molds.

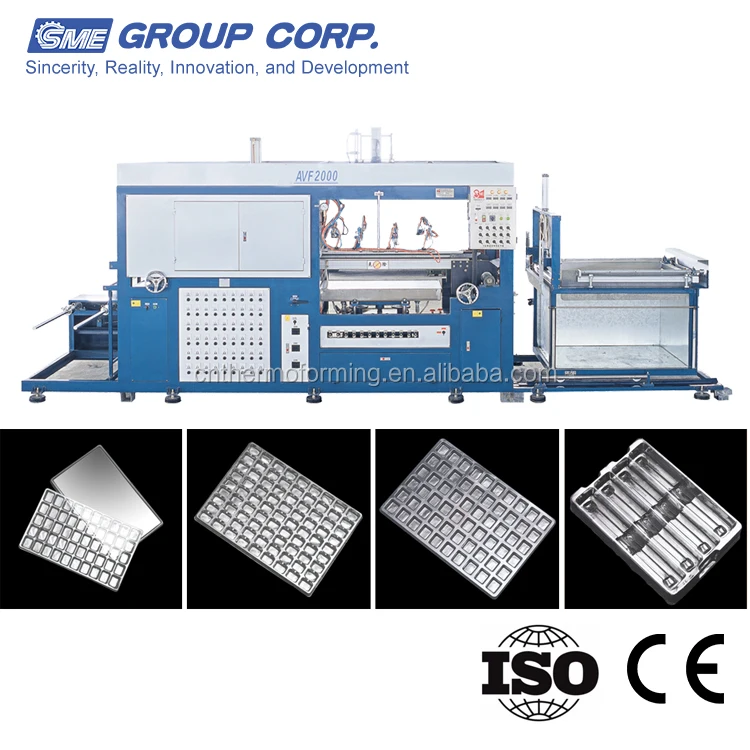

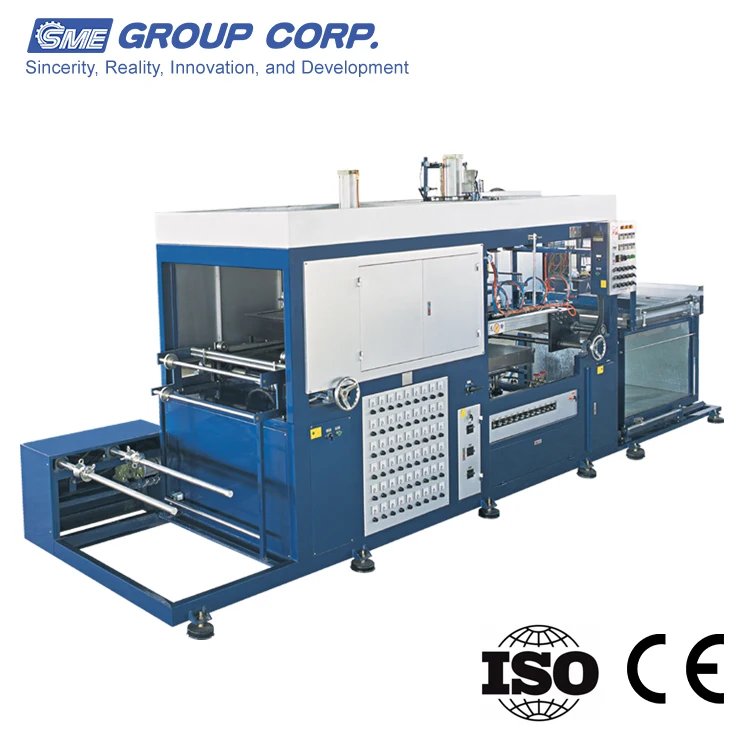

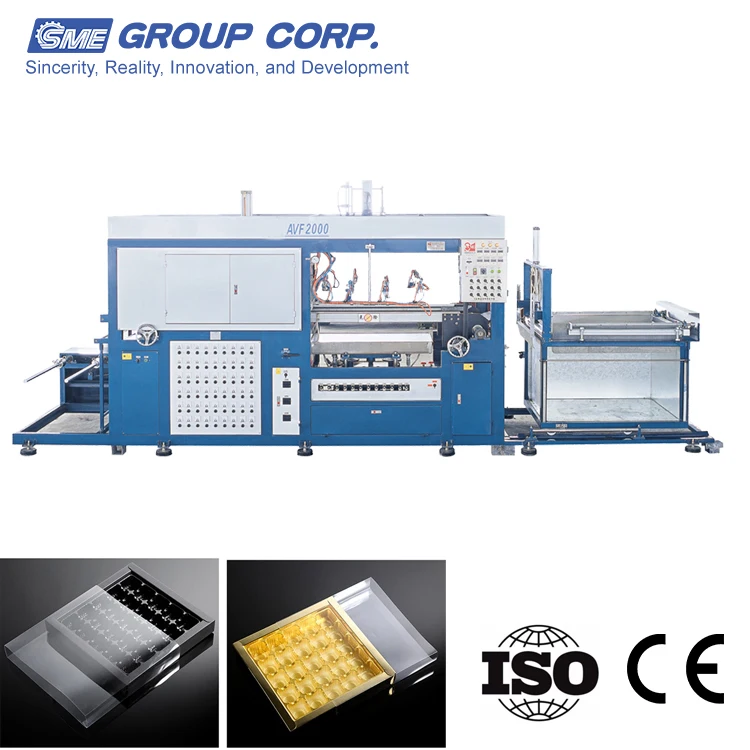

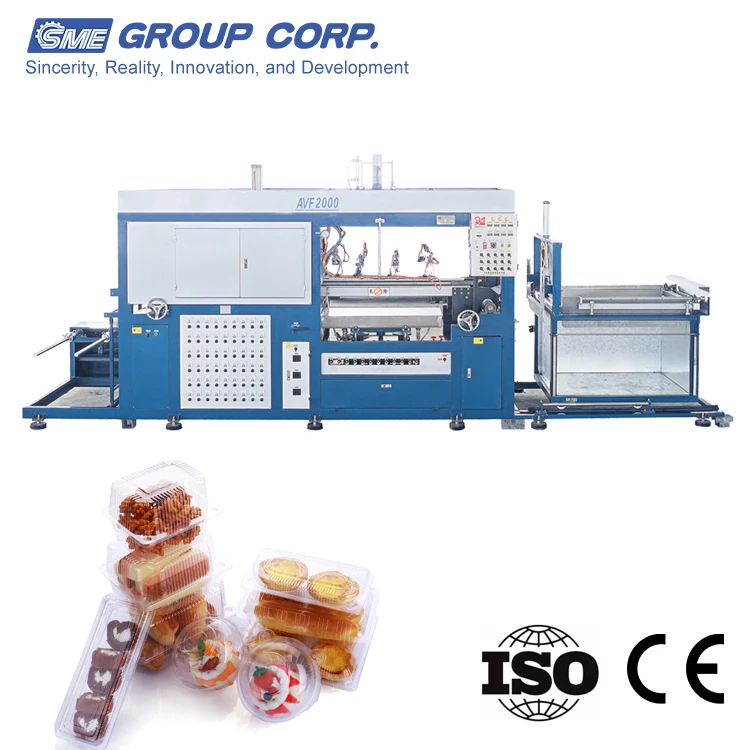

Technical Data AVF2000 series

Model	AVF-2000T	AVF-2000TA	AVF-2000TLA
Suitable material	PVC,HIPS,PS,PP APET,PETG
Forming width	460-710mm
Forming length	760-1220mm		760-1350mm
Forming height	APPOX.200mm
Vacuum pump	2.2KW(4HP)		3KW(5,5HP)
Spray Gun	10units		12units
Chiller System	61000BTU		72000BTU
Temperature control	60untis		66untis
Oven power consumption	24KW		26.4KW
Max. power consumption	26KW		30KW
Power Supply	380VAC/3phase/50Hz;  220VAC/3phase/60Hz;
Machinery size(L*W*H)	6560*1500*2700mm		6920*1500*2700mm
Weight	3150kg	3200kg	3550kg

Those models are suitable for the mass production;

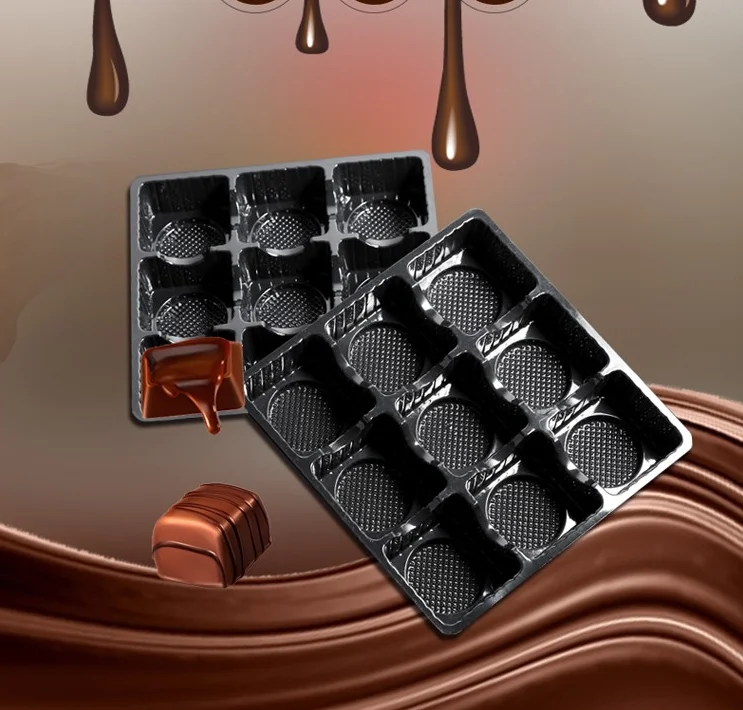

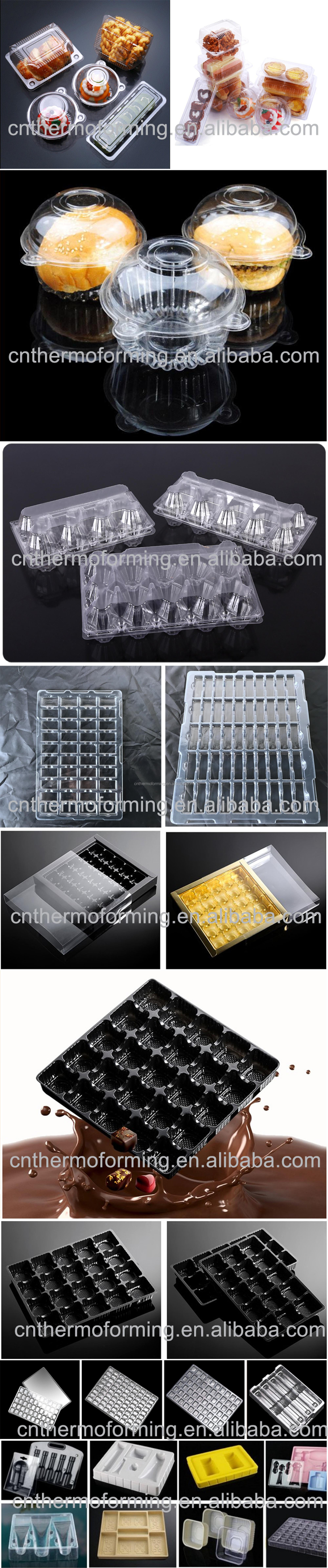

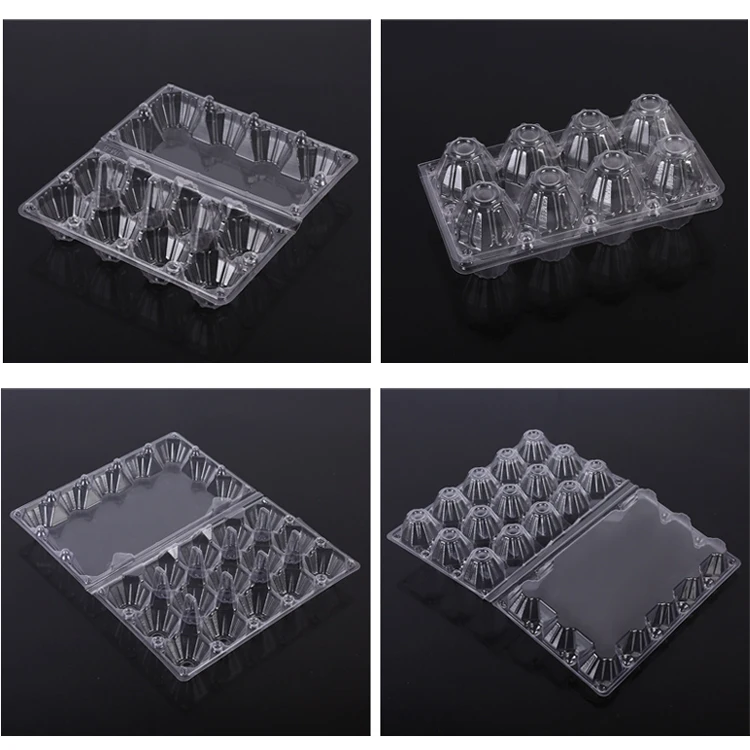

The Product Sample







Product Moulds

Technical process









Warranty: We guarantee these machines for one year. And we supply some spare parts with the machine, operation manual and operation CD, etc.

Service: We will send engineer who install and train in your company for approximately 7 to 10 days, after machine is arrived your place. And the flight tickets, visa and accommodation of engineer will be arranged by buyer, also the buyer need pay 50USD/day for training cost.

Delivery Time: It will take within 25-30 days to ship out customer’s goods after get customer’s advance payment.
