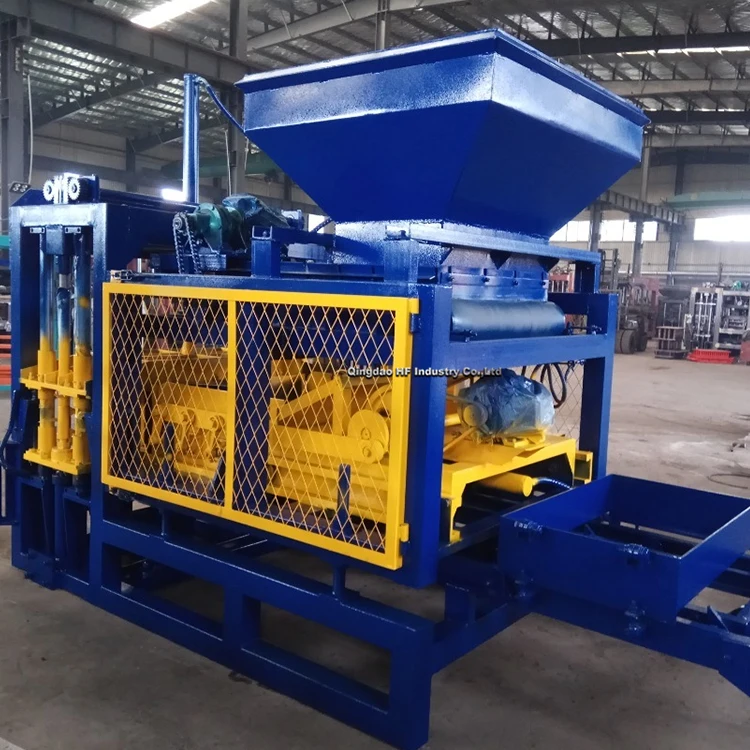

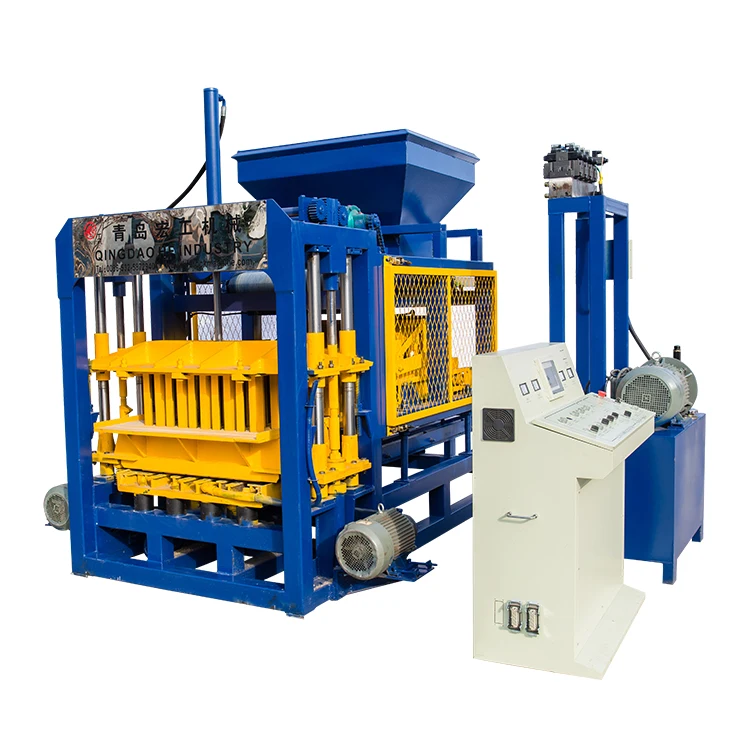

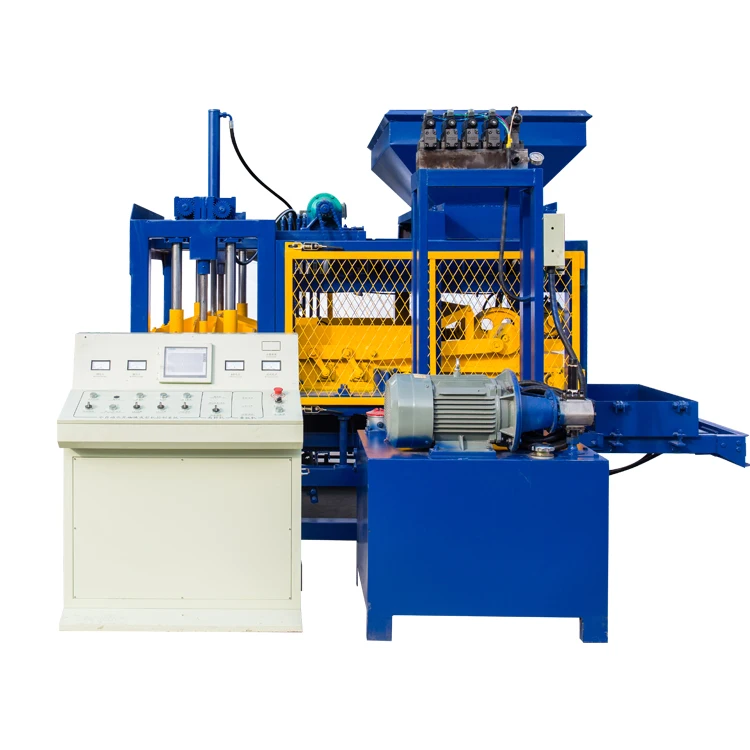

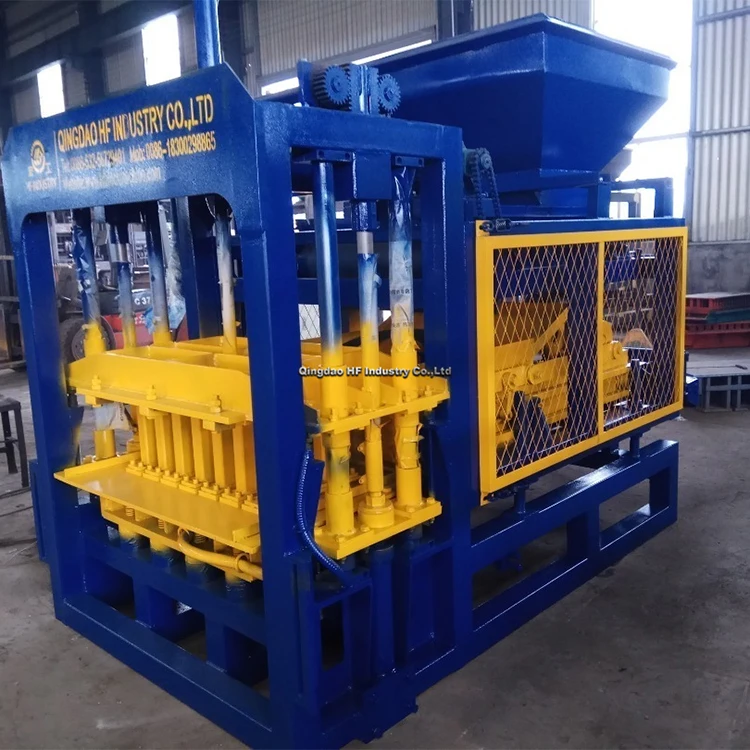

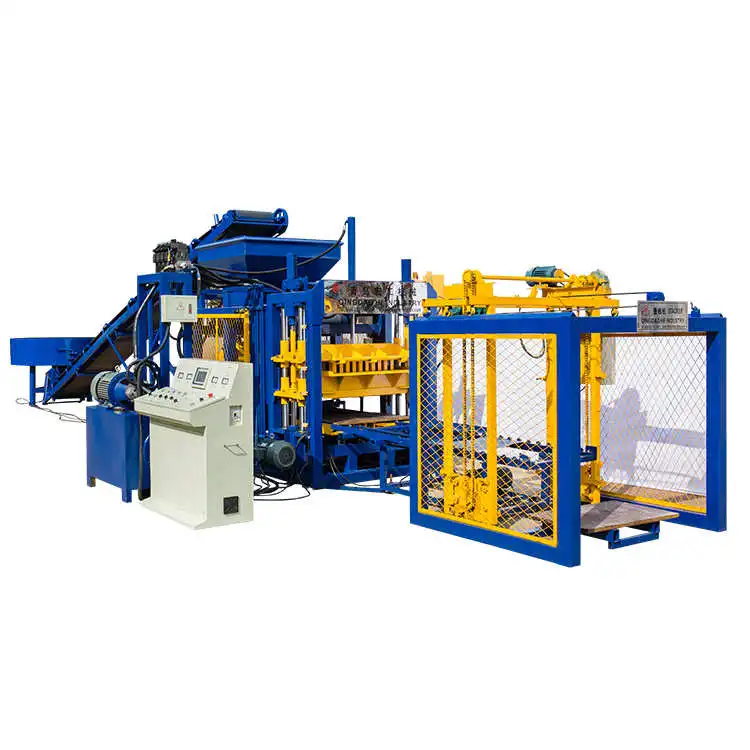

High quality concrete brick machine QT4-16 concrete paving block machine one kind of concrete block making machine in our company . It is mainly used in building , bridges , roads . Can make solid block , hollow block by changing the molds . Very popular in the country which need for construction .The machine's price was also very suitable in this area .
1) Strong structure ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization
5) Apply Famous brand PLC and motors to ensure machine durability

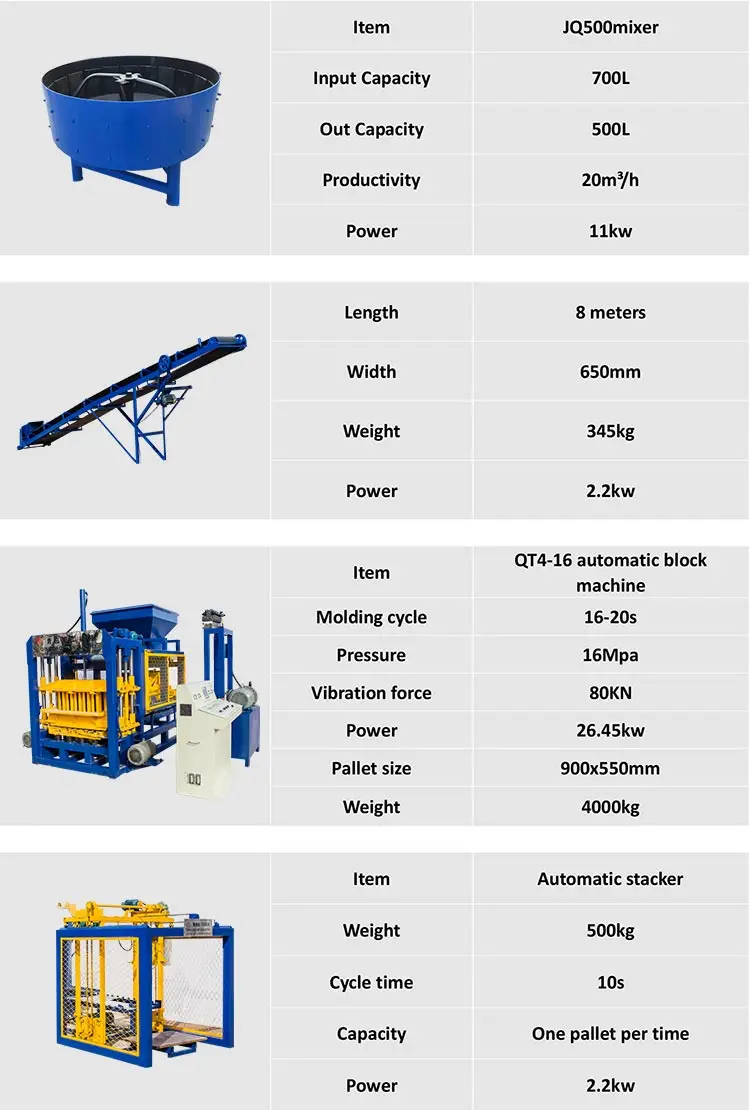

Main Technical Parameters
Model
QT4-16 concrete block making machine

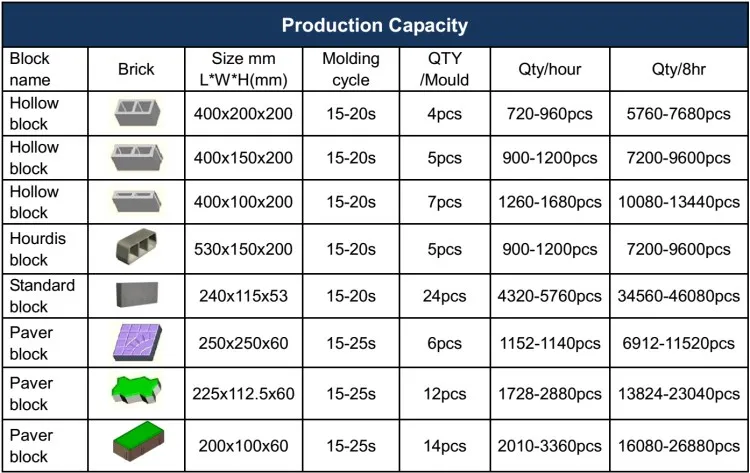

Qty/mould
4pcs/mould (hollow block 400*200*200mm)
Pallet size
900*550mm
Molding cycle
16-20s
Rated pressure
16-20MPa
Main vibration
Platform vibration
Vibration frequency
4600-5200 r/m
Power
26.45Kw
Dimension
7700x1900x2600mm
Host machine weight
4000kgs
Factory Area
1500m2
Raw Materials:
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products:

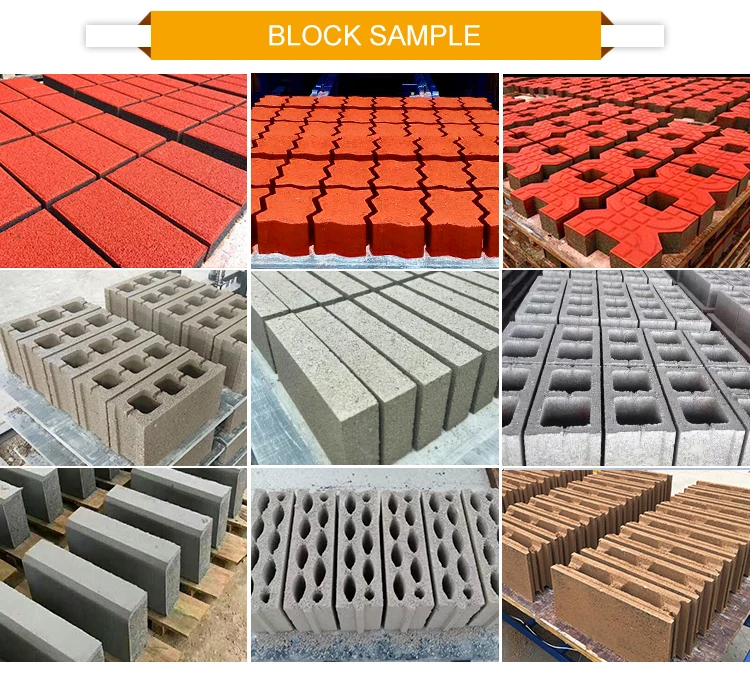

concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.
