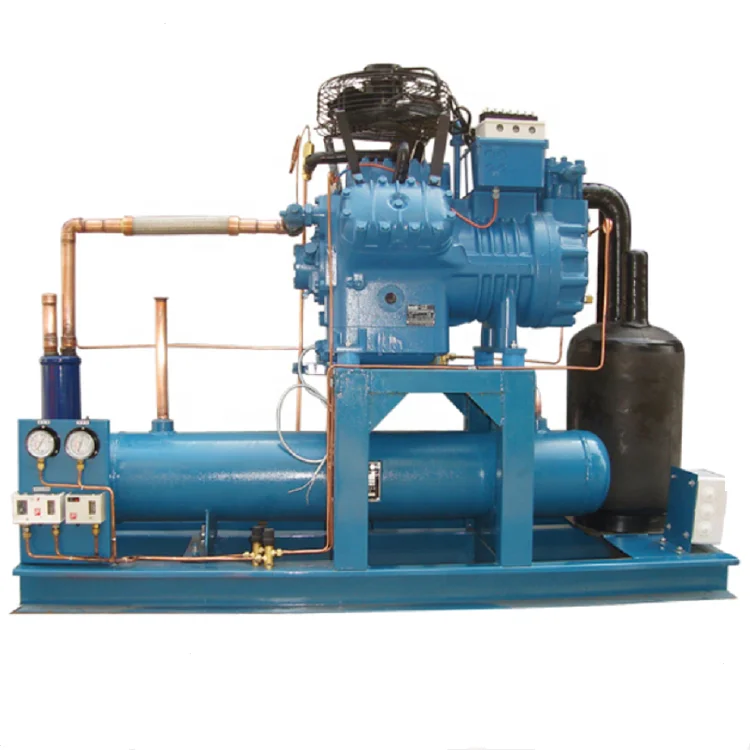

Whole Sale Factory Italy Frascold Compressor Water Cooled Condenser Condensing Unit price
- Category: >>>
- Supplier: Taizhou Chengshun Refrigeration Equipmment Co. Ltd.
Share on (60779906385):
Product Overview
Description
Product Description
Product Application

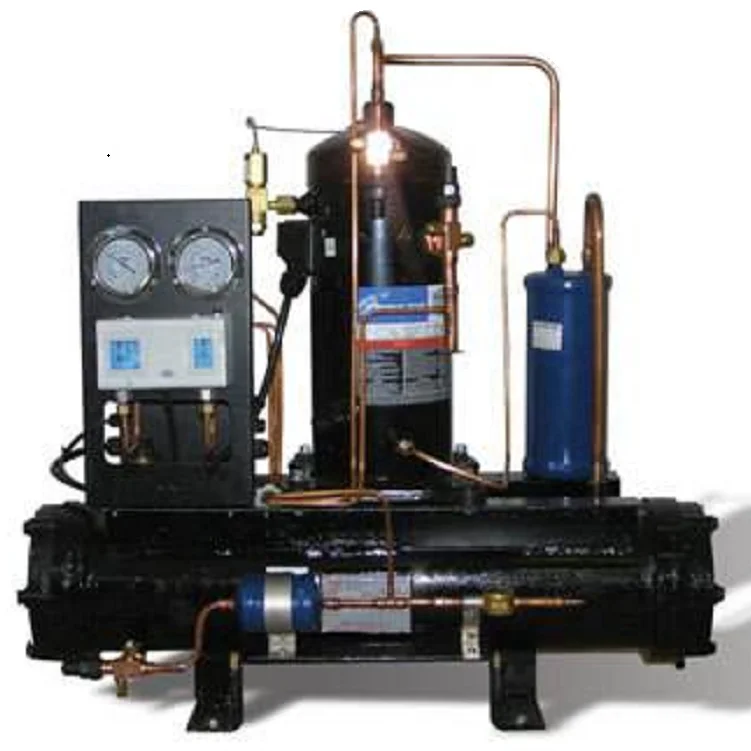

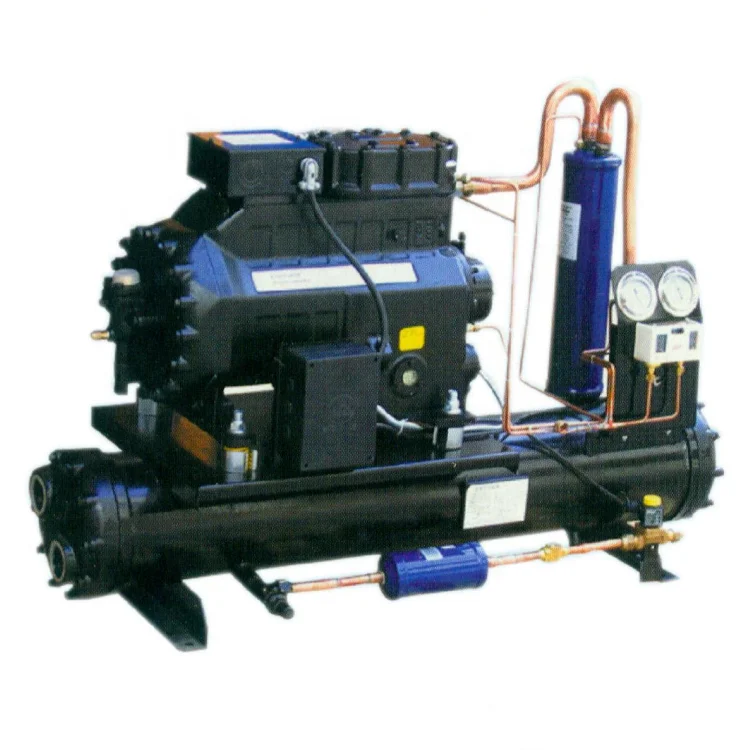

cold room refrigeration water cooled condensing unit Whole Sale Factory Italy Frascold Compressor Water Cooled Condenser Condensing Unit price

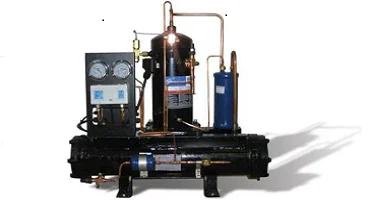

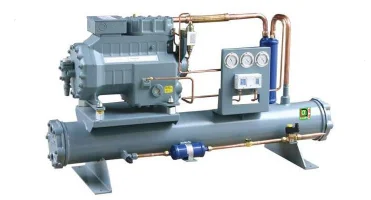

Water cooled refrigeration condensing unit for cold storage room freezer chiller
Model of units | GXW2CQFZ | GXW2CQFZ | GXW2CQFZ | GXW2CQFZ | GXW2CQFZ | |||||||||
Power | 2HP | 3HP | 4HP | 5HP | 6HP | |||||||||
Applicable Temperature °C | +10°C to -18°C | |||||||||||||
Refrigerant | R404A or R134a | |||||||||||||
Power Supply | 220V/380V/50HZ | 380V/50HZ | ||||||||||||
Condenser | Water Cooled Condenser | |||||||||||||
Capacity(W) Compressor Power(W) | Evap. Temp. +5°C | Cooling Capacity | 5270 W | 7910 W | 10450 W | 12250 W | 13400 W | |||||||
Power | 1920 W | 3020 W | 4100 W | 5440 W | 6130 W | |||||||||
Evap. Temp. -5°C | Cooling Capacity | 3750 W | 5100 W | 7000 W | 8850 W | 10100 W | ||||||||
Power | 1990 W | 3100 W | 3900 W | 4700 W | 5820 W | |||||||||
Evap. Temp. -18°C | Cooling Capacity | 2920 W | 4100 W | 5600 W | 7200 W | 8060 W | ||||||||
Power | 1910 W | 2980 W | 3700 W | 4480 W | 5370 W | |||||||||
Coupling Copper Tube | Connect Tube | 3/8" | 3/8" | 1/2" | 1/2" | 1/2" | ||||||||
Connect Tube | 5/8" | 5/8" | 3/4" | 3/4" | 3/4" | |||||||||
Overall Dimensions (mm) | Length(mm) | 970 | 970 | 970 | 970 | 970 | ||||||||
Width (mm) | 410 | 410 | 410 | 410 | 410 | |||||||||
Height(mm) | 835 | 835 | 1330 | 1330 | 1330 | |||||||||
Standard cold room condensing unit includes: Bitzer compressor,Water Cooled condenser,liquid reciever,solenoid valve,pressure gauge,pressure control,dry filter etc. | ||||||||||||||
Notice
1.Ambient temperature:+38°C for cold room water cooled condensing unit
2..Compressor: Frascold Bitzer or Copeland Semi hermetic piston compressor for water cooled condensing unit
FAQ
1.Where is your factory? Jiangsu China Shanghai Sea Port About 3 hours by car from our factory to Shanghai
2.What is leading time? 7 to 10 working days to finish cold room water cooled condensing unit
3.What is min order? 1 Set water cooled condensing unit
4.What is the payment? 30% TT deposit and balance money paid before shipment
5..What is your main product? Cold storage room Bitzer water cooled condensing unit
Certifications
Detailed Images
Machine Parts
Name: High Speed Full Hermetic Fin Making Machine
Brand: SIEMENS
Original: Germany
World famous High Speed full hermetic fin making Machine. it can punch 500 times in one min. fin space is from 2mm to 18mm for air cooled condenser
Main Features
Name: Full Automatic Copper Straight Machine
Brand: Yangduan
Original: China
Domestic famous full Automatic sopper straight machine in one time. straight and cut and elbow in one time in 1 min.
Machine Parts
Name: High speed full automatic punch machine
Brand: Yangduan
Original: China
World famous High Speed full hermetic fin making Machine. it can punch 500 times in one min. fin space is from 2mm to 18mm
Main Features
Name: High Precision Mould
Brand: ZKL50
Original: Japan
Japanese High Precision mould and make aluminum fin space from 2mm to 18mm distance in high speed puching machine.
Our Service
Pre-Sales Service
* Inquiry and Technical support for Bitzer Water Cooled condensing unit
After-Sales Service
* Training how to install Bitzer Water cooled condensing unit and cold room
Packing & Delivery
Packaging | ||
Size | L1000xW900xH1200mm | |
Weight | 115 kg | |
Packaging Details | Cold room Bitzer condensing unit Package is wooden box(Size: L1000xW900xH1200mm). | |
Packaging | ||
Size | L1400xW450xH1100mm | |
Weight | 108 kg | |
Packaging Details | Cold room condensing unit Package is Carton box(Size: L1000xW900xH1200) or pack it according to customers special request. | |
