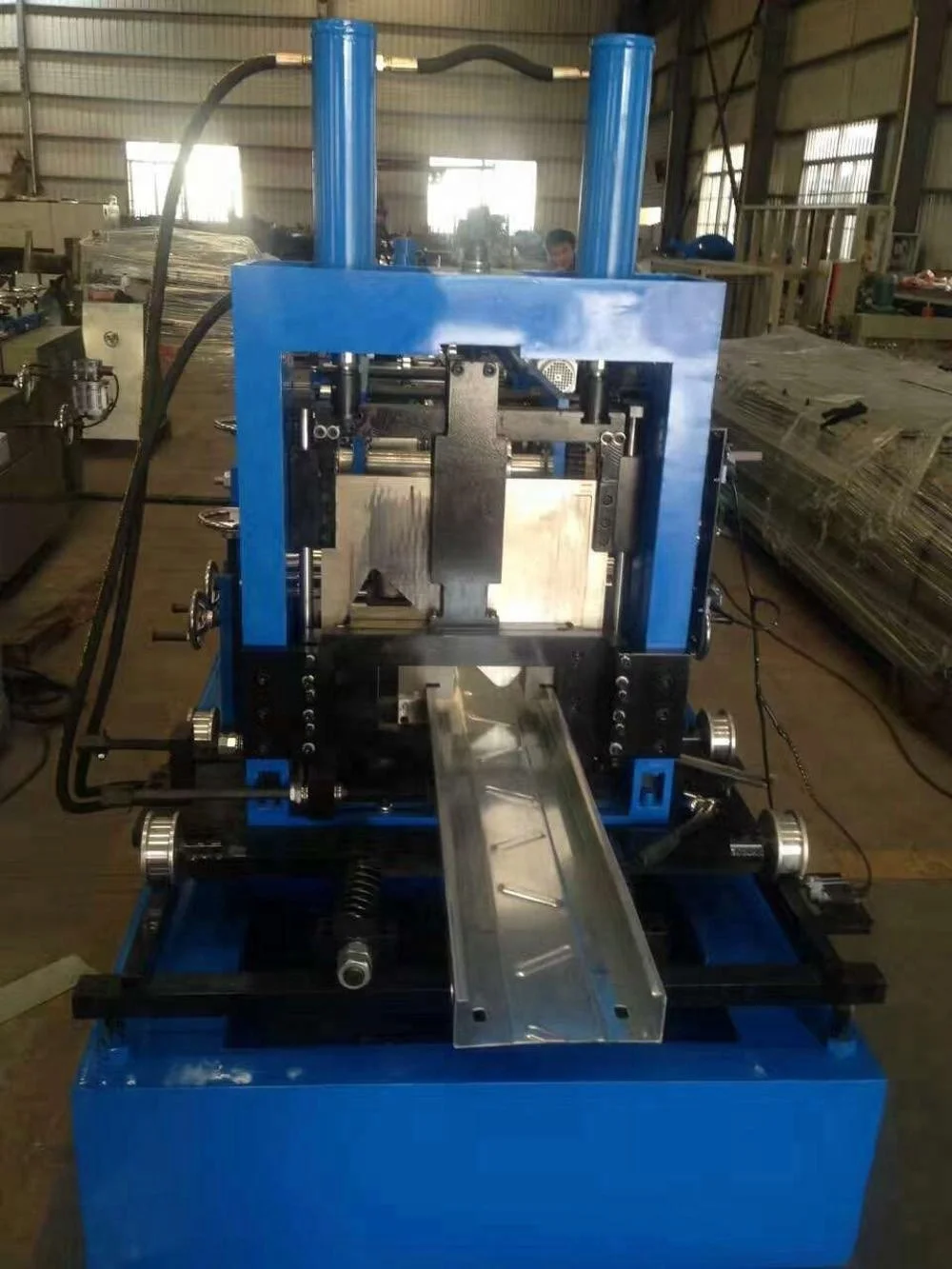

Automatic size changing c purline roll forming machine z purline machine

1. Machine Components

 1) Manual decoiler or hydraulic decoiler which base on customer

 2) Feeding and leveling section

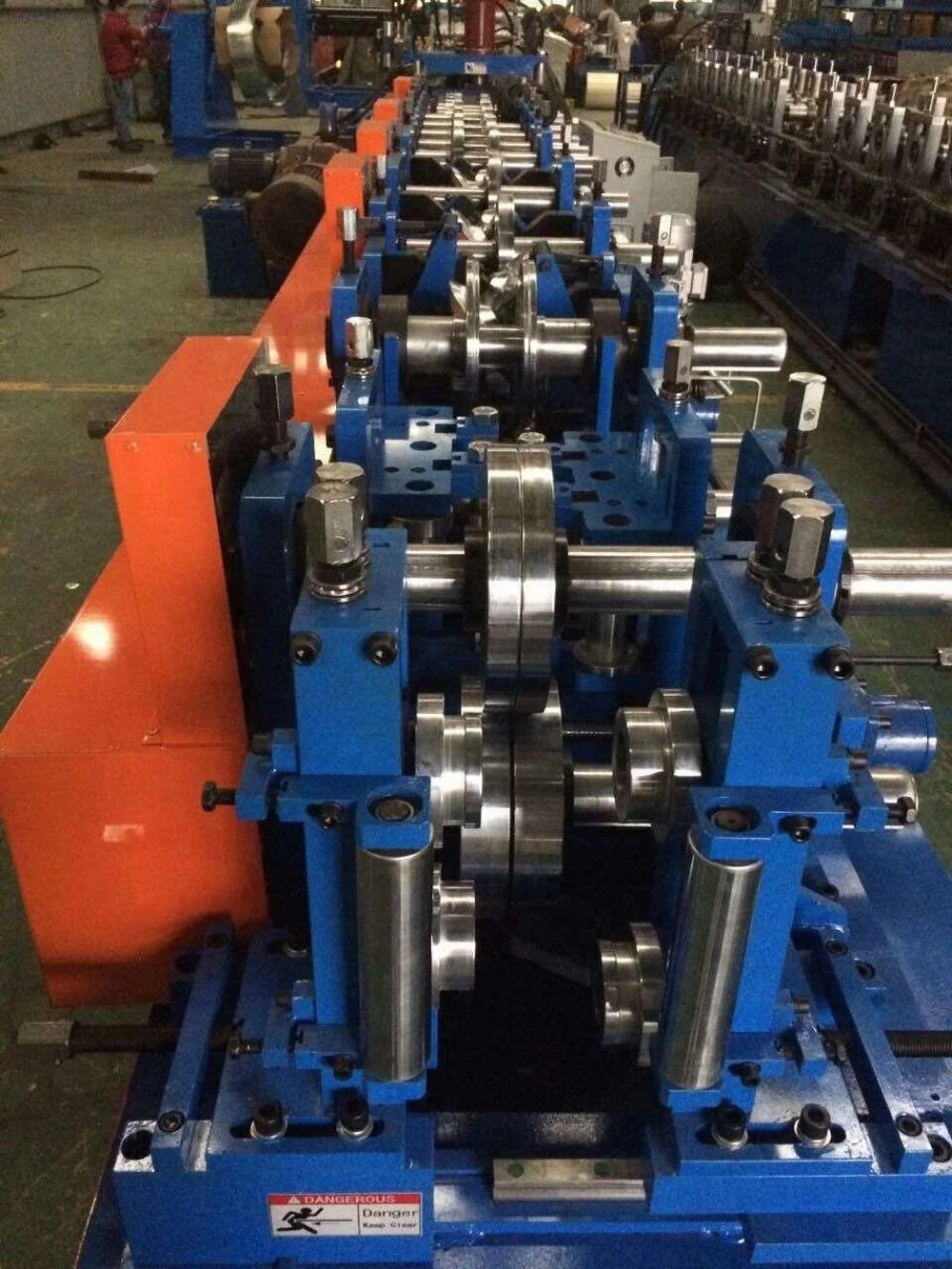

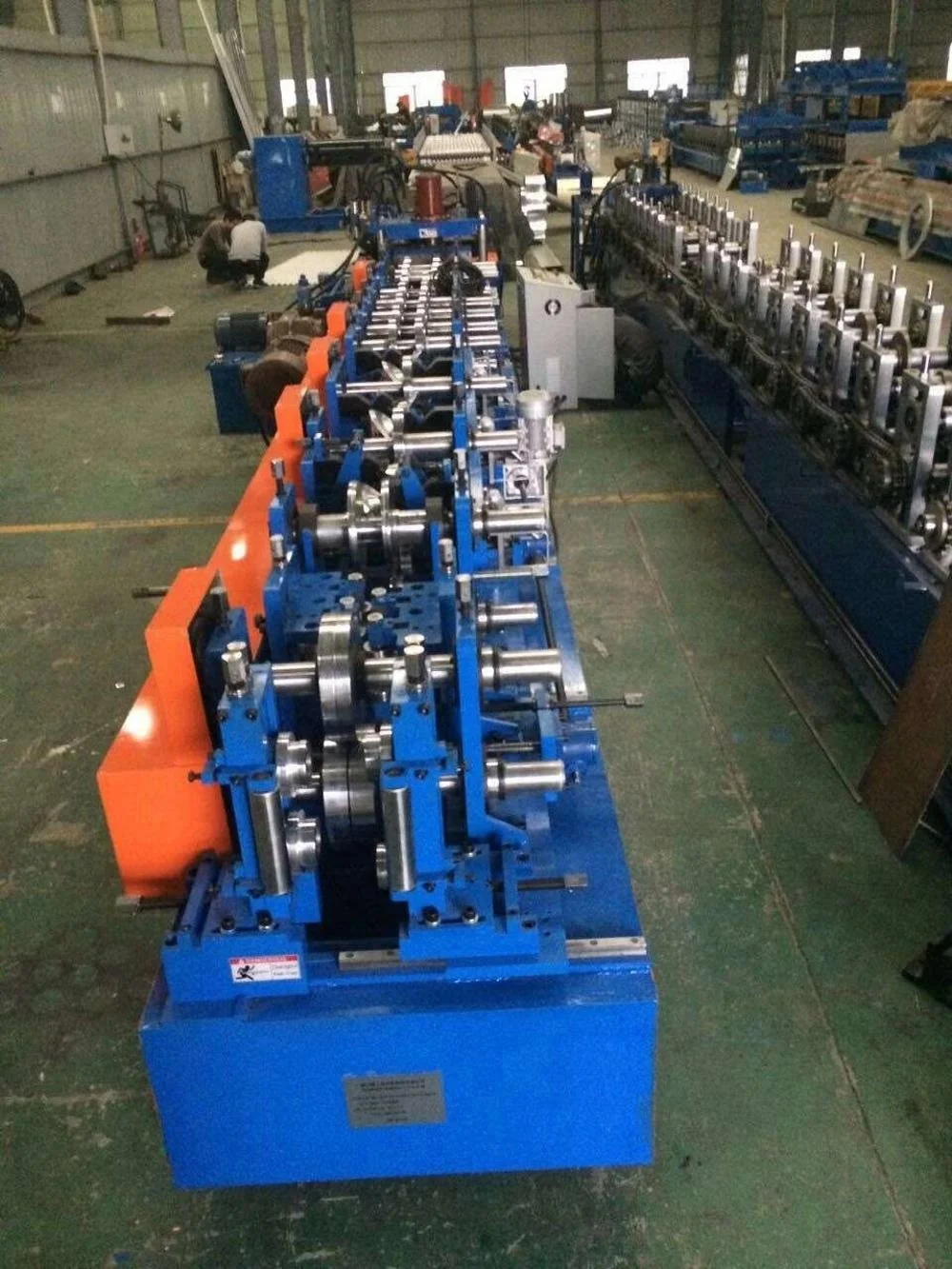

3) Main roll forming system

4) Hydraulic punching and cutting(Pre punching or post punching base on customer)

5) Product support frame

6) PLC Control System

main motor type: phase asynchronous motor(manufacturer: Shanghai Nanyang)

        main motor power: 15kw*2= total 30KW

        speed of forming:15-25m/min

        material of roller : GCr15

        18 groups rollers

        material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming

        diameter of main shaft: ø70mm

punching Type: Hydraulic Punching

        Punching material: Cr12

        Punching die: Cr12

        Cutting type: Hydraulic cutting ,pre or post cutting

        Cutting material: Cr12

        Hydraulic motor power: 5.5KW

       Voltage: 380V, 3 Phase 50Hz or base on customer

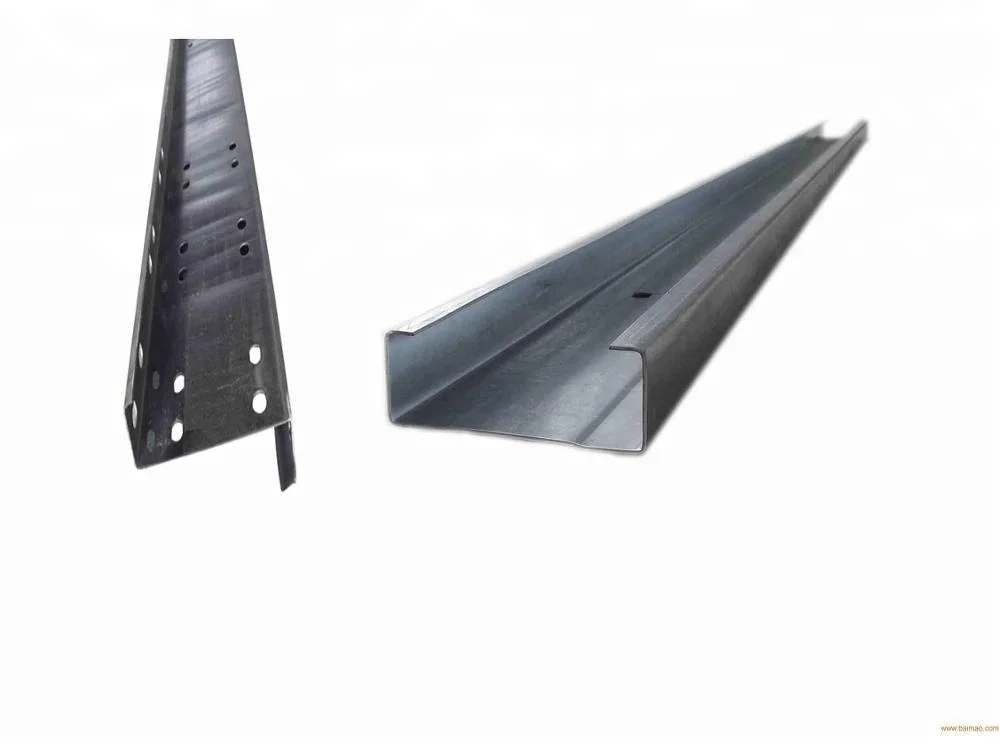

      Automatic change the C Purline to Z Purline  easy to operate,the size of the  C or Z purline which change automatically by PLC
