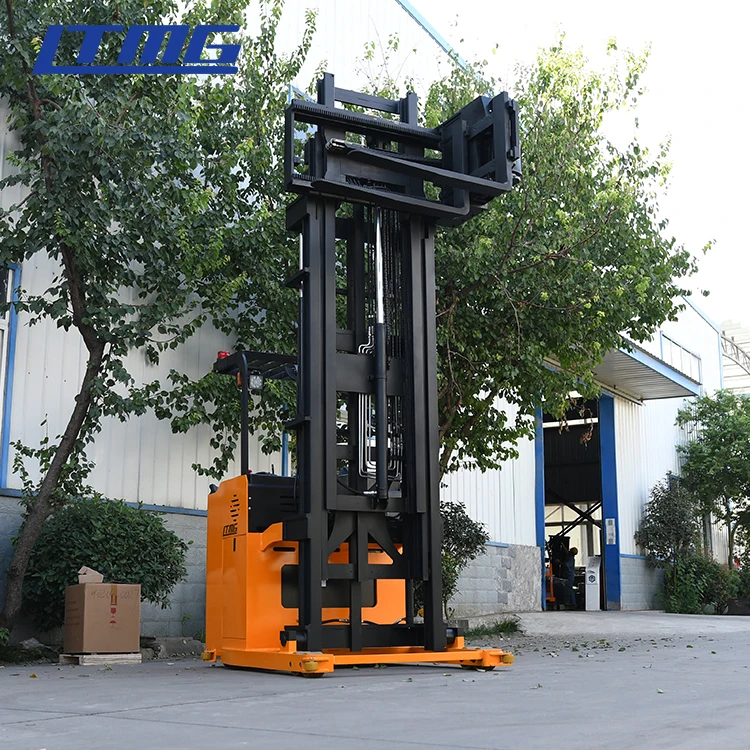

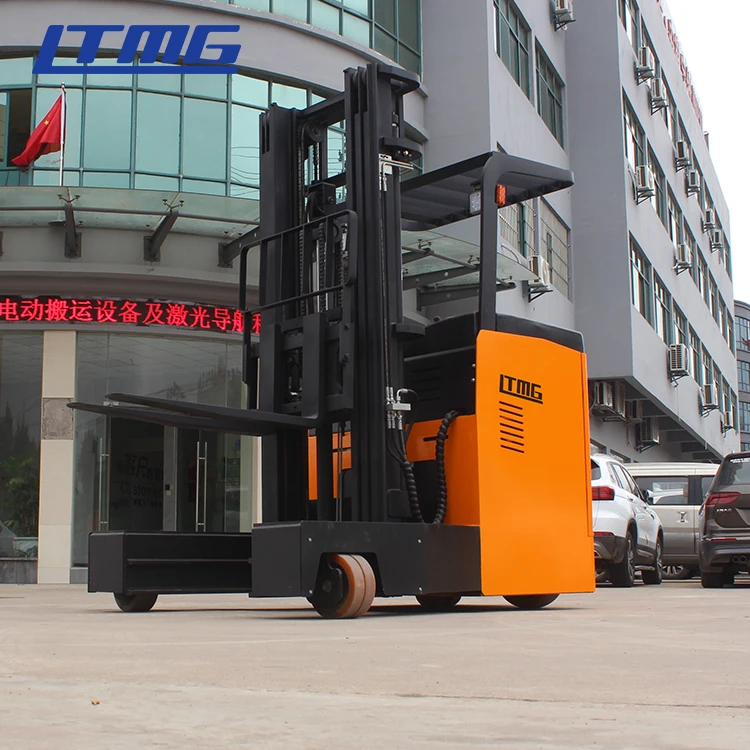

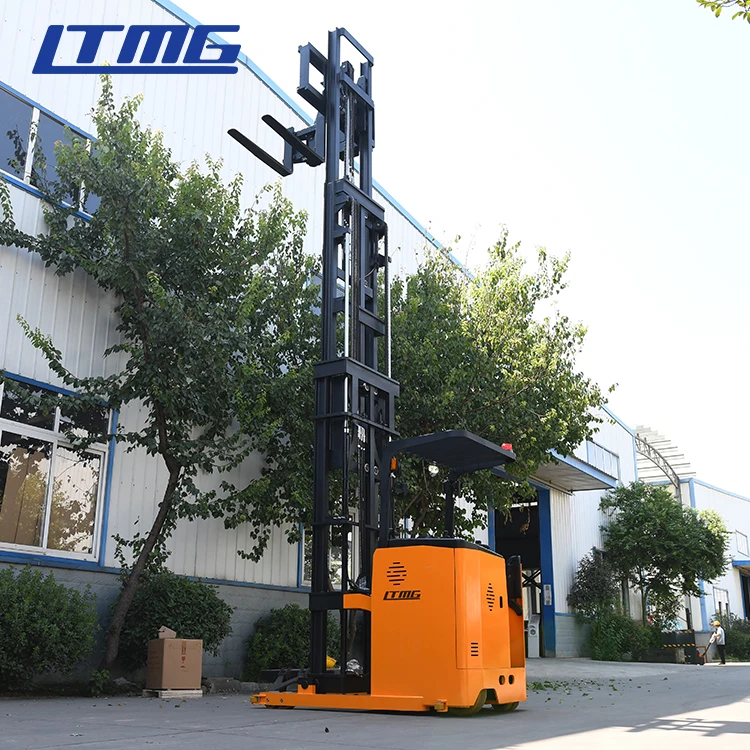

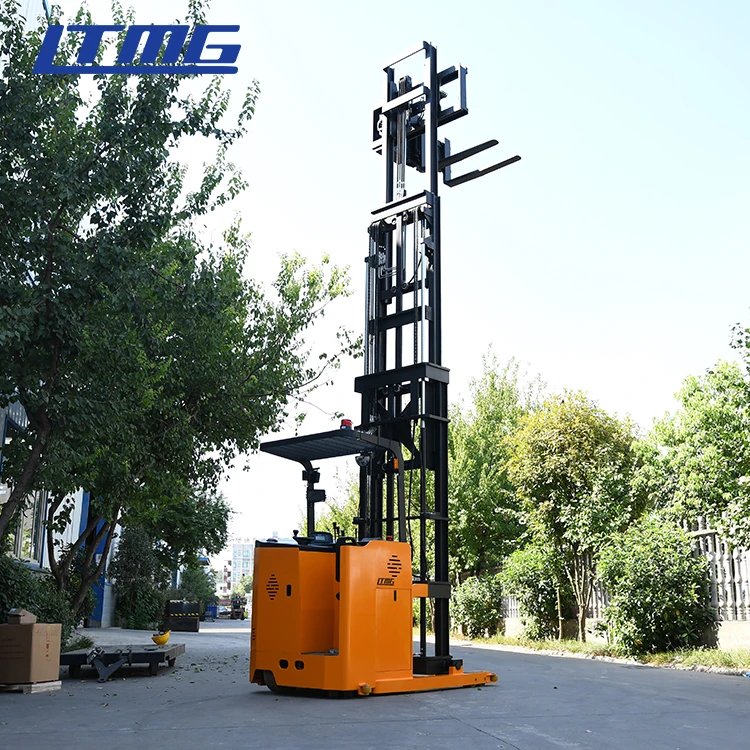

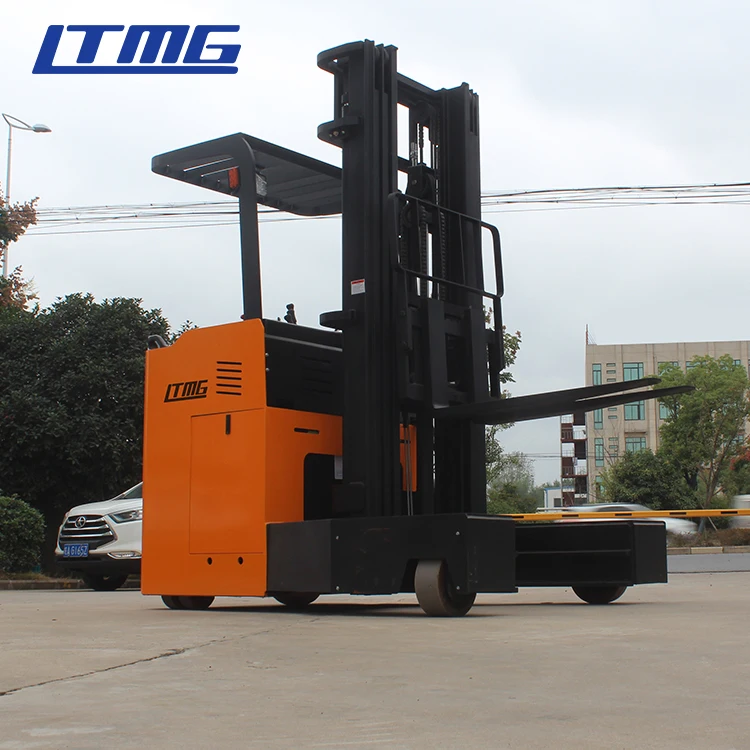

warehouse 3 way stacker 1 ton 1.5 ton seated stand on type electric reach truck forklift with 3m 4m 5m 6m 7m 10m height
warehouse 3 way stacker 1 ton 1.5 ton seated stand on type electric reach truck forklift with 3m 4m 5m 6m 7m 10m height
warehouse 3 way stacker 1 ton 1.5 ton seated stand on type electric reach truck forklift with 3m 4m 5m 6m 7m 10m height
warehouse 3 way stacker 1 ton 1.5 ton seated stand on type electric reach truck forklift with 3m 4m 5m 6m 7m 10m height
warehouse 3 way stacker 1 ton 1.5 ton seated stand on type electric reach truck forklift with 3m 4m 5m 6m 7m 10m height
warehouse 3 way stacker 1 ton 1.5 ton seated stand on type electric reach truck forklift with 3m 4m 5m 6m 7m 10m height
warehouse 3 way stacker 1 ton 1.5 ton seated stand on type electric reach truck forklift with 3m 4m 5m 6m 7m 10m height

warehouse 3 way stacker 1 ton 1.5 ton seated stand on type electric reach truck forklift with 3m 4m 5m 6m 7m 10m height

Share on (60779927670):


Price:$7,268.00

Quantity:


Product Overview

Description

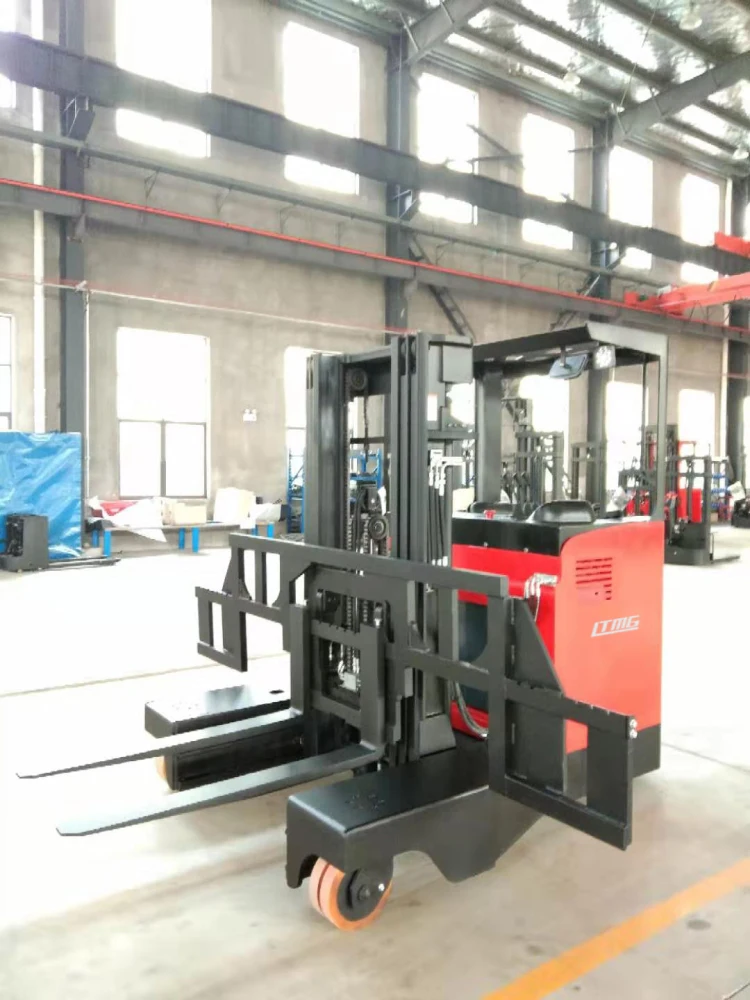

Except above 3 way electric reach truck stacker, we also have 4way or multifunctional reach truck




Model
FRB10
FRB15
FRB20
FRB30
Performance
Load capacity
kg
1000
1500
2000
3000
Load center
Q
mm
500
500
500
500
Maximum lifting height
H3
mm
3000
3000
3000
3000
Reach distance
E
mm
510
510
550
640
Tiltiing angle (forwad/backward)
S
3/5
3/5
3/5
3/5
Travel speed (without load)
km/h
5
5
5
8
Travel speed (with load)
km/h
5
5
5
7
Lifting speed (without load)
mm/s
180
180
180
270
Lifting speed (with load)
mm/s
100
100
100
150
Gradeability (without load )
%
8
8
8
15
Gradeability (with load )
%
5
5
5
8
Self Weight (with battery)
kg
1800
1990
2140
3600
Dimensions
Overall length o(mast no reach)
L
mm
1530
1780
1880
1990
Overall length (without fork)
L1
mm
2100
2350
2410
2520
Overall length (with fork)
L2
mm
2670
2860
2980
3080
Overall width
B
mm
1035
1035
1035
1270
Overhead guard height
mm
2190
2190
2190
2190
Mast lowered height
H1
mm
2200
2200
2200
2085
Max height(mast lifted with backrest)
H2
mm
2650
2650
2650
4050
Wheelbase
Y
mm
1220
1450
1550
1610
Fork length
mm
1070
1070
1070
1070
Fork width
mm
100
100
120
120
Fork lowered height
S
mm
35
35
40
4
Fork ajustable distance
mm
210-716
210-716
250-716
210-830
Ground clearance
mm
55
55
55
55
Turning radius
Wa
mm
1470
1710
1810
1890
Min working aisle (AST)
Asts
mm
2370
2610
2680
2790
Tire
Loading wheel
mm
210*75
210*75
210*75
267*114
Driving wheel
mm
230*75
230*75
230*75
340*130
Caster wheel
mm
130*55
130*55
130*55
130*55
Wheel type
polyurethane
Motor
Drive motor
AC
Rated output
kw
1.5
1.5
1.5
5
Lifting motor
DC
Rated output
kw
3
3
3
6.3
Battery
Voltage
V
24
24
24
48
Volume
AH
270/300
Weight
kg
260/285
486





Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
