24BYJ28 PM Geared reducer Stepper Motor for Robot,5v small micro worm gear reduction step motors dc,stepping motor

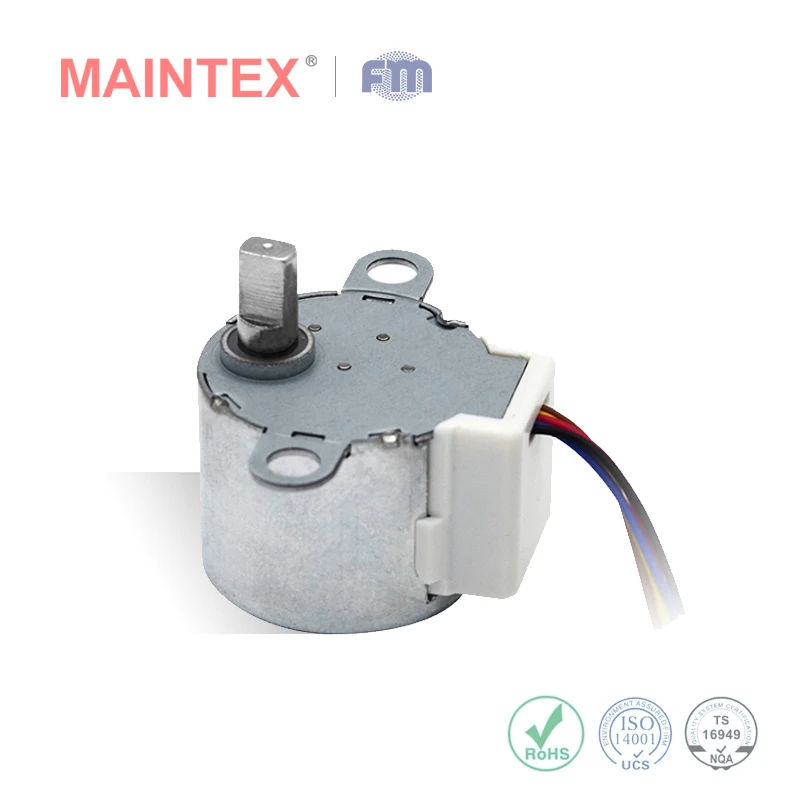

24BYJ48



Model name is 24BYJ48-006B


1.ELECTRICAL CHARACTERISTICS


Voltage: 5.0±10%


Reduction Ration: 1/64


Phase:2


Pull in Torque:.>/=90 mN.m


Step angle:11.25 degree





Pull Out Frequency: 500HZ


Pull in Frequency:400HZ

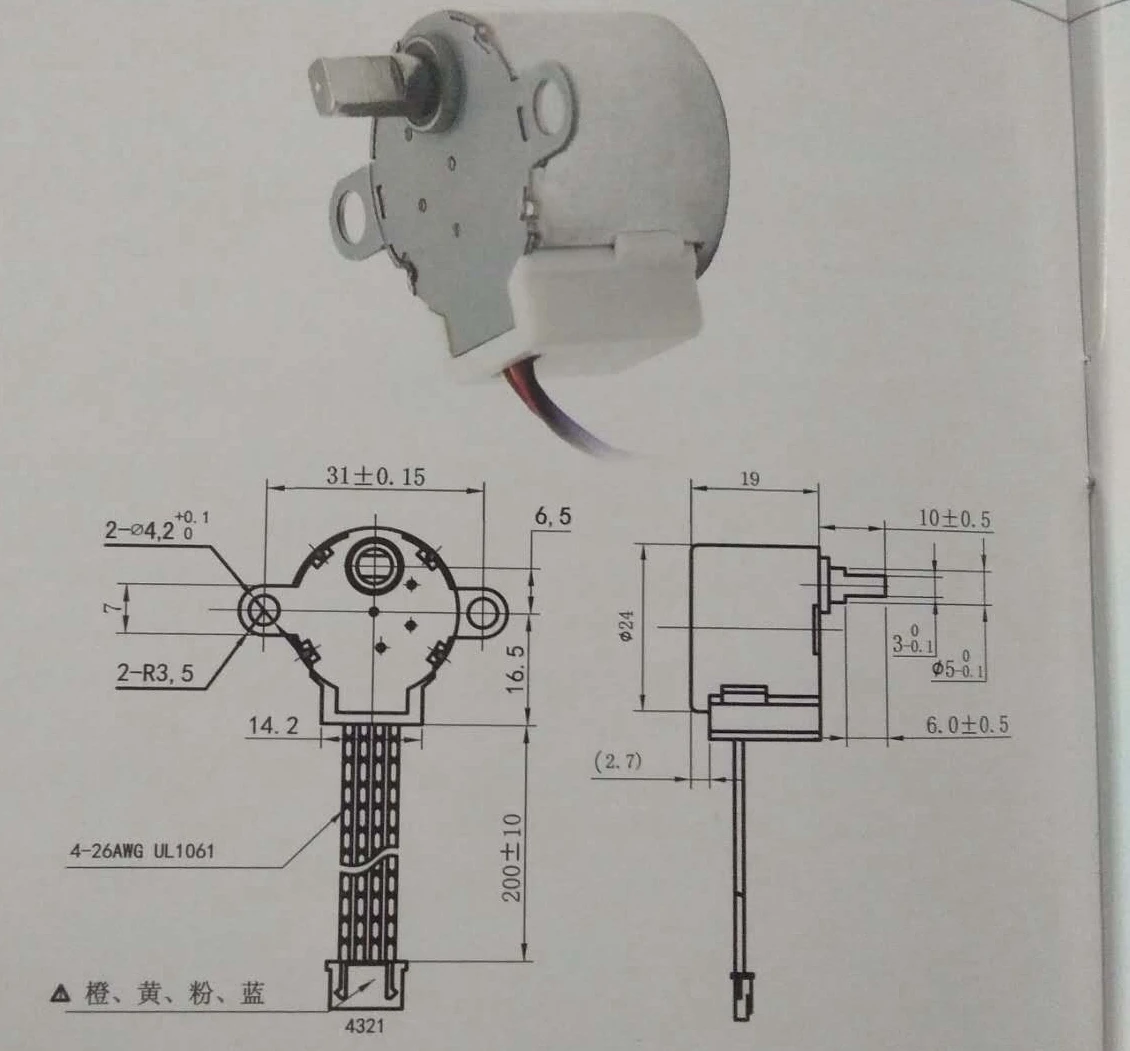

 2.Construction
