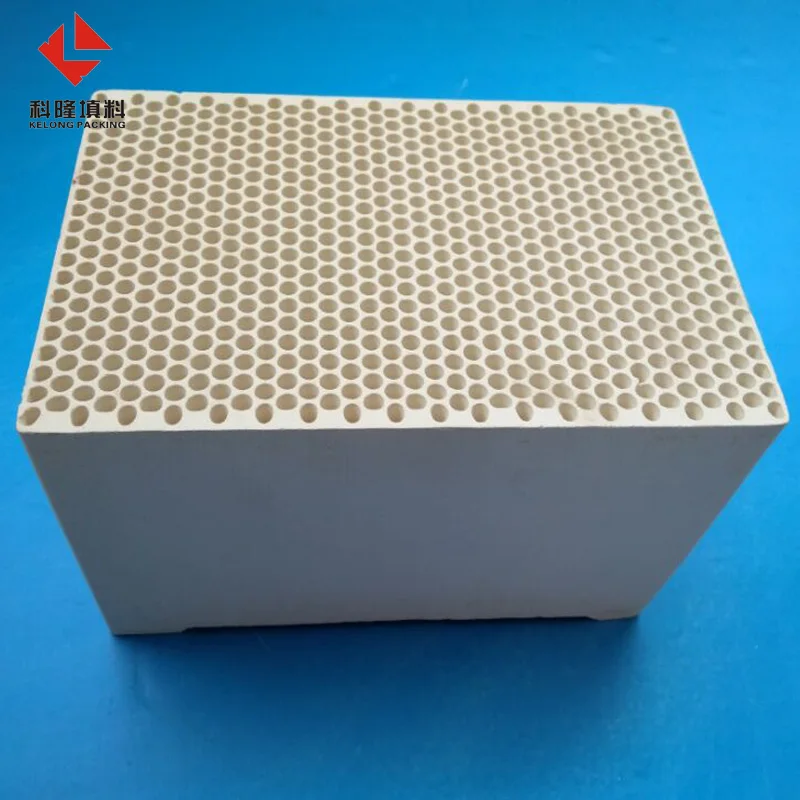

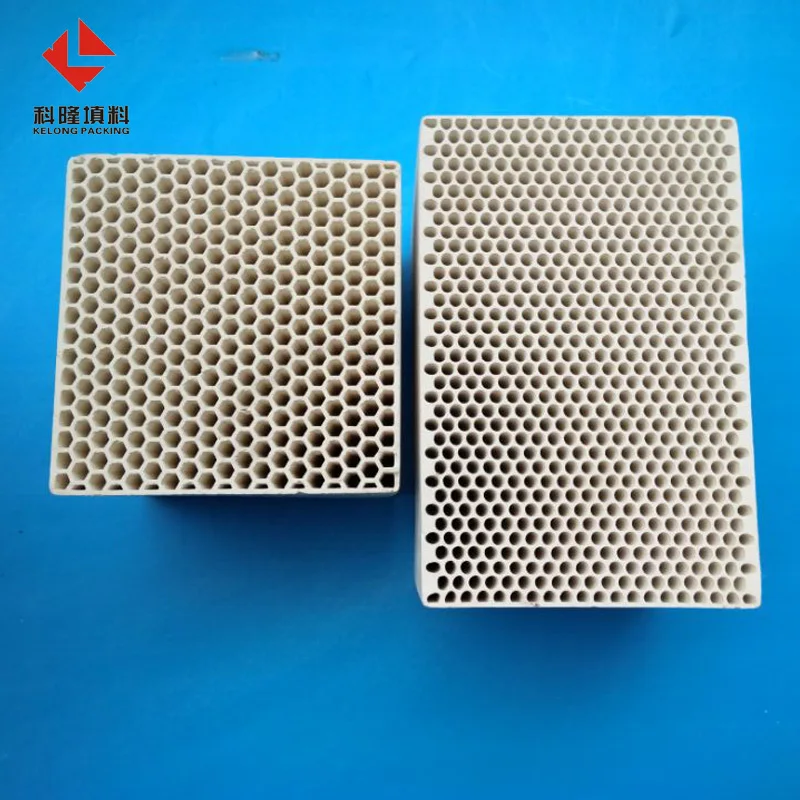

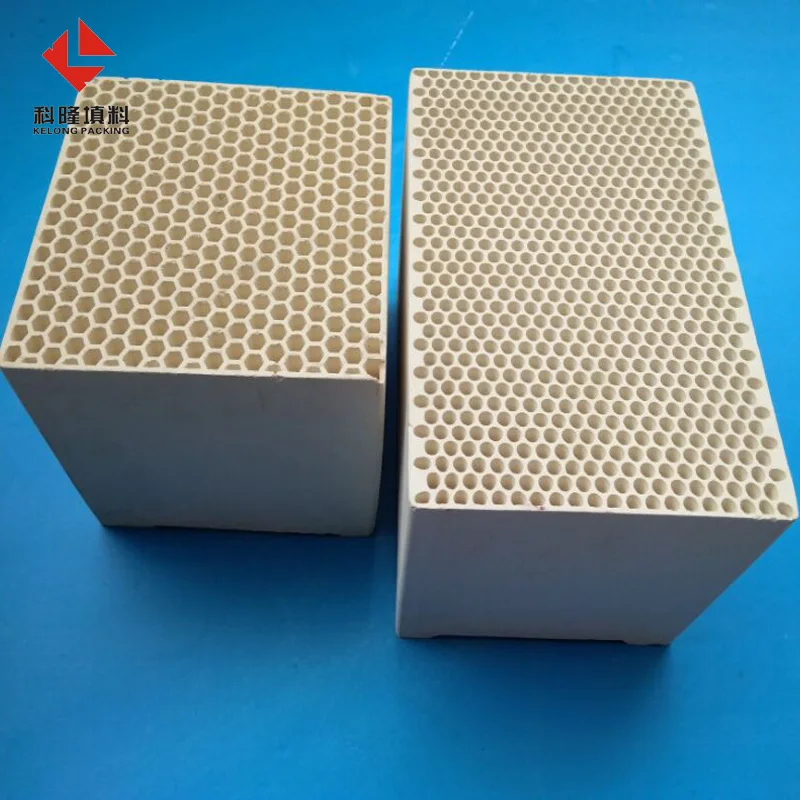

Honeycomb Ceramic For Heat Exchanger

The honeycomb ceramic for heat exchanger is the key part for heat storing HTAC(High Temperature Air Combustion)technology.It has got wide application in many industrial productions(especially it was widely application in RTO/RCO system by domestic market and global market).Our company has produced more than 10 types of honeycomb ceramic heat storage substrate accoring to the USA and european series of honeycomb ceramic materials.It has advantages such as large surface area, large void ratio,low pressure,high temperature resistance,stable chemical function,light weight,small coefficient of thermal expansion,fast heat transfer and so on.


Application: high temperature heat accumulation and exchange in industrial waste gas treatment for metallurgical ,chemical and construction material idustries.


Material: high alumina procelain,loose cordierite,mullite-cordierite,alumina procelain,corundum/Mullite etc.

Physical Properities and Chemical Compositions:
\t
Item/Material
\t
High Alumina
\t
Loose Cordierite
\t
Mullite-Cordierite
\t
Alumina Procelain
\t
Corundum
\t
Mullite
\t
Bulk Density(g/cm3)
\t
2.3-2.6
\t
1.8-2.3
\t
2.0-2.46
\t
1.68-2.25
\t
1.0-1.15
\t
0.95-1.05
\t
Coefficient of thermal
 expansion
 (10-6K-1)   (20~1000℃)
\t

6-7.5
\t

2-4
\t

5-6.9
\t

4.5-5.9
\t

4.5-5.2
\t

4.2-5.0
\t
Specific capacity(J/Kg.K)
\t
900-1200
\t
860-1000
\t
860-1000
\t
860-1200
\t
1000-1300
\t
850-1050
\t
Thermal Conductivity
 (W/M.k)
\t
1.8-3
\t
1.5-2.5
\t
1.8-2.8
\t
1.5-2.7
\t
>1
\t
>1
\t
Softening Tem.(℃)
\t
1400
\t
1400
\t
1400
\t
1400
\t
/
\t
/
\t
Max. Working Tem.(℃)
\t
1350
\t
1350
\t
1350
\t
1350
\t
1600
\t
1500
\t



Chemical
composition
(%)
\t
SiO2
\t
16-20
\t
39-42
\t
26-28
\t
32-37
\t
29±1.0
\t
38±1.0
\t
Al2O3
\t
70-74
\t
48-53
\t
61-68
\t
53-58
\t
70±1.0
\t
60±1.0
\t
MgO
\t
<1
\t
7-8
\t
2-4
\t
3-4
\t
a little
\t
a little
\t
Fe2O3
\t
<1.5
\t
<1
\t
<1.15
\t
<1.15
\t


<2.0
\t


<3.0
\t
TiO2
\t
<4
\t
<1.9
\t
<3.0
\t
<3.0
\t
K2O+Na2O+CaO
\t
<2-3
\t
<2
\t
<2.5
\t
<2.5

Technical Date:

\t

Dimension
\t
Quantity of
channels
\t
Wall
thickness
\t
Width of Channel
\t
Surface area
\t
Open area
\t
n
\t
mm
\t
mm
\t
m2/m3
\t
%
\t
150×150×300
\t
25x25
\t
1.0
\t
4.95
\t
580
\t
68
\t
150×150×300
\t
32x32
\t
1.0
\t
3.65
\t
695
\t
61
\t
150×150×300
\t
40x40
\t
0.6
\t
3.05
\t
891
\t
65
\t
150×150×300
\t
43x43
\t
0.6
\t
2.76
\t
940
\t
63
\t
150×150×300
\t
50x50
\t
0.55
\t
2.38
\t
1090
\t
63
\t

Dimension
\t
Weight/pcs (Kg)
\t
High Alumina
\t
Loose Cordierite
\t
Mullite-Cordierite
\t
Alumina Procelain
\t
150×150×300
\t
4.5
\t
4
\t
4.4
\t
4.2
\t
150×150×300
\t
4.9
\t
4.2
\t
4.69
\t
4.55
\t
150×150×300
\t
5.3
\t
4.35
\t
5
\t
4.75
\t
150×150×300
\t
5.6
\t
4.4
\t
5.1
\t
5.08
\t
150×150×300
\t
5.8
\t
4.46
\t
5.4
\t
5.15
